Removing and Replacing Parts: Dell™ Inspiron™

5000 Series

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

Overview LCD Removal

Precautionary Measures Video Board Removal

Recommended Tools Diskette Drive Removal

Customer-Accessible

Components Palmrest Removal

Screw Counts and Locations Speaker and Volume Board

Removal

ZIF Connectors Support Rail Removal

Modem Removal Infrared Board Removal

Hinge Cover Removal System Board Removal

Keyboard Removal 14.1-Inch XGA Display

Disassembly

Thermal Shield Removal 15-Inch UXGA, XGA, and

SXGA+ Display Disassembly

Processor Module Removal

Overview

Unless otherwise noted, each procedure assumes the following:

You have the recommended tools.

●

You have performed the steps in Precautionary Measures.●

The computer and any attached peripherals are turned off and the peripherals are disconnected from the input/output

(I/O) panel.

●

You can replace or reinstall a part by performing the removal procedure in reverse order unless additional information

is provided.

●

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (1 of 29) [9/1/2000 3:31:59 PM]

Precautionary Measures

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

WARNING: FOR YOUR PERSONAL SAFETY AND

PROTECTION OF THE EQUIPMENT:

Before you start to work on the computer, perform the following steps in the

sequence indicated:

Ground yourself by attaching an antistatic grounding strap to your wrist

and to an unpainted metal surface on the computer I/O panel. If an

antistatic grounding strap is not available, periodically discharge static

electricity from your body by touching one of the connectors on the I/O

panel.

Turn off the computer and any attached peripherals.2.

Disconnect the computer and any attached peripherals from electrical

outlets to reduce the potential for personal injury or shock.

Recommended Tools

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

Most of the procedures require the use of one or more of the following tools:

Small flat-blade screwdriver

●

Number 1 Phillips-head screwdriver●

Antistatic grounding strap●

Dental pick●

Small scribe or nylon flat blade●

Nut drivers (5 mm and 5.5 mm)●

Be careful not to scratch the computer plastic case by allowing screws to get between the work surface and the plastic case.

Dell suggests a soft padded work surface.

NOTICE: The correct-length screw must be used when reinstalling a screw.

Otherwise, hardware damage could result. Make sure that the screw is

properly aligned with its corresponding hole, and avoid excessive tightening.

NOTICE: During the removal and replacement procedures, you will see

Kapton tape (grounding tape) in many places on the computer. When

reinstalling or replacing parts, be sure to replace the Kapton tape correctly

to retain the electrical protection and noise reduction the tape provides.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (2 of 29) [9/1/2000 3:31:59 PM]

Customer-Accessible Components

NOTICE: The steps in this section may be performed by customers.

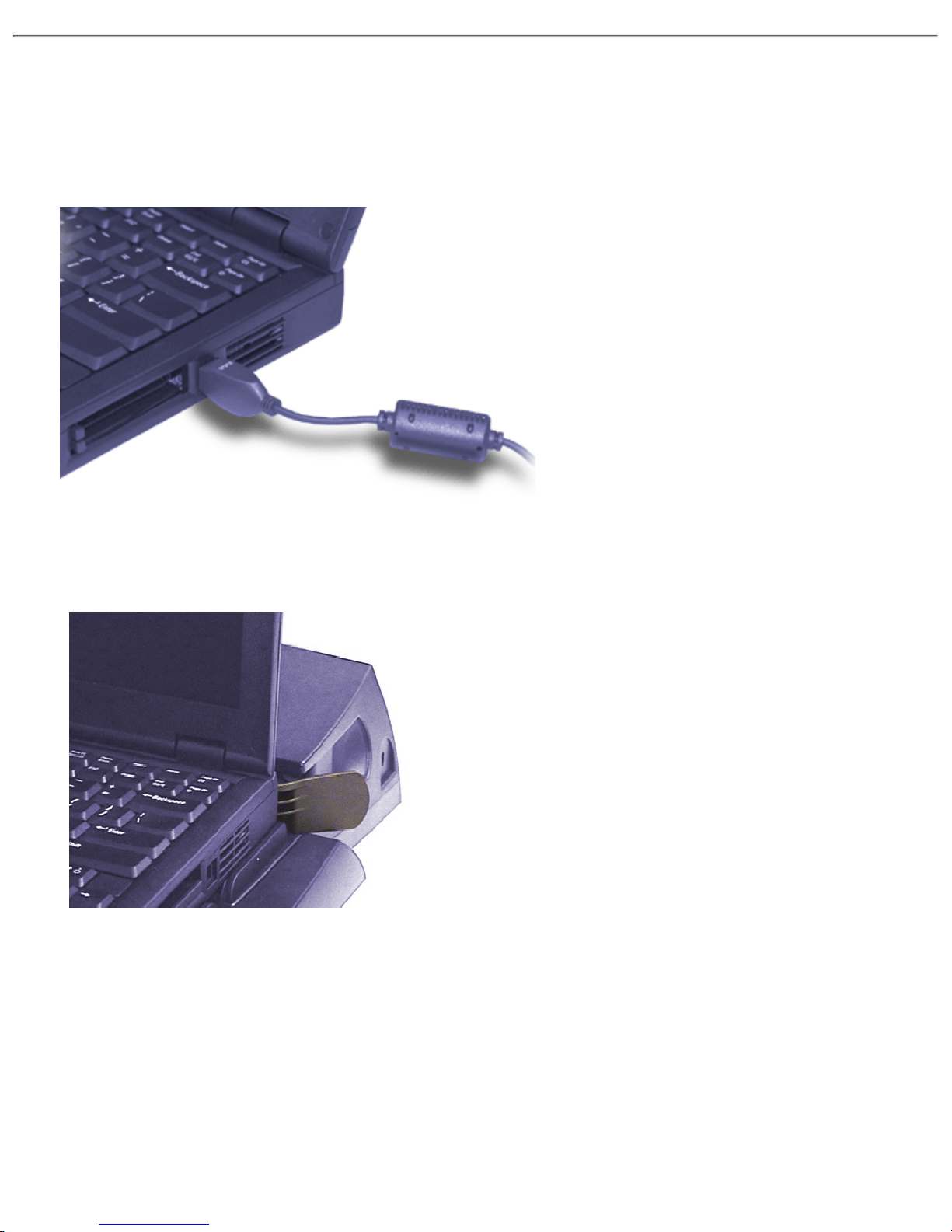

Disconnect the AC adapter cable from the computer.1.

If the computer is connected to a port replicator, pull both release handles on the sides of the replicator to undock the

computer.

Remove the battery from the battery bay:

Close the display and turn the computer upside-down..

Slide and hold the battery bay latch away from the battery.

The battery bay latch is located between the battery bay and the media bay.

Pull the battery out of the bay.c.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (3 of 29) [9/1/2000 3:31:59 PM]

NOTICE: Use the PC Card configuration utility on the taskbar to select and

stop a card before removing it from the computer. If you do not remove the

card in the configuration utility, you could lose data from open application

programs.

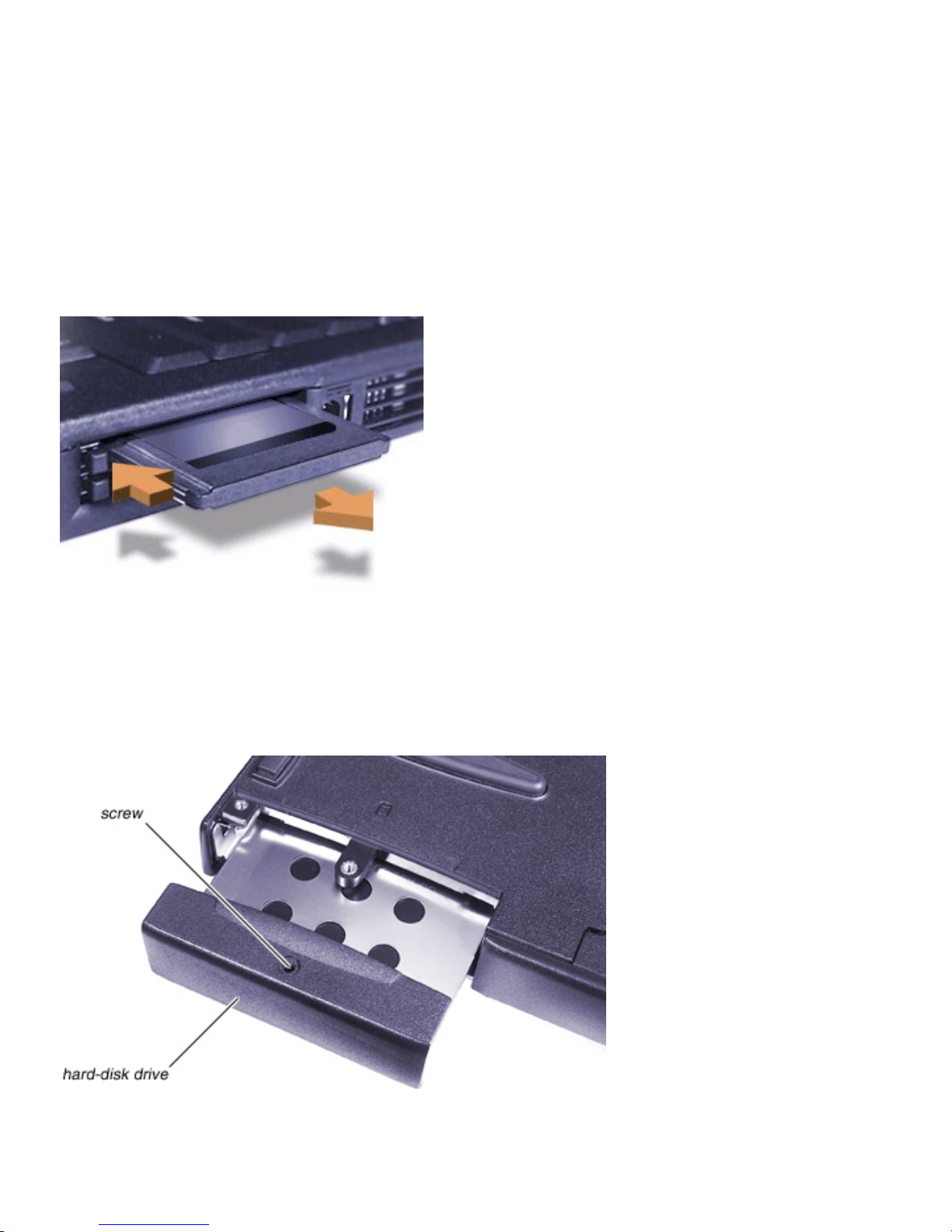

Remove any PC Cards:

Press the eject button..

When the button slides out, press it again to release the card.b.

Gently remove the card.c.

Press the eject button once more until it is flush with the computer casing.d.

Remove the hard-disk drive assembly:

Turn the computer upside-down..

Remove the screw securing the hard-disk drive cover.b.

Pull the hard-disk drive carrier out of the computer.c.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (4 of 29) [9/1/2000 3:31:59 PM]

NOTICE: When the hard-disk drive is not in the computer, store it in a

hard-disk drive case or protective wrapping to protect it from exposure to

static electricity.

NOTICE: Handle the hard-disk drive gently; do not bump or drop the drive.

Rough handling of the drive could induce failure or loss of data.

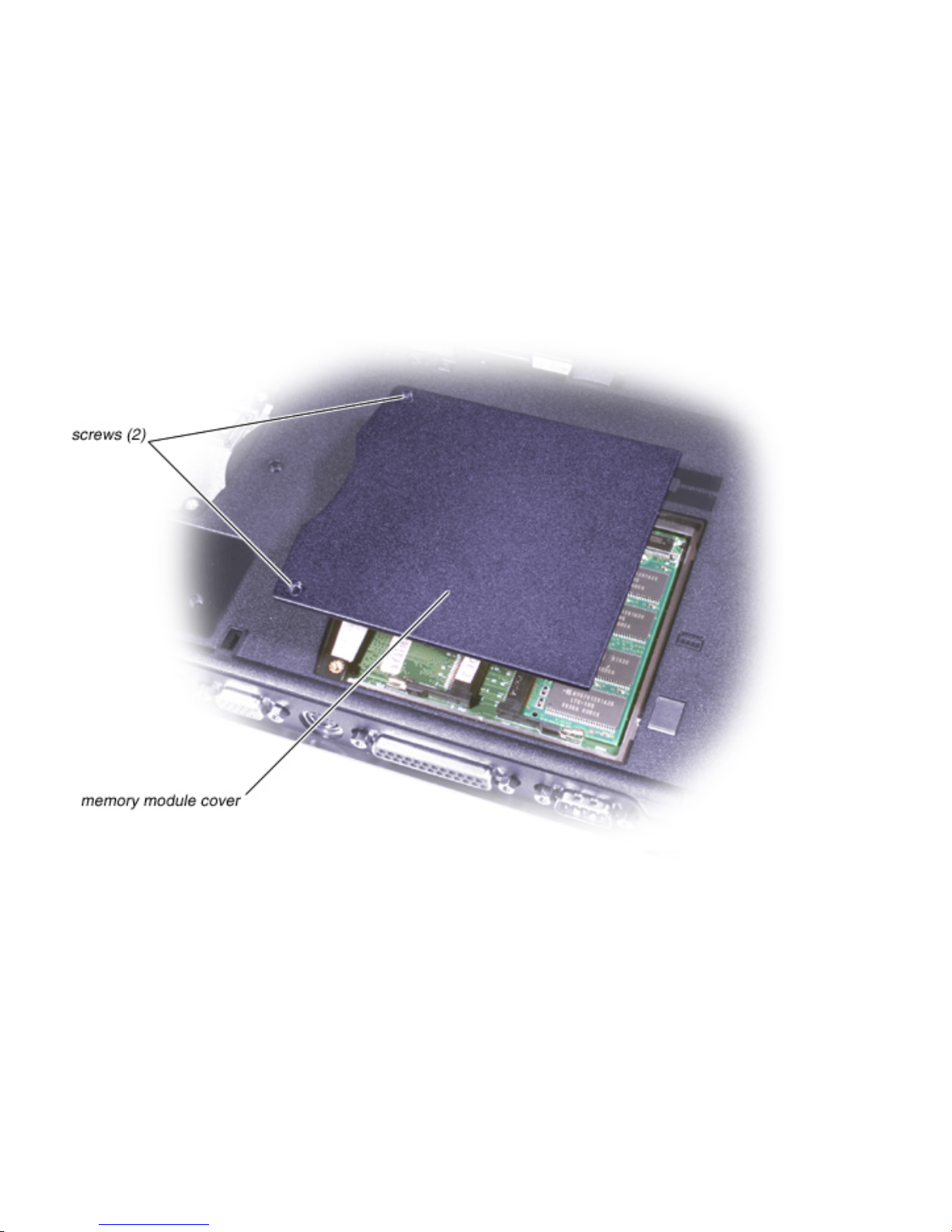

Remove the memory module cover:

Turn the computer upside-down..

Remove the two screws from the memory module cover (the larger cover).b.

Slide the memory module cover as far as it will go towards the middle of the computer, and then remove the

cover.

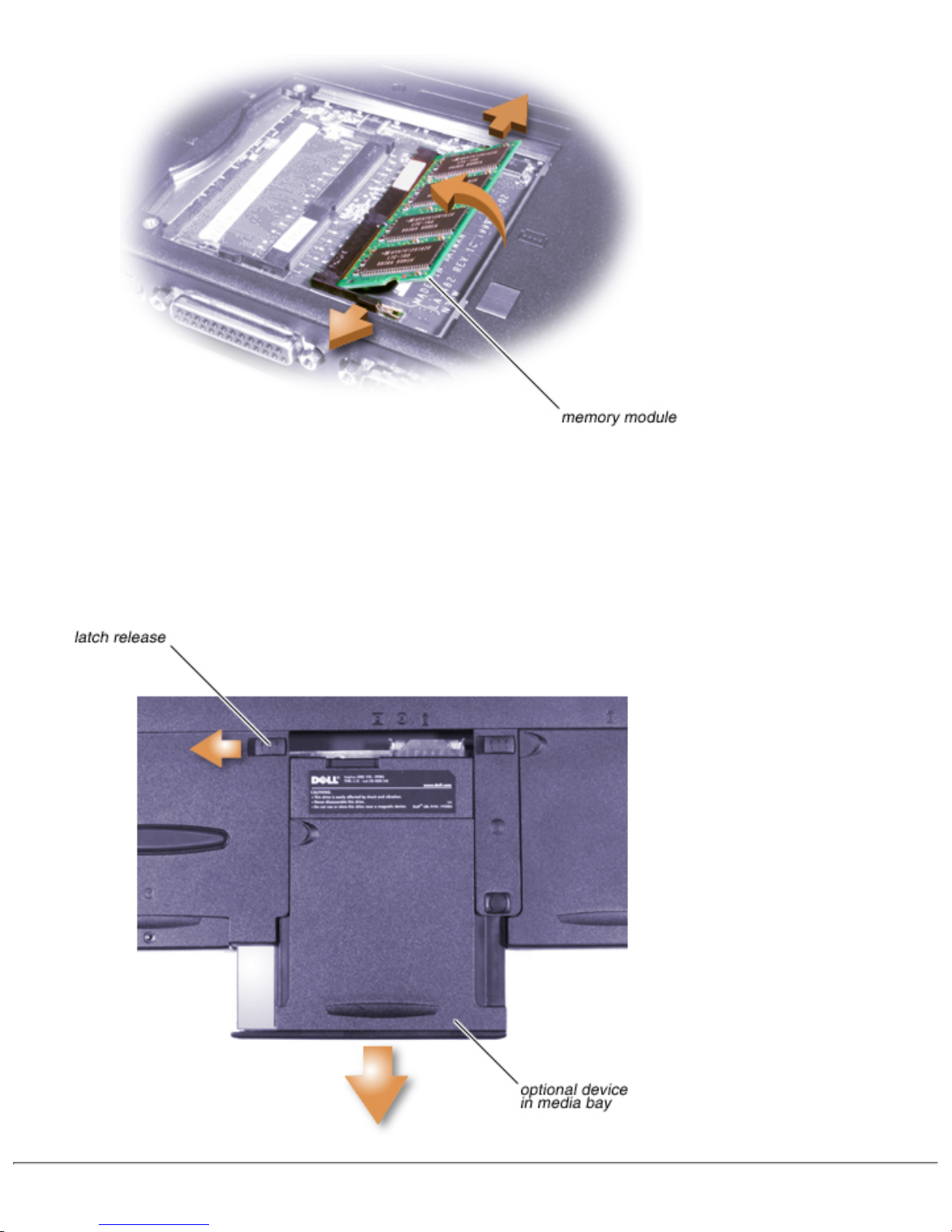

Remove the memory modules:

Push the release tabs on either side of the memory module away from the module..

The module will pop up at an angle.b.

Pull the module from its socket.c.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (5 of 29) [9/1/2000 3:31:59 PM]

Remove the device from the media bay:

Close the display and turn the computer upside-down..

Slide and hold the latch release away from the media bay device.b.

Pull the device out of the media bay.c.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (6 of 29) [9/1/2000 3:31:59 PM]

Screw Counts and Locations

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

You may find it helpful to print the following table to use for keeping the screws organized as you disassemble the computer.

The table lists the components from right to left in the order that they are to be removed from the computer.

Hard-Disk Drive

Memory

Modem

Hinge Covers

(piece across top of keyboard)

Keyboard

2 (from top)

Thermal Shield

4 (silver) for Inspiron 5000

5 (silver) for Inspiron 5000e

(Remove the

diskette-drive-cable retaining

bracket before removing the

thermal shield.)

Processor Module

3 for Inspiron 5000

2 for Inspiron 5000e

LCD Hinges

4 (2 per hinge)

Video Board

1 (silver)

Diskette Drive

2 (bottom of system)

Palmrest

3 (from the top)

4 (bottom of media bay)

5 (bottom of battery bay)

3 (bottom of hard-disk drive

bay)

5 (deep wells in base)

Speakers and Volume Board

9 (do not unscrew the

speakers)

(including both speakers and

the volume board)

Support Rail

7 (back of computer)

4 (through top of support rail)

(including the fan and the

plastic strip)

Infrared Board

No screws

System Board

2 (serial port nuts)

2 (parallel port nuts)

2 (VGA port nuts)

2 (APR/PPR port nuts)

2 (screws into base)

15-Inch Display LCD Bezel

15-Inch Display LCD Panel

8 (4 per side)

15-Inch Display LCD

Locking Tabs

4 (2 each)

14.1-Inch Display LCD Bezel

14.1-Inch Display LCD

Panel

6 (3 per side)

14.1-Inch Display LCD

Locking Tabs

4 (2 each)

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (7 of 29) [9/1/2000 3:31:59 PM]

LED/Inverter Board

ZIF Connectors

NOTICE: ZIF connectors are fragile. To avoid breaking the connectors,

touch them carefully. Do not apply too much pressure to the movable part of

the connector when opening or closing it.

Some of the interface connectors are zero insertion force (ZIF) connectors. These connectors are not removable; they must be

released to disconnect a cable from them.

To disconnect a cable from a ZIF connector, perform the following steps:

Insert a small flat-blade screwdriver, dental pick, or fingernail under the movable part of the connector.1.

Pull up gently on the movable part of the connector until the cable is released.

Some ZIF connectors may need to be lifted in the center.

Grasp the cable and pull it out of the connector.3.

To reconnect an interface cable to a ZIF connector, perform the following steps:

Open the ZIF connector.1.

Insert the end of the cable into the connector.2.

While holding the cable in place, close the ZIF connector.

To ensure a firm connection, make sure the ZIF connector is completely closed.

Modem Removal

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

Ensure that all precautionary measures have been followed and that all customer-accessible parts are removed.

Remove the modem cover.1.

Spread the release tabs on either side of the modem away from the modem.2.

Remove the modem.3.

Remove the modem cable.4.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (8 of 29) [9/1/2000 3:32:00 PM]

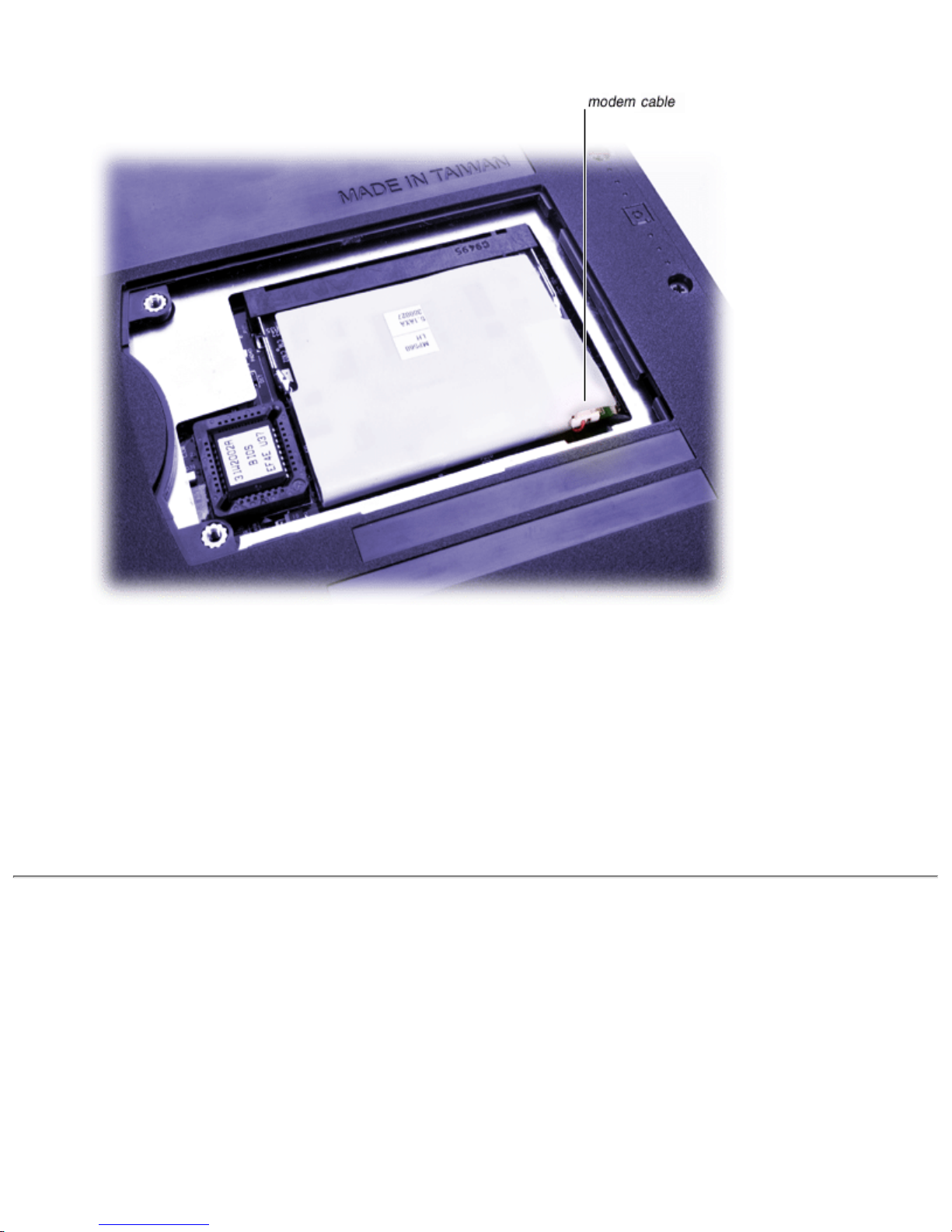

To reinsert the modem when you reassemble the computer, perform the following steps:

Attach the modem cable.1.

Insert the modem into the socket, and rock it up and down until it is completely in place.2.

NOTICE: Fold the modem cable out of the way of the modem door to make

sure you do not cut it when you close the modem door.

Hinge Cover Removal

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

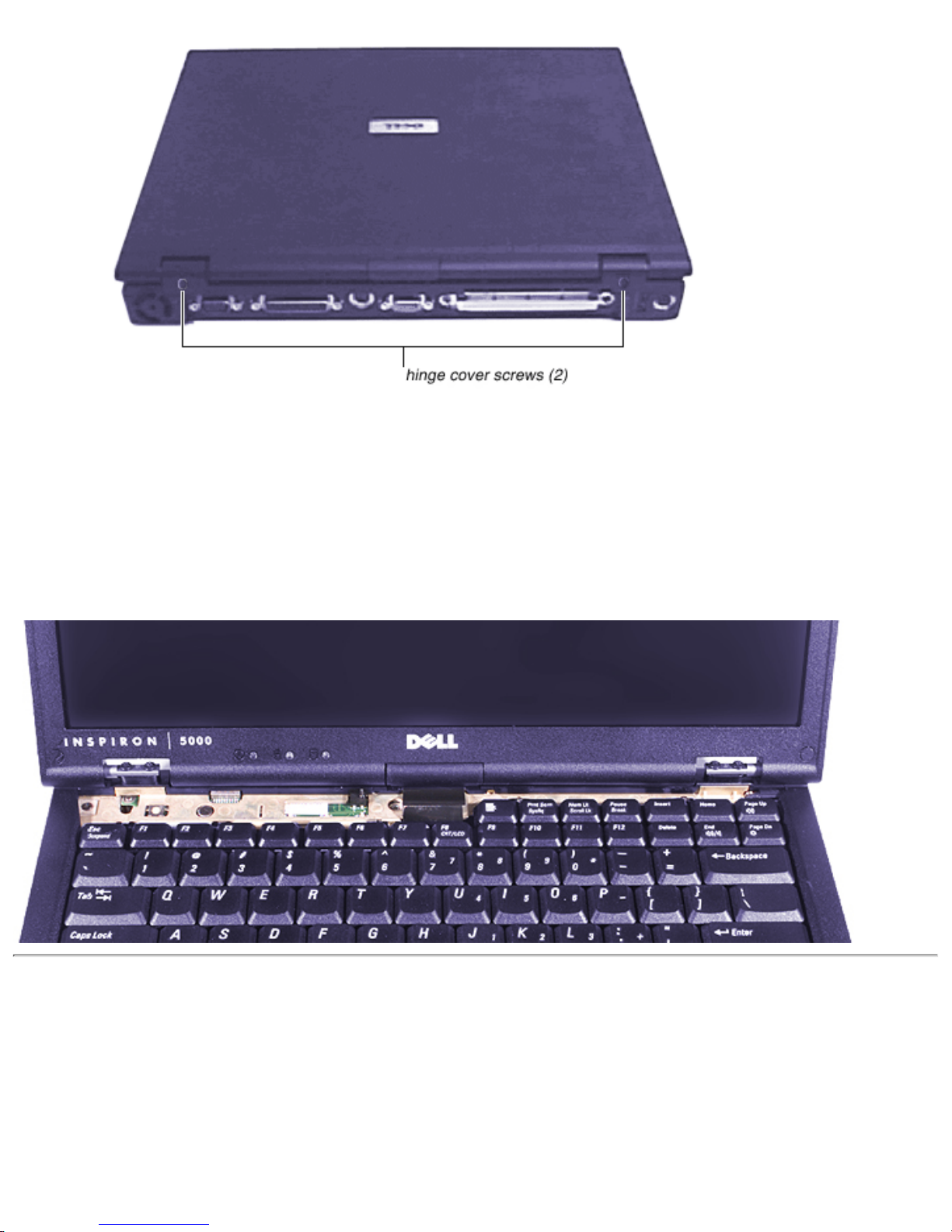

Remove the hinge cover screws.1.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (9 of 29) [9/1/2000 3:32:00 PM]

Open the display, and lift off the hinge cover by rotating it toward you. 2.

To replace the hinge cover, perform the following steps:

Insert the hinge cover at a 45° angle.1.

Press the hinge cover down above the <F4>, <F5>, and <Print Screen> keys.2.

Press down along the entire length of the hinge cover until it fits securely in place.3.

Replace the screws.4.

Keyboard Removal

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage or inoperability due to servicing not authorized by Dell is

not covered by your warranty.

Remove the screws.1.

Removing and Replacing Parts: Dell Inspiron 5000 Series

file:///c|/docs/blanco E-doc/removing.htm (10 of 29) [9/1/2000 3:32:00 PM]

Autres manuels pour INSPIRON Inspiron 5000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Ordinateur portable

Dell

Dell Alienware 18 Manuel utilisateur

Dell

Dell Inspiron 13 5330 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 5488 Manuel

Dell

Dell 5447 Series Manuel d'exploitation et d'entretien

Dell

Dell P78G Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

Dell

Dell Latitude E6510 Manuel du propriétaire

Dell

Dell Latitude Systems PR09S Manuel utilisateur

Dell

Dell Latitude XT Manuel utilisateur

Dell

Dell Latitude 5300 Manuel utilisateur

Dell

Dell Latitude ATG D620 Manuel utilisateur

Dell

Dell Latitude D510 Manuel utilisateur

Dell

Dell Latitude 5530 Manuel utilisateur

Dell

Dell 1510 - Vostro - Core 2 Duo 2.1 GHz Manuel utilisateur

Dell

Dell XPS L502X Manuel utilisateur

Dell

Dell Latitude 131L Manuel utilisateur

Dell

Dell VOSTRO 1000 PP23LB Manuel utilisateur

Dell

Dell Inspiron M5110 Manuel utilisateur

Dell

Dell Inspiron 3500 Guide de l'utilisateur

Dell

Dell G5 5590 Manuel d'exploitation et d'entretien

Dell

Dell XPS 13 Manuel utilisateur

Dell

Dell Inspiron 14-5459 Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 15 3000 Series Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

HP PROBOOK 4520S Manuel

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel

Lenovo

Lenovo THINKPAD X31 Manuel

Sony

Sony VGN-T240P VAIO Manuel utilisateur

Compaq

Compaq Armada E700 Series Manuel utilisateur

Fujitsu

Fujitsu Lifebook A6230 Manuel utilisateur

Acer

Acer Aspire ONE 722 Manuel utilisateur

Toshiba

Toshiba L300-EZ1524 Manuel utilisateur
