Dell Latitude E6510 Manuel du propriétaire

Setup and Features Information

Regulatory Model: PP30LA Regulatory Type: PP30LA001

Dell™Latitude™E6510

About Warnings

WARNING: A WARNING indicates a potential for

property damage, personal injury, or death.

September 2010

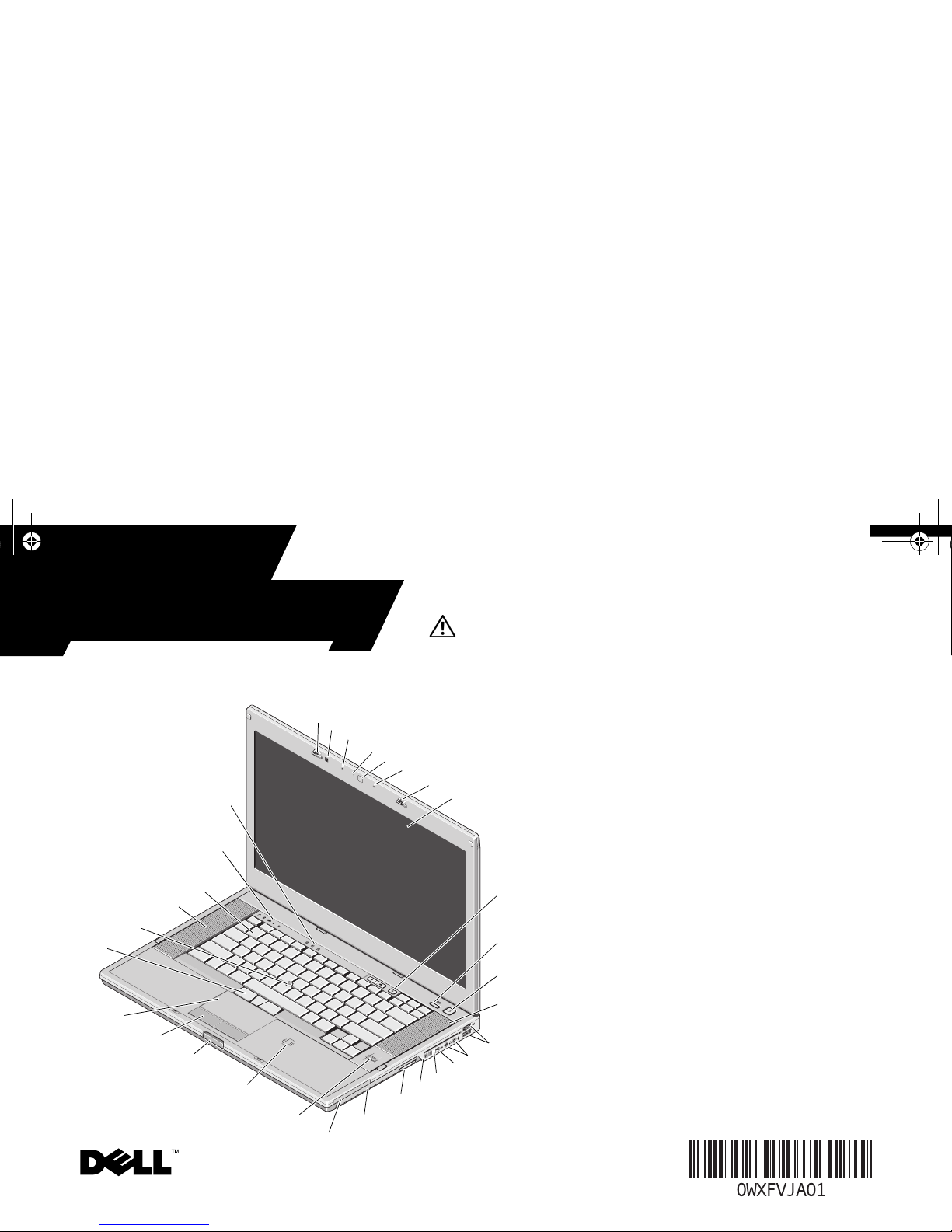

Front View

1display latch 2ambient light sensor

3microphone 4camera LED (optional)

5camera (optional) 6microphone

7display latch 8display

9volume control buttons 10 Latitude ON™ button

11 power button 12 right speaker

13 USB 2.0 connectors (2) 14 audio connectors

15 IEEE 1394 connector 16 smart card slot

17 wireless switch 18 optical drive removal

button

19 optical drive 20 PC card slot

21 fingerprint reader

(optional)

22 contactless smart card

reader (optional)

23 display latch release

button

24 touchpad buttons

25 touchpad 26 trackstick buttons

27 trackstick 28 left speaker

29 keyboard 30 device status lights

31 keyboard status lights

WXFVJam1.fm Page 1 Tuesday, September 14, 2010 10:51 AM

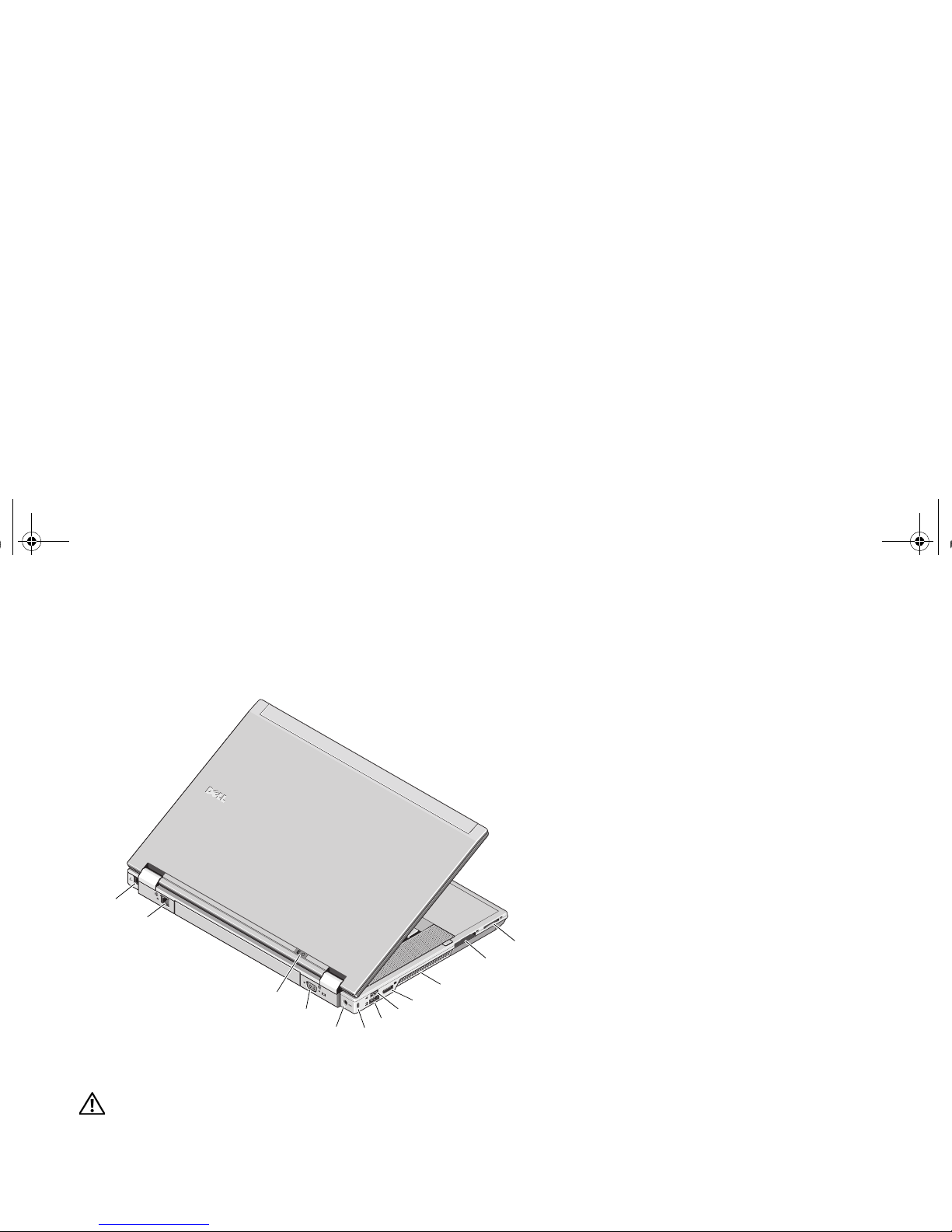

Back View

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer

turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

1modem connector (optional)

2network connector

3power and battery status status lights

4video connector (VGA)

5AC adapter connector

6security cable slot

7eSATA/USB 2.0 connector

8USB 2.0 connector

9multimode DisplayPort connector

10 cooling vent

11 ExpressCard slot

12 Secure Digital (SD) and MMC card slot

567

WXFVJam1.fm Page 2 Tuesday, September 14, 2010 10:51 AM

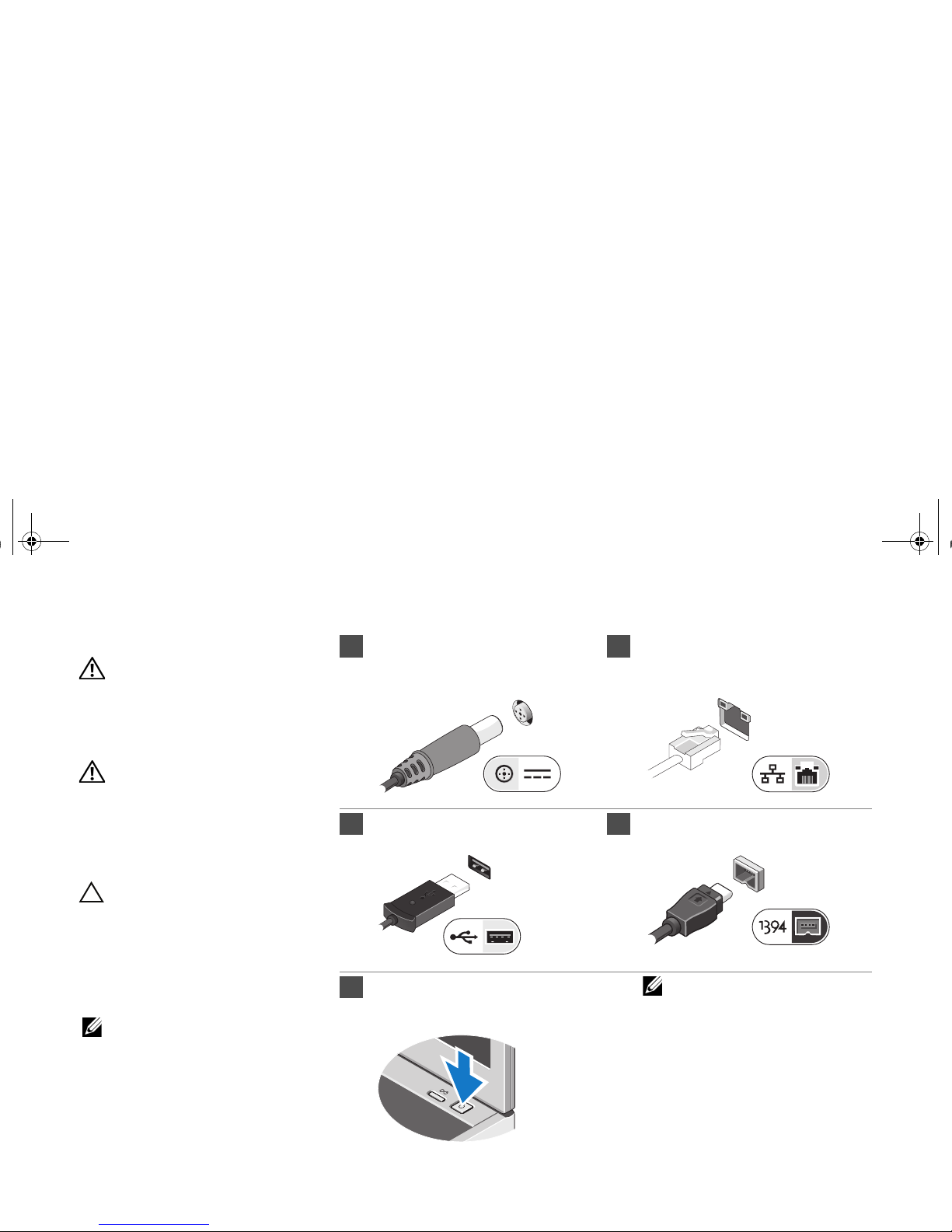

1Connect the AC adapter to the

AC adapter connector on the portable

computer and to the electrical outlet.

2Connect the network cable

(optional).

3Connect USB devices, such as a

mouse or a keyboard (optional).

4Connect IEEE 1394 devices, such as

a DVD player (optional).

5Open the computer display and

press the power button to turn on

the computer.

NOTE: It is recommended that you

turn on and shut down your computer

at least once before you install any

cards or connect the computer to a

docking device or other external

device, such as a printer.

Quick Setup

WARNING: Before you begin any of

the procedures in this section, read the

safety information that shipped with

your computer. For additional best

practices information, see

www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with

electrical outlets worldwide. However,

power connectors and power strips vary

among countries. Using an incompatible

cable or improperly connecting the cable

to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the

AC adapter cable from the computer,

grasp the connector, not the cable

itself, and pull firmly but gently to avoid

damaging the cable. When you wrap the

AC adapter cable, ensure that you

follow the angle of the connector on the

AC adapter to avoid damaging the cable.

NOTE: Some devices may not be

included if you did not order them.

WXFVJam1.fm Page 3 Tuesday, September 14, 2010 10:51 AM

Specifications

NOTE: Offerings may vary by region. For more information regarding

the configuration of your computer, click StartHelp and Support

and select the option to view information about your computer.

System Information

Processor type Intel®Core™ i5

Intel Core i7

Chipset Mobile Intel 5 series chipset (QM57)

Video

Video type UMA (integrated on system board)

Discrete

Data bus:

UMA

integrated video

Discrete

PCI-E x16 Gen1

PCI-E x16 Gen2

Video controller:

UMA

Intel graphics

Discrete

NVIDIA Quadro NVS 3100M

Memory

Type DDR3, 1333 MHz

Memory module

connector

two SODIMM slots

Memory module capatcity 1 GB, 2 GB, or 4 GB

Minimum memory 1 GB

Maximum memory 8 GB

Contactless Smart Card

Supported Smart Cards

and Technologies

ISO14443 A — 106 kbps, 212 kbps, 424 kbps,

and 848 kbps

ISO14443 B — 106 kbps, 212 kbps, 424 kbps,

and 848 kbps

ISO15693

HID iClass

FIPS201

NXP Desfire

Battery

Type 4-cell "smart" lithium ion (37 WHr)

6-cell "smart" lithium ion (60 WHr)

3-year life-time 9-cell "smart" lithium ion

(81 WHr)

9-cell "smart" lithium ion (90 WHr)

12-cell "smart" lithium ion (88 WHr)

WXFVJam1.fm Page 4 Tuesday, September 14, 2010 10:51 AM

Dimensions:

4-cell / 6-cell

Depth

206.00 mm (8.11 inches)

Height

19.81 mm (0.78 inch)

Width

47.00 mm (1.85 inches)

9-cell

Depth

208.00 mm (8.19 inches)

Height

22.30 mm (0.88 inch)

Width

69.00 mm (2.72 inches)

12-cell

Depth

14.48 mm (0.57 inch)

Height

217.17 mm (8.55 inches)

Width

322.07 mm (12.68 inches)

Weight

4-cell

237.00 g (0.52 lb)

6-cell

329.00 g (0.73 lb)

9-cell

485.00 g (1.07 lb)

12-cell

848.22 g (1.87 lb)

Voltage 11.10 V

Battery

(continued)

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 60 °C (–40 °F to 140 °F)

Coin-cell battery 3 V CR2032 lithium coin cell

AC Adapter

Input voltage 100 V–240 V~

Input current (maximum) 1.50 A / 2.50 A

Input frequency 50 Hz–60 Hz

Output power 90 W

Output current

90 W

4.34 A (maximum at 4-second pulse)

3.34 A (continuous)

Rated output voltage 19.50 VDC

Dimensions

Depth

16.00 mm (0.63 inch)

Height

70.10 mm (2.76 inches)

Width

147.00 mm (5.79 inches)

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Battery

(continued)

WXFVJam1.fm Page 5 Tuesday, September 14, 2010 10:51 AM

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Warranty

• Terms and Conditions

• Regulatory certification

•Ergonomics

• End User License Agreement

________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Latitude, and Latitude ON

are trademarks of Dell Inc.; Intel is a registered trademark and Core is a

trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other

than its own.

Physical

Height 28.60 mm to 33.30 mm

(1.13 inches to 1.31 inches)

Width 374.30 mm (14.73 inches)

Depth 253.30 mm (9.97 inches)

Weight

(minimum)

minimum 2.51 kg (5.53 lb)

Docking Connector

E-Family dock 144-pin docking connector

Environmental

Temperature range:

Operating

0 °Cto 35 °C (32 °F to 95 °F)

Storage

–40 °Cto 65 °C (–40 °F to 149 °F)

Relative humidity

(maximum):

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Altitude (maximum):

Operating

–15.20 m to 3048 m (–50 ft to 10,000 ft)

Storage

–15.20 m to 10,668 m (–50 ft to 35,000 ft)

WXFVJam1.fm Page 6 Tuesday, September 14, 2010 10:51 AM
