Dell™Inspiron™11ServiceManual

Notes, Cautions, and Warnings

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell

under license; Microsoft, Windows, Windows Vista, and Windows Vista start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries; Intel, Celeron, and Pentium are registered trademarks of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Regulatory Model P03T series; Regulatory Type: P03T001

August 2009 Rev. A00

Before You Begin

Battery

Keyboard

Palm Rest

Speakers

Hard Drive

Memory Module

Palm Rest Bracket

LED Board

Processor Fan

Internal Card With Bluetooth Wireless Technology

Coin-Cell Battery

Wireless Mini-Card(s)

Processor Heat Sink

Memory and Processor Board

I/O Board

AC Adapter Connector

Display

Camera Board

System Board

Flashing the BIOS

Comprehensive Specifications

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

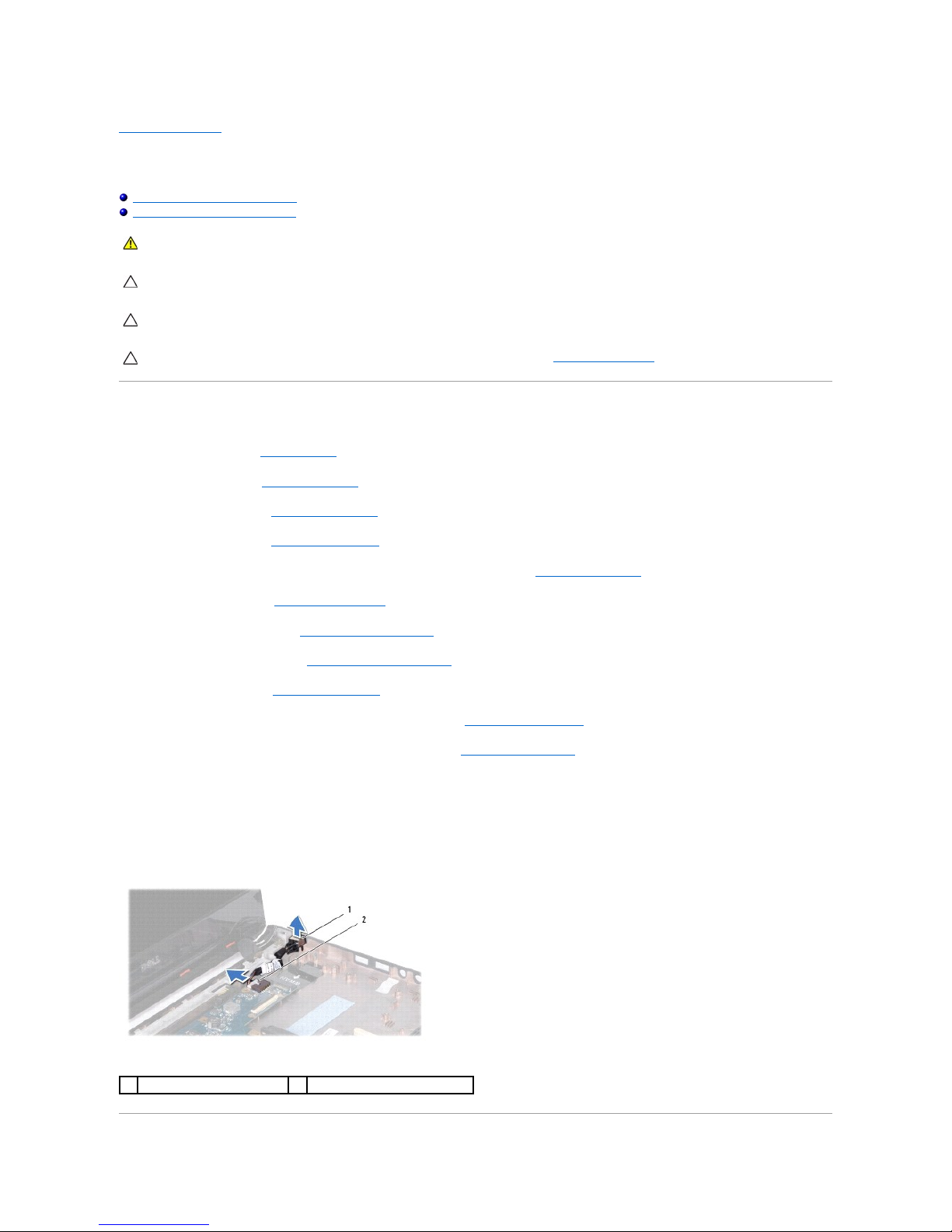

AC Adapter Connector

Dell™Inspiron™11ServiceManual

Removing the AC Adapter Connector

Replacing the AC Adapter Connector



Removing the AC Adapter Connector



1. Follow the procedures in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Disconnect the speaker cable from the speaker cable connector on the I/O board (see Removing the Speakers).



6. Remove the hard drive (see Removing the Hard Drive).



7. Remove the memory module (see Removing the Memory Module).



8. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



9. Remove the I/O board (see Removing the I/O Board).



10. Disconnect the antenna cables from the WWAN card, if applicable (see Removing the WWAN Card).



11. Disconnect the antenna cables from the WLAN card, if applicable (see Removing the WLAN Card).



12. Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from the routing guides.



13. Disconnect the AC adapter connector cable from the system board connector.



14. Lift the AC adapter connector off the computer base.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

AC adapter connector

system board connector

Replacing the AC Adapter Connector



1. Follow the procedures in Before You Begin.



2. Place the AC adapter connector on the system board.



3. Connect the AC adapter connector cable to the system board connector.



4. Route the Mini-Card antenna cables through the routing guides.



5. Connect the antenna cables to the WWAN card, if applicable (see Replacing the WWAN Card).



6. Connect the antenna cables to the WLAN card, if applicable (see Replacing the WLAN Card).



7. Replace the I/O board (see Replacing the I/O Board).



8. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



9. Replace the memory module (see Replacing the Memory Module).



10. Replace the hard drive (see Replacing the Hard Drive).



11. Connect the speaker cable to the speaker cable connector on the I/O board (see Replacing the Speakers).



12. Replace the palm rest (see Replacing the Palm Rest).



13. Replace the keyboard (see Replacing the Keyboard).



14. Replace the battery (see Replacing the Battery).



Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Back to Contents Page

Before You Begin

Dell™Inspiron™11ServiceManual

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This manual provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

lYou have read the safety information that shipped with your computer.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in the reverse order.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lPhillips screwdriver

lPlastic scribe

lBIOS executable update program available at support.dell.com

Turning Off Your Computer



1. Save and close all open files and exit all open programs.



2. Shut down the operating system; click Start , click the arrow , and then click Shut Down.



3. Ensure that the computer is turned off. If your computer did not automatically turn off when you shut down the operating system, press and hold the

power button until the computer turns off.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer (see Turning Off Your Computer) and all attached devices.

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is

not covered by your warranty.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking

tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep

them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented

and aligned.

CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.



3. Disconnect all telephone or network cables from the computer.



4. Press and eject any installed cards from the Memory Card Reader.



5. Disconnect your computer and all attached devices from their electrical outlets.



6. Disconnect all attached devices from your computer.



7. Remove the battery (see Removing the Battery).



8. Turn the computer top-side up, open the display, and press the power button to ground the system board.

Back to Contents Page



CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

Back to Contents Page

Flashing the BIOS

Dell™Inspiron™11ServiceManual



1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.



2. Turn on the computer.



3. Locate the latest BIOS update file for your computer at support.dell.com.



4. Click Drivers & Downloads®Select Model.



5. Select the type of product in the Select Your Product Family list.



6. Select the product brand in the Select Your Product Line list.



7. Select the product model number in the Select Your Product Model list.



8. Click Confirm.



9. A list of results appear on the screen. Click BIOS.



10. Click Download Now to download the latest BIOS file.

The File Download window appears.



11. Click Save to save the file on your desktop. The file downloads to your desktop.



12. Click Close if the Download Complete window appears.

The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.



13. Double-click the file icon on the desktop and follow the procedures that appear on the screen.

Back to Contents Page



NOTE: If you have selected a different model and want to start over again, click Start Over on the top right of the menu.

Back to Contents Page

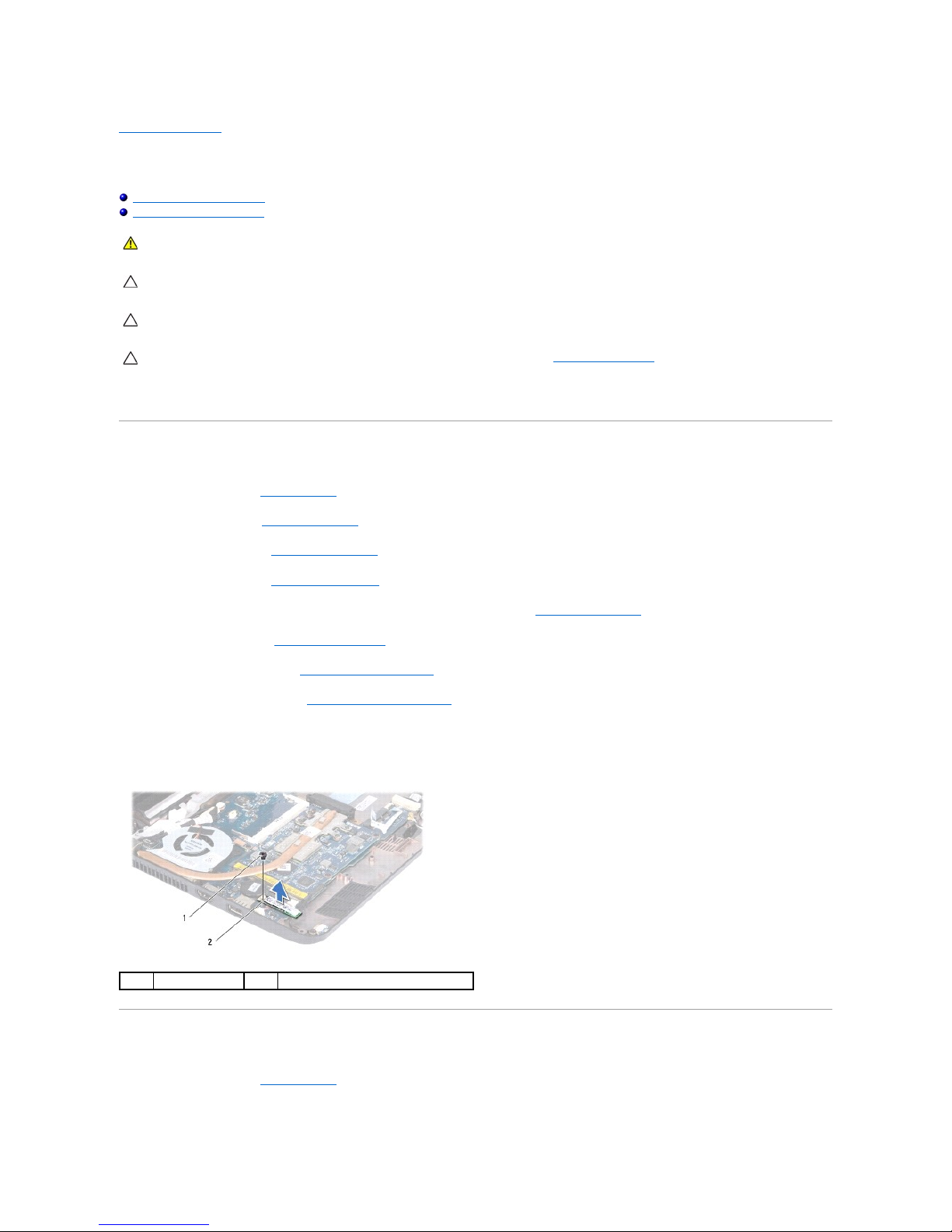

Internal Card With Bluetooth Wireless Technology

Dell™Inspiron™11ServiceManual

Removing the Bluetooth Card

Replacing the Bluetooth Card



If you ordered a card with Bluetooth®wireless technology with your computer, it is already installed.

Removing the Bluetooth Card



1. Follow the procedures in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Disconnect the speaker cable from the speaker cable connector on the I/O board (see Removing the Speakers).



6. Remove the hard drive (see Removing the Hard Drive).



7. Remove the memory module (see Removing the Memory Module).



8. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



9. Remove the screw that secures the Bluetooth card to the system board.



10. Lift the Bluetooth card to disconnect it from the system board connector.

Replacing the Bluetooth Card



1. Follow the procedures in Before You Begin.



2. Align the connector on the Bluetooth card with the connector on the system board and press gently.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

screw

Bluetooth card



3. Replace the screw that secures the Bluetooth card to the system board.



4. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



5. Replace the memory module (see Replacing the Memory Module).



6. Replace the hard drive (see Replacing the Hard Drive).



7. Connect the speaker cable to the speaker cable connector on the I/O board (see Replacing the Speakers).



8. Replace the palm rest (see Replacing the Palm Rest).



9. Replace the keyboard (see Replacing the Keyboard).



10. Replace the battery (see Replacing the Battery).



Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Back to Contents Page

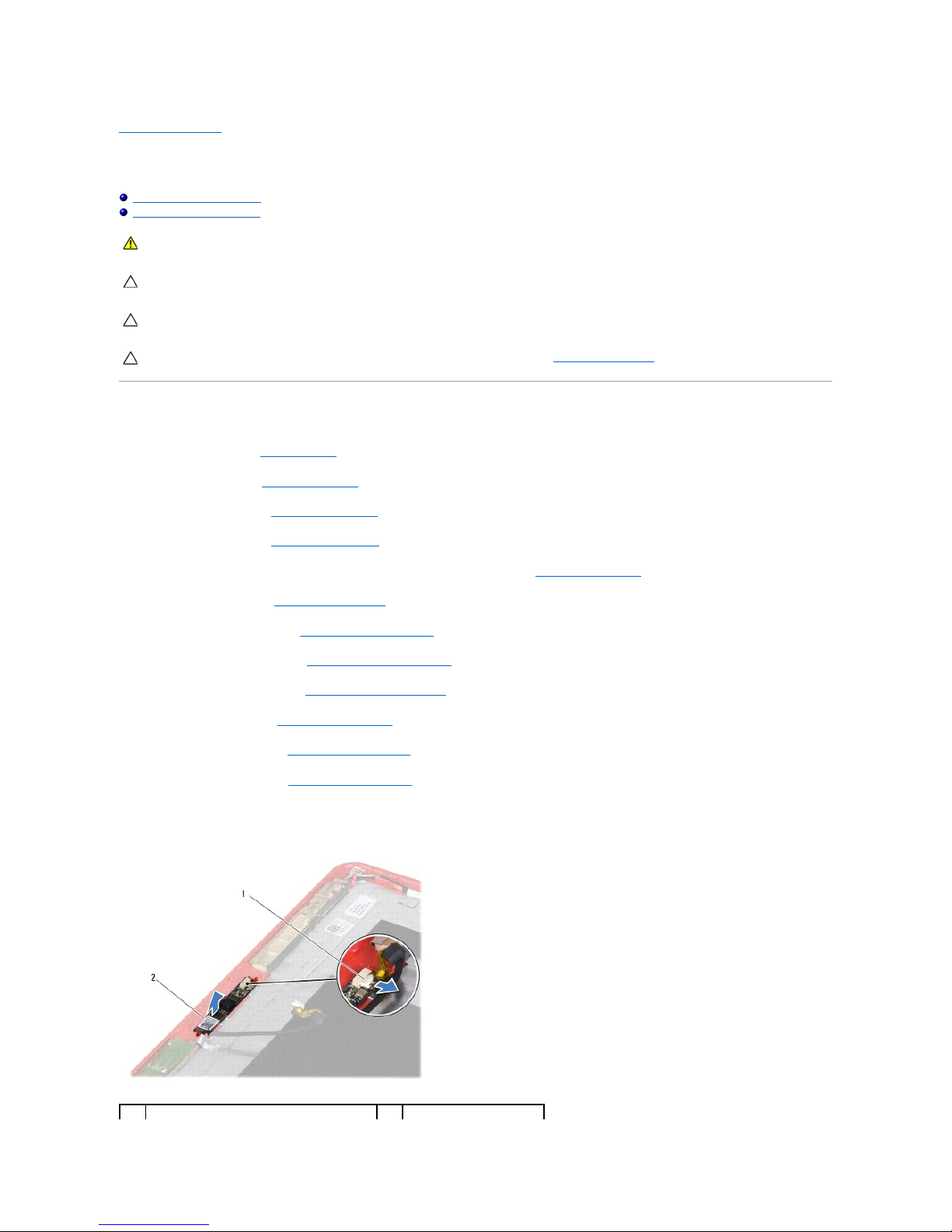

Camera Board

Dell™Inspiron™11ServiceManual

Removing the Camera Board

Replacing the Camera Board



Removing the Camera Board



1. Follow the procedures in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Disconnect the speaker cable from the speaker cable connector on the I/O board (see Removing the Speakers).



6. Remove the hard drive (see Removing the Hard Drive).



7. Remove the memory module (see Removing the Memory Module).



8. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



9. Remove the display assembly (see Removing the Display Assembly).



10. Remove the hinge caps (see Removing the Hinge Caps).



11. Remove the display bezel (see Removing the Display Bezel).



12. Remove the display panel (see Removing the Display Panel).



13. Disconnect the camera cable from the connector on the camera board.



14. Lift the camera board off the display back cover.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

camera cable connector

camera board

Replacing the Camera Board



1. Follow the procedures in Before You Begin.



2. Replace the camera board on the display cover.



3. Connect the camera cable to the connector on the camera board.



4. Replace the display panel (see Replacing the Display Panel).



5. Replace the display bezel (see Replacing the Display Bezel).



6. Replace the hinge caps (see Replacing the Hinge Caps).



7. Replace the display assembly (see Replacing the Display Assembly).



8. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



9. Replacing the memory module (see Replacing the Memory Module).



10. Replace the hard drive (see Replacing the Hard Drive).



11. Connect the speaker cable to the speaker cable connector on the I/O board (see Replacing the Speakers).



12. Replace the palm rest (see Replacing the Palm Rest).



13. Replace the keyboard (see Replacing the Keyboard).



14. Replace the battery (see Replacing the Battery).



Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Autres manuels pour Inspiron 11

Table des matières

Autres manuels Dell Ordinateur portable

Dell

Dell D610 - Latitude Centrino Laptop 1.6ghz 512mb 40gb Wifi Xp Pro 14"... Manuel utilisateur

Dell

Dell Inspiron 3781 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 1000 Manuel utilisateur

Dell

Dell Latitude 13-7350 Series Manuel utilisateur

Dell

Dell Inspiron 7400 Manuel d'exploitation et d'entretien

Dell

Dell Precision 3561 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 15-3576 Manuel utilisateur

Dell

Dell Latitude 7410 Manuel d'exploitation et d'entretien

Dell

Dell Latitude 7490 Manuel utilisateur

Dell

Dell P141G001 Manuel utilisateur

Dell

Dell Inspiron X200 Manuel utilisateur

Dell

Dell Latitude 5300 2-in-1 Chrome Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell 1510 - Vostro - Core 2 Duo 2.1 GHz Manuel utilisateur

Dell

Dell Inspiron 5593 Manuel d'exploitation et d'entretien

Dell

Dell Latitude E5430 Manuel du propriétaire

Dell

Dell CHROMEBOOK 11 Manuel utilisateur

Dell

Dell Inspiron 14 7000 Series Manuel utilisateur

Dell

Dell Lattitude D600 Guide de l'utilisateur

Dell

Dell Latitude ATG D620 Manuel utilisateur

Dell

Dell Inspiron 1440 Manuel utilisateur

Dell

Dell Inspiron 8000 Manuel utilisateur

Dell

Dell Vostro 1088 Manuel utilisateur

Dell

Dell P105F Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

HP PROBOOK 4520S Manuel

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel

Lenovo

Lenovo THINKPAD X31 Manuel

Sony

Sony VGN-T240P VAIO Manuel utilisateur

Compaq

Compaq Armada E700 Series Manuel utilisateur

Fujitsu

Fujitsu Lifebook A6230 Manuel utilisateur

Acer

Acer Aspire ONE 722 Manuel utilisateur

Toshiba

Toshiba L300-EZ1524 Manuel utilisateur
