Dell SuperMassive 9800 Manuel utilisateur

Getting Started Guide

Dell SonicWALL SuperMassive Appliances

NETWORK SECURITY

SuperMassive 9800

SuperMassive_9800_GSG.book Page 1 Tuesday, September 9, 2014 7:32 PM

Notes, Cautions, and Warnings

Trademarks: Dell™, the DELL logo, SonicWALL™, and all other SonicWALL product and service names and slogans are trademarks of

Dell, Inc. Other product and company names mentioned herein may be trademarks and/or registered trademarks of their respective

companies and are the sole property of their respective manufacturers.

2014 – 09 P/N 232-002035-50 Rev. A

NOTE: A NOTE indicates important information that helps you make better use of your system.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

SuperMassive_9800_GSG.book Page 1 Tuesday, September 9, 2014 7:32 PM

2| In this Guide

In this Guide

This Getting Started Guide provides instructions for basic installation and configuration of the Dell SonicWALL SuperMassive 9800.

Chapter 1 Sections Include

Introduction to the SuperMassive 9800,

page 5

•SuperMassive 9800 Package Contents, page 6

•The Front Panel, page 7

•The Back Panel, page 8

•SuperMassive 9800 LED Activity, page 9

•Setup Process Overview, page 11

Chapter 2 Sections Include

Setting up the Appliance, page 13 •Determining the WAN Type, page 14

•System Requirements, page 14

•Recording Configuration Information, page 15

•Initial Setup, page 16

•Troubleshooting Your Connections, page 21

SuperMassive_9800_GSG.book Page 2 Tuesday, September 9, 2014 7:32 PM

Chapter 3 Sections Include

Registering, Licensing, and Upgrading, page 23 •Using MySonicWALL, page 24

•Creating a MySonicWALL Account, page 24

•Registration Overview, page 25

•Registering in SonicOS, page 25

•Alternative Registration Options, page 26

•Licensing Security Services, page 27

•Activating & Managing Licenses Using MySonicWALL, page 28

•Upgrading Firmware, page 29

Chapter 4 Sections Include

Deployment Scenarios, page 31 •Deployment Scenarios, page 32

•Configuring NAT Mode Gateway, page 36

•Configuring a Stateful HA Pair, page 37

•Configuring Wire Mode, page 43

Chapter 5 Sections Include

Support and Training Options, page 49 •Customer Support, page 50

•Knowledge Portal, page 50

•User Forums, page 51

•Training, page 51

•Related Documentation, page 52

Chapter 6 Sections Include

Rack Mounting Instructions, page 53 •Rack Mounting Instructions, page 54

SuperMassive_9800_GSG.book Page 3 Tuesday, September 9, 2014 7:32 PM

4| In this Guide

Chapter 7 Sections Include

Product Safety and Regulatory Information,

page 59

•Safety and Regulatory Information, page 60

•Warranty Information, page 64

•Copyright Notice, page 64

SuperMassive_9800_GSG.book Page 4 Tuesday, September 9, 2014 7:32 PM

Introduction to the SuperMassive 9800

In this Section:

This section describes the items shipped with the Dell SonicWALL SuperMassive 9800 appliance, provides front and rear illustrations of

the SuperMassive 9800, and includes a flow diagram illustrating the steps for setting up the appliance.

•SuperMassive 9800 Package Contents, page 6

•The Front Panel, page 7

•The Back Panel, page 8

•SuperMassive 9800 LED Activity, page 9

•Setup Process Overview, page 11

SuperMassive_9800_GSG.book Page 5 Tuesday, September 9, 2014 7:32 PM

6| SuperMassive 9800 Package Contents

SuperMassive 9800 Package Contents

Before you begin the setup process, verify that your package contains the following items:

1. One Dell SonicWALL SuperMassive 9800 appliance

2. One Rack Mounting Kit

3. One serial CLI cable

4. One Ethernet cable

5. Two power cords*

6. One Dell SonicWALL SuperMassive 9800 Getting Started Guide

*The included power cord(s) are approved for use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location. The

power cords are for AC mains installation only. Field conversion DC power cable is different, see Safety and Regulatory Information for more information.

Missing Items? If any items are missing from your package, contact Dell SonicWALL Support:

Web: https://support.software.dell.com/

Email: customer_service@sonicwall.com

Getting Started Guide

Dell SonicWALL SuperMassive Appliance

NETWORK SECURITY SuperMassive 9800

SonicWALL SuperMassive 9800 CONSOLE

SDHC

MGMT X23 X21

X20 X6 X4

1GE

10GE X2 X0

X1X3X5X7

X22

ALARM

TEST

PWR 1 PWR 2

X14 X12X18 X16 X10 X8

X9X11X13X15X17X19

80GB

SSD

80GB

SSD

SuperMassive_9800_GSG.book Page 6 Tuesday, September 9, 2014 7:32 PM

The Front Panel

SonicWALL SuperMassive 9800

CONSOLE

SDHC

MGMT

X23 X21

X20 X6 X4

1GE

10GE X2 X0

X1X3X5X7

X22

ALARM

TEST

PWR 1 PWR 2

X14 X12X18 X16 X10 X8

X9X11X13X15X17X19

80GB

SSD

80GB

SSD

LCD Screen

Control Buttons

Console Port

USB Ports (2)

LED Indicators

X0-X7 (1 GE)

Power Button

Access the SonicOS Command Line Interface (CLI) via

the serial CLI cable

USB 2.0 mass storage device support

High-speed copper Gigabit Ethernet ports

LED indicators provide status for Power Supplies, Test, Alarms, and Blade

modules. For information describing LED colors and activity, refer to the

LED Activity table in this document.

Navigate the LCD screen; for future use

Display the following when connected to

MGMT port: Chassis IP, Blade IP, Subnet

Mask, Gateway IP

1 Gigabit Ethernet Management Interface

SDHC Port

SSD Drives

Secure Digital High-Capacity (SDHC) port for future

use

Two Solid State Drives (SSD) with 80 GB of capacity

for storage (HD0 and HD1)

Press to turn the

appliance On or O

X8-X19 (1 GE SFP)

X20-X23 (XAUI SFP+)

1 Gigabit Ethernet hot-pluggable SFP interfaces for

high-speed ber or copper Ethernet communication

XAUI (10 Gigabit Attachment Unit Interface)

hot-pluggable ports

MGMT Port (1 GE)

SuperMassive_9800_GSG.book Page 7 Tuesday, September 9, 2014 7:32 PM

8| The Back Panel

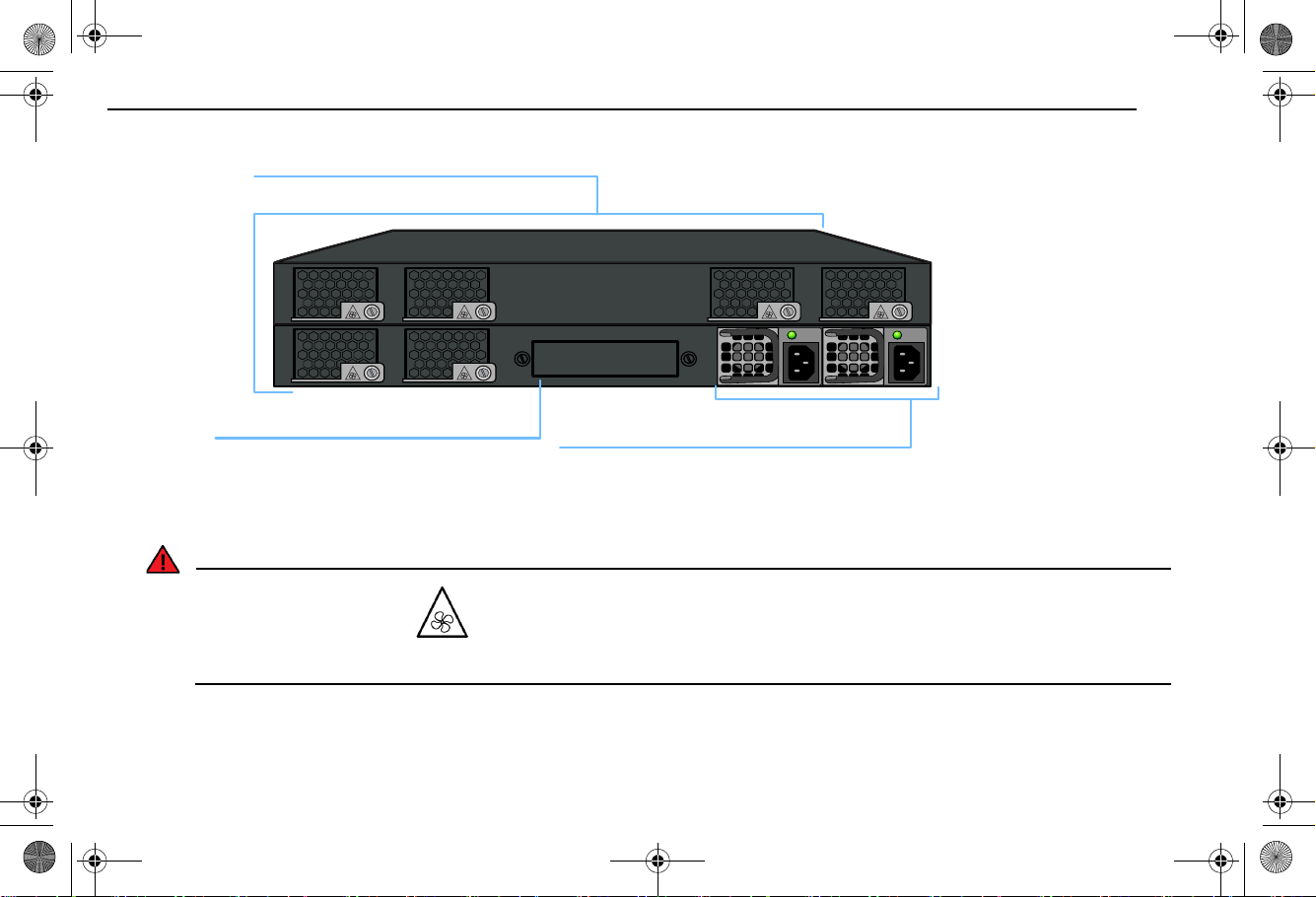

The Back Panel

Warning: Potential Hazard from Fan

This manual contains specific warning and caution statements where they apply. Please read the Safety Instructions before

use! See Product Safety and Regulatory Information, page 59.

Expansion Module

Expansion Module Bay

Fans (6)

Power Supplies (2)

For Dell SonicWALL-approved

expansion modules

Auto-throttling fans for system temperature control

Dual power supplies for redundant AC power and added reliability

Field conversion is available to convert to DC mains

DC power supplies use dierent input connector and power cables

SuperMassive_9800_GSG.book Page 8 Tuesday, September 9, 2014 7:32 PM

SuperMassive 9800 LED Activity

The following table describes the different LEDs of the SuperMassive 9800:

LED Used for Color Description

PWR1 Power Supply 1

status

Solid Blue System is powered on and Power Supply 1 is operating normally

Solid Yellow Power Supply 1 is down or not detected in the chassis

PWR2 Power Supply 2

status

Solid Blue System is powered on and Power Supply 2 is operating normally

Solid Yellow Power Supply 2 is down or not detected in the chassis

TEST Test / boot status Off System is up and operational

Solid Yellow System is starting up

Blinking Yellow System is in SafeMode

ALARM Alarm condition Off No alarms are present

Blinking Yellow Minor system alarm, such as a policy alert

Blinking Red Major or critical system alarm, such as a thermal alert or fan alert

B1 Blade 1 status Off Blade is powered down

Blinking Green Blade is powered on, but is not active

Solid Green Blade is powered on and is operational

B2 Blade 2 status Off Off - Blade is powered down

Blinking Green Blade is powered on, but is not active

Solid Green Blade is powered on and is operational

SuperMassive_9800_GSG.book Page 9 Tuesday, September 9, 2014 7:32 PM
