Dell E16WD01 Manuel utilisateur

www.dell.com | support.dell.com

Dell™ Wireless Dock

User Manual

Model Name: E16WD01

Model Type: E16WD01001

0HPCHA00.book Page 1 Thursday, October 22, 2009 4:05 PM

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarksusedinthistext:DellandtheDELLlogoaretrademarksofDellInc.;Microsoft, Windows,

Windows Vista, and Aero are either trademarks or registered trademarks of Microsoft Corporation in

the United States and/or other countries; Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model E16WD01

September 2009 P/N 0HPCH Rev. A00

0HPCHA00.book Page 2 Thursday, October 22, 2009 4:05 PM

Contents 3

Contents

1 About Your Dell Wireless Dock . . . . . . . . . 5

Front and Back View. . . . . . . . . . . . . . . . . . . . 6

2 Configuring Your Dell Wireless Dock . . . . 7

Installing the Software . . . . . . . . . . . . . . . . . . 7

Turning Your Dell Wireless Dock On . . . . . . . . . . 16

Associating Your Dell Wireless Dock. . . . . . . . . . 16

Associating Your Dell Wireless Dock

Using Cable Association . . . . . . . . . . . . . . 17

Associating Your Dell Wireless Dock

Using PIN Association . . . . . . . . . . . . . . . 19

Setting Up Your Dell Wireless Dock . . . . . . . . . . 21

3 Using the Dell Wireless

USB Manager . . . . . . . . . . . . . . . . . . . . . 25

Connection Manager . . . . . . . . . . . . . . . . 25

UWB Radio and Host Settings . . . . . . . . . . . 26

4 Resetting the Dell Wireless Dock . . . . . . 29

0HPCHA00.book Page 3 Thursday, October 22, 2009 4:05 PM

4Contents

5 Troubleshooting . . . . . . . . . . . . . . . . . . . 31

General . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Video Output . . . . . . . . . . . . . . . . . . . . . . . 32

Audio Output . . . . . . . . . . . . . . . . . . . . . . . 33

6 Specifications . . . . . . . . . . . . . . . . . . . . 35

7 General Safety Information . . . . . . . . . . 37

General Power Safety . . . . . . . . . . . . . . . . . . 38

Earphone and Headphone Safety . . . . . . . . . . . . 39

Ergonomic Instructions . . . . . . . . . . . . . . . . . 39

Environmental Information. . . . . . . . . . . . . . . . 39

Recycling Information . . . . . . . . . . . . . . . 39

Waste Electrical and Electronic

Equipment (WEEE) Directive . . . . . . . . . . . . 39

Registration, Evaluation, and Authorization

of Chemicals (REACH) . . . . . . . . . . . . . . . 40

Finding Additional Information . . . . . . . . . . . . . 40

Export Regulations . . . . . . . . . . . . . . . . . . . . 40

Additional Country-Specific Safety, Regulatory,

and Environmental Information . . . . . . . . . . . . . 41

Korea (Korean) . . . . . . . . . . . . . . . . . . . 41

China (S. Chinese). . . . . . . . . . . . . . . . . . 41

0HPCHA00.book Page 4 Thursday, October 22, 2009 4:05 PM

About Your Dell Wireless Dock 5

About Your Dell Wireless Dock

The Dell™ Wireless Dock enables you to connect USB peripherals such as

external storages, printers, keyboards, mice, etc. to your notebook through

the wireless USB technology. You can also extend your notebook’s audio and

video support by connecting an external display and speakers.

NOTE: The Dell Wireless Dock supports a screen resolution of

up to 1680x1050 (wide screen) or 1600x1200 (standard screen) through

a DVI-I connector. If you need to connect a VGA display, you must

use a DVI to VGA adapter.

Wireless USB technology performs best within a one-meter range;

generally within a single room environment. The technology is different

from Wi-Fi®technology and is not discoverable by any Wi-Fi device.

You can associate up to sixteen different notebooks with the Dell Wireless Dock.

However, you can connect the Dell Wireless Dock to only one of the

associated hosts at a given time.

NOTE: When the seventeenth host is associated, the first associated host

will no longer be associated with the Dell Wireless Dock.

NOTE: The Dell Wireless Dock provides integrity checking along with

AES-128/CCM encryption.

0HPCHA00.book Page 5 Thursday, October 22, 2009 4:05 PM

6About Your Dell Wireless Dock

Front and Back View

1 power light

2 wireless link and

activity light

3 line out (speaker)

4 line in (microphone)

5 USB connectors (2)

6 antenna

7 reset button

8 mini-USB connector for

cable association

9 USB connectors (2)

10 DVI-I connector

11 DC-IN connector

0HPCHA00.book Page 6 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 7

Configuring Your Dell Wireless

Dock

Installing the Software

The Drivers and Utilities media that ships with your Dell™ Wireless Dock

contains the software required for installing and associating your

Dell Wireless Dock.

NOTE: You must install the software and drivers before you begin to use your

Dell Wireless Dock.

NOTE: Ensure your notebook’s video card drivers are installed before continuing

with the installation.

Insert the

Drivers and Utilities

media for Dell Wireless Dock into

your notebook’s CD/DVD drive. The installation wizard appears.

Click

to continue.

0HPCHA00.book Page 7 Thursday, October 22, 2009 4:05 PM

8Configuring Your Dell Wireless Dock

Select

UWB Card and Wireless Dock drivers

and click

to continue.

The Dell Wireless USB card installation begins. This may take

several minutes.

0HPCHA00.book Page 8 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 9

Click

to install the Dell Wireless USB card.

The Dell Wireless USB card installation continues. This may take

several minutes.

0HPCHA00.book Page 9 Thursday, October 22, 2009 4:05 PM

10 Configuring Your Dell Wireless Dock

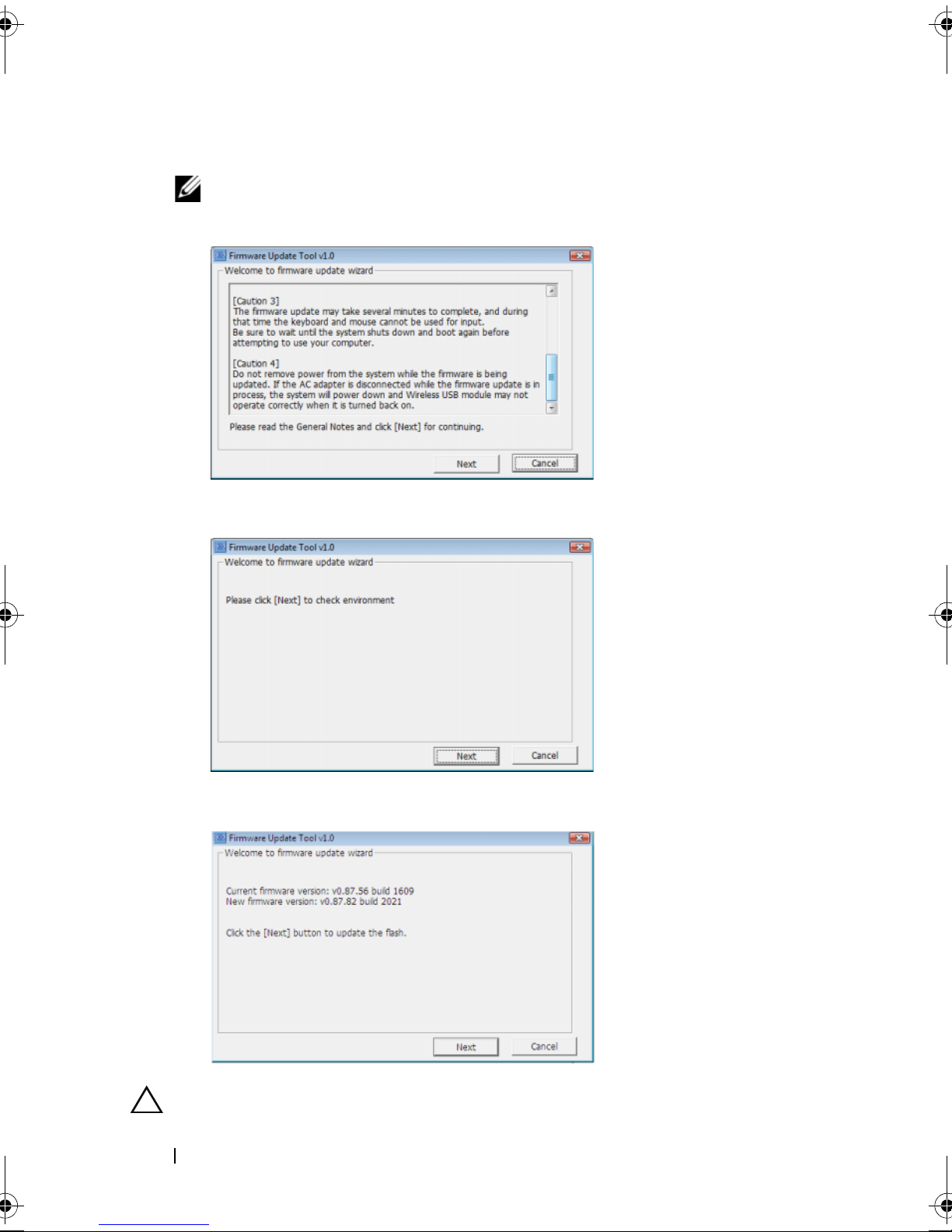

The Dell Wireless USB card firmware update wizard appears.

NOTE: The installer will skip this step if your firmware is already up to date.

Scroll and read the

General Notes

section and then click

Click

to continue.

Click

to update the Wireless USB card firmware.

CAUTION: Do not disconnect your AC adapter during the firmware update.

0HPCHA00.book Page 10 Thursday, October 22, 2009 4:05 PM
