Dell Vostro 320 Manuel du propriétaire

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Dell™ Vostro™ 320

Setup and Features Information Tech Sheet

Front View

1camera status light (optional) 2camera (optional)

3microphone (optional) 4auto adjust/brightness increase

July 2009 Regulatory Model: W01B

Regulatory Type: W01B001

R102Ncc0.fm Page 1 Wednesday, May 13, 2009 12:32 PM

Back View

5brightness adjust mode/brightness

decrease

68-in-1 media card reader (optional)

7IEEE 1394a port (optional) 8USB 2.0 connectors (3)

9microphone connector 10 headphone connector

11 drive activity light 12 power button

13 power LED

R102Ncc0.fm Page 2 Wednesday, May 13, 2009 12:32 PM

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices information,

see www.dell.com/regulatory_compliance.

WARNING: Do not use the stand to carry the computer.

CAUTION: Do not install your computer in an enclosure where there is limited,

restricted, or no airflow. Restricting the airflow impacts your computer’s performance,

possibly causing it to overheat. If your computer is installed in a corner on a desk,

leave at least a 5.1 cm (2 in) clearance from the back of the computer to the wall to

permit the airflow required for proper ventilation.

CAUTION: Ensure that you do not damage any cables or USB devices connected to

the rear I/O ports when adjusting the angle of the rear stand.

NOTE: Some devices may not be included if you did not order them.

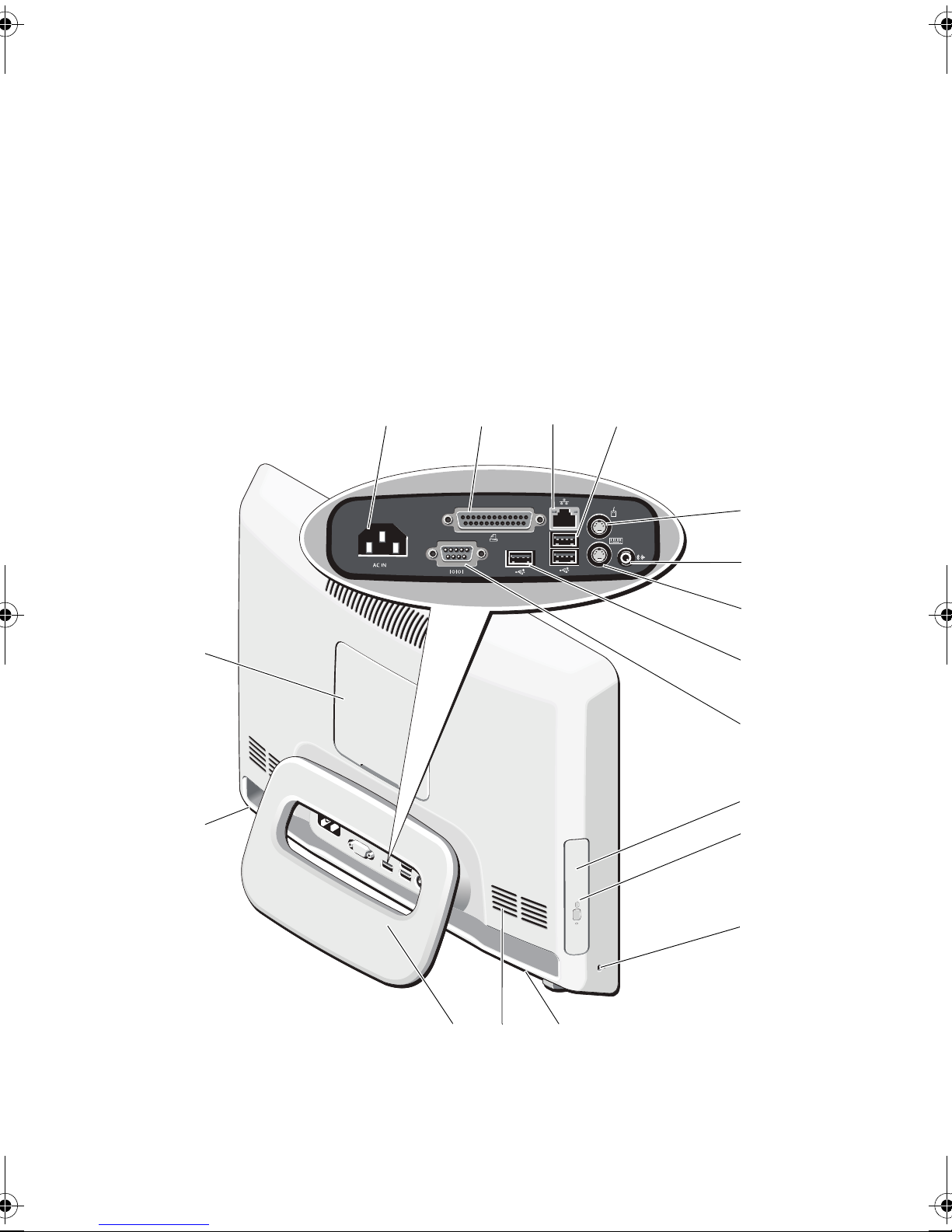

1power connector 2parallel connector

3Gigabit network connector 4USB 2.0 connectors (2)

5PS2 mouse connector 6line-out connector

7PS2 keyboard connector 8USB 2.0 connector

9serial connector 10 optical drive (optional)

11 optical drive activity light (optional) 12 security cable slot

13 2W stereo speakers–at base of

computer (optional)

14 air vent (3)

15 rear stand 16 VESA®mount cover

R102Ncc0.fm Page 3 Wednesday, May 13, 2009 12:32 PM

Pull the stand to

work angle

as shown.

A distinct click is heard when the stand is opened or closed over the initial work angle.

Vostro 320 also supports UL-certified VESA wall mounts (100 mm x 100 mm only).

For proper mounting, use four (ea.) 4 mm dia, 0.7 pitch x 10 mm long screws (Base on the pad

thickness is 2.6 mm.).

Connect the USB keyboard or mouse.

Connect the network cable (optional).

R102Ncc0.fm Page 4 Wednesday, May 13, 2009 12:32 PM

NOTE: It is recommended that you turn on and shut down your computer at least once before

you install any external device, such as a printer.

Connect the power cable.

Connect IEEE 1394a devices, such as a DVD

player (optional).

Press the power button to turn on the computer.

R102Ncc0.fm Page 5 Wednesday, May 13, 2009 12:32 PM

Specifications

NOTE: Offerings may vary by region. The following specifications are only those required by law

to ship with your computer. For more information regarding the configuration of your computer,

click Start →Help and Support and select the option to view information about your computer.

System Information

Chipset Intel®G41+ICH7

Processor type Intel Celeron®, Intel Pentium®, Intel Core™2 Duo, or

Intel Core™ 2 Quad 65W TDP

Video

Display sizes 17 inches wide (resolution 1440 x 900)

18.5 inches wide (resolution 1366 x 768)

19 inches wide (resolution 1440 x 900)

Video type Integrated Graphics

Data bus Low-voltage differential signaling (LVDS)

Video controller Intel GMA X4500

Video memory 1 MB–256 MB

Memory

Memory module connector 2 DIMM slots

Memory module capacity 1 GB or 2 GB

Memory type DDR2 800 MHz

Minimum memory 1 GB

Maximum memory 4 GB Dual Channel

Drives

Internally accessible One

5.25 inch drive bay

One

3.5 inch SATA drive bay

Available devices One

3.5 inch SATA hard drive (7200 rpm)

One

5.25 inch SATA DVD-ROM, DVD+/-RW

R102Ncc0.fm Page 6 Wednesday, May 13, 2009 12:32 PM

Control Lights and Diagnostic Lights

Power light white light — solid white light indicates power-on state;

blinking white light indicates standby power state of the

computer.

amber light — solid amber light indicates a problem with

the system board or power supply; blinking amber light

indicates a problem with the system board.

Drive activity light Displays the SATA hard drive or CD/DVD activity.

white light — blinking white light indicates that the

computer is reading data from or writing data to the

hard drive.

green light — blinking green light indicates that the

computer is reading data from or writing data to the

optical drive.

Camera status light white light — solid white light indicates that the camera is

turned on.

Power

Wattage 130 W

Maximum heat dissipation 497.8 BTU/hr

Power supply:

Voltage

100–240 V∼, 50/60 Hz, 2–1 A

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Height 386.39 mm (15.21 inches)

Width 477.39 mm (18.79 inches)

Depth 103.98 mm (4.09 inches)

Weight 6.5–8.0 Kgs (14.3–17.6 lbs) (varies with different LCD

panels and configurations)

R102Ncc0.fm Page 7 Wednesday, May 13, 2009 12:32 PM

Finding More Information and Resources

__________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell,the DELL logo, and Vo s t ro are trademarks of Dell Inc.; Intel, Pentium,

and Celeron are registered trademarks and Core is a trademark of Intel Corporation in the U.S. and

other countries; Ve s a is a registered trademark of Video Electronics Standards Association.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

Environmental

Temperature range

Operating

10° to 35°C (50° to 95°F)

Storage

–40° to 65°C (–40° to 149°F)

Relative humidity (maximum)

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Altitude:

Operating

–15.2 to 3048 m (–50 to 10,000 ft)

Storage

–15.2 to 10,668 m (–50 to 35,000 ft)

Airborne contaminant level G2 or lower as defined by ISA-S71.04-1985

If you need to: See:

Find safety best practices information for your

computer, review

Warranty information, Terms and

Conditions(U.S only), Safety instructions,

Regulatory information, Ergonomics

information, and End User License Agreement.

The safety and regulatory documents that shipped

with your computer and the Regulatory

Compliance Homepage at

www.dell.com/regulatory_compliance.

R102Ncc0.fm Page 8 Wednesday, May 13, 2009 12:32 PM
