Dell Precision Workstation T3600/T5600/

T7600

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Dell Precision Workstation T3600/T5600 — Front

and Back View

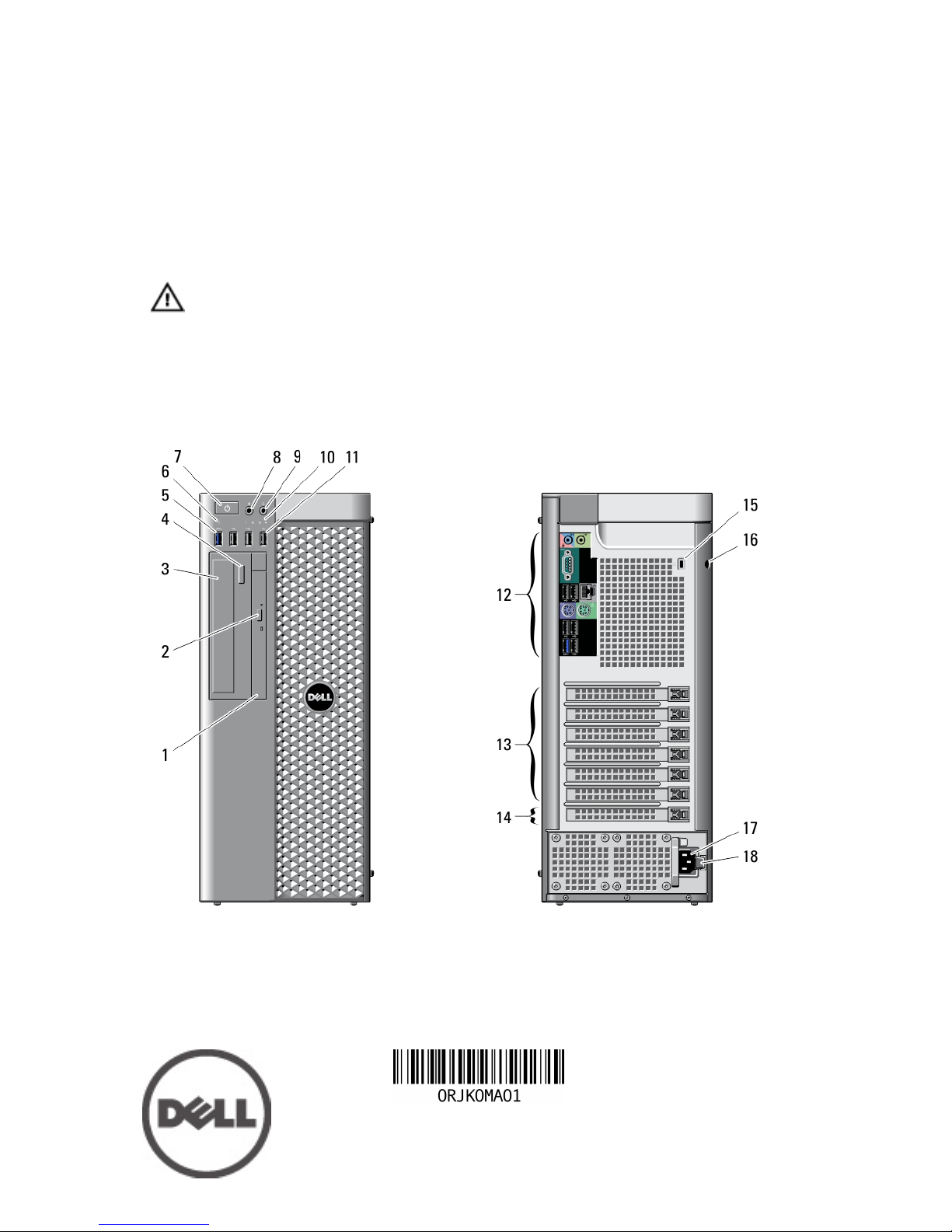

Figure 1. Front View and Back View

1. optical drive 2. optical drive eject button

Regulatory Model: D01T, D02X

Regulatory Type: D01T001, D01T002, D02X001

2012 - 03

3. optical drive (optional)

4. optical drive eject button (optional)

5. USB 3.0 connector (1)

6. drive activity light

7. power button, power light

8. microphone connector

9. headphone connector

10. diagnostic lights (4)

11. USB 2.0 connectors (3)

12. back panel

13. active expansion card slots (6)

14. blank slot (1)

15. security cable slot

16. padlock ring

17. power connector

18. power supply unit (PSU) release

latch

Back Panel

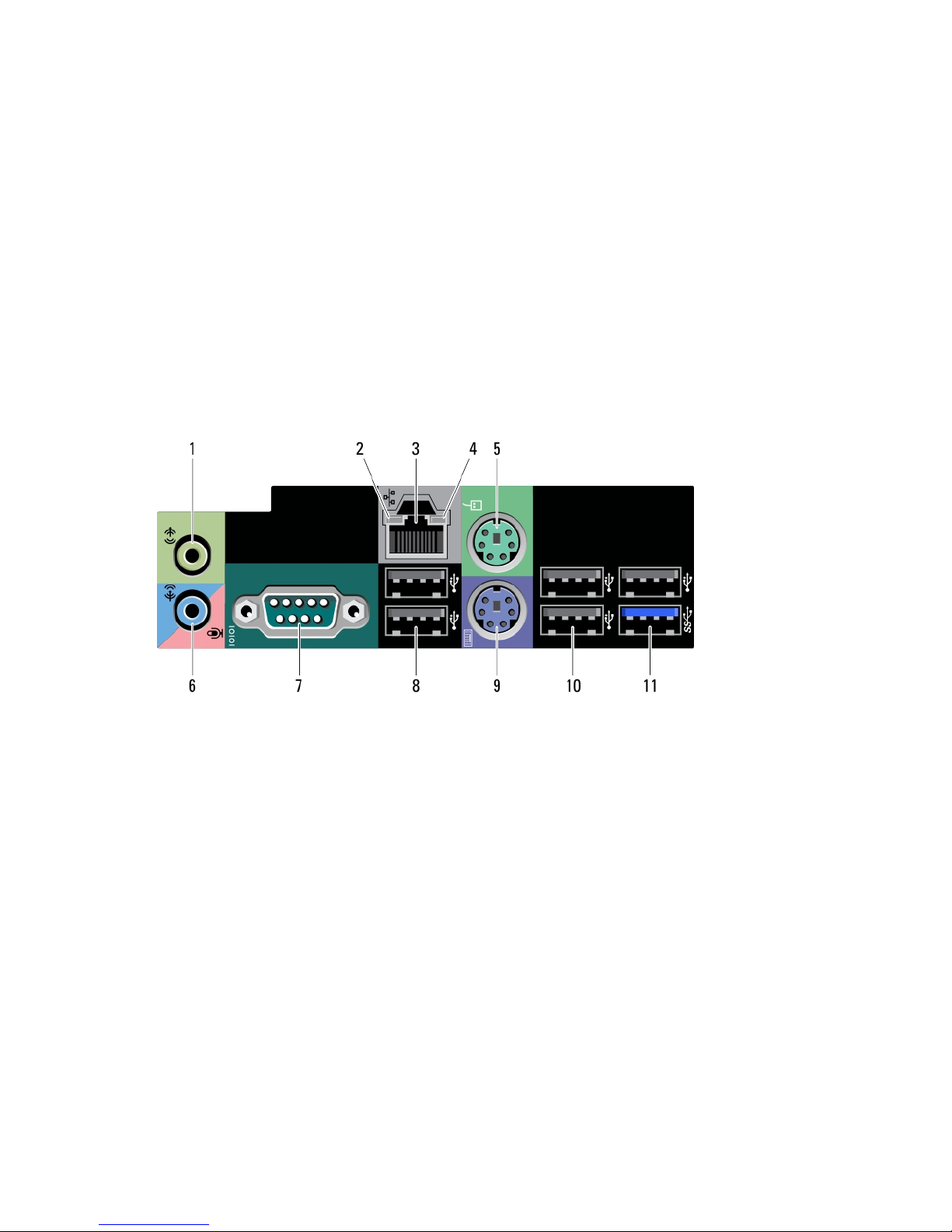

Figure 2. Back Panel View

1. line-out connector

2. network link integrity light

3. network adapter connector

4. network activity light

5. PS2/mouse connector

6. line-in/microphone connector

7. serial connector

8. USB 2.0 connectors (2)

9. PS/2 keyboard connector

10. USB 2.0 connectors (3)

11. USB 3.0 connector

Dell Precision Workstation T7600 — Front and

Back View

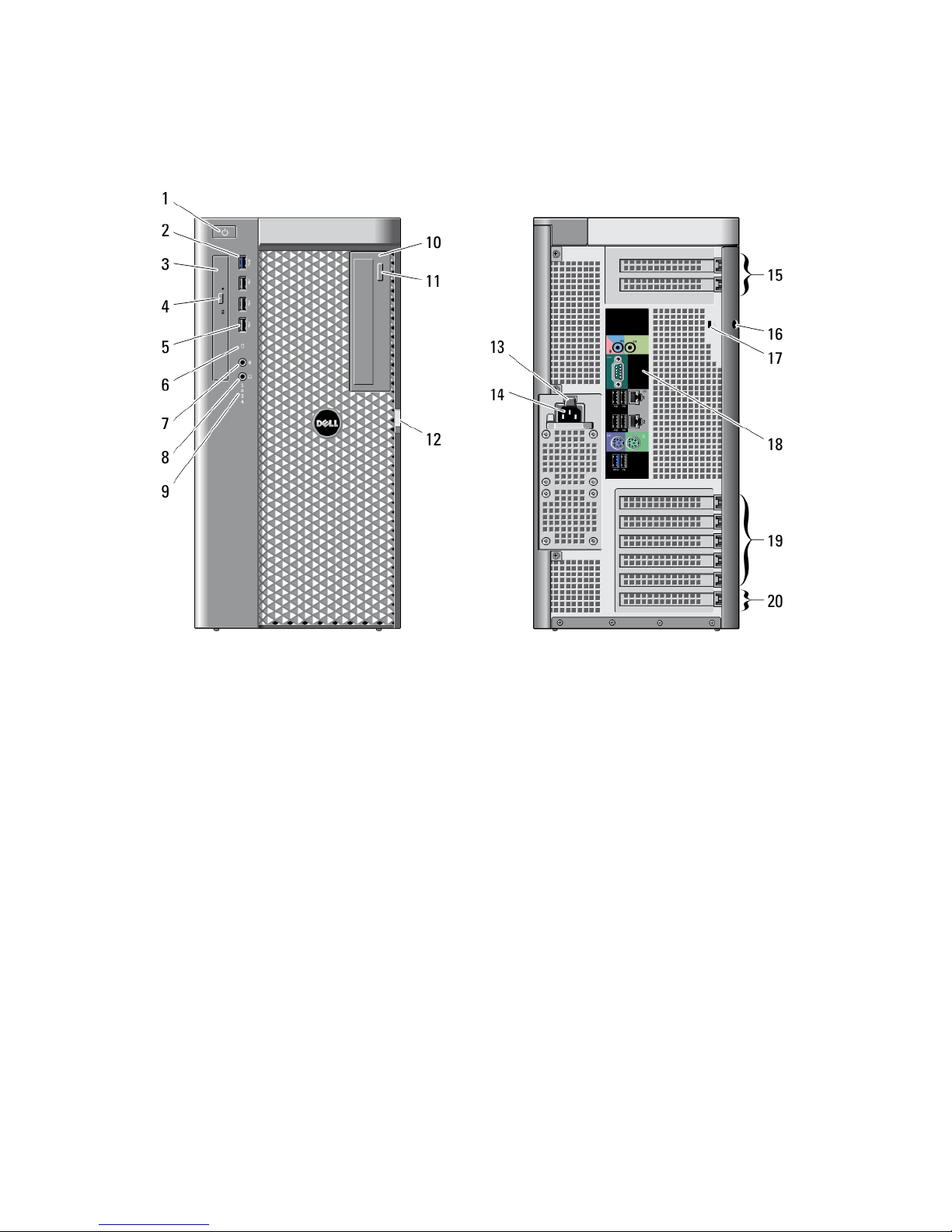

Figure 3. Front View and Back View

1. power button, power light

2. USB 3.0 connector (1)

3. optical drive

4. optical drive eject button

5. USB 2.0 connectors (3)

6. hard-drive activity light

7. microphone connector

8. headphone connector

9. diagnostic lights (4)

10. optical drive (optional)

11. optical drive eject button (optional)

12. hard drive access cover-release

latch

13. power supply unit (PSU) release

latch

14. power connector

15. expansion card slots (2)

16. padlock ring

17. security cable slot

18. back panel

19. active expansion card slots (5)

20. blank slot (1)

NOTE: The PCIe expansion slots (#15) are only active when a second CPU is

installed.

Back Panel

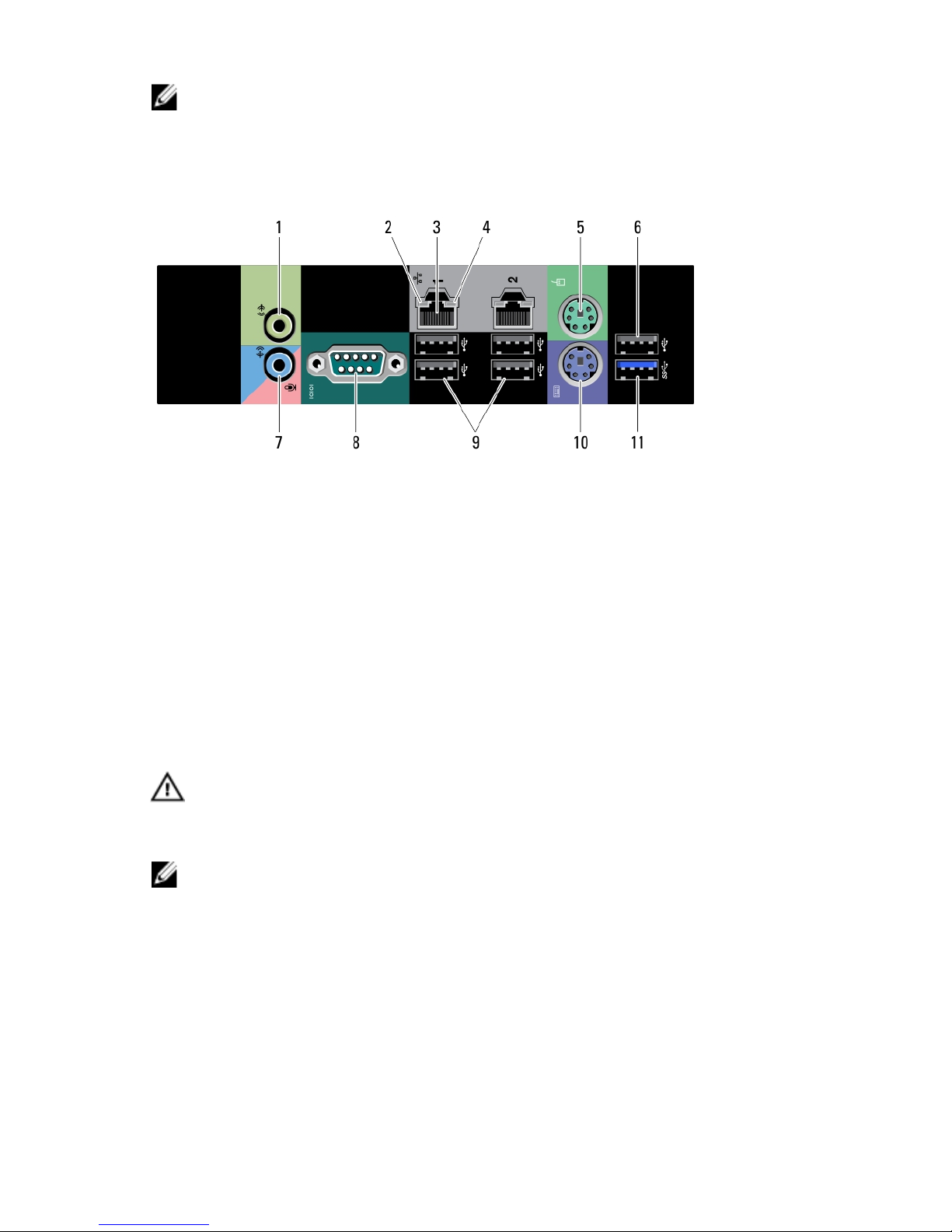

Figure 4. Back Panel View

1. line-out connector

2. network link integrity light

3. network adapter connectors (2)

4. network activity light

5. PS/2 mouse connector

6. USB 2.0 connector

7. line-in/microphone connector

8. serial connector

9. USB 2.0 connectors (4)

10. PS/2 keyboard connector

11. USB 3.0 connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order them.

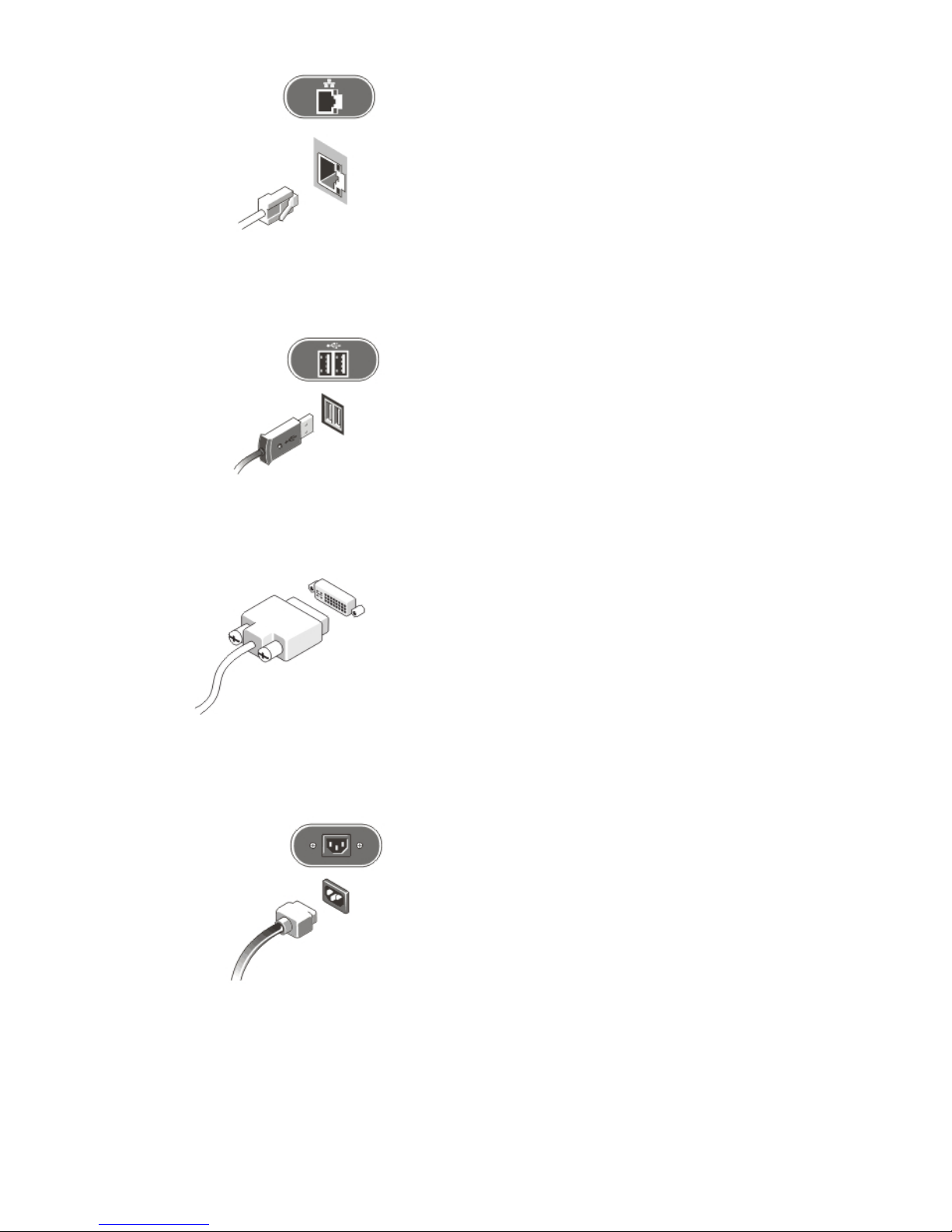

1. Connect the network cable(s) (optional).

Figure 5. Network Connection

2. Connect the keyboard or mouse (optional).

Figure 6. Keyboard and Mouse Connection

3. Connect the monitor cable (optional).

Figure 7. Monitor Connection

4. Connect the power cable(s).

Figure 8. Power Connection

5. Press the power buttons on the monitor (optional) and the computer.

Figure 9. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

Coin-cell battery 3 V CR2032 lithium coin cell

Voltage 100 to 240 VAC

Wattage

T7600 1000 W (input voltage 100–107 VAC)

1100 W (input voltage 108–180 VAC)

1300 W (input voltage 181–240 VAC)

T5600 825 / 635W (input voltage of 100-240 VAC)

T3600 635 / 425W (input voltage of 100-240 VAC)

Maximum heat dissipation

1300 W 4113.00 BTU/hr

825 W 3086.60 BTU/hr

635 W 2484.00 BTU/hr

425 W 1450.10 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

T7600

Height 430.50 mm (16.95 inches) with feet – 433.40 mm (17.06

inches)

Width 216.00 mm (8.51 inches)

Depth 525.00 mm (20.67 inches)

Weight (minimum) 16.90 kg (37.26 lb)

T5600/T3600

Height 414.00 mm (16.30 inches) with feet – 416.90 mm (16.41

inches)

Width 172.60 mm (6.79 inches) with feet – 175.50 mm (6.91

inches)

Depth 471.00 mm (18.54 inches)

Weight (minimum) 14.00 kg (30.86 lb)

Weight (minimum) 13.2 kg (29.10 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico

D02X 12,00 A ~ 6,00 A

D01T 6,00 A

Finding Information

NOTE: Open the side panel of the computer to see your system regulatory label.

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

Open the side panel of the computer to see your system regulatory label.

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
