Dell OptiPlex 390/3010

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Mini-Tower — Front And Back View

Figure 1. Front And Back View Of Mini-Tower

1. power button

2. optical drive bay

3. headphone connector

4. microphone connector

5. diagnostic lights (4)

6. optical drive

7. optical-drive eject button

8. USB 2.0 connectors (2)

9. hard-drive activity light

10. power-supply diagnostic light

Regulatory Model: D04S, D07D, D12M

Regulatory Type: D04S001, D07D001,

D12M001

2012 - 05

11. power-supply diagnostic button

12. power cable connector

13. back panel connectors

14. expansion card slots (4)

15. security cable slot

16. padlock ring

Desktop — Front And Back View

Figure 2. Front And Back View Of Desktop

1. optical drive

2. optical-drive eject button

3. power button

4. USB 2.0 connectors (2)

5. microphone connector

6. headphone connector

7. hard-drive activity light

8. diagnostic lights (4)

9. padlock ring

10. security cable slot

11. power cable connector

12. back panel connectors

13. expansion card slots (4)

14. power-supply diagnostic light

15. power-supply diagnostic button

Mini-Tower And Desktop — Back Panel

Figure 3. Back Panel View of Mini-Tower And Desktop

1. link integrity light

2. network connector

3. network activity light

4. line-in connector

5. line-out connector

6. USB 2.0 connectors (6)

7. HDMI connector

8. VGA connector

9. microphone connector

Small Form Factor — Front And Back View

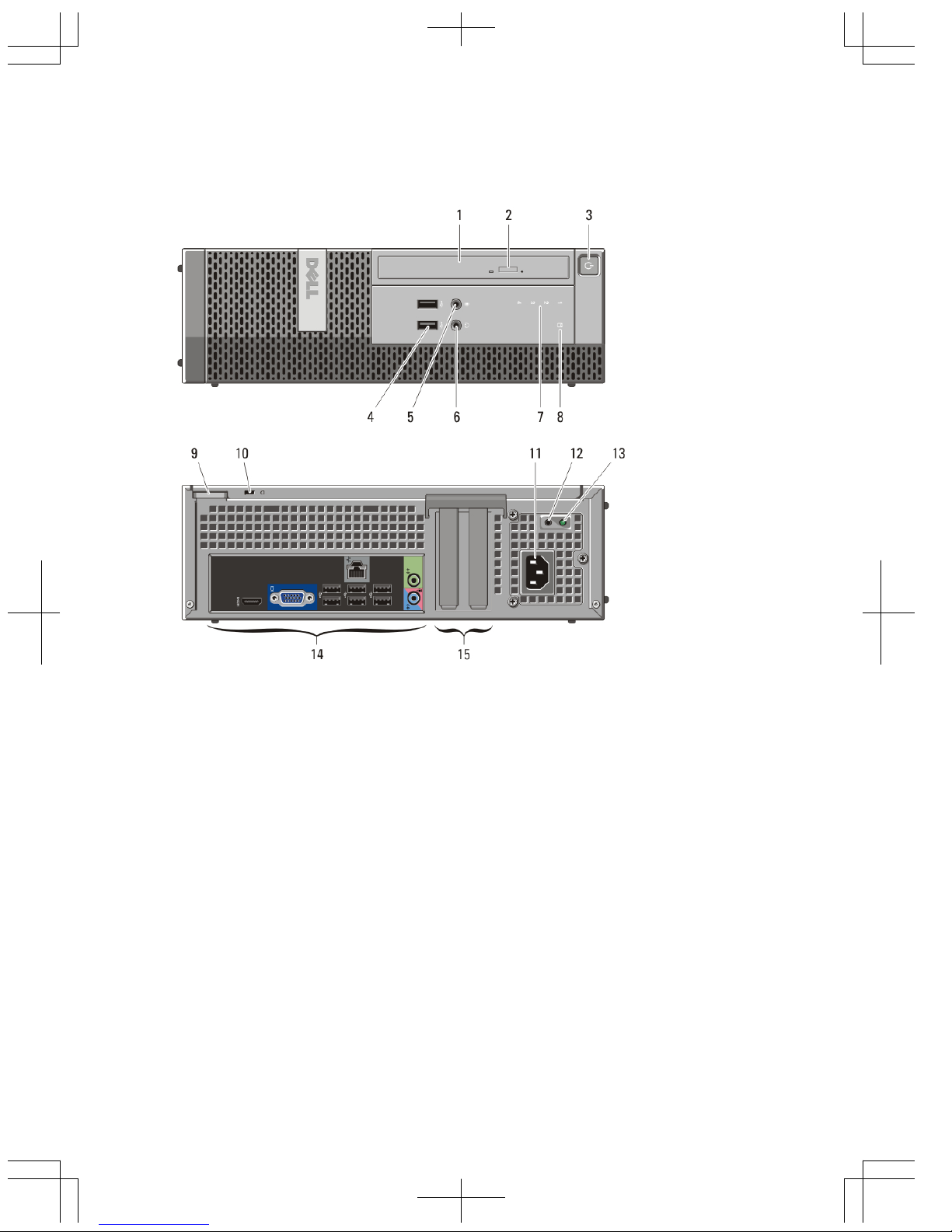

Figure 4. Front And Back View Of Small Form Factor

1. optical drive

2. optical-drive eject button

3. power button

4. USB 2.0 connectors (2)

5. microphone connector

6. headphone connector

7. diagnostic lights (4)

8. hard-drive activity light

9. padlock ring

10. security cable slot

11. power cable connector

12. power-supply diagnostic button

13. power-supply diagnostic light

14. back panel connectors

15. expansion card slots (2)

Small Form Factor — Back Panel

Figure 5. Back Panel View of Small Form Factor

1. link integrity light

2. network connector

3. network activity light

4. line-out connector

5. HDMI connector

6. VGA connector

7. USB 2.0 connectors (6)

8. line-in/microphone connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order them.

1. Connect the monitor using only one of the following cables:

Figure 6. HDMI Connector

Figure 7. VGA Connector

2. Connect the USB keyboard or mouse (optional).

Figure 8. USB Connection

3. Connect the network cable (optional).

Figure 9. Network Connection

4. Connect the power cable(s).

Figure 10. Connecting Power

5. Press the power buttons on the monitor and the computer.

Figure 11. Power Button

Specifications

NOTE: The following specifications are only those required by law to ship with your

computer. For a complete and current listing of the specifications for your

computer, go to support.dell.com.

Power

Coin-cell battery 3 V CR2032 lithium coin cell

Voltage

Desktop/Mini-Tower/

Small Form Factor

100 VAC to 240 VAC

Wattage

Desktop 250 W

Mini-Tower 265 W

Small Form Factor 240 W

Maximum heat dissipation

Desktop 853 BTU/hr

Mini-Tower 904 BTU/hr

Small Form Factor 819 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical Mini-Tower Desktop Small Form Factor

Height 360.00 mm 360.00 mm 290.00 mm

(14.17 inches) (14.17 inches) (11.42 inches)

Width 175.00 mm 102.00 mm 92.60 mm

Physical Mini-Tower Desktop Small Form Factor

(6.89 inches) (4.01 inches) (3.64 inches)

Depth 417.00 mm 410.00 mm 312.00 mm

(16.42 inches) (16.14 inches) (12.28 inches)

Weight (Minimum) 8.87 kg 7.56 kg 5.70 kg

(19.55 lb) (16.67 lb) (12.57 lb)

Environmental

Operating temperature 10 °C to 35 °C (50 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico

D04S 4,0 A / 2,0 A

D07D 4,4 A / 2,2 A

D12M 5,0 A / 2,5 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
