Dell OptiPlex 3000 Thin Client Manuel utilisateur

OptiPlex 3000 Thin Client

Antenna Installation Guide

April 2022

Rev. A00

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid

the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

subsidiaries. Other trademarks may be trademarks of their respective owners.

Chapter 1: Before you begin ......................................................................................................... 4

Chapter 2: Recommended tools.....................................................................................................5

Chapter 3: OptiPlex 3000 Thin Client Antenna.............................................................................. 6

Chapter 4: Antenna Placement...................................................................................................... 8

Chapter 5: SMA antenna.............................................................................................................. 10

Chapter 6: Getting help................................................................................................................11

Contacting Dell.................................................................................................................................................................... 11

Contents

Contents 3

Before you begin

Steps

1. Save and close all open files and exit all open applications.

2. Shut down your system: Click Start > Power > Shut down.

NOTE: If you are using a Linux operating system, see the documentation of your operating system for shut-down

instructions.

3. Disconnect your system and all attached devices from their electrical outlets.

4. Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your system.

CAUTION: To disconnect a network cable, first unplug the cable from your system and then unplug the cable

from the network device.

5. If the system unit or the adapter is being installed on the monitor:

a. Disconnect the power and all the display cables from the monitor.

b. Remove the stand from the monitor and place the monitor on a clean and soft surface.

4 Before you begin

Recommended tools

The procedures in this document may require the following tool:

●Phillips screwdriver #2

Recommended tools 5

OptiPlex 3000 Thin Client Antenna

Steps

1. Follow the instructions in Before you begin.

2. Align and connect the antenna cables to the SMA connectors on the chassis.

3. Tighten the bolts to secure the antenna cables to the SMA connectors on the chassis.

4. Slide the SMA cover over the antenna cables.

5. Align the tabs on the SMA cover with the slots on the chassis.

6. Push the SMA cover towards the chassis until it clicks into place.

7. Tighten the captive screw to secure the SMA cover to the chassis.

6 OptiPlex 3000 Thin Client Antenna

OptiPlex 3000 Thin Client Antenna 7

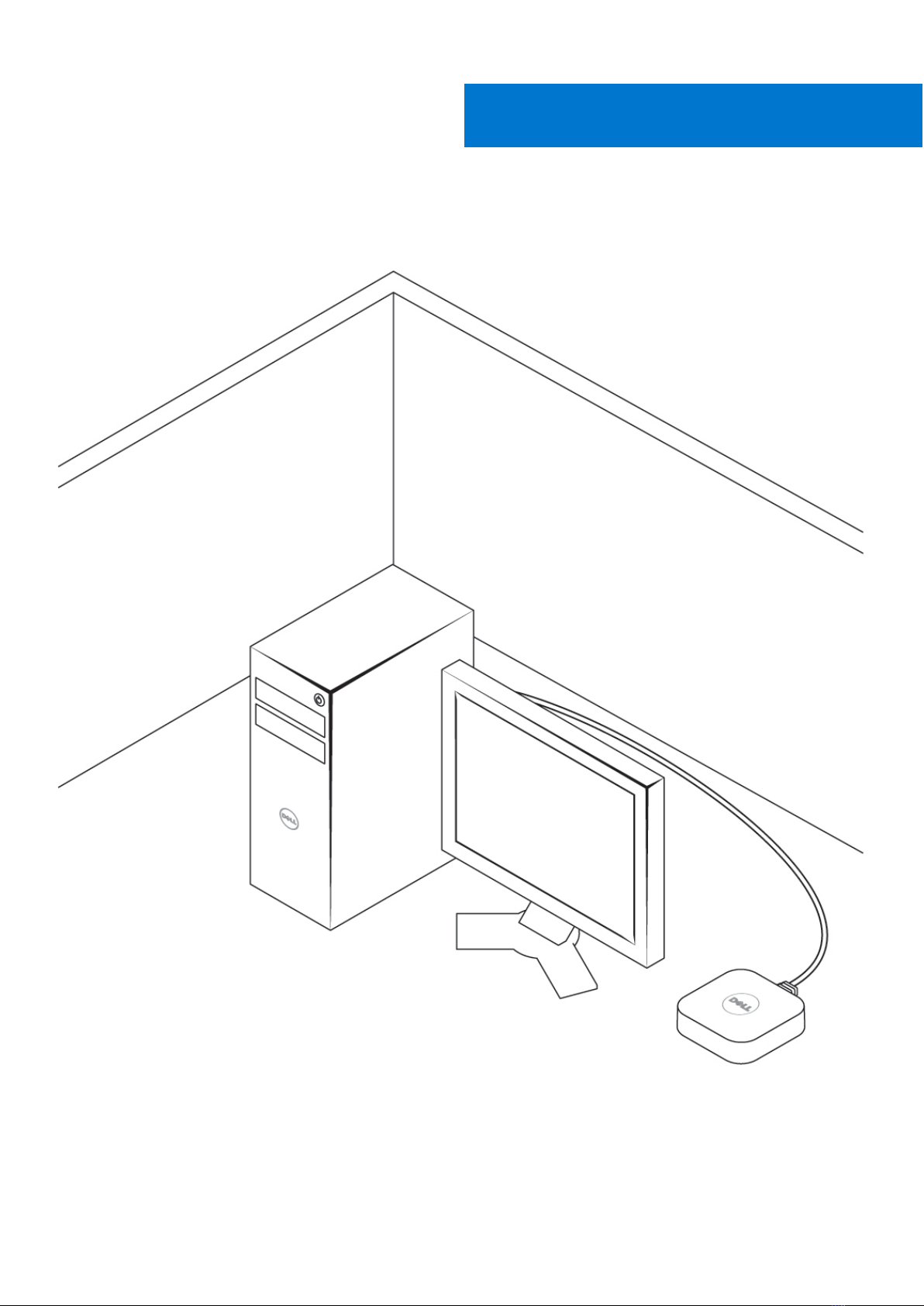

Antenna Placement

Place the antenna in a suitable location.

8 Antenna Placement

Antenna Placement 9

SMA antenna

For SMA antenna removal and installation procedures, search for OptiPlex 3000 Thin Client Service Manual at www.dell.com/

support.

10 SMA antenna
