Dell™Inspiron™560/570ServiceManual

Notes, Cautions, and Warnings

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Intel SpeedStep is a registered trademark of Intel Corporation in the U.S. and other

countries; AMD is a trademark of Advanced Micro Devices, Inc; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Models: DCME and D06M Type: D06M001

November2009Rev.A00

Before You Begin

Technical Overview

Computer Cover

Front Bezel

Memory Module(s)

PCI and PCI Express Cards

Drives

Fans

Front I/O Panel

Processor

System Board

Power Supply

Battery

System Setup

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Before You Begin

Dell™Inspiron™560/570ServiceManual

Technical Specifications

Recommended Tools

Turning Off Your Computer

Safety Instructions

This manual provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Safety Instructions.

lYou have read the safety information that ships with your computer.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.

Technical Specifications

For information on technical specifications of your computer, see the Comprehensive Specifications at support.dell.com/manuals.

Recommended Tools

The procedures in this document may require the following tools:

lSmall Phillips screwdriver

lSmall flat-blade screwdriver

lBIOS executable update program available at support.dell.com

Turning Off Your Computer



1. Save and close all open files and exit all open programs.



2. Shut down your computer:

Windows Vista®:

Click Start , click the arrow , and then click Shut Down.

Windows®7:

Click Start , and click Shut Down.



3. The computer turns off after the operating system shutdown process is complete.



4. Ensure that the computer is turned off. If your computer did not automatically turn off when you shut down the operating system, press and hold the

power button until the computer turns off.

Safety Instructions

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is

not covered by your warranty.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking

tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep

them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer (see Turning Off Your Computer).



5. Disconnect all telephone or network cables from the computer.



6. Disconnect your computer and all attached devices from their electrical outlets.



7. Disconnect all attached devices from your computer.



8. Press and eject any installed cards from the optional Media Card Reader.



9. Press and hold the power button while the system is unplugged to ground the system board.

Back to Contents Page



and aligned.

CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back

of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal

components.

Back to Contents Page

Front Bezel

Dell™Inspiron™560/570ServiceManual

Removing the Front Bezel

Replacing the Front Bezel

Removing the Front Bezel



1. Follow the procedures in Before You Begin.



2. Remove the computer cover (see Removing the Computer Cover).



3. Grasp and lift the front-bezel grips one at a time to release it from the front panel.



4. Rotate and pull the front bezel away from the front of the computer to release the front-bezel clamps from the front-bezel inserts.



5. Set aside the front bezel in a secure location.

Replacing the Front Bezel



1. Follow the procedures in Before You Begin.



2. Align and insert the front-bezel clamps into the front-bezel inserts.



3. Rotate the front bezel towards the computer until the front-bezel grips snap into place.



4. Replace the computer cover (see Replacing the Computer Cover).



5. Connect your computer and devices to electrical outlets, and then turn them on.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)

removed.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

front-bezel grips (3)

front bezel

front-bezel clamps (3)

front-bezel inserts (3)

Back to Contents Page



Back to Contents Page

PCI and PCI Express Cards

Dell™Inspiron™560/570ServiceManual

Removing the Card Retention Bracket

Replacing the Card Retention Bracket

Removing PCI and PCI Express Cards

Replacing PCI and PCI Express Cards

Configuring Your Computer After Removing or Installing a PCI or PCI Express Card

Removing the Card Retention Bracket



1. Follow the procedures in Before You Begin.



2. Remove the computer cover (see Removing the Computer Cover).



3. Remove the screw that secures the card retention bracket to the chassis.



4. Lift the card retention bracket and set it aside in a secure place.

Replacing the Card Retention Bracket



1. Follow the procedures in Before You Begin.



2. Replace the card retention bracket, ensuring that:

lThe guide clamp is aligned with the guide notch.

lThe tops of all cards and filler brackets are flush with the alignment bar.

lThe notch in the top of the card or filler bracket fits around the alignment guide.



3. Replace the screw that secures the card retention bracket to the chassis.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)

removed.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

screw

card retention bracket

Removing PCI and PCI Express Cards



1. Follow the procedures in Before You Begin.



2. Remove the computer cover (see Removing the Computer Cover).



3. Remove the card retention bracket (see Removing the Card Retention Bracket).



4. If necessary, disconnect any cables connected to the card and remove the card.

lFor a PCI or PCI Express x1 card, grasp the card by its top corners, and ease it out of its connector.

lFor a PCI Express x16 card, press down on the retention mechanism, grasp the card by its top corners, and then ease it out of its connector.



5. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.



6. Replace the card retention bracket (see Replacing the Card Retention Bracket).



7. Replace the computer cover (see Replacing the Computer Cover).



8. Connect your computer and devices to electrical outlets, and then turn them on.



9. Remove the card's driver from the operating system.



screw

guide clamps (2)

card retention bracket

guide notches (2)

filler bracket

alignment guide

alignment bar



PCI Express x16 card

PCI Express x16 card slot

securing tab

retention mechanism

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep

dust and dirt out of your computer.

10. To complete the removal procedure, see Configuring Your Computer After Removing or Installing a PCI or PCI Express Card.

Replacing PCI and PCI Express Cards



1. Follow the procedures in Before You Begin.



2. Remove the computer cover (see Removing the Computer Cover).



3. Remove the card retention bracket (see Removing the Card Retention Bracket).



4. If this is a new card installation, remove the filler bracket covering the card-slot opening.



5. Prepare the card for installation.

See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your

computer.



6. If you are installing the PCI Express card into the x16 card connector, position the card so the securing slot is aligned with the securing tab.



7. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.



8. Replace the card retention bracket (see Replacing the Card Retention Bracket).



9. Connect any cables that should be attached to the card.

See the documentation for the card for information about the card's cable connections.



10. Replace the computer cover (see Replacing the Computer Cover).



11. Connect your computer and devices to electrical outlets, and then turn them on.

PCI Express x16 card

PCI Express x16 card slot

securing tab

securing slot

fully-seated card

not fully-seated card

alignment bar

alignment guide

bracket within slot

bracket caught outside of slot

CAUTION: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly

or cause damage to the equipment.



12. To complete the installation, see Configuring Your Computer After Removing or Installing a PCI or PCI Express Card.

Configuring Your Computer After Removing or Installing a PCI or PCI Express Card

Back to Contents Page



NOTE: For information on location of external connectors, see the Setup Guide. For information on installing drivers and software for your card, see the

documentation that shipped with the card.



Installed

Removed

Sound

Card

1. Enter system setup (see

Entering System Setup).

2. Go to Onboard Audio

Controller and then

change the setting to

Disabled.

3. Connect the external

audio devices to the

sound card's connectors.

1. Enter system setup (see

Entering System Setup).

2. Go to Onboard Audio

Controller and then

change the setting to

Enabled.

3. Connect the external

audio devices to the

computer's back panel

connectors.

Network

Card

1. Enter system setup (see

Entering System Setup).

2. Go to Onboard LAN

Controller and then

change the setting to

Disabled.

3. Connect the network

cable to the network

card's connector.

1. Enter system setup (see

Entering System Setup).

2. Go to Onboard LAN

Controller and then

change the setting to

Enabled.

3. Connect the network

cable to the integrated

network connector.

Back to Contents Page

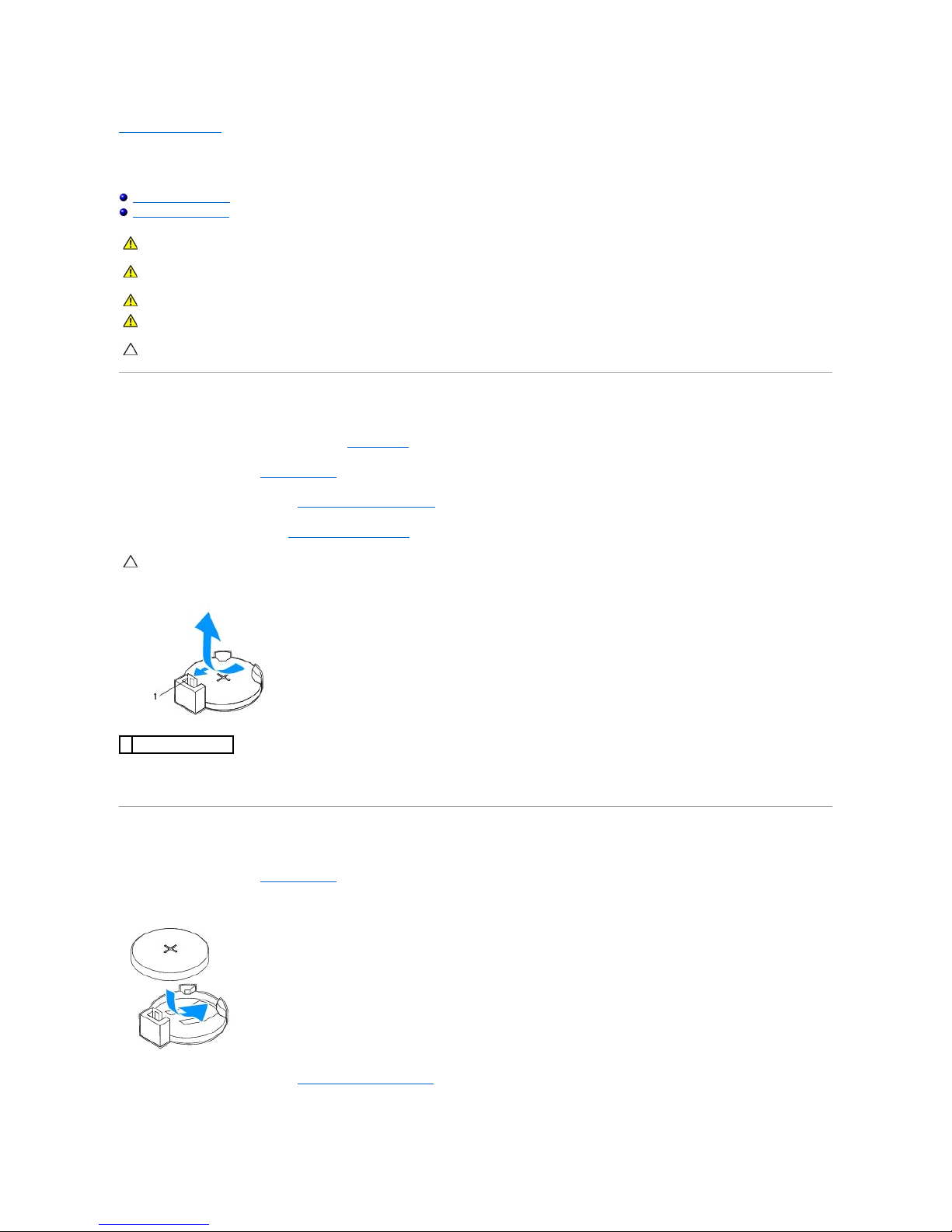

Battery

Dell™Inspiron™560/570ServiceManual

Removing the Battery

Replacing the Battery

Removing the Battery



1. Record all the screens in System Setup (see System Setup) so that you can restore the correct settings after the new battery has been installed.



2. Follow the procedures in Before You Begin.



3. Remove the computer cover (see Removing the Computer Cover).



4. Locate the battery socket (see System Board Components).



5. Press the battery release lever to remove the battery.

Replacing the Battery



1. Follow the procedures in Before You Begin.



2. Insert the new battery (CR2032) into the socket with the side labeled "+" facing up, and press the battery into place.



3. Replace the computer cover (see Replacing the Computer Cover).



4. Connect your computer and devices to electrical outlets, and then turn them on.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the

manufacturer. Discard used batteries according to the manufacturer's instructions.

WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)

removed.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the

object is inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by

prying off the socket or by breaking circuit traces on the system board.

battery release lever

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Ordinateur de bureau

Dell

Dell OptiPlex HUB Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

Dell

Dell Dimension 4600C Manuel utilisateur

Dell

Dell PowerEdge M820 Systems Manuel utilisateur

Dell

Dell OPTIPLEX 3010 Desktop Manuel utilisateur

Dell

Dell Dimension 0H1215A01 Manuel utilisateur

Dell

Dell Precision 3240 Compact Manuel utilisateur

Dell

Dell OptiPlex 960 Manuel du propriétaire

Dell

Dell OptiPlex 980 - Desktop Manuel utilisateur

Dell

Dell D30M Manuel d'exploitation et d'entretien

Dell

Dell OptiPlex 5090 Tower Manuel utilisateur

Dell

Dell Precision T3600 Manuel utilisateur

Dell

Dell Alienware Aurora R3 Instructions de fonctionnement

Dell

Dell Precision T7500 Manuel utilisateur

Dell

Dell Studio XPS 435MT Manuel utilisateur

Dell

Dell XPS 600 Manuel utilisateur

Dell

Dell XPS /Dimension Manuel utilisateur

Dell

Dell Precision 3240 Compact Manuel utilisateur

Dell

Dell OptiPlex Small Form Factor 7010 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Dell

Dell OptiPlex 5000 Small Form Factor Manuel d'exploitation et d'entretien

Dell

Dell OptiPlex 3050 Manuel utilisateur

Dell

Dell OptiPlex Small Form Factor 7010 Manuel utilisateur

Dell

Dell 5820 Mode d’emploi

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

HP Z1 Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Compaq

Compaq iPAQ Internet Device Manuel utilisateur
