Dell Inspiron 3650 Manuel utilisateur

Views

Specifications

NOTE: The images in this document may differ from your computer

depending on the configuration you ordered.

intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2016 ‑ 12 Rev. A01

Regulatory model: D19M | Type: D19M002

Computer model: Inspiron 3650

Inspiron 3650

1 Power button

Press to turn on the computer if it

is turned off or in sleep state.

Press to put the computer in sleep

state if it is turned on.

Press and hold for 4 seconds to

force shut‑down the computer.

NOTE: You can customize

the power‑button behaviour

in Power Options. For more

information, see Me and My Dell

at www.dell.com/support.

2 Hard-drive activity light

Turns on when the computer

reads from or writes to the

harddrive.

3 Media-card reader

Reads from and writes to

media cards.

4 Headset port

Connect a headphone, a

microphone, or a headset

(headphone and microphone

combo).

5 USB 3.0 ports (2)

Connect peripherals such as

storage devices, printers, and so

on. Provides data transfer speeds

up to 5 Gbps.

6 Optical drive (optional)

Reads from and writes to

CDs and DVDs.

Front

Views

Specifications

Front

Back

Back panel

1 Back panel

Connect USB, audio, video, and other devices.

2 Expansion-card slots

Provide access to ports on any installed PCI Express

cards.

3 Power port

Connect a power cable to provide power to your

computer.

4 Power-supply light

Indicates the power availability of the power supply.

5 Power-supply diagnostic button

Press to start the test on the availability of the power

supply.

6 Padlock rings

Attach a padlock to prevent unauthorized access to the

interior of your computer.

7 Security-cable slot

Connect a security cable to prevent unauthorized

movement of your computer.

Back

Views

Specifications

Front

Back

Back panel

1 Line-in port

Connect recording or playback devices such as a

microphone or CD player.

2 Line-out port

Connect speakers.

3 Microphone port

Connect an external microphone to provide sound input.

4 VGA port

Connect an external display oraprojector.

5 HDMI port

Connect a TV or another HDMI‑in enabled device.

Provides video and audio output.

6 USB 2.0 ports (4)

Connect peripherals such as storage devices, printers,

and so on. Provides data transfer speeds up to 480 Mbps.

7 Network port

Connect an Ethernet (RJ45) cable from a router or a

broadband modem for network or

internet access.

The two lights next to the connector indicate the

connectivity status and networkactivity.

Views

Specifications

Front

Back

Back panel

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight StorageCommunications Video Audio

Power ratings

Media-card

reader

Computer

environment

Dimensions and weight

Height 352.90 mm (13.90 in)

Width 154 mm (6.06 in)

Depth 303 mm (11.93in)

Weight (maximum) 7.40 kg (16.30 lb)

NOTE: The weight of your desktop varies depending on the configuration ordered

and the manufacturing variability.

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight StorageCommunications Video Audio

Power ratings

Media-card

reader

Computer

environment

System information

Computer model Inspiron 3650

Processor • Intel Celeron Processor

• Intel Pentium Processor

• 6th Generation Intel Core i3 Processor

• 6th Generation Intel Core i5 Processor

• 6th Generation Intel Core i7 Processor

Chipset Intel H110

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight StorageCommunications Video Audio

Power ratings

Media-card

reader

Computer

environment

Memory

Slot Two UDIMM slots

Type Dual‑channel DDR3L

Speed 1600 MHz

Configurations supported 2 GB, 4 GB, 8 GB, 12 GB, and 16 GB

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight StorageCommunications Video Audio

Power ratings

Media-card

reader

Computer

environment

Ports and connectors

External:

Network One RJ45 port

USB • Four USB 2.0 ports

• Two USB 3.0 ports

Audio • One headset port

• One microphone port

• One line‑in port

• One line‑out port

Video • One VGA port

• One HDMI port

Internal:

M.2 slot One M.2 card slot for Wi‑Fi and Bluetooth combo card

PCIe slot • Two PCIe x1 card slot

• One PCIe x16 card slot

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight StorageCommunications Video Audio

Power ratings

Media-card

reader

Computer

environment

Communications

Ethernet 10/100/1000 Mbps Ethernet controller integrated on systemboard

Wireless • Up to Wi‑Fi 802.11ac

• Bluetooth 4.0

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight StorageCommunications Video Audio

Power ratings

Media-card

reader

Computer

environment

Video

Controller:

Integrated Intel HD Graphics

Discrete NVIDIA GeForce GT 730

Memory:

Integrated Shared system memory

Discrete 2 GB GDDR3

Autres manuels pour Inspiron 3650

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Ordinateur de bureau

Dell

Dell Precision 7920 Tower Manuel utilisateur

Dell

Dell OptiPlex 5055 Small Form Factor Manuel utilisateur

Dell

Dell Alienware Aurora R8 Manuel utilisateur

Dell

Dell Precision Workstation 340 Guide de l'utilisateur

Dell

Dell Dimension 0GK816A00 Manuel utilisateur

Dell

Dell OptiPlex 7060 Micro Manuel utilisateur

Dell

Dell PowerEdge 850 Manuel technique

Dell

Dell PE R720XD Manuel utilisateur

Dell

Dell OptiPlex GX1 Manuel utilisateur

Dell

Dell OptiPlex 3050 Manuel utilisateur

Dell

Dell Dimension 9200C Manuel utilisateur

Dell

Dell Dimension 5100 Manuel utilisateur

Dell

Dell PRECISION T1650 Manuel utilisateur

Dell

Dell Dimension J2936 Manuel utilisateur

Dell

Dell Dimension 0XD922A01 Manuel

Dell

Dell Latitude 3000 Series Manuel utilisateur

Dell

Dell Precision 6T337 Manuel utilisateur

Dell

Dell YRC3G Manuel utilisateur

Dell

Dell PowerEdge 2300 Manuel utilisateur

Dell

Dell Dimension 5150C Manuel utilisateur

Dell

Dell OptiPlex 3020 Manuel utilisateur

Dell

Dell PE R720XD Manuel utilisateur

Dell

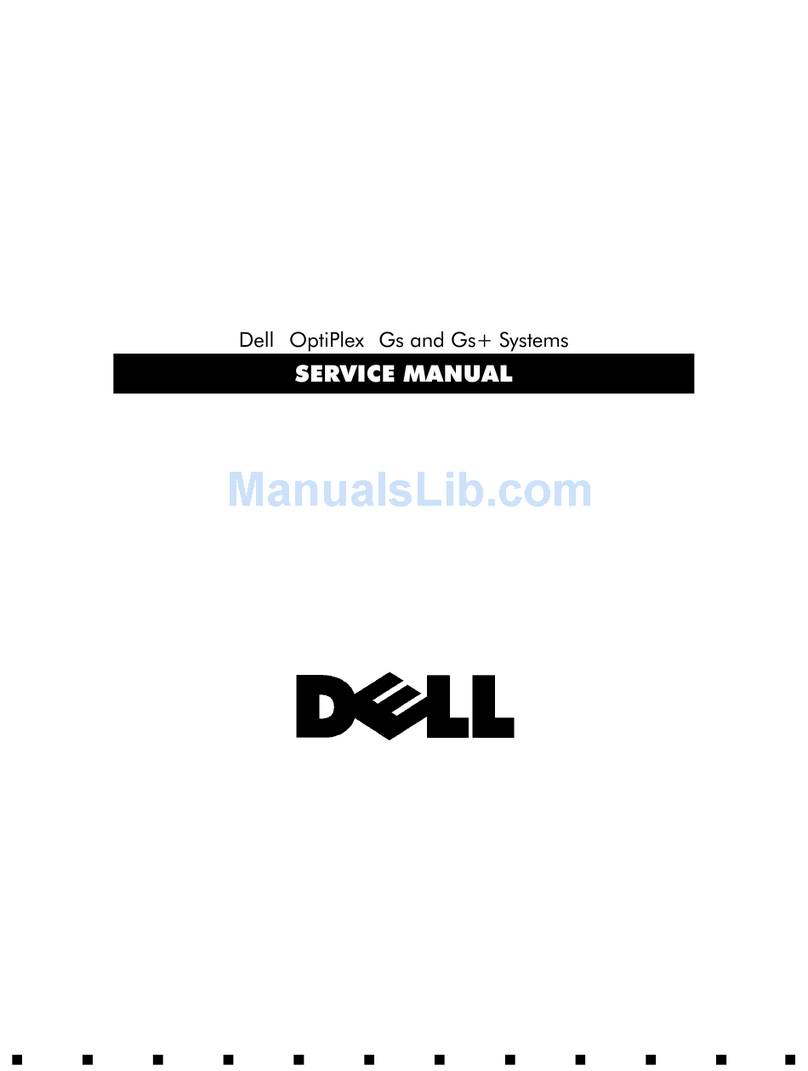

Dell OptiPlex Gs Manuel utilisateur
