Dell™ OptiPlex™ GX520

Quick Reference Guide

Models DCTR, DCNE, DCSM

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

If you purchased a Dell™ n Series computer, any references in this document to Microsoft

Windows

operating systems are not applicable.

The

Quick Reference Guide

Drivers and Utilities

CD, and operating system media are optional and may not ship

with all computers.

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see the Glossary in the

User’s Guide

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, OptiPlex, and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks

of Microsoft Corporation; Intel and Pentium are registered trademarks of Intel Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Models DCTR, DCNE, DCSM

August 2006 P/N R9729 Rev. A02

Contents 3

Contents

Finding Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Mini Tower Computer — Front View . . . . . . . . . . . . . . . . . . . . . 8

Mini Tower Computer — Back View . . . . . . . . . . . . . . . . . . . . 10

Desktop Computer — Front View. . . . . . . . . . . . . . . . . . . . . . 11

Desktop Computer — Back View. . . . . . . . . . . . . . . . . . . . . . 13

Small Form Factor Computer — Front View . . . . . . . . . . . . . . . . 14

Small Form Factor Computer — Back View . . . . . . . . . . . . . . . . 15

Back-Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Removing the Computer Cover. . . . . . . . . . . . . . . . . . . . . . . . . . 18

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Mini Tower Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Desktop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Small Form Factor Computer . . . . . . . . . . . . . . . . . . . . . . . . 22

Inside Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Mini Tower Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Desktop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Small Form Factor Computer . . . . . . . . . . . . . . . . . . . . . . . . 25

Setting Up Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Dell Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

System Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Diagnostic Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Running the Dell™ IDE Hard Drive Diagnostics . . . . . . . . . . . . . . 36

Resolving Software and Hardware Incompatibilities . . . . . . . . . . . 36

Using Microsoft®Windows®XP System Restore . . . . . . . . . . . . . 36

Reinstalling Microsoft®Windows®XP . . . . . . . . . . . . . . . . . . 38

Using the Drivers and Utilities CD. . . . . . . . . . . . . . . . . . . . . . . . 41

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4Contents

Quick Reference Guide 5

Finding Information

NOTE: Some features may not be available for your computer or in certain countries.

NOTE: Additional information may ship with your computer.

What Are You Looking For? Find It Here

• A diagnostic program for my computer

• Drivers for my computer

• My computer documentation

• My device documentation

• Desktop System Software (DSS)

Drivers and Utilities CD (also known as the ResourceCD)

NOTE: The Drivers and Utilities CD is optional and may not ship with your

computer.

Documentation and drivers are already installed

on your computer. You can use the CD to

reinstall drivers (see "Using the Drivers and

Utilities CD" on page 41), run the Dell

Diagnostics (see "Starting the Dell Diagnostics

From the Drivers and Utilities CD" on

page 29), or access your documentation.

Readme files may be included on your CD to

provide last-minute updates about technical

changes to your computer or advanced

technical-reference material for technicians or experienced users.

NOTE: Drivers and documentation updates can be found at support.dell.com.

• Operating system updates and patches

Desktop System Software (DSS)

Located on the Drivers and Utilities CD and the Dell Support website at

support.dell.com.

• Warranty information

• Terms and Conditions (U.S only)

• Safety instructions

• Regulatory information

• Ergonomics information

• End User License Agreement

Dell™ Product Information Guide

• How to remove and replace parts

• Specifications

• How to configure system settings

• How to troubleshoot and solve problems

User’s Guide

Available in the Microsoft®Windows®XP Help and Support Center:

Click the

Start

button and click

Help and Support.

Click

User’s and system guides

and click

User’s guides

The User’s Guide is also available on the optional Drivers and Utilities CD.

6Quick Reference Guide

www.dell.com | support.dell.com

• Service Tag and Express Service Code

• Microsoft Windows License Label

Service Tag and Microsoft Windows License

These labels are located on your computer.

• Use the Service Tag to identify your computer

when you use

support.dell.com

or contact

technical support.

• Enter the Express Service Code to direct your call when contacting

technical support.

• Solutions — Troubleshooting hints and

tips, articles from technicians, online

courses, frequently asked questions

• Community — Online discussion with

other Dell customers

• Upgrades — Upgrade information for

components, such as memory, the hard

drive, and the operating system

• Customer Care — Contact information,

service call and order status, warranty, and

repair information

• Service and support — Service call status

and support history, service contract,

online discussions with technical support

• Reference — Computer documentation,

details on computer configuration,

product specifications, and white papers

• Downloads — Certified drivers, patches,

and software updates

• Desktop System Software (DSS) — If you

reinstall the operating system for your

computer, you should also reinstall the

DSS utility. DSS provides critical updates

for your operating system and support for

Dell™ 3.5-inch USB floppy drives, Intel

Pentium

M processors, optical drives,

and USB devices. DSS is necessary for

correct operation of your Dell computer.

This software automatically detects your

computer and operating system and

installs the updates appropriate for your

configuration.

Dell Support Website — support.dell.com

NOTE: Select your region to view the appropriate support site.

The Dell Support website provides several online tools, including:

• Troubleshooting — Hints and tips, articles from technicians, and online

courses

• Upgrades — Upgrade information for components, such as memory, the

hard drive, and the operating system

• Services and Warranties — Contact information, order status, warranty,

and repair information

• Downloads — Drivers, patches, and software updates

• User guides — Computer documentation and product specifications

What Are You Looking For? Find It Here

Quick Reference Guide 7

• Service call status and support history

• Top technical issues for my computer

• Frequently asked questions

• File downloads

• Details on my computer configuration

• Service contract for my computer

Dell Premier Support Website — premiersupport.dell.com

The Dell Premier Support website is customized for corporate, government,

and education customers. This website may not be available in certain

regions.

• How to use Windows XP

• Documentation for my computer

• Documentation for devices (such as a

modem)

Windows Help and Support Center

Click the

Start

button and click

Help and Support

Type a word or phrase that describes your problem and click the arrow icon.

Click the topic that describes your problem.

Follow the instructions on the screen.

• How to reinstall my operating system

Operating System CD

NOTE: The Operating System CD is optional and may not ship with your

computer.

The operating system is already installed on your computer. To reinstall

your operating system, use the Operating System CD. See your online User’s

Guide for instructions.

After you reinstall your operating system, use the

optional Drivers and Utilities CD to reinstall drivers

for the devices that came with your computer.

Your operating system product key label is located

on your computer.

NOTE: The color of your CD varies based on the

operating system you ordered.

• Regulatory model information and chassis

type

• DCTR — Mini tower chassis

• DCNE — Desktop chassis

• DCSM — Small form factor chassis

What Are You Looking For? Find It Here

8Quick Reference Guide

www.dell.com | support.dell.com

System Views

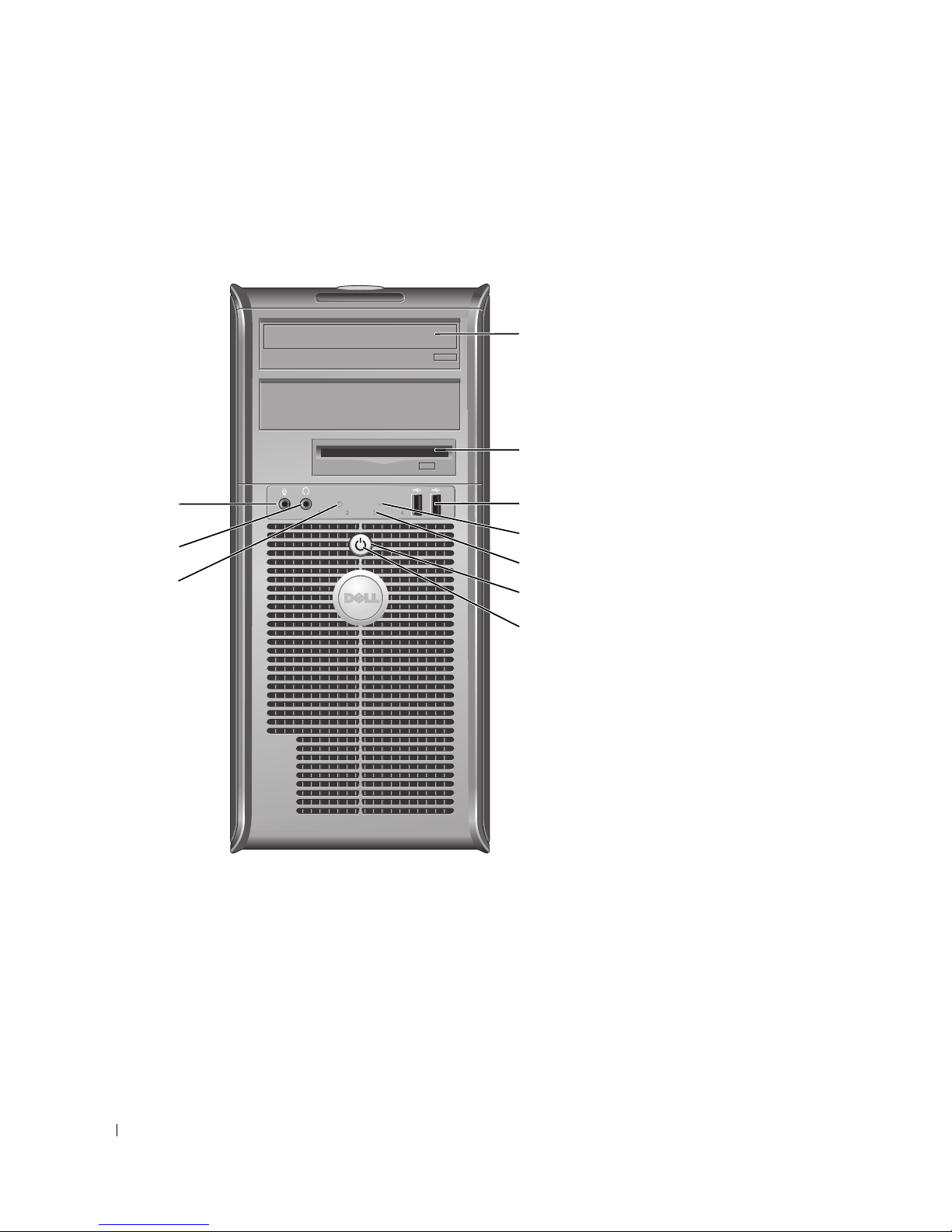

Mini Tower Computer — Front View

Quick Reference Guide 9

1CD/DVD drive

Insert a CD or DVD (if applicable) into this drive.

2floppy drive

Insert a floppy disk into this drive.

3USB 2.0 connectors (2) Connect USB devices such as a mouse, keyboard, memory key, printer, joystick, and

computer speakers into either of the USB connectors.

It is recommended that you use the USB connectors on the back panel for devices that

typically remain connected, such as printers and keyboards.

4LAN indicator light

This light indicates that a LAN (network) connection is established.

5diagnostic lights

Use these lights to help you troubleshoot a computer problem based on the diagnostic

code. For more information, see "Diagnostic Lights" on page 32.

6power button Press this button to turn on the computer.

NOTICE: To avoid losing data, do not turn off the computer by pressing the power

button for 6 seconds or longer. Instead, perform an operating system shutdown.

NOTICE: If your operating system has ACPI enabled, when you press the power

button the computer will perform an operating system shutdown.

7power light The power light illuminates and blinks or remains solid to indicate different operating

states:

• No light — The computer is turned off.

• Steady green — The computer is in a normal operating state.

• Blinking green — The computer is in a power-saving mode.

• Blinking or solid amber — See "Power Problems" in your online

User’s Guide.

To exit from a power-saving mode, press the power button or use the keyboard or the

mouse if it is configured as a wake device in the Windows Device Manager. For more

information about sleep modes and exiting from a power-saving mode, see "Power

Management"

in your online

User’s Guide.

See "System Lights" on page 31 for a description of power light patterns that can help

you troubleshoot problems with your computer.

8hard-drive activity light

This light flickers when the hard drive is in use.

9headphone connector Use the headphone connector to attach headphones and most kinds of speakers.

10 microphone connector Use the microphone connector to attach a microphone.

10 Quick Reference Guide

www.dell.com | support.dell.com

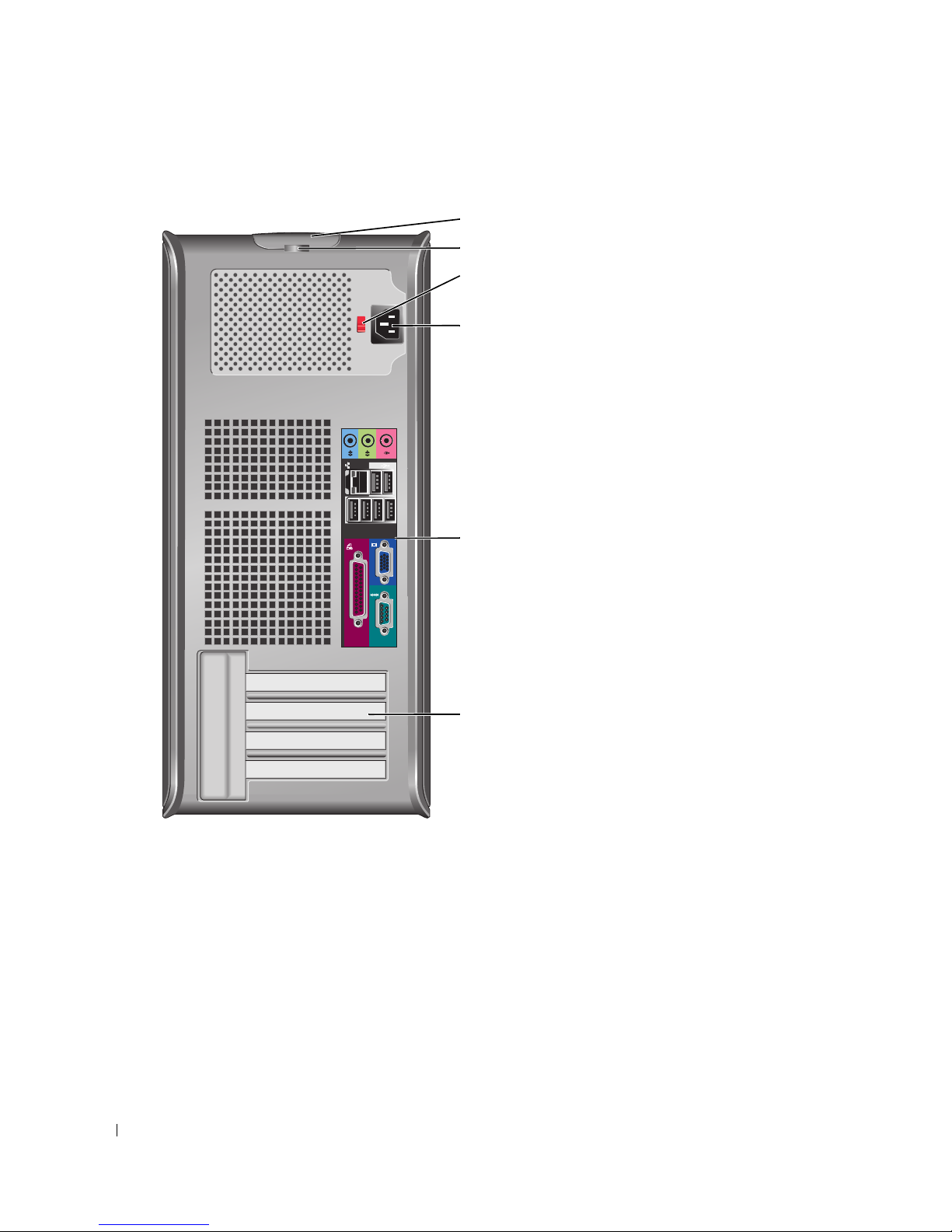

Mini Tower Computer — Back View

Autres manuels pour GX520 - OptiPlex - 512 MB RAM

Table des matières

Langues :

Autres manuels Dell Ordinateur de bureau

Dell

Dell OptiPlex 3080 Small Form Factor Cable Cover Manuel utilisateur

Dell

Dell Precision 3430 Manuel d'exploitation et d'entretien

Dell

Dell OptiPlex 780 Manuel utilisateur

Dell

Dell OptiPlex 5000 Micro Manuel d'exploitation et d'entretien

Dell

Dell XPS 8700 Manuel utilisateur

Dell

Dell Vostro 200 Manuel utilisateur

Dell

Dell OPTIPLEX 740 Manuel utilisateur

Dell

Dell Precision Workstation 390 Manuel utilisateur

Dell

Dell OptiPlex FX160 Manuel utilisateur

Dell

Dell Vostro 270s Manuel utilisateur

Dell

Dell OPTIPLEX 1906FP Instructions d'utilisation

Dell

Dell Inspiron 5720 Manuel utilisateur

Dell

Dell Precision Workstation T7600 Manuel utilisateur

Dell

Dell OptiPlex 7000 Micro Manuel utilisateur

Dell

Dell Precision 533CX Manuel utilisateur

Dell

Dell Inspiron 620 Manuel utilisateur

Dell

Dell OptiPlex 5260 Manuel utilisateur

Dell

Dell Precision M6300 Manuel utilisateur

Dell

Dell Vostro 3670 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 5676 Manuel d'exploitation et d'entretien

Dell

Dell ubuntu Manuel utilisateur

Dell

Dell Inspiron 20 3000 Series Manuel d'exploitation et d'entretien

Dell

Dell OptiPlex 170L Manuel utilisateur

Dell

Dell OptiPlex FX160 Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

HP Z1 Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Compaq

Compaq iPAQ Internet Device Manuel utilisateur
