Dell EMC PowerSwitch N1100-ON Series Manuel utilisateur

Dell Networking

N1108T-ON/N1108P-ON/

N1108EP-ON/N1124T-ON/

N1124P-ON/N1148T-ON/

N1148P-ON Switches

Getting Started Guide

ﻞﻴﻐﺸﺘﻟا ءﺪﺑ ﻞﻴﻟد

Regulatory Model: E17W and E18W

Regulatory Type: E17W001/E18W001/E18W002

7443W_FRONT.fm Page 1 Friday, June 7, 2019 11:16 AM

Dell Networking

N1108T-ON/N1108P-ON/

N1108EP-ON/N1124T-ON/

N1124P-ON/N1148T-ON/

N1148P-ON Switches

Getting Started Guide

Regulatory Models: E17W and E18W

2CSN11XX-QSG100-EMEA2-SAB.book Page 1 Friday, June 7, 2019 10:57 AM

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your switch.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Lithium battery caution:

• There is a danger of explosion if a battery is incorrectly replaced. Replace

only with the same or equivalent type. Dispose batteries of according to

the manufacturer's instructions.

• Disposing a battery into fire, a hot oven, mechanically crushing, or cutting

it can result in an explosion.

• Leaving a battery in an extremely hot environment can result in leakage of

flammable liquid, gas, or an explosion.

• If a battery is subjected to extremely low air pressure, it may result in

leakage of flammable liquid, gas, or an explosion.

• The device can only be used in a fixed location such as a lab or a machine

room. When you install the device, ensure that the protective earthing

connection of the socket-outlet is verified by a skilled person.

___________________

international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell

Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may

be trademarks of their respective companies.

Regulatory Models: E17W and E18W

May 2019 P/N 7443W Rev. A01

2CSN11XX-QSG100-EMEA2-SAB.book Page 2 Friday, June 7, 2019 10:57 AM

Contents 3

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . 5

N1100-ON Series Hardware Overview . . . . . . . . . . 5

Power Consumption for N1100-ON Series

PoE Switches . . . . . . . . . . . . . . . . . . . . . 5

Ventilation System . . . . . . . . . . . . . . . . . . 6

N1100-ON Series Model Summary . . . . . . . . . . . . 7

2 N1108T-ON/N1108P-ON/N1108EP-ON

Installation . . . . . . . . . . . . . . . . . . . . . . . . 8

Mounting an N1108T-ON/N1108P-ON Switch Using

Dell Tandem Tray . . . . . . . . . . . . . . . . . . . . . 8

Mounting an N1108T-ON/N1108P-ON/N1108EP-ON

on a Two-Post Rack Using Large L-brackets . . . . . . . 9

Mounting all N11xx-ON Switches on a Wall . . . . . . 10

3 N1124T-ON/N1124P-ON/N1148T-ON/

N1148P-ON Installation . . . . . . . . . . . . . . 13

Rack Mounting an N1124T-ON/N1124P-ON/

N1148T-ON/ N1148P-ON Switch. . . . . . . . . . . . . 13

Installing in a Rack . . . . . . . . . . . . . . . . . 13

Installing as a Free-standing Switch . . . . . . . . 14

Stacking Multiple N1124T-ON/N1124P-ON/

N1148T-ON/ N1148P-ON Switches . . . . . . . . . . . 14

2CSN11XX-QSG100-EMEA2-SAB.book Page 3 Friday, June 7, 2019 10:57 AM

4Contents

4 Starting and Configuring the

N1100-ON Series Switch . . . . . . . . . . . . . 15

Connecting an N1100-ON Series Switch to

a Terminal . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting an N1100-ON Series Switch to

a Power Source . . . . . . . . . . . . . . . . . . . . . 17

AC and DC Power Connection . . . . . . . . . . . 17

Booting the N1100-ON Series Switch . . . . . . . . . . 18

Performing the N1100-ON Series

Initial Configuration . . . . . . . . . . . . . . . . . . . 19

Enabling Remote Management . . . . . . . . . . . 19

Initial Configuration Procedure . . . . . . . . . . . 20

Example Session . . . . . . . . . . . . . . . . . . 21

Dell Easy Setup Wizard Console Example . . . . . 22

Next Steps . . . . . . . . . . . . . . . . . . . . . 26

5 Agency compliance . . . . . . . . . . . . . . . . 28

2CSN11XX-QSG100-EMEA2-SAB.book Page 4 Friday, June 7, 2019 10:57 AM

Getting Started Guide 5

Introduction

This document provides basic information about the Dell Networking

N1100-ON Series switches, including how to install a switch and perform the

initial configuration. For information about how to configure and monitor

switch features, refer to the User Configuration Guide, which is available on

the Dell Support website at dell.com/support. See the Support website for

the latest updates on documentation and firmware.

NOTE: Switch administrators are strongly advised to maintain Dell Networking

switches on the latest version of the Dell Networking Operating System (DNOS).

Dell Networking continually improves the features and functions of DNOS based on

feedback from you, the customer. For critical infrastructure, pre-staging of the new

release into a non-critical portion of the network is recommended to verify network

configuration and operation with the new DNOS version.

N1100-ON Series Hardware Overview

This section contains information about device characteristics and modular

hardware configurations for the Dell Networking N1100-ON Series switch.

NOTE: The N1108EP-ON switch uses an external power adaptor. There is no mounting kit

available for the N1108EP-ON external power adaptor. When installing the

N1108EP-ON, place the external power adaptor away from the switch.

Power Consumption for N1100-ON Series PoE Switches

Table 1-1 describes the power consumption for N1100-ON Series PoE

switches. The PoE power budget is 60W for the N1108P-ON, 123W for the

N1108EP-ON, 185W for the N1124P-ON, and 370W for the N1148P-ON.

Table 1-1. Power Consumption for N1100-ON Series PoE Switches

Model Input Voltage Power Supply

Configuration

Maximum Steady

Current

Consumption (A)

Maximum

Steady

Power (W)

N1108P-ON 100V/60Hz Main PSU 0.95A 88.64W

110V/60Hz Main PSU 0.87A 88.43W

120V/60Hz Main PSU 0.80A 88.22W

220V/50Hz Main PSU 0.49A 89.28W

240V/50Hz Main PSU 0.45A 89.70W

2CSN11XX-QSG100-EMEA2-SAB.book Page 5 Friday, June 7, 2019 10:57 AM

6Getting Started Guide

Ventilation System

One fan cools the N1108T-ON/N1108P-ON switches, and two fans cool the

N1024T-ON/N1024P-ON/N1048T-ON/N1048P-ON switches. The fans are

not field replaceable. The N1108EP-ON is a fanless switch.

N1108EP-ON 100V/60Hz 54VDC External

power adaptor

1.62A 157W

110V/60Hz 54VDC External

power adaptor

1.47A 157W

120V/60Hz 54VDC External

power adaptor

1.35A 157W

220V/50Hz 54VDC External

power adaptor

0.74A 157W

240V/50Hz 54VDC External

power adaptor

0.67A 157W

N1124P-ON 100V/60Hz Main PSU 2.66A 260.66W

110V/60Hz Main PSU 2.38A 257.95W

120V/60Hz Main PSU 2.16A 256.27W

220V/50Hz Main PSU 1.18A 250.52W

240V/50Hz Main PSU 1.10A 251.25W

N1148P-ON 100V/60Hz Main PSU 4.78A 476.03W

110V/60Hz Main PSU 4.32A 472.64W

120V/60Hz Main PSU 3.95A 470.58W

220V/50Hz Main PSU 2.14A 459.37W

240V/50Hz Main PSU 1.97A 459.06W

Model Input Voltage Power Supply

Configuration

Maximum Steady

Current

Consumption (A)

Maximum

Steady

Power (W)

2CSN11XX-QSG100-EMEA2-SAB.book Page 6 Friday, June 7, 2019 10:57 AM

Getting Started Guide 7

N1100-ON Series Model Summary

Table 1-2. N1100-ON Series Switch Regulatory Numbers

Marketing

Model Name

(MMN)

Description Power Supply

Unit (PSU)

Regulatory

Model Number

(RMN)

Regulatory

TypeNumber

(RTN)

N1108T-ON 10x1G/2x1G SFP Ports DPS-24GP E17W E17W001

N1108P-ON 10x1G/2x1G SFP/2xPoE+ Ports DPS-80AP/

DPS-24GP

E17W E17W001

N1108EP-

8x1G PoE+/2x1G PD/2x1G SFP

Ports

ADP-280BR E48W E48W001

N1124T-ON 24x1G/4x10G SFP+ Ports DPS-40AP E18W E18W001

N1124P-ON 24x1G/4x10G SFP+/6xPoE+ Ports EDPS-250BF E18W E18W001

N1148T-ON 48x1G/4x10G SFP+ Ports DPS-60AP E18W E18W002

N1148P-ON 48x1G/4x10G SFP+/12xPoE+ Port YM-2501D E18W E18W002

2CSN11XX-QSG100-EMEA2-SAB.book Page 7 Friday, June 7, 2019 10:57 AM

8Getting Started Guide

N1108T-ON/N1108P-ON/N1108EP-

ON Installation

Mounting an N1108T-ON/N1108P-ON Switch

Using Dell Tandem Tray

The AC power connector is on the rear panel.

WARNING: Read the safety information in the

Safety and Regulatory Information

as well as the safety information for other switches that connect to or support the

switch.

WARNING: Do not use rack mounting kits to suspend the switch from under a

table or desk, or attach it to a wall.

CAUTION: Disconnect all cables from the switch before continuing. Remove all

self-adhesive pads from the underside of the switch, if they have been attached.

CAUTION: When mounting multiple switches into a rack, mount the switches

from the bottom up.

Secure the N1108T-ON/N1108P-ON switch in the Dell Tandem Tray Kit

as shown in Figure 1-1.

Figure 1-1. Dell Tandem Tray Kit

Insert the switch into the 48.26 cm (19 inch) rack, ensuring that the rack

mounting holes on the kit line up to the mounting holes in the rack.

2CSN11XX-QSG100-EMEA2-SAB.book Page 8 Friday, June 7, 2019 10:57 AM

Getting Started Guide 9

Secure the kit to the rack with either the rack bolts or cage nuts and cage-

nut bolts with washers (depending on the kind of rack you have). Fasten

the bolts on the bottom before fastening the bolts on the top.

Mounting an N1108T-ON/N1108P-ON/N1108EP-

ON on a Two-Post Rack Using Large L-brackets

NOTE: The AC power connector is on the rear panel of the N1108T-ON/N1108P-ON

switches. The DC power connector for the N1108EP-ON is at the center of the rear

panel.

NOTE: The N1108EP-ON switch uses an external power adaptor. There is no mounting kit

available for the N1108EP-ON external power adaptor. When installing the

N1108EP-ON, place the external power adaptor away from the switch.

CAUTION: As the N1108EP-ON is a fanless switch, do not place the external power

adaptor on top of the switch to avoid overheating.

Place the supplied rack-mounting bracket on one side of the switch

making sure that the mounting holes on the switch line up to the

mounting holes on the rack mounting bracket. See item 1 in Figure 1-2.

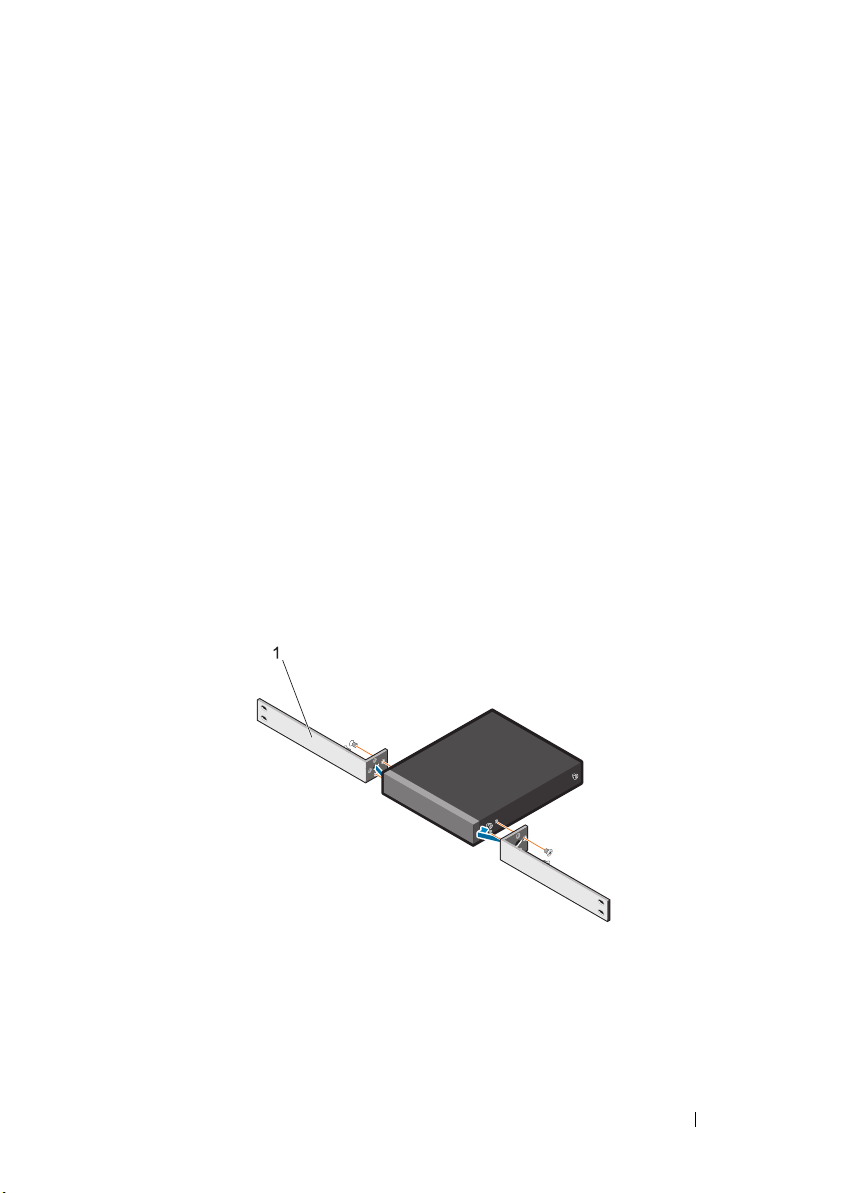

Figure 1-2. Installing Using Large L-bracket Kit

Insert the supplied screws into the rack mounting holes and tighten with a

screwdriver.

Repeat the process on the other side of the switch.

2CSN11XX-QSG100-EMEA2-SAB.book Page 9 Friday, June 7, 2019 10:57 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell EMC Changer

Dell EMC

Dell EMC PowerSwitch N3200-ON Series Manuel utilisateur

Dell EMC

Dell EMC Networking N Series Manuel utilisateur

Dell EMC

Dell EMC VEP4600 Guide de l'utilisateur

Dell EMC

Dell EMC S4112F-ON Manuel utilisateur

Dell EMC

Dell EMC S5048F-ON Manuel utilisateur

Dell EMC

Dell EMC SD-WAN Edge 600 Series Manuel utilisateur

Dell EMC

Dell EMC N1108T-ON Manuel utilisateur

Dell EMC

Dell EMC PowerSwitch S4810-ON Manuel utilisateur

Dell EMC

Dell EMC S5200F-ON Series Manuel utilisateur

Dell EMC

Dell EMC S4148U-ON Guide rapide

Dell EMC

Dell EMC Z9264F-ON Manuel utilisateur

Dell EMC

Dell EMC S4048T-ON Manuel utilisateur

Dell EMC

Dell EMC SD-WAN Edge 3000 Series Manuel utilisateur

Dell EMC

Dell EMC PowerSwitch S4100-ON Series Manuel utilisateur

Dell EMC

Dell EMC N3024ET-ON Manuel utilisateur

Dell EMC

Dell EMC PowerSwitch N3200-ON Series Manuel utilisateur

Dell EMC

Dell EMC N20 Series Manuel utilisateur

Dell EMC

Dell EMC Z9264F-ON Manuel utilisateur

Dell EMC

Dell EMC PowerSwitch N2200-ON Series Manuel utilisateur

Dell EMC

Dell EMC PowerSwitch Z9332F-ON Manuel utilisateur

Dell EMC

Dell EMC S5232F-ON Manuel utilisateur

Dell EMC

Dell EMC PowerSwitch Z9332F-ON Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
