OWNER’S

MANUAL

ELECTROLOGIC 720

TOP LOADING

AUTOMATIC

WASHING MACHINE

2 INTRODUCTION.

2 FEATURES.

2 ACCESSORIES.

3 SAFETY PRECAUTIONS.

4 INSTALLATION.

Unpacking,

Positioning,

Inlet hoses,

Electrical installation.

Connecting the drain hose,

Outlet drain requirements.

6 LOADING THE MACHINE.

6 TECHNICAL SPECIFICATIONS.

7 CONTROL FUNCTIONS.

8 OPERATION.

Before operating,

Adding detergent,

Adding bleach,

Adding softener,

Operating the machine.

9 PROGRAMME SELECTION.

Fuzzy,

Heavy,

Quick,

Wool.

10 USER DEFINED PROGRAMMES.

Wash time,

Rinse time

Spin time,

Spin only,

Time delay.

11 MAINTENANCE.

Cleaning and care

Lint filter,

Water inlet filter,

Drain filter.

13 STAIN REMOVAL GUIDE.

14 TROUBLE SHOOTING.

15 SERVICE CENTRES.

16 WARRANTY.

www.defy.co.za

The Manufacturer strives for

continuous improvements.

For this reason, the text and illus-

trations in this book are subject

to change without notice.

Laundromaid

YOU CAN RELY ON DEFY

Page 2

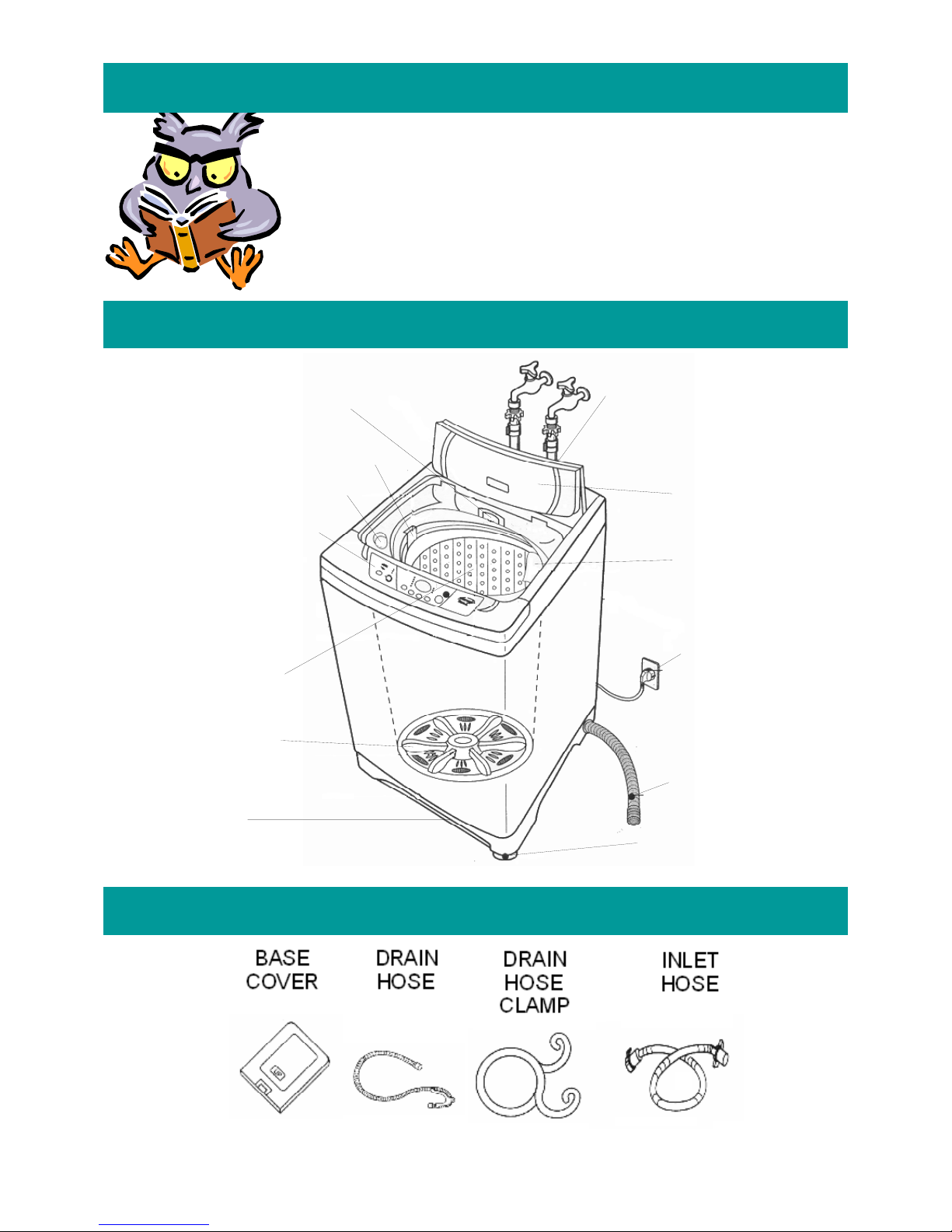

Introduction

Features

You are now the proud owner of one of the finest and most

modern washing machines that today’s technology can pro-

duce. You and your machine are going to make a great team

together. But first it will pay if you really get to know each

other. This book will tell you all you need to know about your

machine, what it will do and how to do it. Please read all the

instructions carefully before operating.

Accessories

DETERGENT DRAWER

FABRIC SOFTENER INLET

LIQUID BLEACH INLET

CONTROL PANEL

WASH TUB

BASE

PULSATOR

WATER CONNECTORS

BLUE IS COLD

PINK IS HOT

HINGED LID

LINT FILTER

POWER CORD

AND PLUG

DRAIN HOSE

LEVELLING FOOT

Page 3

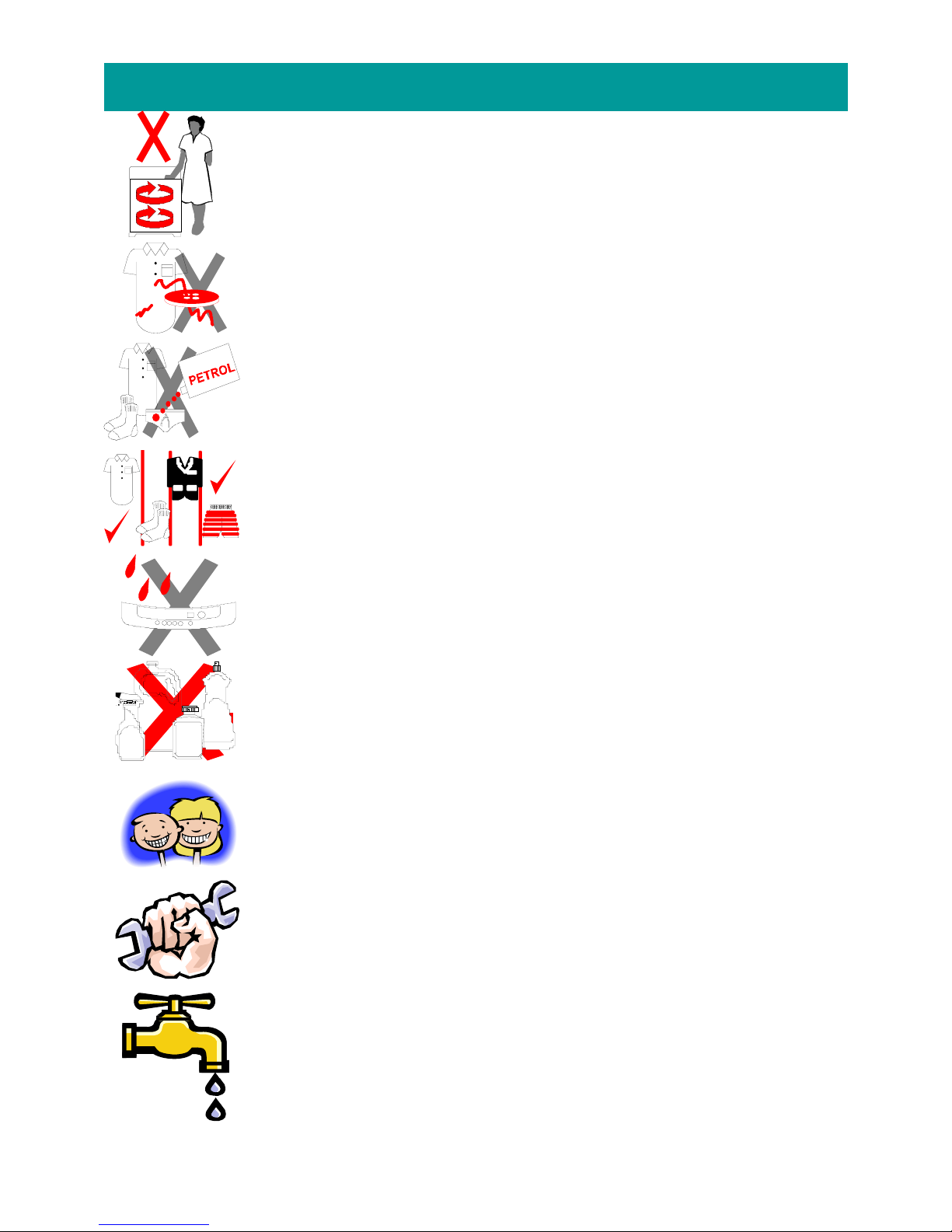

Safety precautions

Before washing, check all clothes for loose buttons and tears.

Check pockets for coins, pins or other small articles.

Close zips and fasteners.

Wash small articles inside a pillow slip.

Do not wash clothes soaked in petrol, thinners, vegetable oil or any

other flammable liquids. Nor should any of these liquids be added to

the wash water as they constitute a fire hazard.

Only use the machine for washing fabrics. Do not attempt to wash

plastic, leather, chamois or fibreglass. Sort and separate clothes by fab-

ric, colour and degree of dirt.

Avoid spraying water on to the control panel and back of the machine.

Do not use detergents which are not specifically designed for top load-

ing automatic washing machines.

Do not allow children to play with or crawl inside the machine.

Supervise them closely when the washer is in use.

Always unplug the machine from the wall socket when it requires

cleaning or service. Only permit qualified persons to repair or install

parts in the washer.

Do not reach inside the tub while the machine is working.

Wait until all motion stops.

Do not use water which is hotter than 65 degrees Celsius as this may

deform plastic parts of the machine.

Page 4

UNPACKING

• Do not attempt to operate the machine while any of the

packaging is still in place.

• Remove all packaging and dispose of it in a responsible

manner.

• Open the wash-tub lid and remove all the accessories

stored in the drum.

POSITIONING

• The machine should be installed in a well ventilated

place, away from direct sunlight.

• Hot and cold water taps should be located within 1 metre

of the inlet valves at the rear of the machine.

• Positioned the machine on a flat and stable uncarpeted

floor capable of supporting the fully loaded washer.

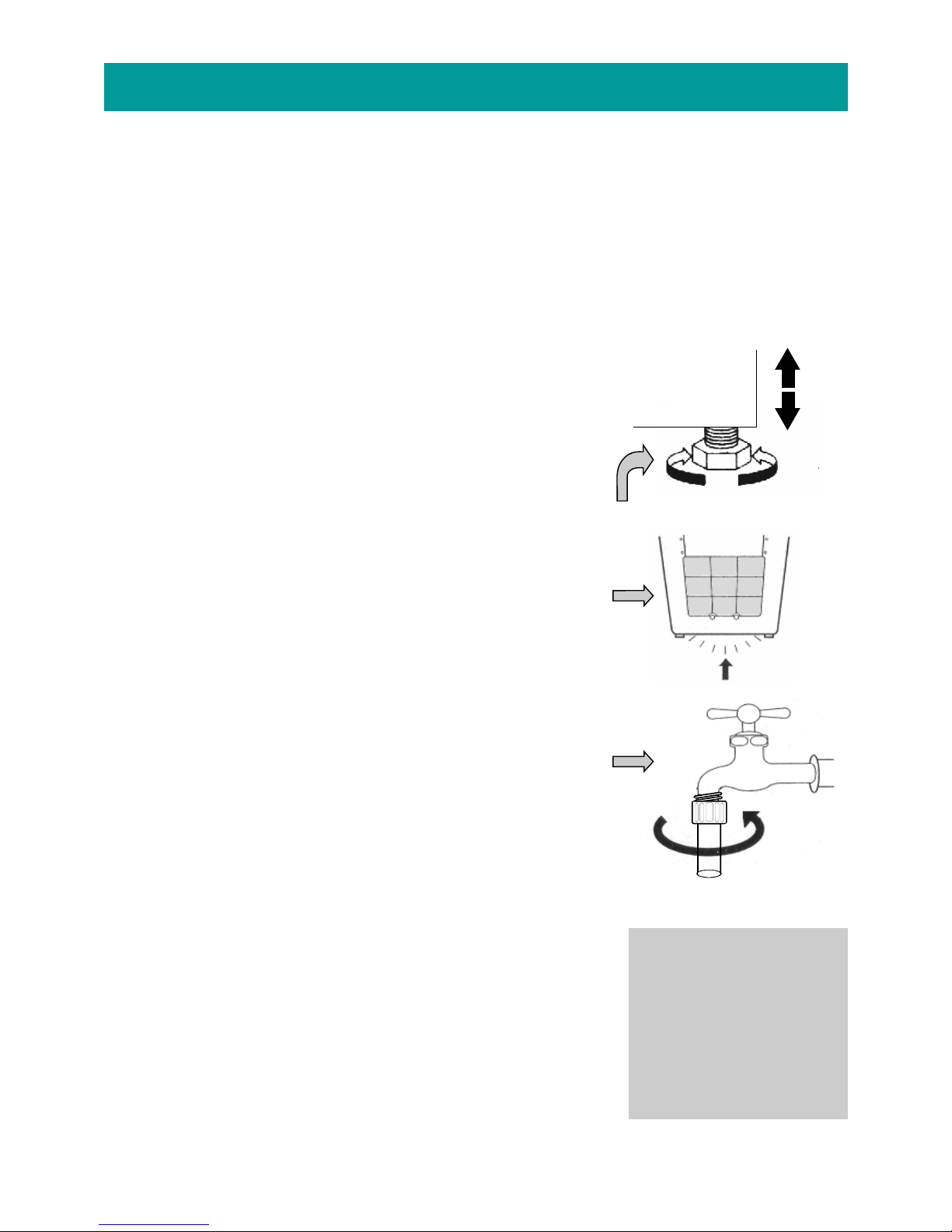

• An adjustable levelling foot is located at the right, lower

front of the machine and may be turned in or out to

achieve stability. An unstable machine will vibrate and

generate excessive noise.

• A plastic noise reduction panel is attached to the rear of

the machine. Remove this panel, tilt the machine for-

wards and slide the panel it into the retaining slots on

the base as per the directions engraved on the panel.

CONNECTING THE WATER INLET HOSES

• Connect the inlet hoses to threaded hot and cold water taps

and to the machine’s inlet fittings. Take care not to confuse

the hot and cold water inlets. The hot water inlet is col-

oured pink and the cold water inlet is coloured blue.

• If only one water tap is available, connect the inlet hose to

the blue, cold water coupling.

• Open the taps and check for leaks. Re-tighten couplings if

necessary.

ELECTRICALINSTALLATION

• The washing machine is designed to operate on a 230 Volt,

50 Hz, 15 Amp,AC power supply.

• The machine should be connected to an earthed 3 pin

wall socket.

• If the power-cord should ever need replacing, use only a

genuine cord available from the nearest Defy Service

Centre.

Installation

The appliance must be

earthed

and the manufacturer

and seller

do not accept respon-

sibility for

any damage due to in-

correct

electrical connection.

Page 5

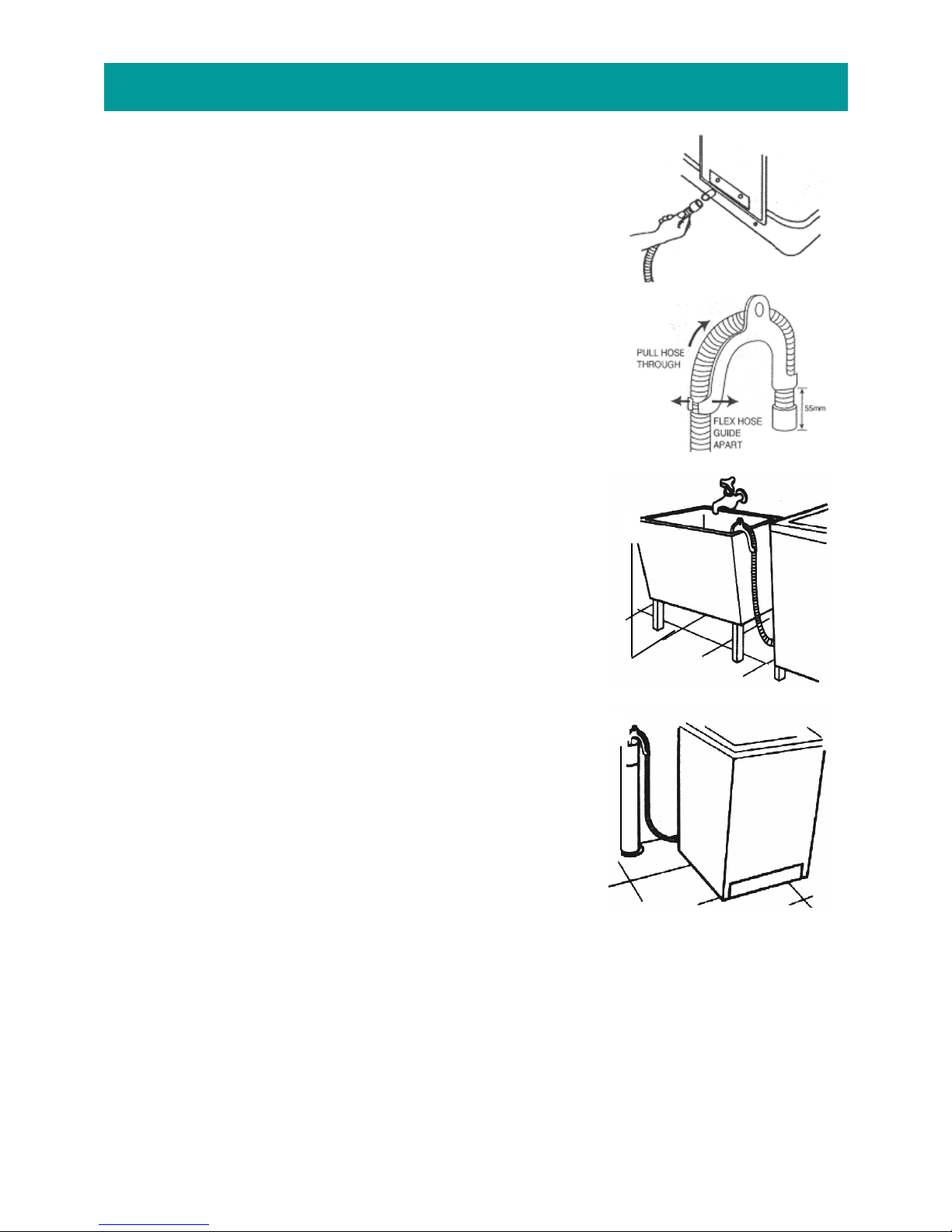

DRAIN HOSE

• Connect the drain hose to the drain outlet at the rear of

the machine and secure it with the hose clamp supplied.

• Fit the flexible hose guide.

• Hook the outlet end of the drain hose over the lip of a

sink or outlet pipe.

SINK OR LAUNDRY TUB DRAIN

• The top lip of the sink must be at least 860mm (A)

above floor level and not higher than 1300mm.

PIPE DRAIN

• The minimum inside diameter of the pipe drain should

be 30mm and the pipe should be able to drain 30 litres

per minute.

• The top lip of the pipe should be at least 860mm (B)

above floor level and not higher than 1300mm.

NOTES

• The Highest point of the drain hose should be be-

tween 1.0 and 1.3 metres above floor level. If it is not,

the machine will malfunction.

• The drain hose must pass through the hose guide

and not protrude more than 55mm from the end of

the guide. If necessary the drain hose may be

trimmed to suit.

Installation continued

Page 6

Loading the machine

PREPARATION

• Close all zippers, snaps and hooks to prevent them from snagging other articles.

• Remove pins and other hard items to prevent them from scratching the machine.

• Empty all pockets and turn them inside out.

• Turn down cuffs and turn synthetic knits inside out.

• Tie strings and sashes so they will not tangle.

• Treat spots and stains before washing.

SORTING

• Mix large and small items in each load.

• Separate heavily soiled items from lightly soiled ones.

• Separate dark colours from light colours.

• Separate colourfast items from non-colourfast ones.

• Separate robust fabrics from delicate.

• Separate whites from colours

• Lift and fold the lid.

• Arrange the articles to be washed loosely round the pe-

rimeter of the tub.

• It is advisable to mix large and small items in each load.

• Load evenly as an off balance load may cause unnecessary vibrations.

• Select the appropriate load setting.

• Reduce wash time when washing a small load.

• Use a large load programme when washing permanent press garments. These items

need more space to move than heavy items such as jeans and towels.

• Do not overload the machine as this will result in poor cleaning, excessive creasing

and lint transfer from one garment to another..

Technical specifications

Power source. 230V 50Hz.

Power consumption. 320W.

Width. 525mm.

Height. 858mm.

Depth. 535mm.

Net weight. 29Kg.

Wash tub. Stainless steel

Water consumption. Approx 130 litres on

Heavy Wash

Automatic

programmes. Soak, Fuzzy, Heavy,

Quick, Wool.

Water levels. High 55 litres. Medium

45 litres . Low 31 li-

tres.

Pulsator. 6 spout holes and up-

ward streaming.

Additional features. Air bubble generator.

Time delay washing.

Buzzer.

Pump filter. Fitted to rear of ma-

chine

Page 7

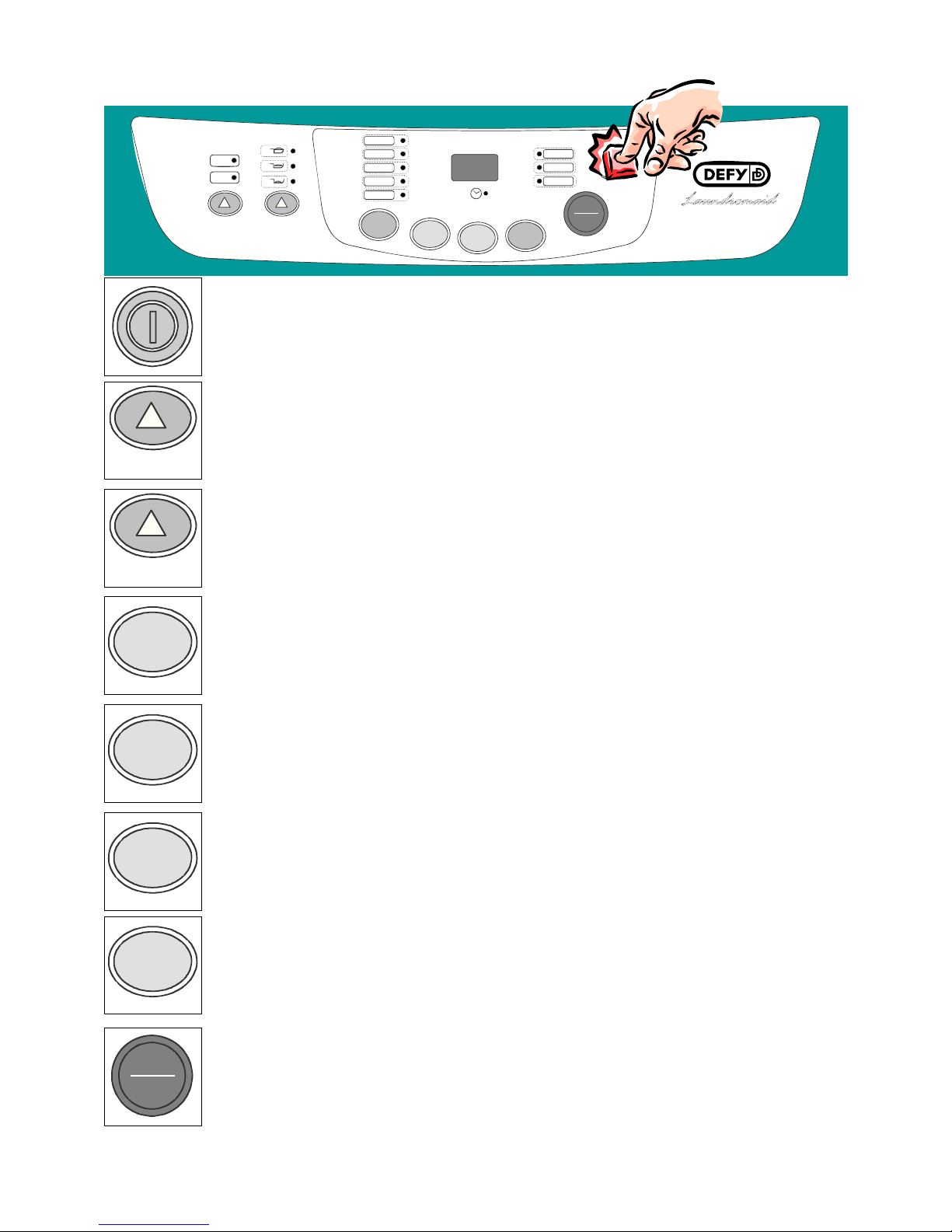

Press this pad to turn the power on or off.

Press this pad to select the water temperature. Repeated pressing will

highlight COLD only, then COLD and HOT (warm) and then HOT only.

Pilot lights in the display panel will indicate the options that are selected.

Press this pad repeatedly to select WASH, RINSE, SPIN or any combination

of these three modes.

Pilot lights in the display panel will indicate the options that are selected

Control functions

Press this pad to commence operation. Pressing it a second time will cause

the machine to pause, during which time any settings may be altered. Press-

ing it again will cause the machine to resume the wash cycle at the new set-

tings.

HOT

COLD

HIGH

MED.

LOW

PROG. TIME

DELAY CONTROL MODE

START

HOLD

POWER

WASH TEMP.

SOAK

FUZZY

HEAVY

QUICK

WOOL

WASH

RINSE

SPIN

HOURS

MIN

REM

WATER LEVEL

E L E C T R O L O G I C 7 2 0

TEMP

LEVEL

TIME

DELAY

CONTROL

MODE

START

HOLD

Press this pad to select the required water level. Repeated pressing will

select HIGH, MEDIUM or LOW.

Pilot lights in the display panel will indicate the options that are selected

Press this pad to select the time you wish the washing to be completed.

Example: If it is 8.00 am and you wish the wash to be completed at 5.00pm

press the button 9 times . i.e. one press for each hour delay. The display will

indicate your selection. The wash will be completed by the end of the se-

lected time.

Press this pad to change wash time, rinse time, or spin time. First select the

mode and then press the CONTROL pad to change the time for that mode.

The display will indicate your selection.

PROG.

Press this pad repeatedly to select one of the fully automatic programmes.

SOAK > FUZZY > HEAVY > QUICK or WOOL.

Pilot lights in the display panel will highlight the options that are selected

E L E C T R O L O G I C 7 2 0

Page 8

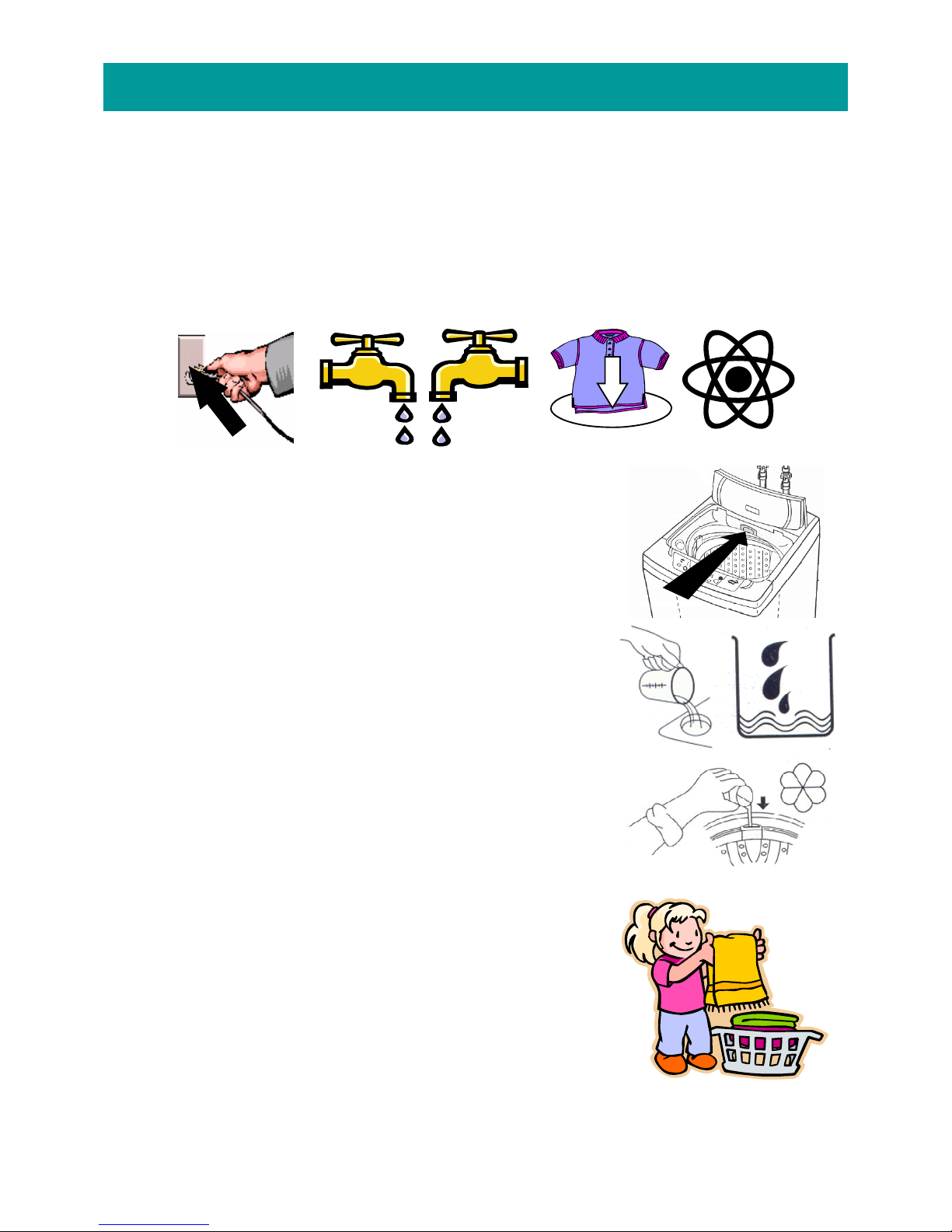

Operation

ADDING DETERGENT

• Add a measured amount of detergent to the detergent

drawer. Use only detergent specifically recommended

for top loading washers and follow the manufacturer’s

instructions.

• If required, add a measure of liquid chlorine bleach to

the bleach inlet. Avoid spilling bleach onto the clothes in

the machine as undiluted bleach may damage them.

• If desired add measured liquid fabric softener to the

softener inlet until it reaches the load line. Avoid spilling

undiluted softener onto the clothes in the tub as it may

damage them.

OPERATING THE MACHINE

• Press the POWER ON pad.

• Select the desired wash cycle ( any of the pre-

programmed washes or any customised programme).

• Press the START / HOLD pad.

• The machine will automatically dispense detergent,

bleach and softener at the appropriate time during the

wash, rinse and spin cycle and then stop.

• Open the lid, remove the laundry and switch off.

• Close the taps.

HOT

OPTIONAL

COLD

BEFORE ANY OF THE WASH OPTIONSARE SELECTED YOU MUST FIRST:

• Insert the power plug into an earthed wall socket and switch on.

• Open the hot and cold water taps.

• Load the washing into the machine.( see Loading)

• Add detergent and if necessary softener and bleach.( See Adding detergents below)

• Close the lid.

• NOTE: DO NOT OPEN THE HOT WATER TAP WITHOUT OPENING THE COLD WATER TAP ALSO.

• IT IS ESSENTIAL TO OPEN THE COLD WATER TAP FOR ALL PROGRAMMES.

Page 9

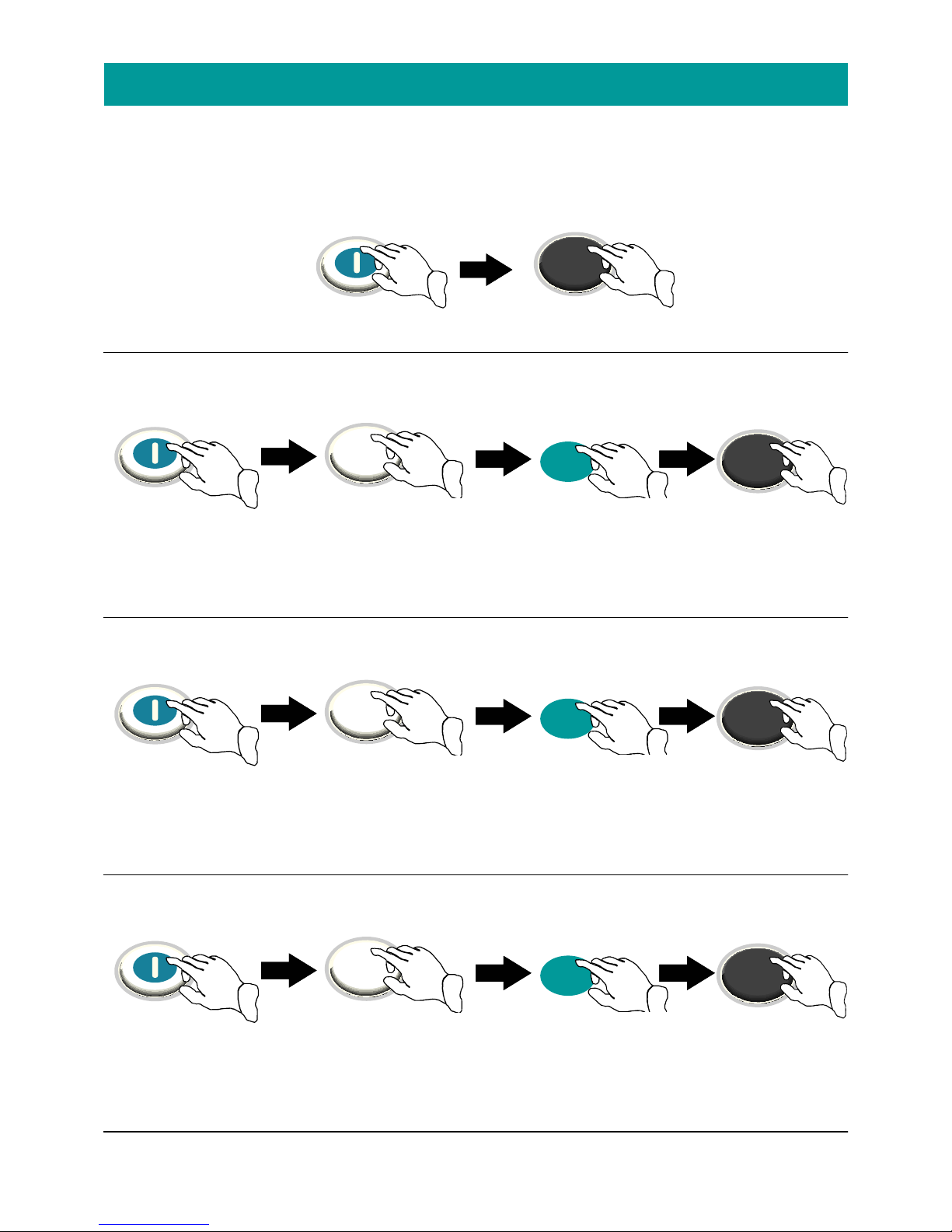

Programme selection

FUZZY LOGIC PROGRAMME

This machine has Fuzzy Logic sensors. These enable it to evaluate each load placed in

the drum and to select and modify a wash programme to suit the load.

Do not use the FUZZY programme for woollen or delicate garments.

HEAVY PROGRAMME

This programme is ideal for robust garments such as blue jeans.

CYCLE

Select water level and

POWER

To select Fuzzy, simply press the POWER On pad and then the START / HOLD pad.

START

HOLD

PROGR.

HEAVY

To select Heavy, simply press the POWER On pad and then the PROGR. pad to select

HEAVY. Select the appropriate water level and press the START / HOLD pad

START

HOLD

QUICK PROGRAMME

This programme is ideal for Delicate or lightly soiled clothing.

CYCLE

Select water level and

PROGR.

QUICK

To select Quick, simply press the POWER On pad and then the PROGR. pad to select

QUICK. Select the appropriate water level and press the START / HOLD pad

START

HOLD

WOOL PROGRAMME —Cold wash is automatically selected.

The maximum wash load on this programme is 1.2kg.

CYCLE

Select water level and

PROGR.

WOOL

To select WOOL, simply press the POWER On pad and then the PROGR. pad to select

WOOL. Select the appropriate water level and press the START / HOLD pad

START

HOLD

Page 10

User defined Programmes

MODE

CONTROL

SETTING THE WASH TIME

Press the Mode pad and select WASH

Press the Control pad repeatedly to select the wash time

12 > 15 > 18 > 0 > 6 > 9 Minutes

If you do not want a wash cycle, you must select (0) minutes.

SWITCHING ON

Press the POWER /ON pad

MODE

CONTROL

SETTING THE RINSE TIME

Press the Mode pad and select RINSE

Press the Control pad repeatedly to select the rinse time

2 > 3 > 4 > 0 > 1 Minutes

If you do not want a wash cycle, you must select (0) minutes.

MODE

CONTROL

SETTING THE SPIN TIME

Press the Mode pad and select SPIN

Press the Control pad repeatedly to select the SPIN time

5 > 7 > 9 > 0 > 0 > 1 > 3 Minutes

If you do not want a wash cycle, you must select (0) minutes.

START

HOLD

START THE SELECTED PROGRAMME

Press the START / HOLD pad to start the selected wash, rinse and or spin

cycles.

START

HOLD

CONVENIENT SPIN ONLY

Press 1 POWER

2 CONTROL

3 START / HOLD

CONTROL

> >

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Defy Rondelle

Defy

Defy DTL162 Manuel utilisateur

Defy

Defy WTL8019W Manuel utilisateur

Defy

Defy MAXIMAID 720W Manuel utilisateur

Defy

Defy Maximaid 850 DAW 321 Manuel utilisateur

Defy

Defy Maximaid 850 Manuel utilisateur

Defy

Defy Twinmaid 800 Manuel utilisateur

Defy

Defy DAW386 Manuel utilisateur

Defy

Defy DTL 137 Manuel utilisateur

Defy

Defy DTL146 Manuel utilisateur

Defy

Defy LAUNDROMAID Electro Logic 1300 Manuel utilisateur

Defy

Defy MAXIMAID 800 DAW 327 Manuel utilisateur

Defy

Defy Twinmaid 800 Manuel utilisateur

Defy

Defy Automaid 600 electronic Manuel utilisateur

Defy

Defy WMY 71283 MLCM Manuel utilisateur

Defy

Defy DTL160 Manuel utilisateur

Defy

Defy DAW 389 Manuel utilisateur

Defy

Defy Laundromaid Electro Logic 1300 DTL131 Manuel utilisateur

Defy

Defy DTT180 Manuel utilisateur

Defy

Defy DAW 376 Manuel utilisateur

Defy

Defy Automaid 600 electronic Manuel utilisateur

Defy

Defy DTL151 Manuel utilisateur

Defy

Defy DAW371 Manuel utilisateur

Defy

Defy LAUNDROMAID Electro Logic 920 Manuel utilisateur

Defy

Defy TWINMAID 1300 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
