Define Instruments TEX-TOTAL Manuel utilisateur

The TEX-TOTAL rate meter and totalizer

is ideal for ow rate monitoring of trans-

mitters and sensors with mA output.

It features dual totalizers with low ow

cut-o and roll over, and input signal av-

eraging to stabilise measurement.

The TEX-TOTAL features a 6-digit alpha-

numeric LED display, with scrolling text

prompts that guide you step-by-step

through the setup process. The unit is

easy to scale to suit your desired time

and measurement units.

TEX-TOTAL

Flow Rate Totalizer

Order Codes

TEX-TOTAL Flow Rate Totalizer

–HV

–LV

85–265V AC / 95–370V DC

15–48V AC / 10–72V DC

Options

–R2

–R4

2 x relay outputs

4 x relay outputs

–A1 x mA/V analog output

–S2R 1 x RS232 (RJ11 terminal)

–S4S 1 x RS485 (screw terminal)

Contents

1 - Specications ............................. 2

2 - Front Panel & Display ................ 3

3 - Wiring ......................................... 5

4 - Dimensions & Installation .......... 8

5 - Input Setup & Calibration ....... 10

6 - Totalizer Reset & Setpoint

Setup .......................................... 16

7 - Setpoint Direct Access............... 20

8 - Reset PIN Numbers / View

Firmware Version...................... 20

A - Appendix A - Serial Modes........ 21

1 SPECIFICATIONS

Input

Input signal Current (0/4–20mA)

Power supply

HV= 85–265V AC / 95–370V DC, or

LV= 15–48V AC / 10–72V DC

Excitation 24V DC (50mA max)

Sampling rate 10Hz

Resolution 16 bit

Accuracy 0.05% of reading

Ambient dri 50ppm/°C typical

Flow rate /sec, /min or /hour

Flow resolution 1, 0.1, 0.01 or 0.001

Totalizers Dual totalizers

Totalizer resolution x0.1, x1, x10, x100

or x1000

Noise rejection 50/60Hz

Relay Output

Number of relay outputs None, 2, or 4

Relay output type 5A form A (3A 240V

AC max or 3A 30V DC max)

Analog Output

Analog output (Optional) Isolated 16

bit 4–20mA/0–10V

Comm Port

Serial port (Optional) Isolated RS232 or

RS485 (select when placing your order)

Programming

Front panel buttons Up, Down, P

(Prog/Enter), plus 2x Function Buttons

for menu access

Security Input and setpoint setups

are independently accessible and PIN

protected

Display

Display type LED display, 5 buttons

LED indicators 6 setpoint indicator LED's

Digits 1 row of 6 digits, 13mm (0.5"), 14

segment alphanumeric LED

Construction

Casing Panel mount case

Ingress protection rating IP65 dust/

splash proof (face only)

Dimensions (H x W x D)

48 x 96 x 120mm (1.89 x 3.78 x 4.72")

Panel cutout 45 x 92mm (1.77 x 3.62")

OPTIONAL

2 FRONT PANEL & DISPLAY

2.1 - Front panel

SPX The SP LED's are used to

indicate active setpoints.

This button is used to ac-

cess the Input Setup & Calibra-

tion menu (Section 5).

This button is used to save

96mm (3.78")

48mm

(1.89")

your settings and advance to the next step in the setup process.

This button is typically used to scroll through options or increase values in the

setup menu. Pressing this button from the main display will allow you to view/reset

the Peak value, and view the Total 1 value (see 2.3).

This button is typically used to scroll through options or decrease values in the

setup menu. Pressing this button from the main display will allow you to view/reset

the Valley value, and view the Total 2 value (see 2.3).

This button is used to access the Totalizer Reset & Setpoint Setup menu (Sec-

tion 6) and the Setpoint Direct Access menu (Section 7).

2.2 - Display brightness

To adjust the display brightness, press the and buttons together from the

main display. BRI appears and toggles with the current setting. Use the and

buttons to adjust the LED backlight, and then press to nish.

2.3 - Up and down button shortcuts

Pressing the and buttons from the main operational display allows instant

access to a number of values held in the controller's memory. These variables will ap-

pear in the order shown in the table below, and will cycle continuously at each press

of the or button. Press at any time to return to normal operating mode.

PEAK and VALLEY may be reset to zero by pressing the and buttons at the

same time while the variable is being displayed.

Up and down button shortcuts

PEAK Maximum measured ow rate since the instrument was turned on/reset

TOTAL1 Current value of Total 1.

Total 1 will not appear in this list if it is set as your display source (5.5).

This value can be reset in 6.2B, or by the input pins (3.6).

VALLEY Minimum measured ow rate since the instrument was turned on/reset

TOTAL2 Current value of Total 2.

Total 2 will not appear in this list if it is set as your display source (5.5).

This value can be reset in 6.2C, or by the input pins (3.6).

3 WIRING

BEFORE YOU BEGIN WIRING, ensure that the unit is switched o and the power

supply is disconnected.

3.1 - Pinouts

DEF

A B C

Key

3.1A Relay Output (See 3.3)

3.1B Serial Port (See 3.5)

3.1C Analog Output (See 3.4)

3.1D Analog Input (See 3.2)

3.1E Function Pins (See 3.6)

3.1F Power Supply HV/LV

(See 3.7)

3.2 - Wire the analog input module See 3.1D

Wire your analog input module as required, referring to the diagrams below.

SENSOR

+ POS

+ 24V

EXC

2-Wire Current Input

Loop Powered Sensor

3-Wire Current Input

Controller Supplied EXC

+ Signal

Signal /

Supply

+ POS

NEG

+ 24V

EXC

+ Supply

EXTERNAL

+ Supply

Supply

I/V

+ Signal

Signal

+ POS

NEG

2-Wire Current Input

External Excitation Used

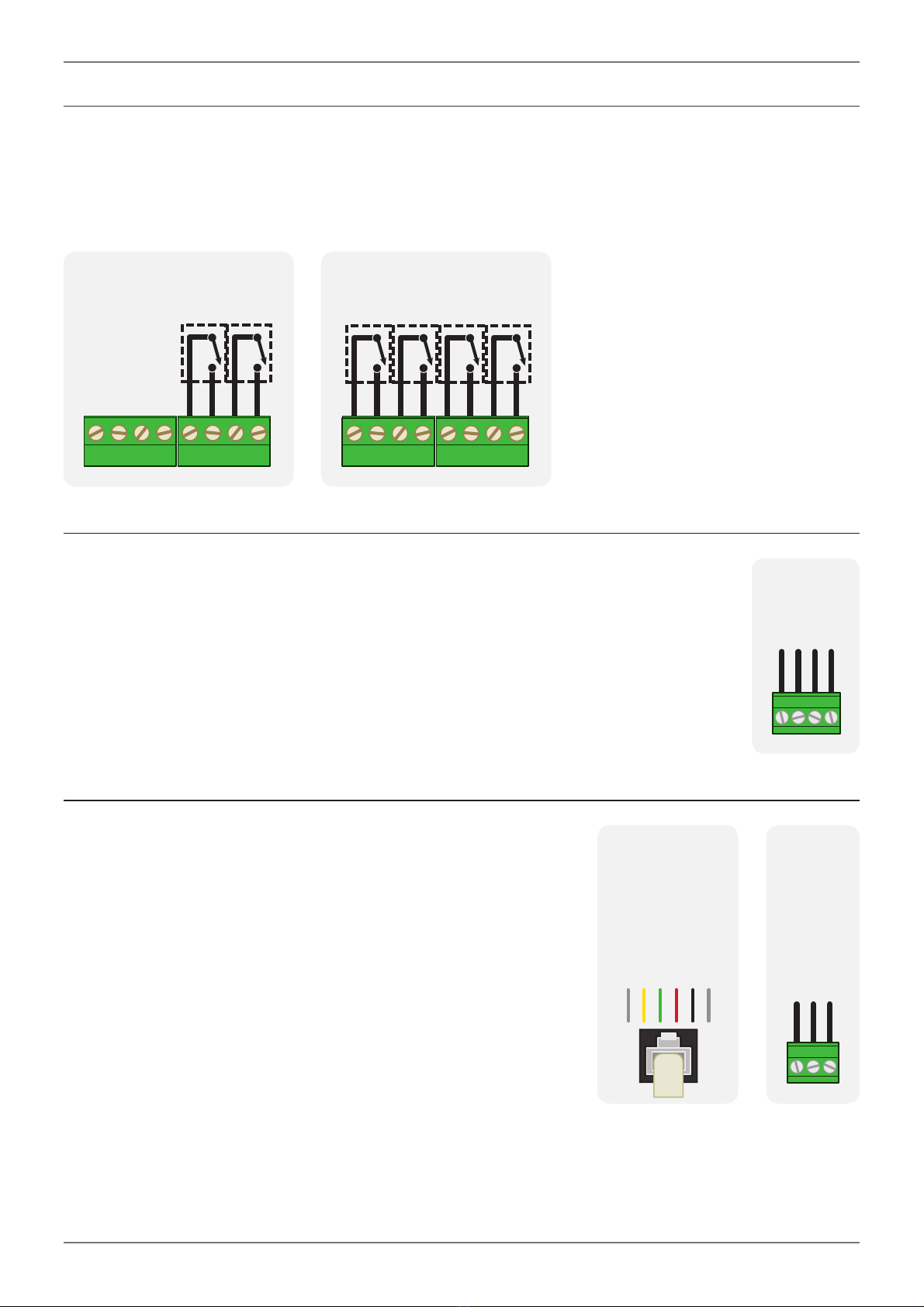

3.3 - Wire the relay outputs (if installed) See 3.1A

If your controller has relay outputs tted, wire them as shown below. Relays can be

programmed to operate within the total span range of the controller.

SP2 SP1

-R2

SP2 SP1

SP4 SP3

-R4

3.4 - Wire the analog output (if installed)

See 3.1C

If your controller has analog output tted, wire it as shown for either

voltage (0–10V) or current (4–20mA).

–V

–mA

+mA

-A

3.5 - Wire the serial port (if installed)

See 3.1B

If your controller has serial port tted, wire it as

shown in the applicable diagram.

›S2R: RS232, RJ11 terminal

›S4S: RS485, screw terminal

N/C

SGND

+5V DC (option)

RXD

TXD

N/C

-S2R

D +

SGND

-S4S

3.6 - Wire the function pins

See 3.1E

Connect external switches as shown to enable a

function to be executed when its switch is activated.

›Total 1 Resets Total 1 to zero (also see 6.2B)

›Total 2 Resets Total 2 to zero (also see 6.2C)

›Test Resets the meter

›Pk/Val Clears the Peak & Valley readings

(also see 2.3)

Total 1 TestTotal 2 COM Pk/Val

3.7 - Wire the power supply See 3.1F

DO NOT attempt to wire your controller while the power is on. NEVER connect your

low voltage controller to mains power.

Wire your controller for low or high voltage power supply, as show in the diagrams

below. Check the label on the unit against the colour of the connector:

›Orange =

High voltage (85–265V AC,

95–370V DC)

›Black =

Low voltage (15–48V AC,

10–72V DC)

High

voltage

(HV)

HV power

supply

−DC

Neutral

+DC

Live

Low

voltage

(LV)

LV power

supply

−DC

Neutral

+DC

Live

Once you have completed the wiring process it is safe to switch on your power

supply. Ensure that your display is functioning before you proceed.

4 DIMENSIONS & INSTALLATION

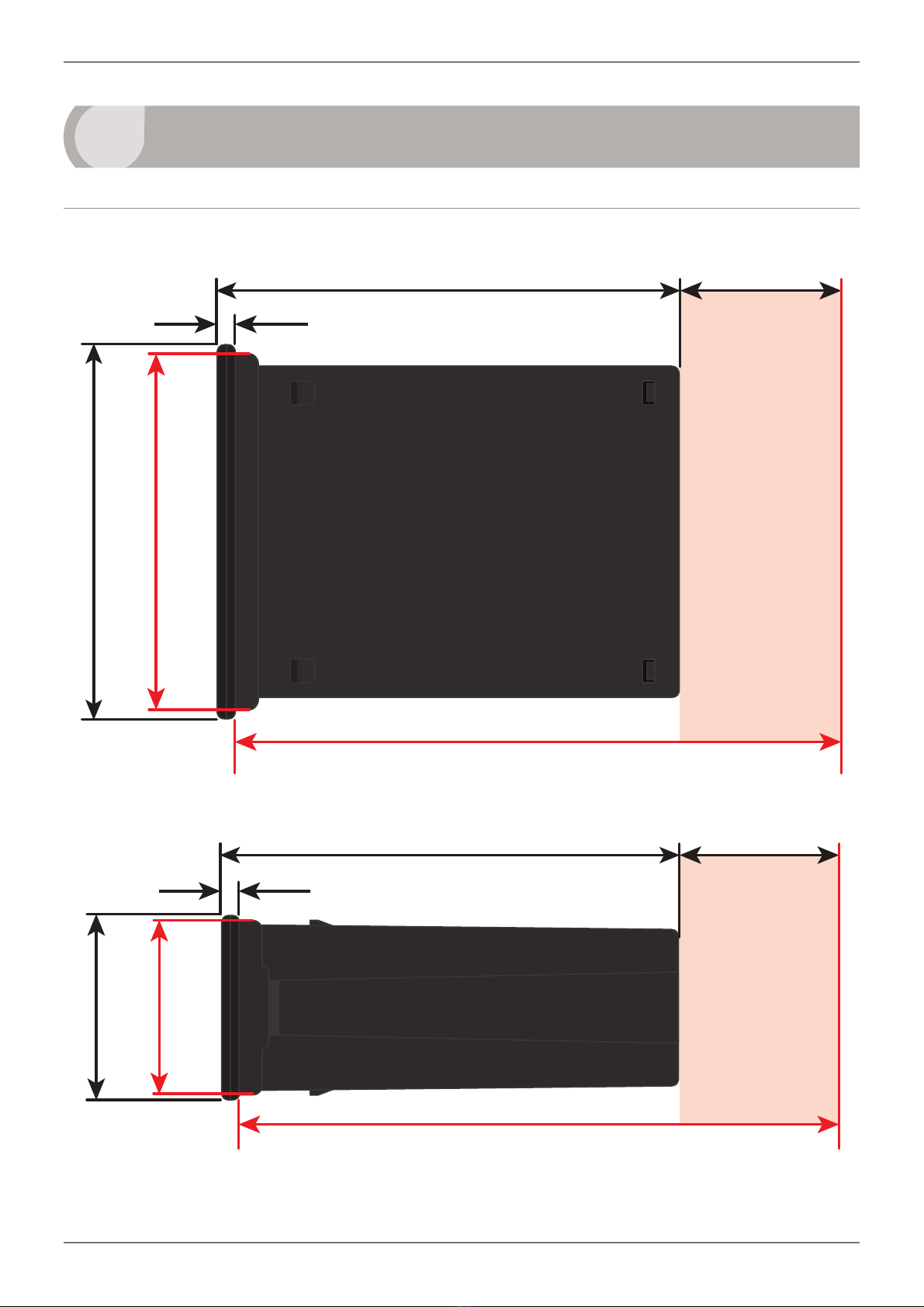

4.1 - Case dimensions

Cabling

Allowance

96mm

(3.78")

92mm

(3.62")

120mm (4.72") 39mm (1.54")

155mm (6.10") minimum depth required behind panel

4mm (0.16")

Cabling

Allowance

48mm

(1.89")

45mm

(1.77")

120mm (4.72") 39mm (1.54")

155mm (6.10") minimum de

th re

uired behind

anel

4mm (0.16")

4.2 - Installation instructions

A Prepare the Panel Cutout to

92 x 45mm ±.5 (3.62 x 1.77" ±.02),

as shown below. Allow at least

155mm (6.10") depth behind the

panel to accommodate the meter

body and protruding cabling.

B Remove the Mounting Clips from

the meter back.

C Slide the Panel Gasket over the

rear of the unit to the back of the

Meter Faceplate.

D From the front of the panel, insert

the meter into the Panel Cutout.

Holding the unit in place, engage

the Mounting Clips so that the tabs

snap into place over the notches on

the case.

E To achieve a proper seal, tighten

the Screws evenly until the unit sits

rmly against the panel. Do not

over-tighten the screws.

Panel Meter Faceplate

Panel

Gasket

Mounting

Clips

Screws 92mm ±.5

(3.62″ ±.02)

45mm ±.5

(1.77″ ±.02)

Panel Cutout

5 INPUT SETUP & CALIBRATION

5.1 - Enter F1 PIN number

A Enter the calibration mode by pressing the button.

_ _ ENTER F1 PIN NUMBER scrolls across the display and toggles with 0. Use the

and buttons to enter your security code (factory default 1). Then press

. If the correct PIN is entered, setup is started at 5.2.

If an incorrect PIN number is entered, _ _ INCORRECT PIN scrolls across the

display and it returns to normal operating mode.

You will have the opportunity to change your PIN number at the end of this section

(5.10). If you have forgotten your PIN number, see Section 8.

5.2 - Flow rate input setup

A _ _ FLOW RATE INPUT SETUP scrolls across the display and toggles with SKIP.

Press to skip to 5.3, or the button and then to ENTER input setup.

B _ _ MAINS FREQUENCY scrolls across the display and toggles with the current

selection. Use the and buttons to select 50HZ or 60HZ, and press .

C _ _ TIME UNITS FOR FLOW RATE scrolls across the display and toggles with the

current time units. Use the and buttons to select: /SEC, /MIN, or /HR,

and then press .

D _ _ RESOLUTION FOR FLOW RATE scrolls across the display and toggles with

the current ow resolution. Use the and buttons to select: 1, 0.1, 0.01, or

0.001, and then press .
