Defender PHOENIXM2 Manuel utilisateur

QUICK START GUIDE

PHOENIXM2, PHOENIXM22C

PHOENIXM23C, PHOENIXM24C

ATTENTION

For Returns or Support you MUST contact

DefenderCameras.com/Support

NEED HELP?

DefenderCameras.com/Support

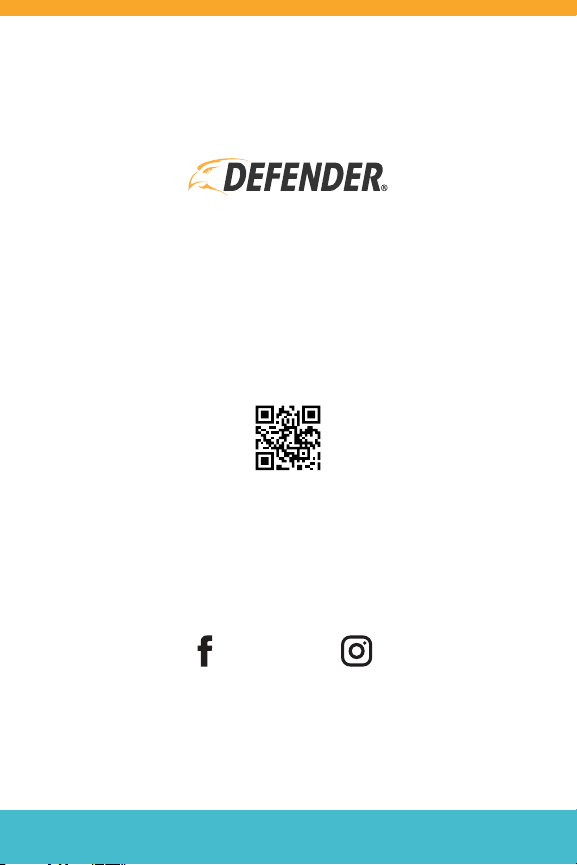

Open your camera & scan this

QR code for access to the Defender

PhoenixM2 Support Center

Need Help? Visit DefenderCameras.com/support 3

WELCOME TO DO-IT-YOURSELF PEACE OF MIND.

Thank you for choosing Defender to protect what you value.

We continually improve our products with your feedback.

Help spread the word by leaving a review!

SHARE YOUR MOMENTS WITH US!

#DefenderMoments

/DefenderUSA @DefenderCameras

Need Help? Visit DefenderCameras.com/support

WHAT’S INCLUDED

PHOENIXM2

• 7” LCD Monitor

• Wireless Camera with

Antenna

• 8’ Camera Power Supply

• 6’ Monitor Power Supply

• SD Card

• Mounting Hardware

• Window Warning Sticker

PHOENIXM22C

• 7” LCD Monitor

• 2x Wireless Cameras with

Antenna

• 2x 8’ Camera Power

Supply

• 6’ Monitor Power Supply

• SD Card

• Mounting Hardware

• Window Warning Sticker

PHOENIXM23C

• 7” LCD Monitor

• 3x Wireless Cameras with

Antenna

• 3x 8’ Camera Power

Supply

• 6’ Monitor Power Supply

• SD Card

• Mounting Hardware

• Window Warning Sticker

PHOENIXM24C

• 7” LCD Monitor

• 4x Wireless Cameras with

Antenna

• 4x 8’ Camera Power

Supply

• 6’ Monitor Power Supply

• SD Card

• Mounting Hardware

• Window Warning Sticker

Need Help? Visit DefenderCameras.com/support 5

LET’S GET STARTED

We’ve designed Defender Phoenix to be simple to setup and use. You

should not have to pair your cameras out of the box, but if you need to,

follow the instructions in this Quick Start Guide.

IMPORTANT:

Avoid installing the camera in a location where the wireless signal must

pass through multiple cement, concrete, or metal structures if possible.

This will reduce thetransmission range. Optimum range is 150 feet when

signal is passing through walls or oors. Microwave ovens (when in use)

may cause signal disruption at close range. Buildings with metal frames

may also cause signal disruption. Maximum range is 450 feet clear line

of sight.

Cam View Scan Zoom Delete Menu

Need Help? Visit DefenderCameras.com/support

PAIRING YOUR CAMERA(S)

Note: Defender Phoenix cameras can only be paired to one monitor at

a time, for a total of 4 paired cameras per monitor. To add a camera to

your system, follow these steps.

Note: Hold pairing for 20 seconds

or until image appears on screen.

CamV iewS canZ oom Delete Menu

Pairing

Camera 1

Camera 2

Camera 3

Camera 4

PAIR

CamV iewS canZ oom Delete Menu

Camera Setup

Pairing

Brightness

Resolution

CameraRecord Settings Detect Alert

Need Help? Visit DefenderCameras.com/support 7

SETTING UP MOTION RECORDING

Your Defender Phoenix system records footage directly

to a SD card inserted into the monitor. You can either

set motion-based or schedule-based recording.

Step 1: Press the Menu Button

to open the Menu, then navigate

to “Detect.”

Step 3: Select Day time or

Night time to adjust motion

notications for that period of

the day.

Step 2: Select the camera you

would like to activate motion

notications for.

Step 4: Select sensitivity.

Repeat Step 3 and 4 if you would

like to activate motion noti-

cations or the other remaining

period of the day.

CameraRecord Settings Detect Alert

Video Motion Detect

Camera 1

Camera 2

Camera 3

Camera 4

Video Motion Detect

Day time

Night time

Video Motion Detect

High

Medium

Low

Note: Adjust the duration of each motion-based recording by going to

Record > Duration in the Phoenix menu.

Need Help? Visit DefenderCameras.com/support

Setting up a Recording Schedule

Step 1: Press the Menu Button,

then select “Record.” Navigate

to “Schedule Recording” to

begin schedule setup.

Step 3: To modify schedule for

a particular day, navigate to

“Modify”

Step 5: Then, use the keypad to

set the recording window for

scheduled recordings.

Step 2: Use the Left and Right

Buttons on the keypad to shue

through days of the week to view

a camera-based daily schedule.

Step 4: Use the Left and Right

Buttons to cycle through cameras.

Select the camera(s) you would like

to apply a recording period to.

Step 6: Finally, use the Left and

Right Buttons to cycle and select

days of the week you would like

to apply the recording window to.

Recording

Duration

Schedule Recording

File Overwrite

Camera 1

Camera 2

Camera 3

Camera 4

Modify

Monday

0 2 4 6 8 10 12 14 16 18 20 22 2 4

Camera 1

Camera 2

Camera 3

Camera 4

Modify

Monday

0 2 4 6 8 10 12 14 16 18 20 22 2 4

Cam 1C am 2C am 3C am 4

Schedule Recording

Delete

SATFRITHUWEDTUE

0 00 0 0 0 0 0

MONSUN

Save

Cam 1C am 2C am 3C am 4

Schedule Recording

Delete

SATFRITHUWEDTUE

0 00 0 0 0 0 0

MONSUN

Save

Cam 1C am 2C am 3C am 4

Schedule Recording

Delete

SATFRITHUWEDTUE

0 00 0 0 0 0 0

MONSUN

Save

PROTECT

Covered for the

unexpected

SUPPORT

Receive videos, tips &

updates for your product

VALUE

Exclusive access to

special oers

ACTIVATE YOUR

WARRANTY

Open your camera & scan this

QR code, or visit:

DefenderCameras.com/Warranty

Need Help? Visit DefenderCameras.com/support

FREQUENTLY ASKED QUESTIONS

DO I NEED INTERNET TO VIEW MY CAMERAS?

No! To give our customers a without access to Wi-Fi a completely closed circuit

option to protect their property, the Phoenix Security System does not use an

Internet connection.

CAN I VIEW MY FOOTAGE FROM THE PHOENIX SECURITY SYSTEM ON MY

PHONE?

No! As this is a stand-alone Security System with no Internet connection, the

Phoenix cannot transmit footage to an app or mobile device.

IS THE PHOENIX SECURITY SYSTEM CORDLESS?

Cordless Security Cameras typically leave you climbing up to your camera every

few days or weeks to change the battery and risk a dead battery if you were to

forget. Phoenix requires access to a power source at all times.

WHERE DOES MY FOOTAGE RECORD TO?

Included with all of our Phoenix Security Systems is a 16GB SD Card. Expandable

up to 256GB SD Card.

HOW MANY HOURS OF RECORDING TIME CAN I GET?

VGA Resolution Recording (30 FPS)

16 GB SD = 176 Hours (Average Recording Time)

32 GB SD = 352 Hours (Average Recording Time)

64 GB SD Card = 704 Hours (Average Recording Time)

128 GB SD Card = 1,408 Hours (Average Recording Time)

256 GB SD Card = 2,816 Hours (Average Recording Time)

Autres manuels pour PHOENIXM2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Defender Système de sécurité

Defender

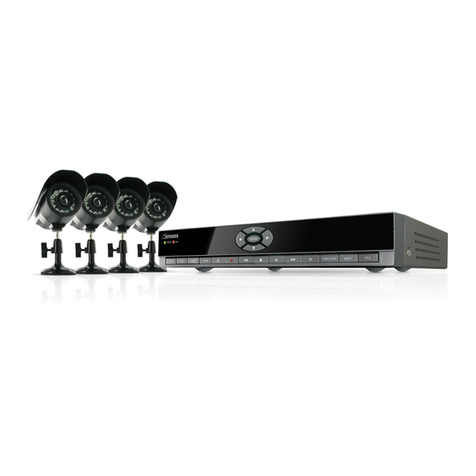

Defender SN502-4CH Manuel utilisateur

Defender

Defender PHOENIXM2 Manuel utilisateur

Defender

Defender DX-500 SOLAR Manuel utilisateur

Defender

Defender SN502-4CH Manuel utilisateur

Defender

Defender PHOENIX1 Manuel utilisateur

Defender

Defender MINIMAX AL00010 Manuel utilisateur

Defender

Defender EL00174 Manuel utilisateur

Defender

Defender DFDVR2 Manuel utilisateur

Defender

Defender APEX Manuel utilisateur

Defender

Defender MKA TORCH Manuel utilisateur

Defender

Defender SLIMLINE PERSONAL ALARM Manuel utilisateur

Defender

Defender CA6150 Manuel utilisateur

Defender

Defender 4K1T4B4V2 Manuel utilisateur

Defender

Defender AL101 Manuel utilisateur

Defender

Defender AL00005 Manuel utilisateur

Defender

Defender AL00009 Manuel utilisateur

Defender

Defender SN301-8CH Manuel utilisateur

Defender

Defender 2K Manuel utilisateur

Defender

Defender 3.0 Voice Plus Manuel utilisateur

Defender

Defender PX301 Manuel utilisateur

Defender

Defender PHOENIX Manuel utilisateur

Defender

Defender Phoenix 3.5" Digital Wireless Security Video... Manuel utilisateur

Defender

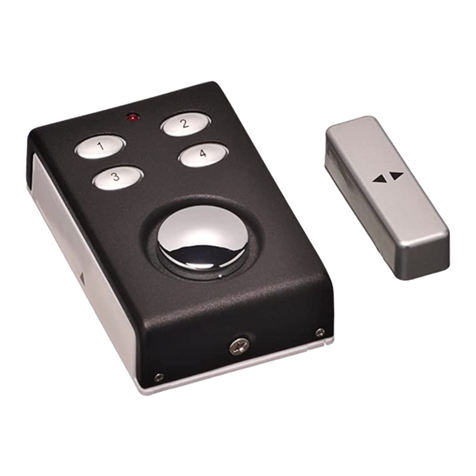

Defender EL00147 Manuel utilisateur
