DeDietrich GTU 120 Manuel utilisateur

Range GT 120 - GTU C 120 - GT 220

Low temperature fuel oil boiler

Oil-fired condensation boiler

English

21/09/06

Instructions for

use

2GT 120 - GTU C 120 - GT 220 21/09/06 - 300003691-001-F

Contents

Important recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1 Aeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2 Burner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1 Boilers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Commissionning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Stopping the boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Symbols used

Caution danger Risk of injury and damage to equipment.Attention must be paid to the warnings on

safety of persons and equipment

Specific information Information must be kept in mind to maintain comfort

ZReference Refer to another manual or other pages in this instruction manual

21/09/06 - 300003691-001-F GT 120 - GTU C 120 - GT 220

Congratulations on your choice of a high quality product. We strongly advise you to read the following instructions in order to

guarantee the optimal operation of your appliance. We are sure that it will be entirely to your satisfaction and will meet with all of

your expectations.

Important recommendations

For a proper operating of the boiler, follow carefully the

instructions.

Any intervention on the appliance and heating equipment

must be carried out by a qualified technician.

The manufacturer is not liable for any improper use of the

appliance or failure to maintain or install the unit correctly

(the user shall take care to ensure that the system is

installed by a qualified fitter).

Check the seal on the gas and water pipe connections.

Check that the appliance is correctly regulated for the type

of combustible used.

Keep to the polarity shown on the terminals : phase (L),

neutral (N) and earth 4.

To guarantee protection against the corrosion of domestic

hot water calorifiers fitted with a titanium anode (Titan

Active System® protection system), always leave the

control panel switched on. To switch off the heating or the

domestic hot water, use the Summer or Antifreeze mode.

1 Aeration

Warning:

In order to avoid damage to the boiler, it is necessary to prevent the

contamination of combustion air by chlorine and/or fluoride

compounds, which are particularly corrosive. These compounds are

present, for example, in aerosol sprays, paints, solvents, cleaning

products, washing products, detergents, glues, snow clearing salts,

etc. Therefore:

- Do not suck in air evacuated from premises using such products:

hairdressing salons, dry cleaners, industrial premises (solvents),

premises containing refrigeration systems (risk of refrigerant

leakage), etc.

- Do not stock such products close to the boilers.

If the boiler and/or peripheral equipment are corroded by such

chloride or fluoride compounds, the contractual guarantee

cannot be applied.

1.1 Chimney versions - Chimney condensation versions

Position the air inlets in relation to the high ventilation vents in order

that the air is refreshed throughout the boiler room. The minimum cross-sections and the positions of the fresh air inlet

and the air outlet must comply with prevailing regulations.

Do not obstruct the air inlets in the room (even partially).

1.2 Forced flue versions (Not available in Germany)

- GTU 120 FF boilersare incompliancewiththe standardforfuel oil

boilers type C (XPD 35-430). They can be installed in all kinds of

premises whatever their volume, even if they do not include a

window or framed opening.

- TheymaybecommissionedonlyusingdevicessoldbyDeDietrich

(particularly concentric flues, connecting parts, terminals).

2Burner

ZRefer to the user instructions for the burner.

4GT 120 - GTU C 120 - GT 220 21/09/06 - 300003691-001-F

3 Maintenance

- The servicing and cleaning of the boiler and the sweeping of the

flue gas pipe and the bleed pot must be done at least once a year

by a qualified professional.

-Oil-fired condensation boiler: The condenser and the

condensates neutralisation station must serviced at least once a

year by a qualified professional.

To ensure safe operation of the boiler: The siphon and the

condensates evacuation conduit must imperatively be

checked and cleaned at least once a year.

Without an annual service, the siphon is in danger of becoming

blockedandthecondensateswillnolongerbeabletoflowoffandwill

fill the flue gas discharge pipe causing the boiler to malfunction.

- Regularly check the level of water in the installation. Top it up, if

needbe,avoidingtheabruptinputofcoldwaterintothehotboiler.

If this operation is repeated several times per season, locate the

leak and repair it.

- We recommend taking out a maintenance contract.

Do not drain the installation, except in cases of absolute

necessity.

For example: Several months' absence with the risk of ice

in the building.

21/09/06 - 300003691-001-F GT 120 - GTU C 120 - GT 220

Description

1 Boilers

The models presented are marketed in the various countries according to the countries' specific sales programme.

GT 120

GTU 120 / GTU 120 FF / GTU C 120

GTU 1200 V / GTU 1200 V FF / GTU C 1200 V

GT 220

6GT 120 - GTU C 120 - GT 220 21/09/06 - 300003691-001-F

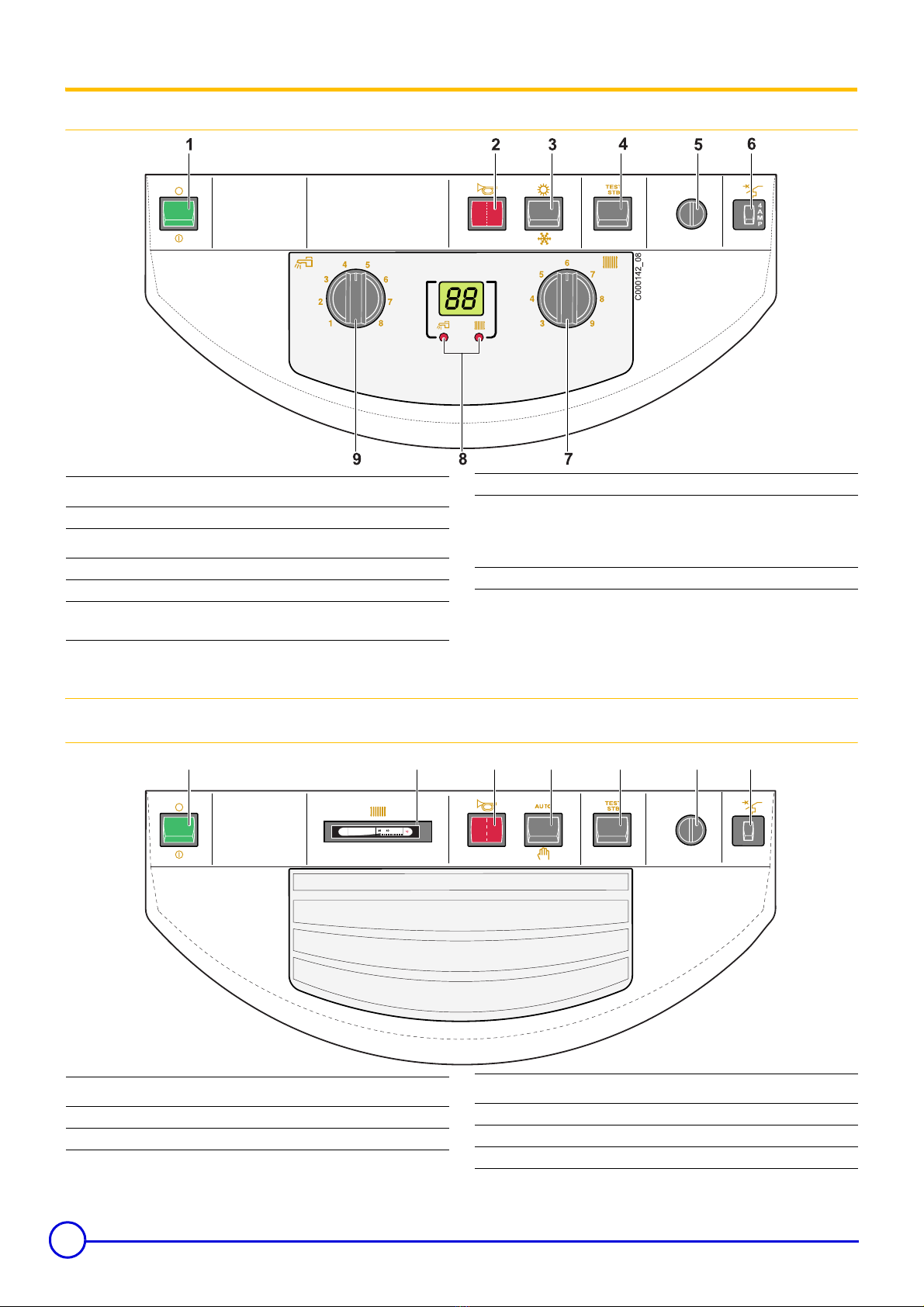

2 Control panel

2.1 Control panel B / B2

2.2 Control panel Easymatic E-E1 / Easyradio ER-E1R

Electromechanical components

1General ON 8/ OFF 7switch

2Alarm indicator

3Summer %/ Winter .switch

4TEST STB button

5Safety thermostat with manual reset

6Panel B: Timed circuit breaker (4 A)

Panel B2: Timed circuit breaker (6 A)

7Boiler thermostat

8Alternate display of the following temperatures:

- Light "lit: Water temperature in the boiler

- Light lit: Domestic hot water temperature

9domestic hot water thermostat

23 5 67

C000142_09

1General ON 8/ OFF 7switch

2Boiler thermometer

3Alarm indicator

4Switch AUTO/!

5 TEST STB button

6Safety thermostat with manual reset

7Timed circuit breaker (4 A)

21/09/06 - 300003691-001-F GT 120 - GTU C 120 - GT 220

EASYMATIC regulator

STANDARD

MODE

PROG PROG

1234567

8575N077A

MODE

Temperature setting keys

2% Comfort temperature

2$ Reduced temperature

2 Domestic hot water temperature

+/-Is used to adjust the selected temperature

Operating mode selection keys

Key MODE:

AUTO Heating according to the time programme

%Forced Comfort mode

$Forced Low mode

.Antifreeze mode

#Summer mode

Key : Tank load enabled mode

DBurner on

:Circulator pump on

Available only on Easyradio

If the symbol flashes, replace the batteries

6Time and day adjustment key

Q" Access to the time programmes on the heating circuits.

Circuit A for Easymatic, circuit A and B for Easymatic 1.

Q Access to the time programmes on the DHW circuit

Programme key

%O Enter (per 1/2 hour) the comfort temperature period or tank

load enabled (dark area)

$O Enter (per 1/2 hour) the reduced temperature period or tank

load disabled (light area)

SReturn key

8GT 120 - GTU C 120 - GT 220 21/09/06 - 300003691-001-F

2.3 Control panel DIEMATIC 3

Electromechanical components

Display

C000142_07

0 2 4 6 8 1012141618202224

23 5 6

SUNDAY

-04

1General ON 8/ OFF 7switch

2Alarm indicator

3Switch AUTO/!

4 TEST STB button

5Safety thermostat with manual reset (110 °C)

6Timed circuit breaker (6 A)

7Operating light

1Text and numerical display

2Graphic display bar for the programme in circuit A, B or C

3Light area: Reduced temperature heating period or tank load

disabled

4Dark area: Comfort temperature heating period or tank load

enabled

5Flashing cursor showing the current time

6Number display (current time, adjusted values, parameters,

etc.)

7Active programme display, P1, P2, P3, P4

E: Summer mode activated

8The arrows flash when setting values can be modified using

the +and -keys

9Circuit operation symbols

>Opening the 3-way valve

=Closing the 3-way valve

:Displayed circuit pump on

A, B, C Name of the circuit displayed

10 Symbol displayed above the active operating mode

11 Symbols indicating that the following inputs/outputs are

active

DHW load pump on

#Summer mode

TNot available

DBurner on

With optional package AD217:

`Operation with modulating burner

YBurner on with an increase in the output level

XBurner on with a reduction in the output level

DBurner on with a constant level

`Operation with 2-stage burner

DBurner on with 1 stage

YBurner on with 2 stages

21/09/06 - 300003691-001-F GT 120 - GTU C 120 - GT 220

Keys accessible when the flap is closed

Keys accessible when the flap is open

3Burner

ZRefer to the user instructions for the burner.

Temperature setting keys

2% Comfort temperature

2$ Reduced temperature

2 Domestic hot water temperature

/Is used to adjust the selected temperature

Operating mode selection keys

AUTO Heating according to the time programme

%Forced Comfort mode:

- until midnight if flashes

- all the time if is steady

$Forced Low mode:

- until midnight if flashes

- all the time if is steady

.Antifreeze mode

Tank load enabled mode

#Manual "Summer" shutdown key

The heating is switched off and DHW production is

ensured. The symbols #and Eare displayed.

STANDARD "Standard" programme key

Reset of all time programmes.

KFitter settings access key

Key for access to setting and measurements

JPage scrolling

ILine scrolling

HReturn to the previous line

Programming keys

%O Enter (per 1/2 hour) the comfort temperature period or

tank load enabled (dark area)

$P Enter (per 1/2 hour) the reduced temperature period or

tank load disabled (light area)

SReturn key

A, B, C Circuit display selection key

PROG Active heating programme selection key (P1, P2, P3 or

P4)

10 GT 120 - GTU C 120 - GT 220 21/09/06 - 300003691-001-F

Commissionning

Initial commissioning must be done by a qualified

professional.

1. Check the water pressure in the installation. Top up with more

water if necessary.

2. If using an oil-fired boiler, check the oil level in the tank.

3. Open the fuel oil inlet or the gas valve.

4. Control panel B / B2:

- Set the Summer/Winter swtich to

Control panel E / E1 / D:

-Setswitch

AUTO/

to the

AUTO

position.

5. Set the On/Off switch to 8.

Stopping the boiler

Set the On/Off switch to 7.

On the Off position 7, the domestic hot water calorifier

fitted with a titanium anode is not protected against

corrosion.

Precautions to take if there is a danger of frost

Heating circuit:

Use a correctly dosed antifreeze to prevent the heating water

freezing. If this cannot be done, drain the system completely. In all

cases, consult the fitter.

Domestic hot water circuit:

Drain the domestic water tank and pipes.

Precautions to take in the event of prolonged shutdown (one year or more)

- The boiler and the chimney must be swept carefully.

- Closethe dooroftheboilertopreventtheinternalcirculationof air. - Removethepipeconnectingtheboilertothechimneyandplugthe

nozzle.

Troubleshooting

Checks to make before calling your fitter:

The burner will not start.

ZRefer to the user instructions for the burner.

The burner is operating but the radiators are cold.

- Bleed the radiators.

- Top up the primary circuit with water.

- Check that the heating pump is operating correctly.

- Ifitisoftennecessary to top up the installation with water, contact

your fitter.

Before informing the fitter of a fault, make a note of the following

information:

- Product type

- Serial number

- Type of combustible

This information can be found on the rating plate stuck to the

side panel of the boiler.

Autres manuels pour GTU 120

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DeDietrich Chaudière

DeDietrich

DeDietrich GTU C 330 Manuel

DeDietrich

DeDietrich SOLNEO SGC 24 SOL Manuel

DeDietrich

DeDietrich GT 530-7 Manuel

DeDietrich

DeDietrich MCA 10 Manuel

DeDietrich

DeDietrich MPX 28/33 BIC Manuel utilisateur

DeDietrich

DeDietrich Elidens DTG130-45 Manuel utilisateur

DeDietrich

DeDietrich WHE 2.24 Manuel utilisateur

DeDietrich

DeDietrich Innovens MCA 15 Manuel

DeDietrich

DeDietrich GT 430 Manuel

DeDietrich

DeDietrich INNOVENS PRO Manuel d'utilisation

DeDietrich

DeDietrich MCR 24 Manuel utilisateur

DeDietrich

DeDietrich MCR 24 Manuel utilisateur

DeDietrich

DeDietrich Elidens DTG130-45 Manuel du propriétaire

DeDietrich

DeDietrich GT 400 A Manuel d'instructions

DeDietrich

DeDietrich MODULENS O PRO PFC 90 Manuel

DeDietrich

DeDietrich MODULENS O AFC 18 Manuel utilisateur

DeDietrich

DeDietrich GT 123 A Manuel

DeDietrich

DeDietrich GT 330 Manuel du propriétaire

DeDietrich

DeDietrich INNOVENS PRO MCA 160 Manuel utilisateur

DeDietrich

DeDietrich GT 430 Manuel utilisateur

DeDietrich

DeDietrich Innovens MCA 25/28 BIC Manuel

DeDietrich

DeDietrich DTG 320 Eco.NOx Series Manuel utilisateur

DeDietrich

DeDietrich NeOvo Condens EFU C-S 19 FF Manuel utilisateur

DeDietrich

DeDietrich GT 334 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
