Dedicated Micros Eco9 Instructions d'installation et d'entretien

1.0001

Eco Range

Network Guide

Eco

Contents

Network Conﬁguration ................................................................................................................3

Simple Conﬁguration ..................................................................................................................5

Advanced Conﬁguration ...........................................................................................................13

Tools ...........� 26

Reviewing the Unit Logs ...........................................................................................................27

Appendix A .� 31

Appendix B – .ini Files ..............................................................................................................32

Appendix D –Unit Serial and Network Cables ........................................................................36

Appendix E – IP Address Range and Subnets .......................................................................38

Index ...........� 42

Eco

Network Conﬁguration

This manual is designed to help with the advanced conﬁguration of the unit using the on-board web

pages.

To assist with the conﬁguration of the unit, sections are constructed as tutorials and will illustrate how

to perform common requirements. Use the tutorials that will provide the required functionality and

follow the step by step instructions.

In some of the sections the web interface and the OSD menus will be displayed. These are the more

advanced network settings where conﬁguration via the web pages is more appropriate.

This manual will be divided into:

Simple Conﬁguration –required to get the unit up and running

Advanced Conﬁguration –project speciﬁc requirements

Note: The unit should be conﬁgured in line with the main conﬁguration steps detailed in the Setup

Guide and therefore the cameras inputs have been enabled and the standard record rate

has been set.

1.1001

Web Page Icons

Each of the unit conﬁguration web pages has the following buttons:

1.1002

Reset to Defaults –This will return the associated page to factory defaults.

1.1003

Display Help –This will display the Help pages for the associated conﬁguration page. This is a good

starting point if you are having problems or do not understand the conﬁguration parameters.

1.1004

Save Settings –This will save a changes that has been made to the conﬁguration page - remember

to save the changes.

NOTE: Selecting a new page before saving the changes will result in any changes being lost!

1.1005

Reset –This is displayed on conﬁguration pages that require a unit reset to initiate a function.

Note: Always save the settings before resetting the unit.

1.1006

Each ‘How to.. Section’ will show the Tab and Function name to allow easy location of the correct

conﬁguration page.

1.2001

Accessing the Conﬁguration Web Pages

The unit is conﬁgured using on the on-board web pages. To access these:

Eco

Note: The unit should already have been conﬁgured with an IP address (via the serial port or the

OSD menus) and connected to an Ethernet network.

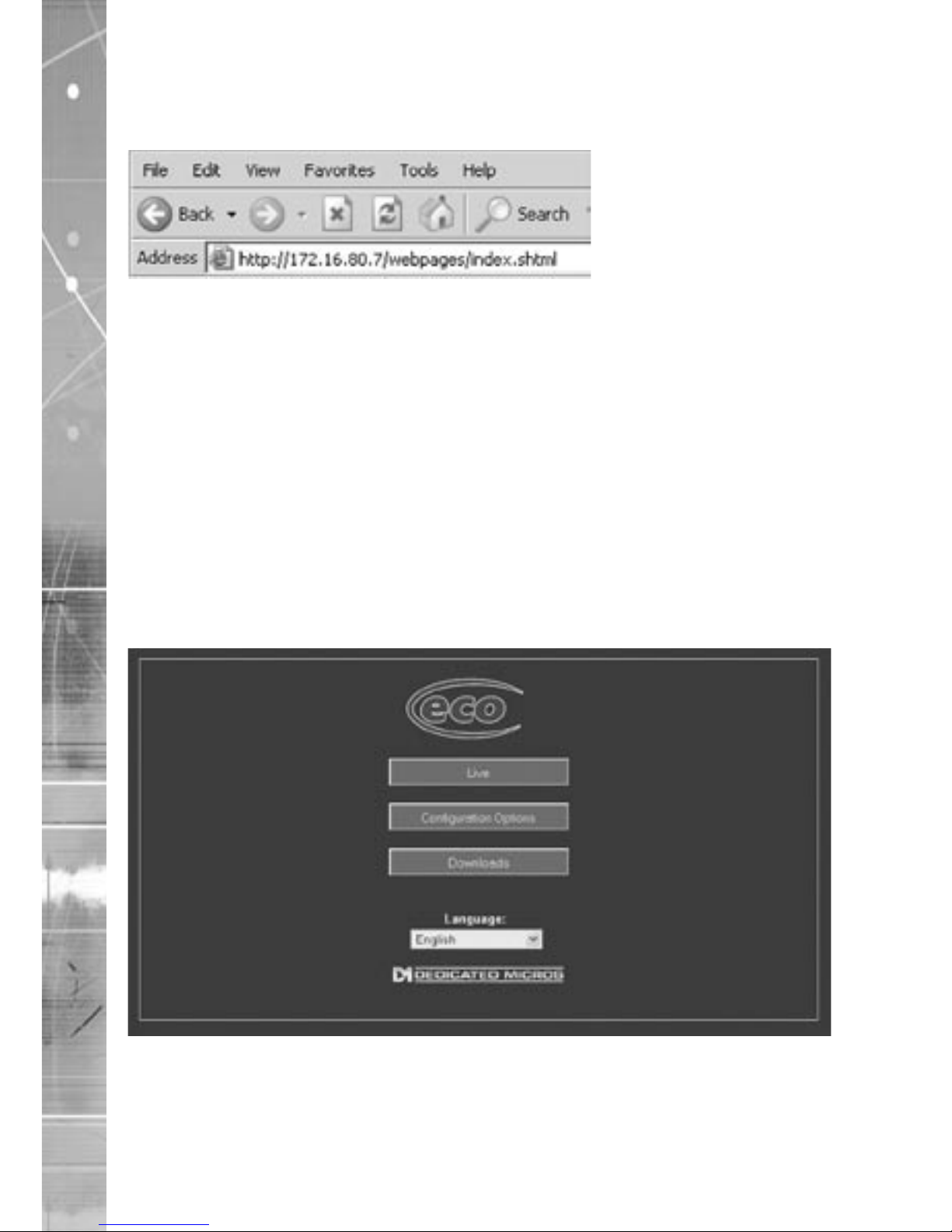

1. Launch Internet Explorer (or Netscape Navigator).

1.2002

2. Type the IP address of the unit into the address bar.

3. The Main Menu page will be displayed.

4. Select Conﬁguration Options. The unit will prompt for a username and password. The

default settings are dm and web respectively.

Note: The user name and password are case sensitive; they should be changed from the default

username and password and kept safe. Mislaid usernames and passwords could result in

the unit being returned to Dedicated Micros for resetting.

1.3001

Main Menu

The unit Main Menu allows the Operator access to:

Live viewing of any of the connected cameras.

Conﬁguration web pages for the unit.

Downloads which include the software applications and the product documentation.

Demo pages that demonstrate how viewing applications can be designed for varying system

requirements.

1.3003

2.0001

Eco

Simple Conﬁguration

How to Conﬁgure Global Parameters

There are some parameters that can be set that will affect the overall system; video standard for the

video inputs, browser format for the web interface, language that the menus will be displayed in and

the DST (daylight saving time) settings.

To conﬁgure these parameters:

1. Select Home -> Main Set-up.

2. Select the video standard from the drop down list; this will be the standard for all the video

inputs on the unit.

Note: It is necessary to carry out a system reset if the video format is changed before saving the

settings. This allows the unit to activate the change.

3. Select the date format from the drop down list.

4. The unit web pages can be viewed in two formats; Active X (default) or Java, select the

relevant option from the drop down list.

5. The web conﬁguration pages for the unit can be displayed in a selection of languages,

select the language which is most appropriate to your installation from the drop down list.

Note: Ensure the PC being used for the conﬁguration is set to the correct time zone and that DST

is enabled before continuing.

6. Select the DST for region where the unit is installed from the drop down list.

7. If the settings are incorrect reset the unit by selecting the reset button.

8. If the unit time is to be synchronised to the PC that is being used to conﬁgure the system

then select sync unit time from PC. Note this only synchronizes the time when the button is

selected this will not maintain synchronisation permanently.

9. Remember to save the conﬁguration by selecting Save Settings!

2.0003

Eco

Function Description

Video Standard This displays the standard used by the video inputs on the unit.

Date Format It is possible to identify the format in which the date will be

displayed in the browser; the default setting is Day Day, Month

Month, Year Year.

Browser Settings The browser interface supports ActiveX or Java. Select the most

appropriate for your application from the drop down box. This

is a global setting so any user connecting to the system will be

presented by the same interface.

Language The unit conﬁguration pages can be displayed on the local

browser in the most appropriate language.The currently

languages supported are; English, Spanish, French, Czech,

Italian, Russian, Dutch, Portuguese, German, Turkish, Croatian,

Danish, Finnish, Norwegian, Hungarian, Swedish, Polish, Arabic

and Chinese

DST Daylight Saving Time. This is the time zone local to the unit, select from the list for the

most appropriate time

Reset This will reset the unit

Sync unit time The unit can be synchronised with the PC that is being used to

conﬁgure the unit. If the PC is synchronised with the network clock

then this time will be reﬂected in the unit. The synchronisation is

not persistent and will only synchronise the unit and the PC at the

time the button is pressed

2.20011

Eco

How to Conﬁgure Video Inputs and Standard Record Settings

Each of the video inputs on the unit can be individually conﬁgured.

This section will describe the full conﬁguration process including resolution and ﬁle size, camera

titles, setting a camera to mono, camera fail notiﬁcation and standard recording settings.

1. Select Cameras -> Camera Set-up

2. It is possible to identify the global camera resolution (common to all video input) the current

option sets the resolution to 704 x 256.

3. Select the required image resolution, enter a ﬁle size of between 2K & 45K.

Note: See the Setup Guide for the recommended settings.

4. All connected cameras will be automatically enabled, use this screen to check the enabled

inputs are correct.

5 In the corresponding title box enter the camera name for the video source connected to that

input.

6. Use the drop down box to select whether alarm input polarity is Normally Open, Normally

Closed or Off for each camera alarm.

7. By default the unit presumes all enabled inputs are colour video sources. If you are

connecting a monochrome signal to the unit, it is recommended that the input be set for

mono. Place a tick in the corresponding video input.

8. To enable the unit to send notiﬁcation that the video input does not detect a 1V peak to

peak signal place a tick in the box below Cam-Fail Reporting. This can send a camera fail

email.

9. Save the conﬁguration by clicking the Save icon.

Eco

Function Description

Pictures/Second / milliseconds This allows the record settings to be conﬁgured as either Pictures

Per Second or Milliseconds

Live/Record Resolution

This is the resolution of the live and recorded images (MPEG only)

that will be transmitted from the unit and recorded to hard disk.

Image Size This is the ﬁle size for the image to be recorded, between 2KB &

45KB.

Video Expiry Period This indicates the maximum time any images can be stored on the

hard disk, if the record duration is greater than the video expiry

period the images will automatically be overwritten

Connected The unit can automatically detect if a camera source is present,

the corresponding input will be enabled in this menu for connected

cameras.

Title It is possible to allocate an ASCII camera title to each of the

cameras, which will be displayed onscreen along with the camera

number.

Alarm Input Polarity

This can be set to Off, Normally Open (NO) or Normally Closed (NC).

Mono If the video input on the unit has a black and white (monochrome)

source connected then enable the corresponding camera.

The unit will try and compress the colour contents of the image if

this box is not enabled, ticking this box will remove unnecessary

overhead on the compression process.

Camera Fail Reporting If the video input on the unit does not identify a 1V peak-to-peak

signal then the unit can transmit an alarm notiﬁcation email for

camera failure on the corresponding video input.

Eco

Click here to see thumbnail images

This will display a thumbnail view of video connected to the unit.

Place the cursor in the camera title box to view the corresponding

video input.

2.20021

To conﬁgure the standard record settings

10. The record duration and standard record rate are inter-connected; changing one of these

settings will automatically update the other.

11. Enter the information in either the record duration or standard record rate. These are global

settings across all cameras for the schedule period being edited.

Either

Enter the Record Duration for when the unit in the selected schedule period

Enter the Standard Record Rate for the selected schedule period.

12. Select the alarm recording mode to reﬂect the recording requirement on receipt of an alarm.

13. Select the Event Active option from the drop down list

Note: Running the unit at maximum Record Rate (25pps or 40ms in Standard Record Settings)

will affect viewing and network transmission, as the video codecs will be operating close

to capacity - the unit’s priority is to record the footage to the internal HDD, so transmission

performance will be reduced. This is exhibited by slow connection to the html pages and

reduced viewing frame rates. Multi-user viewing will also be affected. It is not recommended

to set the Standard Record rate to 20ms for everyday usage, but rather only for speciﬁc

situations where this rate is necessary.

Record Duration The total record time available in (DD) Days and (HH) Hours. This

indicates the storage capacity of the system without any alarm

recording. It is estimated from size of video storage, the standard

record rate and the requested target size of the recorded images.

Note: Changing the Record Duration will automatically update the

Standard Record Rate. Changing the Standard Record Rate will

likewise update the Record Rate. This should be conﬁgured for

day, night and weekend operation modes.

Standard Record Rate This is global setting and identiﬁes the ‘common pictures per

second’ for all enabled video inputs in non alarm mode. This can

be set in milliseconds or the number of pictures per second.

The delay between consecutive images from any one camera is

the Standard Record Rate multiplied by the number of cameras

being recorded. Changing the Standard Record Rate will

automatically update the Record Duration. Changing the Record

Duration will likewise change the Standard Record Rate.

Example Record Rates 40ms = 25 pictures per second

50ms = 20pps

100ms =10 pps

125ms = 8pps

200ms = 5 pps

500ms = 2pps

1000ms = 1pps

Alarm Record Rate This identiﬁes the alarm recording rate, for the mode of operation

being conﬁgured (i.e. Day, Night and Weekend mode), which will

be activated if an alarm is triggered on the unit. For example, the

unit may be conﬁgured to increase the recording rate when a door

contact is triggered.

Event Active This identiﬁes what kind of alarm will trigger the alarm record

rate to activate. It is selectable between None, Alarms, Activity, or

Alarms and Activity (both).

2.20022

Eco

The unit supports day, night and weekend operation, if this has been enabled then it is possible to

schedule changeover times between Day, Night and Weekend operation.

The different settings for Day, Night and Weekend operation allows the system to be set to not

record during the one period (e.g. Night = 0pps) until an event triggers Alarm recording.

12. Enter the record rate for the Day, Night and Weekend modes, these settings will then be

applied to all cameras enabled within these modes.

13. Save the settings by clicking on the Disc icon.

2.3003

Autres manuels pour Eco9

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dedicated Micros Matériel réseau

Dedicated Micros

Dedicated Micros NetVu Console Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
