Decon wheel MEM6273 Manuel utilisateur

2017-11-09

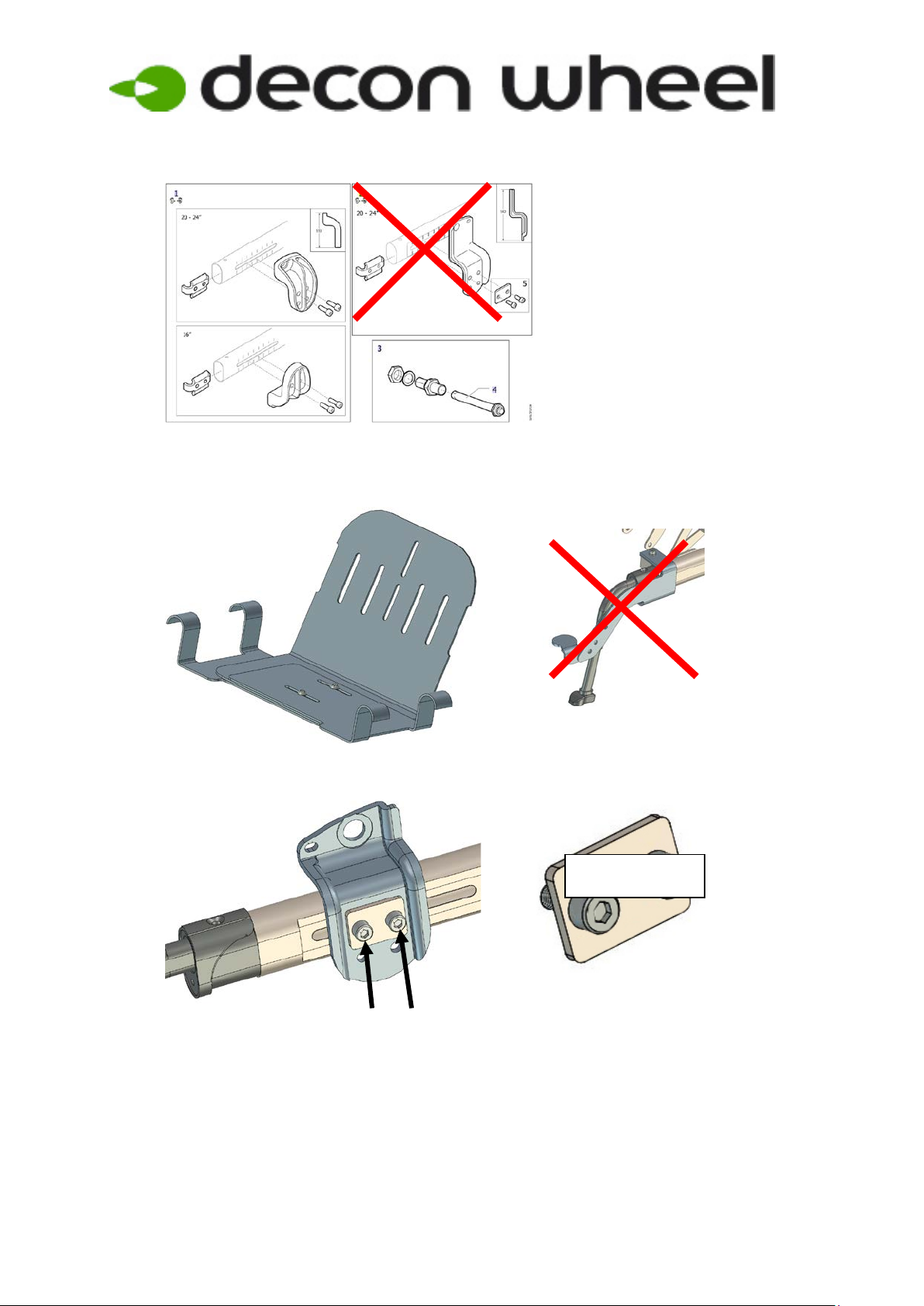

Assembly instructions for Rea Dahlia

MEM6273 and MEM6274

1. Check if you have the right type.

2. Check if it is possible to place the battery bag on the back of the seat, if so you can use

a back placed battery bag, if else you need to have the Invacare part Accessory Tray

with Part No: 1574433. The part is needed for assembly the battery. But if you use this

alternative you are not able to use the tilt peddle.

3. Remove wheel, brake, adapter bracket, brake handle on both sides.

4. The easiest way to remove the parts is to loosen the screws that hold the adapter

bracket. Do this on both sides and just lift up the wheelchair. After that you loosen the

screws that hold the brake handles. Remember too save the screws and bracket for

recycling, they are for assembling of the new brackets.

Recycled parts

2017-11-09

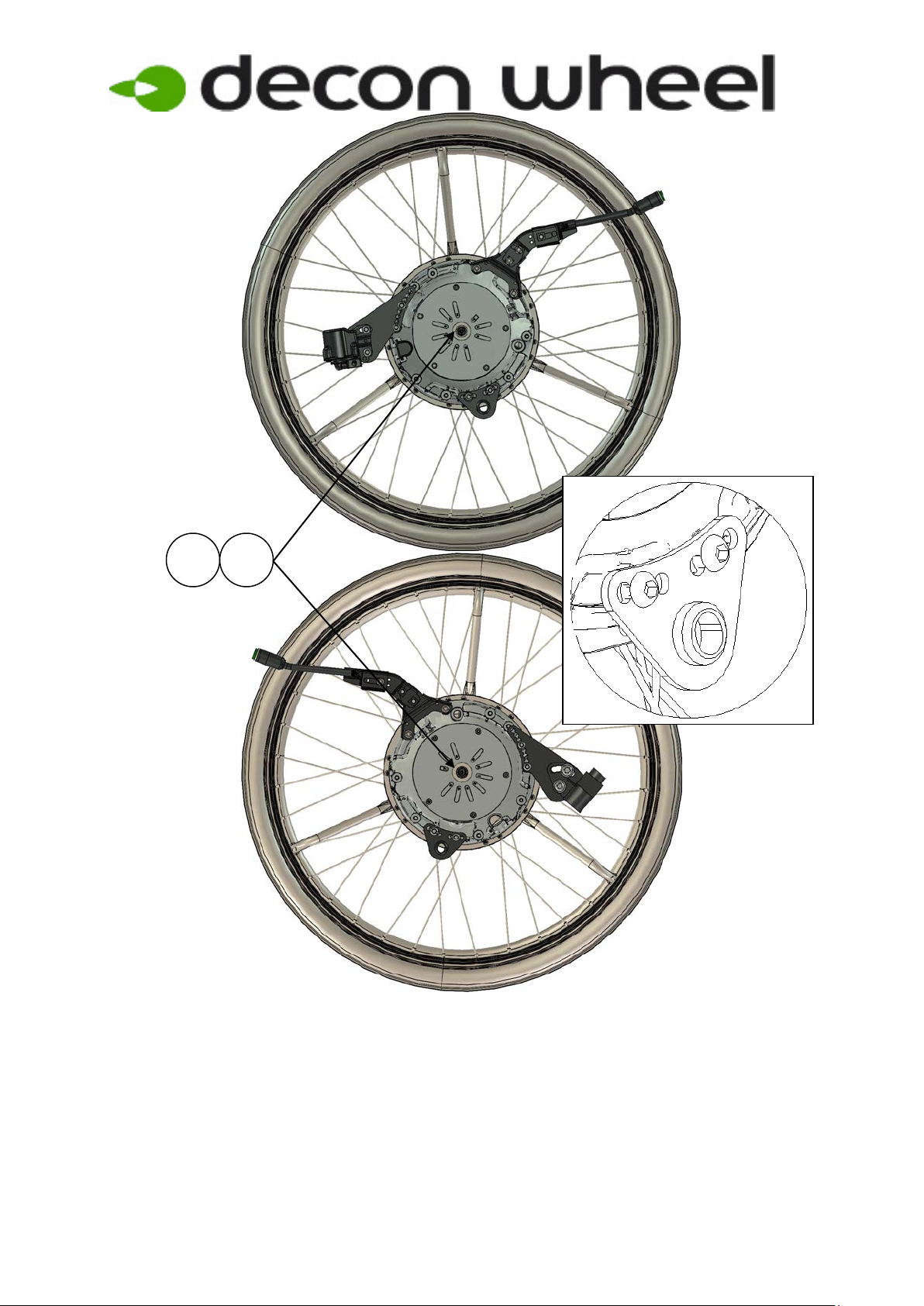

5. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with

Part Number: XOE-2530E-CO and Spacer with Part Number: XOE-25383-00.

10

11

2017-11-09

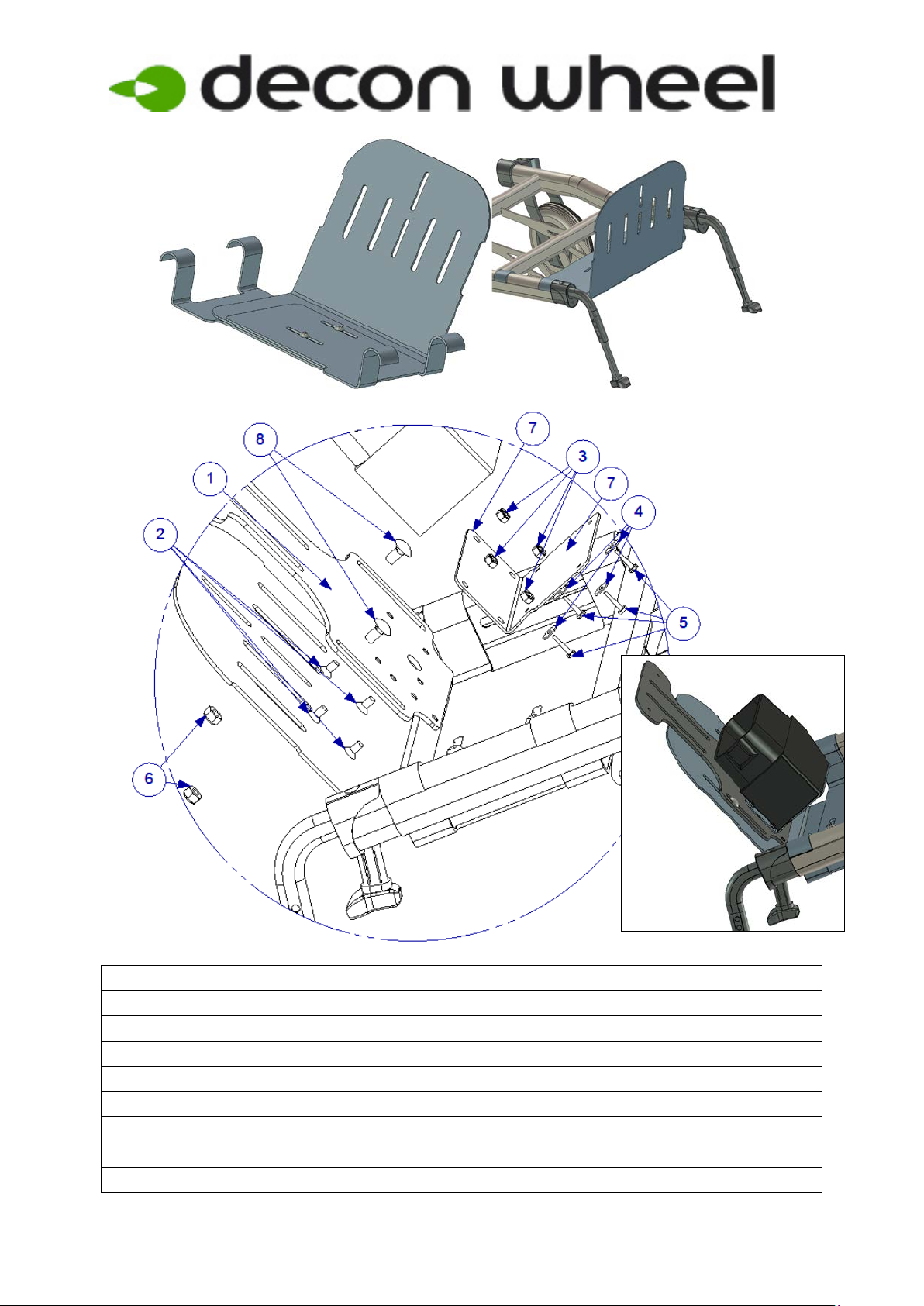

Assembly of the Battery onto the Accessory Tray

1. Follow the instructions of assemble the Accessory Tray from Invacare.

Item No. Part Number Qty Description

1 MED5001 Rev3 1 Battery plate eDrive/ eMove

2 XSFM6X16 4 Screw Countersunk M6 x16

3 XSM6ML 4 Nut Self-Locking M6

4 90201-043H5 4 Plain Washer

5 97707-40520 4 Screw Pan tapping - 3,85 x 19,5

6 XSM8ML 2 Lock Nut M8

7 MEM5011 1 Bracket

8 XSSM8X16 2 Bolt Round-Square M8 x 16

2017-11-09

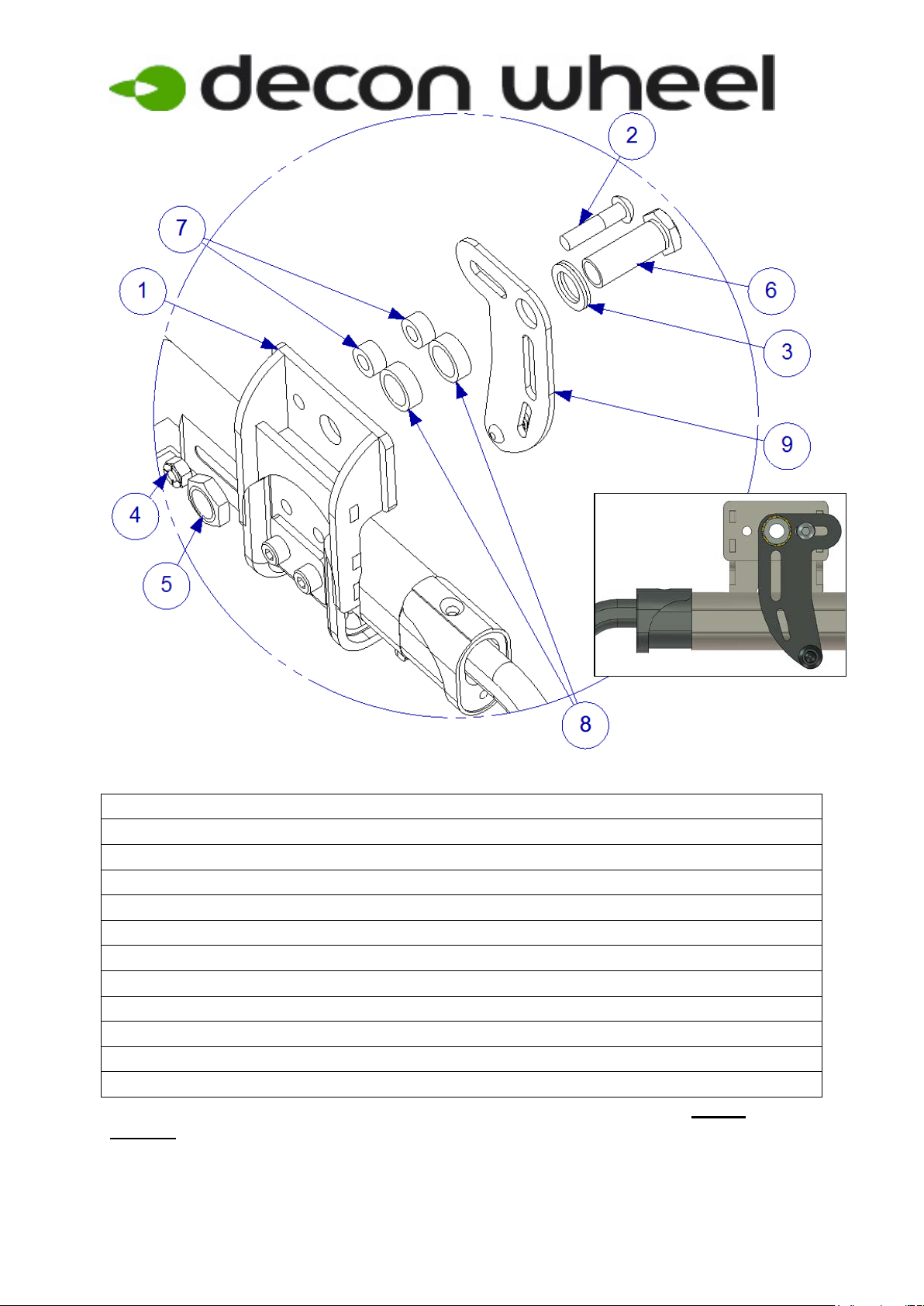

Parts for right side mounting:

Item No. Part Number Qty Description

1 MED3123-01 1 Bracket Dahlia

2 XSM8X35 1 Screw Round M8 x 35

3 405239 1 Nordlock Washer M16

4 XSM8ML 1 Nut Self-Locking M8

5 XSM16M 1 Nut M16X1 Low

6 HW069 1 Hubsleever M16x1/12,7

7 100 400 003 2 Spacer

8 100 400 006 2 Spacer

9 XOE-22294-BO 1 Right Bracket

10 XOE-25383-00 1 Spacer

11 93440-120520 1 Circlip

Note! If you only order the mounting set, the axle, axle spacer and the circlip are not

included, for replacement see the service manual.
