Deckma OMD Series Manuel utilisateur

DECKMA

HAMBURG

We help to protect the Environment

S E R V I C I N G A N D C L E A N I N G

M A N U A L

O M D - S E R I E S

Cleaning Procedure of Measuring Cell MZ-09

•Cleaning Manually

•Cleaning Mechanically Assisted

•Cleaning of Iron Oxide and Calcification

DECKMA

HAMBURG

Page: 2

Appendix V.

Content

Revision............................................................................................................................ 2

Symbols ................................................................................................................................... 3

1. Measuring Cell Cleaning ............................................................................................ 4

1.1 Cleaning Manually.................................................................................................................. 4

1.2 Cleaning with Sample Tube Cleaner ...................................................................................... 6

1.3 Cleaning Mechanically Assisted ............................................................................................. 7

1.4 Cleaning of Iron Oxide and Calcification................................................................................ 9

1.5 Outward Appearance........................................................................................................... 10

1.6 Checking the O-Rings ........................................................................................................... 11

1.7 Desiccator Check.................................................................................................................. 13

Servicing Worldwide ....................................................................................................... 14

Notes:............................................................................................................................. 15

Revision

Document-Name

Revision No.

Notation

Date

Servicing and Cleaning Manual

OMD-Series

R01_20170316

16.03.2017

DECKMA

HAMBURG

Page: 3

Appendix V.

Usage of the Service Manual

This Service Manual will guide you how to clean a Measuring Cell onboard. The

instruction manual is split into sections. Every section handles a specific type of

cleaning. The first part gives you general information about the outward appearance

before cleaning and servicing the Measuring Cell.

The included information should be used only by a technician or a system operator for

keeping the units correctly set up and cater for a clean Measuring Cell.

Following this Service Manual ensures clean maintenance and allows a right handling

of the instrument

This instruction manual contains also information about the service support and our

contact details. Additionally, the symbols below will support you during the cleaning

process.

Symbols

✓

This symbol is used to show the right handling.

This symbol is used to show what to avoid.



This symbol is used for giving advices about servicing.



This symbol is used for giving general advices.

DECKMA

HAMBURG

Page: 4

Appendix V.

1. Measuring Cell Cleaning

1.1 Cleaning Manually

Step 1.

Stop any water flow.

Step 2.

Figure 1

Figure 2

Unscrew Cell Cap, MCU, or Autoclean.

Remove Cell Cap, MCU, or Autoclean.

Step 3.

Figure 3

1. For cleaning the Sample Glass Tube, use

the Cell Cleaning Brush with upwards

and downwards motion through the

Measuring Cell several times. Use some

water to wet the Cell Cleaning Brush.

2. Remove the Cell Cleaning Brush and

replace the Cell Cap.

3. Switch clean water valve to fresh water

and allow oil free water to flow through

the instrument for few minutes.

4. Avoid air bubbles in the stream.

5. Verify, that the display shows 0 to 2 ppm.

6. Cleaning has been sufficient if display

shows 0 to 2 ppm.

DECKMA

HAMBURG

Page: 5

Appendix V.

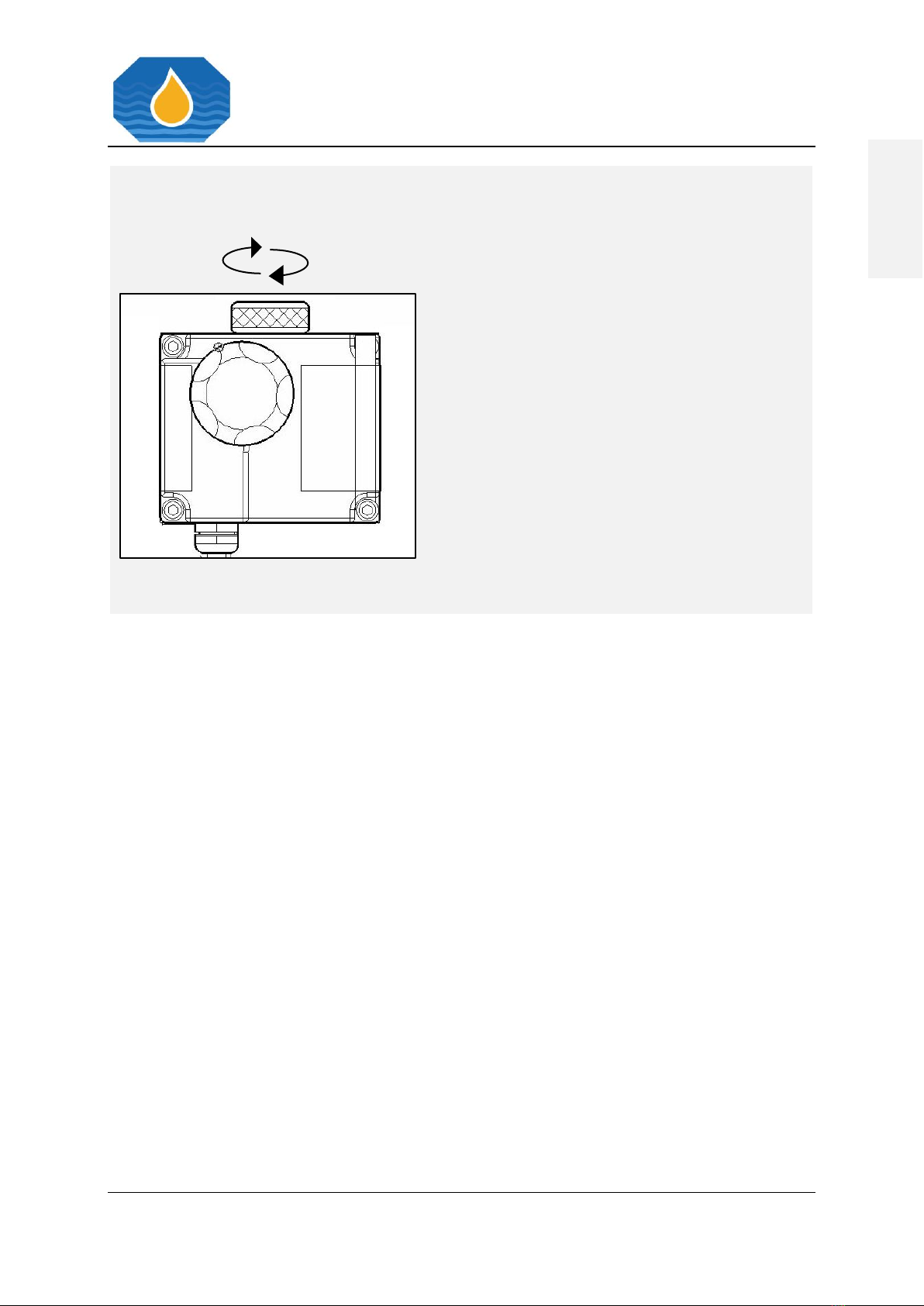

Step 4.

Figure 4

1. Screw in the Cell Cap.

2. Check, that the Measuring Cell Cap

is screwed down completely.

DECKMA

HAMBURG

Page: 6

Appendix V.

1.2 Cleaning with Sample Tube Cleaner

Step 1.

Figure 5

For intensive cleaning use the Sample Tube

Cleaner from the Service Kit (Order No.:

18570). Apply clean Sample Tube Cleaner to

the Cell Cleaning Brush and add water.

Step 2.

Figure 6

Clean the Sample Glass Tube whith the Cell

Cleaning Brush by applying the Sample Tube

Cleaner.

1. For cleaning the Sample Glass Tube, use

the Cell Cleaning Brush with upwards

and downwards motion through the

Measuring Cell several times. Wet the

Cell Cleaning Brush.

2. Remove the Cell Cleaning Brush and

replace the Cell Cap.

3. Switch clean water valve to fresh water

and allow oil free water to flow through

the instrument for few minutes.

4. Observe, that the display shows 0 to 2

ppm.

Check, that the Measuring Cell Cap is screwed down completely.

DECKMA

HAMBURG

Page: 7

Appendix V.

1.3 Cleaning Mechanically Assisted

Step 1.

Figure 7

If the manual cleansing was not successful,

an additional cleaning is recommended.

1. Cut the upper part of the Cell

Cleaning Brush.

2. Insert the wire stem of the Cell

Cleaning Brush into a screwdriver

and fix it.

3. Slowly rotate the Cell Cleaning Brush

for a few minutes in the Sample Glass

Tube (See Step 3.)

4. Flush with clean water and re-test.

Step 2.

Figure 8



You can also use some Sample Tube

Cleaner. It does not damage the

surface of the Sample Glass Tube.

Please do not use other abrasive

cleaners, hard particles contained

may damage the Sample Glass Tube

within seconds.

DECKMA

HAMBURG

Page: 8

Appendix V.

Step 3.

Figure 9

Use a screwdriver for an efficient cleaning.

Slowly strike the Cell Cleaning Brush in the

Measuring Cell for a few minutes and flush

with clean water.

Check, that the Measuring Cell Cap is screwed down completely!

DECKMA

HAMBURG

Page: 9

Appendix V.

1.4 Cleaning of Iron Oxide and Calcification

Step 1.

Figure 10

To clean Iron Oxide deposit, calcification,

and other stubborn deposit, it is

recommended to use the Citric Acid from

the Service Kit (Order No.: 18570).

1. Ensure that the valves remain closed.

2. Mix some Citric Acid with 15 ml water.

3. Fill the Sample Glass Tube with the Citric

Acid liquid and let it soak over night.

4. Flush with clean water without gas.

DECKMA

HAMBURG

Page: 10

Appendix V.

1.5 Outward Appearance

Step 1.

✓

Figure 11

Figure 12

Check, that Cell Cap, MCU, or Autoclean is screwed

down completely.

Figure 13

A not completely screwed down Cell Cap may allow

formation of air bubbles and may influence with flow

rate settings.
