Datum DT1H1V2PR Manuel utilisateur

CROSSLINE LASER LEVEL

WITH PLUMB DOTS

MODEL NO.: DT1H1V2PR DT1H1V2PG

OPERATING

INSTRUCTIONS

TO PREVENT SERIOUS INJURY, READ

AND UNDERSTAND ALLWARNINGS

AND INSTRUCTIONS BEFORE USE.

2CROSSLINE LASER LEVEL

TABLE OF CONTENT

SPECIFICATIONS ........................................................................................................3

HAZARD SIGNAL WORD DEFINITIONS .................................................................3

GENERAL SAFETY RULES FOR OPERATION .........................................................4

COMPONENT IDENTIFICATION...............................................................................5

OPERATION INSTRUCTION ......................................................................................6

CALIBRATION CHECK................................................................................................7

MAINTENANCE AND SERVICE.................................................................................9

TROUBLESHOOTING .................................................................................................9

PRODUCT LABELS .....................................................................................................10

WARRANTY INFORMATION .....................................................................................12

3OPERATING MANUAL

ABOUT YOUR LASER LEVEL

Thank you for purchasing this DATUM CROSSLINE LASER LEVEL. Your laser level features extra

bright laser technology, horizontal/vertical crossline operations and a pendulum lock. It’s ideal

for carpentry, interior layout, tiling, plumbing and electrical layout from oor to ceiling.

Please read and understand the content of this instruction manual before using this product.

Save this manual for future reference.

SPECIFICATIONS

MODEL DT1H1V2PR DT1H1V2PG

BEAM COLOUR RED GREEN

LASER CLASS Class II Class II

LASER WAVELENGTH 635nm 515nm

ACCURACY ±2 mm at 10m ±2 mm at 10m

OPERATING RANGE (INDOOR) 15m 15m

OPERATING RANGE (WITH DETECTOR) 50m 50m

AUTO LEVELLING RANGE ±4° ±4°

BATTERY LIFE (CONTI. OPERATION) 10 Hours 7 Hours

POWER SUPPLY 4 x AA 1.5V batteries 4 x AA 1.5V batteries

LINE PATTERN 1H1V 1H1V

PLUMB DOTS Up and Down Up and Down

IP RATING IP54 IP54

TRIPOD THREADS 1/4" 1/4"

DETECTOR Optional (Part No. DT01REC sold seperately)

DATUM is constantly improving its products. All information in this manual is based on the latest product information available at the time of

printing. The specications outlined herein are subject to change without prior notice or obligation. The purchaser and/or user shall assume

liability for any modication and/or alterations of this equipment from original design and manufacture.

HAZARD SIGNAL WORD DEFINITIONS

!Indicates an imminently hazardous situation which, if not avoided, will result

in death or serious injury. Obey all safety messages that follow this symbol to

avoid possible injury or death.

DANGER Indicates an imminently hazardous situation which, if not avoided, will result

in death or serious injury.

WARNING Indicates a potentially hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION Indicates a potentially hazardous situation which, if not avoided, may result

in minor or moderate injury.

CAUTION Used without the safety alert symbol indicates a potentially hazardous

situation which, if not avoided, may result in property damage.

4CROSSLINE LASER LEVEL

GENERAL SAFETY RULES FOR OPERATION

WARNING

Read all safety warnings, instructions, illustrations and specications

provided with this laser level. Failure to follow all instructions listed below

may result in personal injury.

Save all warnings and instructions for future reference.

•Do not stare into beam regardless of distance.

•Do not use the laser intensive glasses as safety goggles, sunglasses or when driving.

•Do not point laser in the direction of other people or animals.

•Do not point laser in the direction of mirrors or other reective surfaces.

•Store in a secure location when not in use.

•This is a quality laser measuring device and is 100% factory adjusted within the stated

tolerance.

•Laser should not be used as a toy or by children.

•Do not view beam through optical instruments such as theodolites, binoculars, cameras or

magnifying lenses.

•Avoid using laser in darkened areas. Ensure sucient light levels to avoid damage to eyes.

•Set up cross line laser to ensure laser beam path is above or below eye level.

•Ensure cross line laser is securely set up to avoid accidental movement.

•Always ensure the laser beam is aimed at a sturdy work piece without reective surface.

Bright shiny reective sheet steel or the like is not suitable for laser use as the reective

surface could direct the beam back at the operator.

•Do not break up or throw the battery into re, please recycle the battery after use.

•Turn the laser o when it is not in use. Leaving the laser on increases the risk of staring into

the laser beam.

•Do not use or store the instrument in locations where the temperature may reach or

exceed 40°C.

•Do not disassemble the instrument or attempt to perform any internal servicing as this will

void your warranty. Not user serviceable parts included. Only approved and authorised

service technicians can carry out warranty repairs.

•Avoid direct eye exposure. Consult your laser safety ocer or IEC 60825.14:2011 Part 14 for

best operating practice.

CAUTION Class 2 laser product according to IEC 60825-1:2014.

Do not stare into the laser beam or direct it towards other people.

5OPERATING MANUAL

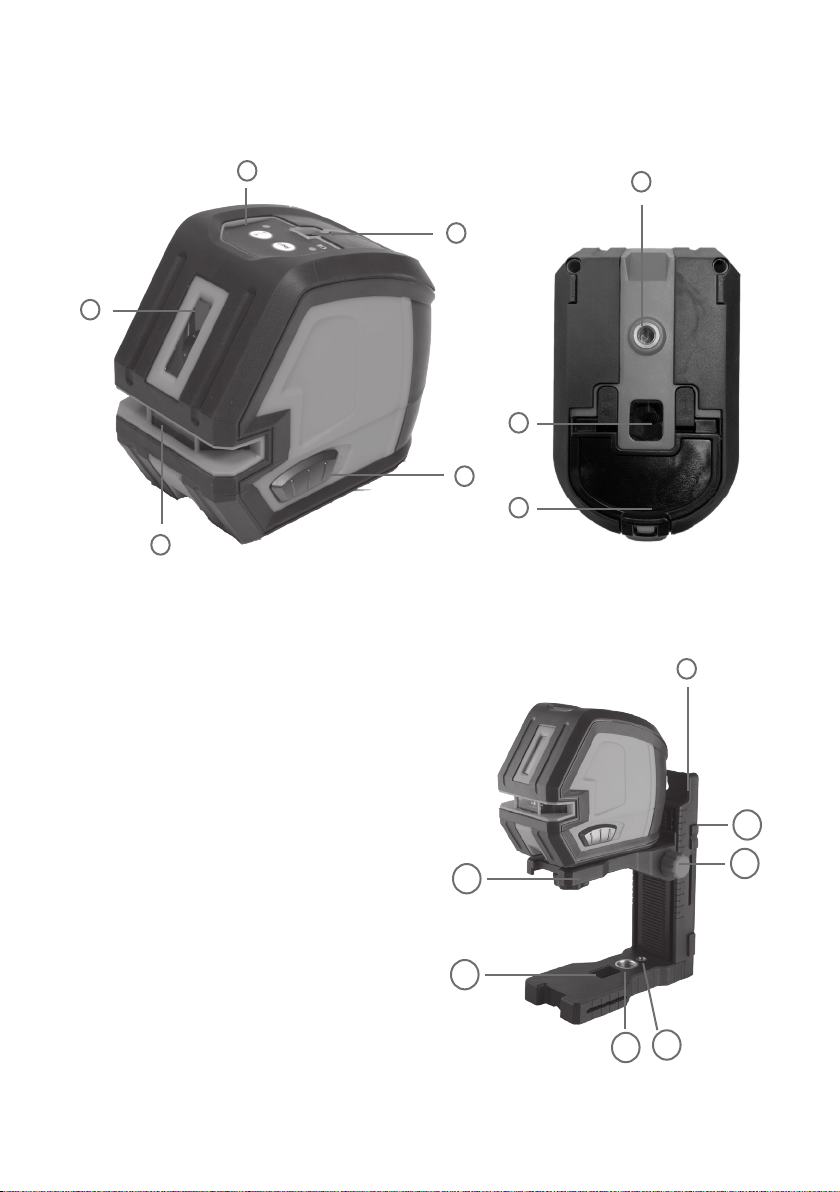

COMPONENT IDENTIFICATION

1. Power switch / pendulum lock

2. Control panel

3. Vertical laser output window

4. Up plumb dot output window

5. Horizontal laser output window

6. 1/4”Tripod thread

7. Down plumb dot output window

8. Battery compartment

9. Wall bracket

10. Magnets on b

11. Height adjustment knob

12. 1/4” thread

13. Down plumb dot window

14. 5/8”Tripod thread

15. 1/4”Tripod thread

6CROSSLINE LASER LEVEL

OPERATION INSTRUCTION

BATTERY PLACEMENT

•Your laser level requires 4 AA batteries. Use only new, high-quality battery for best results.

•Locate battery compartment at the bottom of the laser. Insert batteries according to the

symbols and polarity.

•When the battery voltage is low, the indicator light will start ashing in which the batteries

must be replaced.

•Once the voltage is below 3.9V, the unit will shut o automatically due to low battery.

ON/OFF

WARNING Always turn o all lasers and latch the pendulum in place before

transporting.

•Press and hold“LINE” button to switch on the laser.

•Alternatively, turn the laser on by sliding the Power Switch/Pendulum Switch to ON/

UNLOCK position. Pendulum is automatically released for self levelling.

•To turn the laser o, place it on a stable at surface. Slide the Power Switch/Pendulum

Switch to OFF/LOCK position. Pendulum is automatically locked when the switch is turned

to OFF position.

LASER LINES SELECTION

•Turn the switch to ON position. All lines appear when the laser is turned on.

•Press“LINE” button to select laser lines.

AUTOMATIC SELF-LEVELLING

•Pendulum lock (power switch to ON position) must be released for horizontal and vertical

levelling.

•Turn on the laser level. The pendulum automatically aligns a position within the range of

self-levelling range ±4°. Within this range, the laser level automatically correct its position.

•Laser beams start to blink when the device is out of self-alignment range of ±4°. In this

case, place the laser level on a at surface, adjust tripod or wall mount until blinking stops.

PULSE MODE

•Press to activate Pulse Mode so that the device can work with optional laser detector.

•Laser lights will pulse with high frequency, making the laser lines slightly darker.

•Pulse Mode LED Indicator light will be on when this is activated. Press the button again to

exit pulse mode.

WARNING

This is a high precision instrument - To avoid damage always transport

instrument and store with pendulum lock on (or power switch to OFF

position) and in its protective case.

7OPERATING MANUAL

CALIBRATION CHECK

It’s possible for you to check the calibration of the laser. Calibration by yourself is only

approximate and the accuracy of the calibration will depend on the care with which

you proceed.

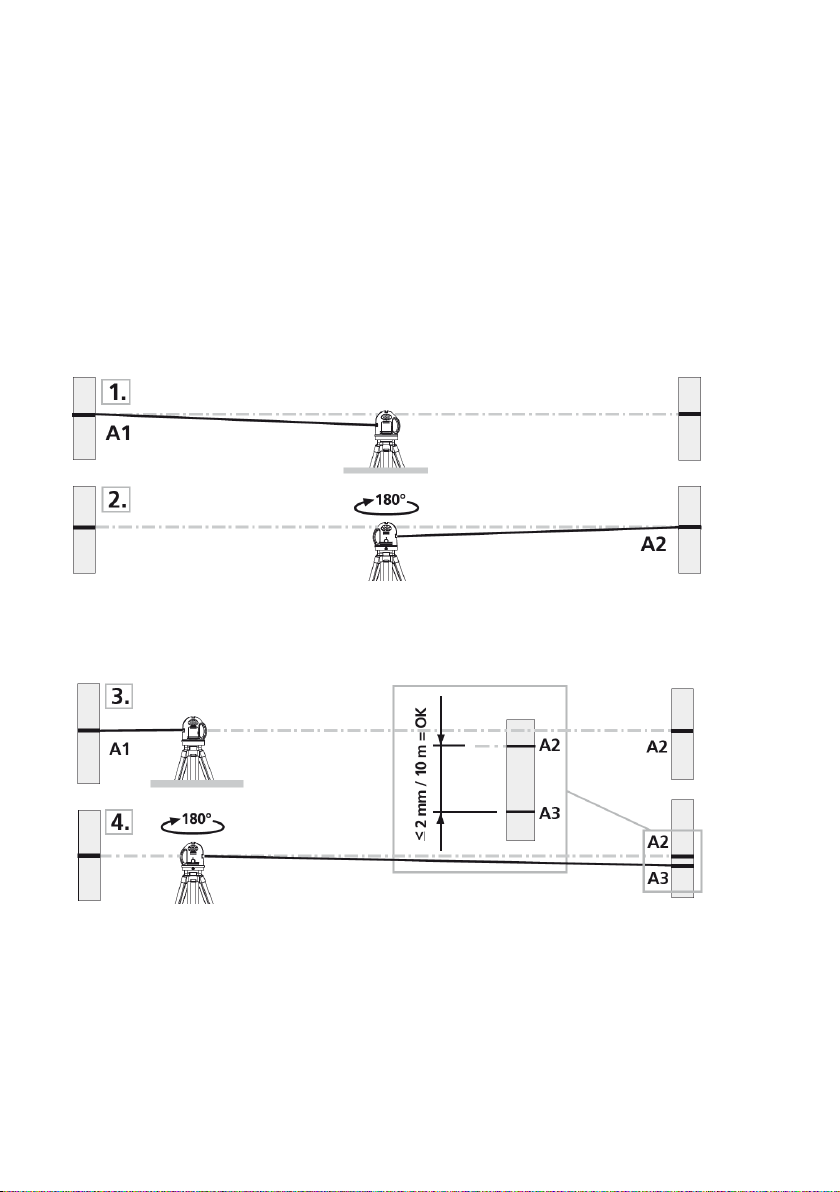

TO CHECK THE LEVEL

Checking the horizontal pitch calibration of the laser requires 2 walls, which must be at least

5 metres apart. The best calibration results can be achieved if the laser is mounted on a tripod.

1. Mark point A1 on the wall.

2. Turn the device 180 ° and mark A2 on the opposite side of A1. You now have a horizontal

reference between point A1 and A2.

3. Position the device as near as possible to the wall at the same height of point A1.

4. Turn the device 180° and mark point A3. The dierence between point A2 and A3 is the

tolerance.

If the distance between A2 and A3 is more than 2mm/10m, the device is in need of calibration.

Contact authorised dealer or service agent.

8CROSSLINE LASER LEVEL

CHECKING THE VERTICAL LINE

1. Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m length on

the wall, making sure that the bob can swing freely.

2. Switch on the device and align the vertical laser to the plumb line. The precision is within

the specied tolerance if the deviation between the laser line and the plumb line is not

greater than ± 2mm.

CHECKING THE HORIZONTAL LINE

1. Position the device about 5m from a wall and switch on the cross laser.

Mark point B on the wall.

2. Turn the laser cross approx. 2.5 m to the right and mark point C.

3. Check whether the horizontal line from point C is level with point B to within ± 2 mm.

9OPERATING MANUAL

MAINTENANCE AND SERVICE

•Do not attempt to open the device. To ensure product SAFETY and RELIABILITY, repairs,

maintenance and adjustment should be performed by authorized service centres.

Contact your dealer for more details.

•Do not drop, knock or shake the laser level as this will aect precision.

•Remove batteries when the device is not in use.

•Keep the laser level clean at all times. Use a soft lint-free cloth for the body and lens tissue

for glass windows. Do not use abrasive cleaners or solvents.

•Don’t expose the laser level to high temperatures or humidity.

•Do not store the laser level in hot areas, hot temperatures can short the life of electronic

device, damage battery, and warp or melt certain plastics

•Do not store the laser level in cold areas. When the unit warms up to its normal operating

temperature, moisture can form inside where it may damage circuit board.

•Avoid shock, vibrations and extreme heat.

•Do not immerse the instrument in water.

•Always slide the power switch to the OFF position when storing, transporting or moving

around the job site.

•Calibration service is recommended at least once a year or as needed.

TROUBLESHOOTING

ISSUE POSSIBLE CAUSE AND SOLUTIONS

Laser does not turn on

Check batteries. Make sure batteries are installed according to the

correct polarity.

The batteries may be depleted. Make sure the batteries are in proper

working condition. If in doubt, try installing new batteries.

If the laser has been stored in extremely hot temperatures, allow it to

cool.

Laser does not level Instrument may be outside it’s levelling range. Position the

instrument, tripod or the base surface.

Instrument may have impact damage. Contact service centre for

repair and calibration.

Laser beam keeps ashing Instrument may be outside it’s levelling range. Position the

instrument, tripod or the base surface.

10 CROSSLINE LASER LEVEL

PRODUCT LABELS

DT1H1V2PR

DT1H1V2PG

CAUTION: LASER RADIATION DO NOT STARE INTO BEAM

ACCORDING TO IEC/EN 60825-1:2014 DT1H1V2PR

MAX. POWER OUTPUT: ≤ 1mW @ 635nm BATTERY: 4 x 1.5VAA

CLASS 2

LASER

PRODUCT

Check piece count, headings, photos

& illustrations match on all panels

Compliance

Barcode Scans

Country of Origin

Pronto Code All Panels

Part Number All Panels

Update Details in Pronto

Supplier Contact Correct

Update Product Specication Sheet

Manuels Niveau laser populaires d'autres marques

Nedo

Nedo ET-5 Manuel utilisateur

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Manuel utilisateur

LaserLiner

LaserLiner X2-Laser Manuel utilisateur

Spectra

Spectra LL300N Manuel utilisateur

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Manuel utilisateur

Nedo

Nedo Crossliner 4 Manuel utilisateur

Lasertec

Lasertec FX360G Manuel utilisateur

Flex

Flex ALC 8 Manuel utilisateur

Black & Decker

Black & Decker LZR5 Manuel utilisateur

Johnson

Johnson 40-6692 Manuel utilisateur

Cocraft

Cocraft HL 20-SG Manuel utilisateur

Zircon

Zircon iLine Manuel utilisateur

HWH

HWH 310 SERIES Manuel utilisateur

Leica

Leica iCON robot 60 Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Laser SCL 2 Manuel utilisateur

LaserLiner

LaserLiner ActiveFinder XP Manuel utilisateur

DeWalt

DeWalt DW082 Manuel utilisateur

imex

imex EL20 Manuel utilisateur
