Datcon DT1102 (PS) Manuel utilisateur
DT1102 (PS)
Switch Configurable I/O Galvanic Isolator
Operating Instructions
DT1102 (PS)
220220202-V0
Contents
1. About this document..............................................................4
1.1. Function...............................................................................................4
1.2. Target group........................................................................................4
1.3. Symbolism used ..................................................................................4
2. For your safety........................................................................5
2.1. Authorized personnel...........................................................................5
2.2. Appropriate use ...................................................................................5
2.3. Warning about misuse.........................................................................5
2.4. General safety instructions ..................................................................5
2.5. CE conformity......................................................................................5
2.6. Environmental instructions...................................................................5
3. Product description................................................................6
3.1. Delivery configuration ..........................................................................6
3.2. Type designation .................................................................................6
3.3. Operating principle ..............................................................................7
3.4. Indicators, configuration switches ........................................................8
3.5. Input/output signal selection ................................................................9
3.6. Storage and transport........................................................................ 10
4. Mounting ...............................................................................11
4.1. General instructions........................................................................... 11
4.2. Main dimensions of the instrument .................................................... 11
4.3. Mounting procedure........................................................................... 12
5. Connecting............................................................................13
5.1. Preparing the connection................................................................... 13
5.2. Connecting active output current source to the input ......................... 14
5.3. Connecting 4-20 mA two wire (passive) transmitter to the input ........ 15
5.4. Connecting voltage source to the input.............................................. 16
5.5. Connecting current output to the signal processing unit .................... 17
5.6. Connecting voltage output to the signal processing unit .................... 18
5.7. Connecting instrument to the power supply ....................................... 19
DT1102 (PS)
20220202-V0 3
6. First „power on”, front panel indicators.............................20
6.1. First „power on” ................................................................................. 20
6.2. Front panel Indicators........................................................................ 20
7. Fault rectification..................................................................21
7.1. Fault finding....................................................................................... 21
7.2. Repearing.......................................................................................... 21
8. Dismounting..........................................................................22
8.1. Dismounting procedure...................................................................... 22
8.2. Disposal............................................................................................. 22
9. Appendix...............................................................................23
9.1. Technical specification ...................................................................... 23
9.2. Application example .......................................................................... 25
DT1102 (PS)
420220202-V0
start 1. About this document
1.1. Function
This operating instructions manual has all the information you need for
quick set-up and safe operation of DT1102 (PS)
Please read this manual before you start setup.
1.2. Target group
This operating instructions manual is directed to trained personnel.
The contents of this manual should be made available to these
personnel and put into practice by them.
1.3. Symbolism used
Information, tip, note
This symbol indicates helpful additional information.
Caution, warning, danger
This symbol informs you of a dangerous situation that could occur.
Ignoring this cautionary note can impair the person and/or the
instrument or it’s environ.
•List
The dot set in front indicates a list with no implied sequence.
→Action
This arrow indicates a single action.
1 Sequence
Numbers set in front indicate successive steps in a procedure.
DT1102 (PS)
20220202-V0 5
2. For your safety
2.1. Authorized personnel
All operations described in this operating instructions manual must be
carried out only by trained and authorized specialist personnel.
For safety and warranty reasons, any internal work on the instruments
must be carried out only by DATCON personnel.
2.2. Appropriate use
The DT1102 (PS) is an instrument for industrial use. Detailed
information on the application range is available in chapter 3. Product
description.
2.3. Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards, or damage to system components
through incorrect installing or adjustment.
2.4. General safety instructions
Using the DT1102 (PS) requiring the strict observance of standards,
regulations and guidelines.
The user must take note of the safety instructions in this operating
instructions manual, the country-specific installation standards as well
as all prevailing safety regulations and accident prevention rules.
2.5. CE conformity
The DT1102 (PS) is in conformity with the provisions of the following
standards:
EN IEC 61326-1 (EMC)
EN 61010-1 (Safety)
EN 61558-1 (Safety)
2.6. Environmental instructions
Protection of the environment is one of our most important duties.
Please take note of the instructions written in the following chapters:
•Chapter 3.6. Storage and transport
•Chapter 8.2. Disposal
DT1102 (PS)
620220202-V0
3. Product description
3.1. Delivery configuration
Delivered items The scope of delivery encompasses:
•DT1102 (PS)
•tool for switch setting
(in case of shipping more instrument only one tool is enclosed)
•documentation:
this operating instructions manual
certification
warranty
3.2. Type designation
DT1102 24 VDC power supply
DT1102 PS 230 V AC/DC power supply
DT1102 (PS)
20220202-V0 7
3.3. Operating principle
Area of application The DT1102 (PS) Switch Configurable I/O Galvanic Isolator
provide signal transmission and conversion between transmitters and
signal processing units.
The instruments feature complete 3-way isolation: the input, the
output and the power supply are isolated from each other.
The instrument has two inputs:
1. 0(4)-20 mADC current or*
2. 0(2)-10 VDC voltage*
and two outputs:
1. 0(4)-20 mADC current or*
2. 0(2)-10 VDC voltage.
* only one input and one output are active together
The input/output ranges are switch selectable.
The DT1102 (PS) - providing a 20 VDC, 20 mA supply on the input –
for supplying 4-20 mA passive transmitters.
The front panel LED indicators provide information about the
operating status of the device. (power on state, error states)
Principle of operation
The input current flows through the measuring resistor or the input
voltage divides through the attenuator. This voltage drop is led to a
24 bit A/D converter. The digital output signal of the A/D converter is
processed by a microcontroller.
The microcontroller produces a pulse width modulated (PWM) output
signal. The pulse width is proportional to the processed, measuring
value. The output pulse is galvanic isolated by an optocoupler. After
filtering the pulse is converted into analogue current or voltage signal.
The input/output ranges are switch configurable.
The internal power supplies are generated by an isolated dual output
DC/DC converter, using planar transformer technology.
Power supply The instrument has two different power supply version:
DT1102:
Power supply: 24 VDC ±10%
DT1102 PS:
Power supply: 230 V AC/DC ±10%
DT1102 (PS)
820220202-V0
3.4. Indicators, configuration switches
The following figure shows the indicators and the configuration
switches on the DT1102 (PS) front panel.
(1) configuration switches for selection input/output ranges
(2) red „error” indicator shows the error states
(3) green „on” indicator shows the power on state
DT1102 (PS)
20220202-V0 9
3.5. Input/output signal selection
Four different input/output signal range can be selected with the front
panel switches:
0-20 mA, 4-20 mA, 0-10 V, 2-10 V
Default setting: 0-20 mA input, 0-20 mA output
(all switches are in „off” state).
The following figure shows the input/output signal range selection
table:

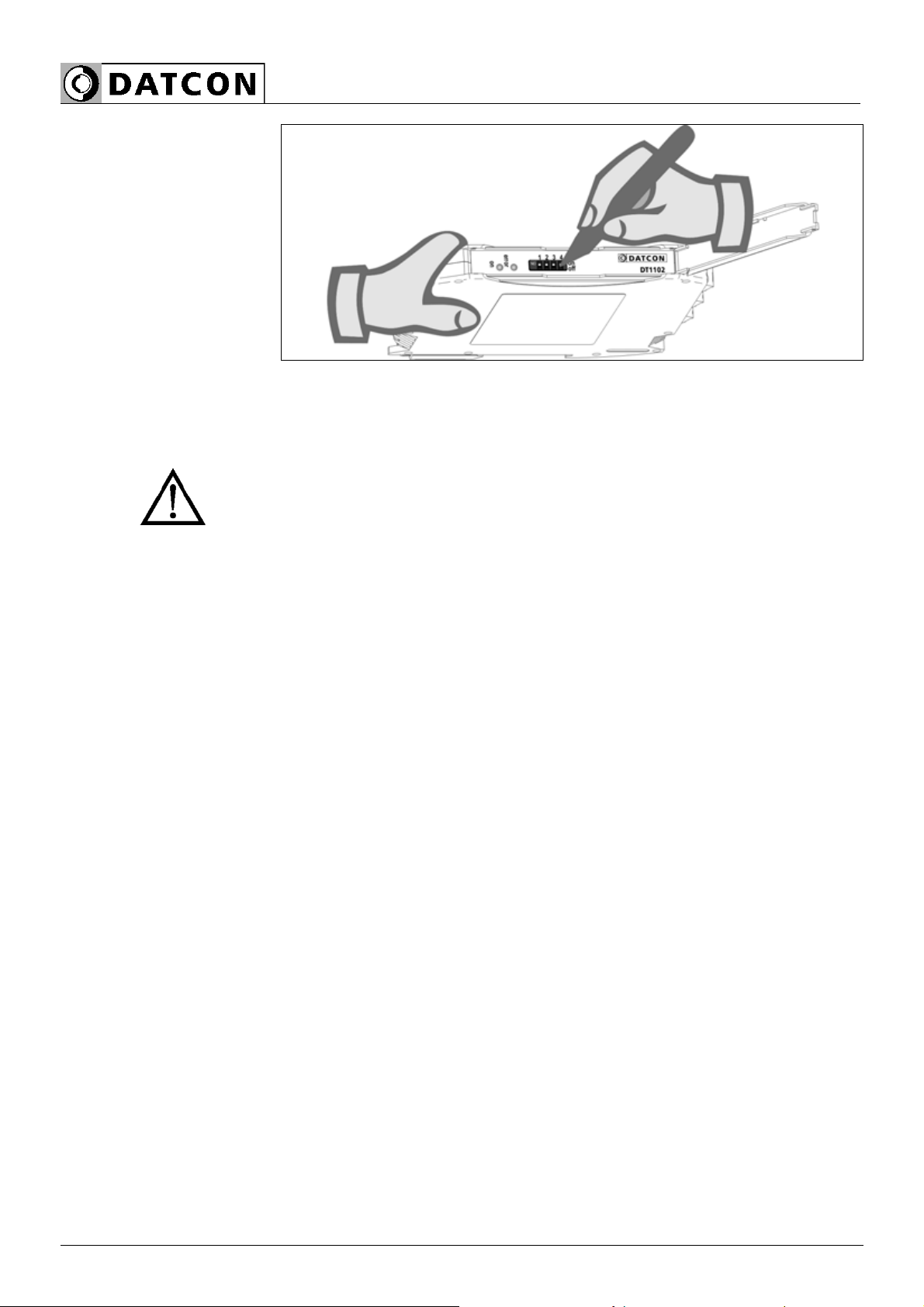

The following figure shows steps of setting:
1. Take the instrument in hand according to the figure
2. Open the front panel cover with the enclosed tool according to the
figure
DT1102 (PS)
10 20220202-V0
3. Set the configuration switches according to the signal range
selection table
4. Close the front panel cover
Do not use other tool than the enclosed one because you may cause
injury either to switches or to front panel!
3.6. Storage and transport
This instrument should be stored and transport in places whose
climatic conditions are in accordance with chapter 9.1. Technical
specification, as described under the title: Environmental conditions.
The packaging of DT1102 (PS) consist of environment-friendly,
recyclable cardboard is used to protect the instrument against the
impacts of normal stresses occurring during transportation.
The corrugated cardboard box is made from environment-friendly,
recyclable paper. The inner protective material is nylon, which should
be disposed of via specialized recycling companies.
