C. When on MAIN MENU screen, the OSD display is shown as Figure(1):

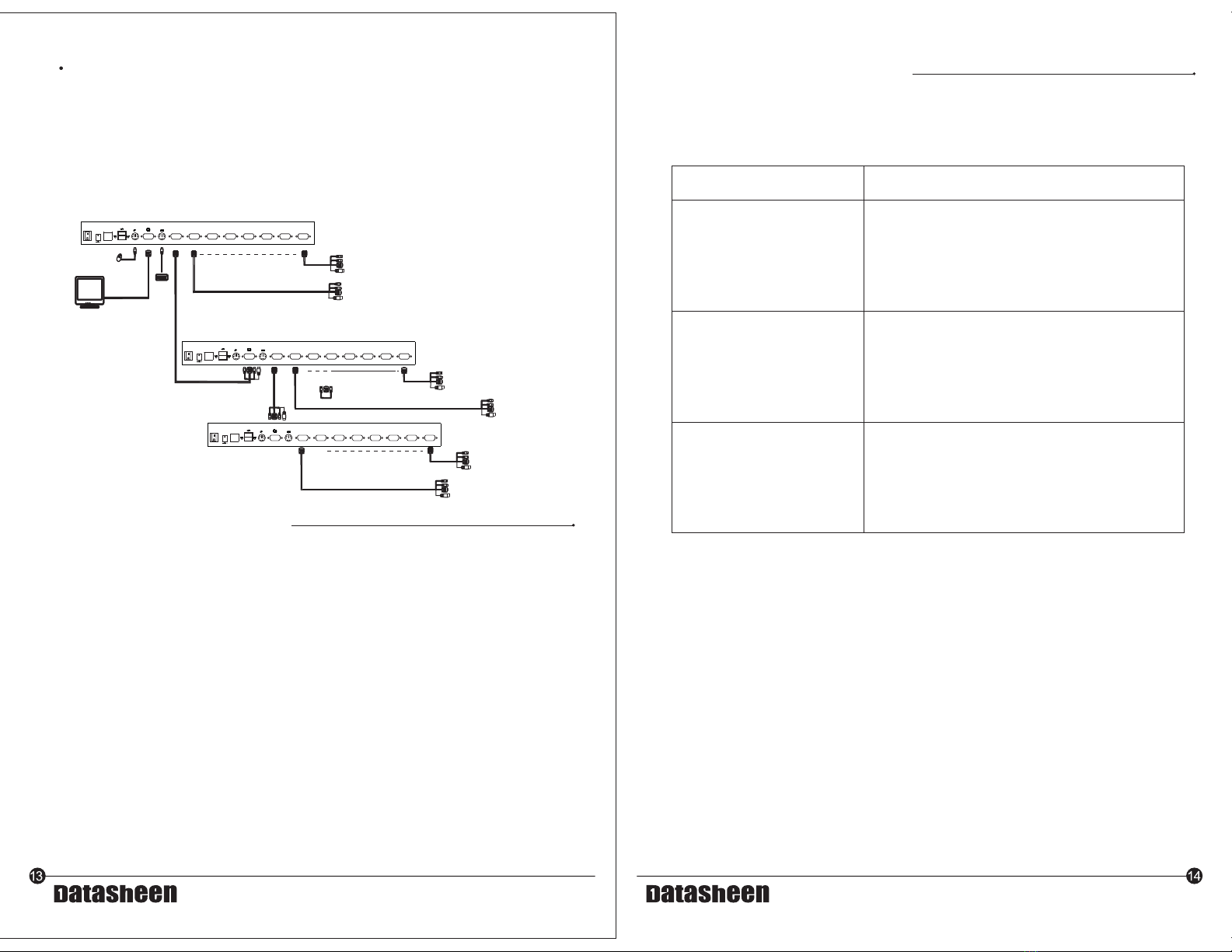

D. Line one shows PC:3+7 which indicates that the currently in use PC is connected
to the port 7 of SLAVE and this SLAVE is cascaded to the MASTER port 3.
E. Under this screen mode, user can press button<F1>, <F2>, <F3>, <F4>, <F5>,
<F6> for activating its function and can also press number key (0-9) to select PC.
F. While activating the HOT-KEY commands, MOUSE will be disable temporarily,
KEYBOARD can only control the OSD screen but CANNOT control the selected PC.
G. Press <ESC> to exit the MAIN MENU screen and return to the PC operation, the
MOUSE and KEYBOARD can then work normally.
3. Using numerical key to select PC
A. Press the numerical key once and the screen sill show as Figure(2), then press 0-
9 to select PC.
B. The port number which is connected to the MASTER should be input first and
following press <+> and then press the port number of the SLAVE which is connected to
the selected PC.
C. Hit <ENTER> to confirm. You can access the selected PC immediately if it is
powered on.
D. If the selected PC has not been powered on, OSD shows “DISABLE”.
E. If selected wrong PC number, OSD displays “ERROR”.
4. Press <F1> key to activate the AUTO SCAN function
A. In MAIN MENU, hitting <F1> key is to indicate to enter into AUTO SCAN function,
OSD will display as Figure(3).
B. Under AUTO SCAN mode, the LED indicator of USER KEYBOARD flashes
according to different Scan Rate.
C. Under AUTO SCAN mode, hitting <-/_> or <-> key is to adjust down the SCAN
RATE.
D. Under AUTO SCAN mode, hitting <=/+> or <+> key is to adjust up the SCAN RATE.
E. Table (1) shows the comparative list of LED light of Keyboard and the SCAN RATE.
Table(1)
F. Under AUTO SCAN mode, hitting< > key is to select the nest powered-on PC.
G. Under AUTO SCAN mode, hitting< > key is to select the previous powered-on PC.
H. Exit Auto SCAN mode:
Press <ESC> key to exit the AUTO SCAN and return to the selected PC and also enter
into the MENU mode operation, and the MOUSE and KEYBOARD then work normally.
→
←
Sec
5
10
15
20
25
30
NUM LOCK
OFF
ON
ON
OFF
OFF
ON
CAPS LOCK
OFF
OFF
OFF
ON
ON
ON
SCROLL LOCK
ON
OFF
ON
OFF
ON
OFF
5. <F2> key SELECT PC function
A. Under MAIN MENU mode, hit <F2>key to enter the select PC function, the screen
displays as Figure(4).
B. Under the mode, use or key to move the cursor (CURSOR), use
<ENTER> to confirm the PC selection.
C.
Only
for
16
port
model
,
you
can
use
<Page
Up>
and
<Page
Down>
key
to
display
more PC information.

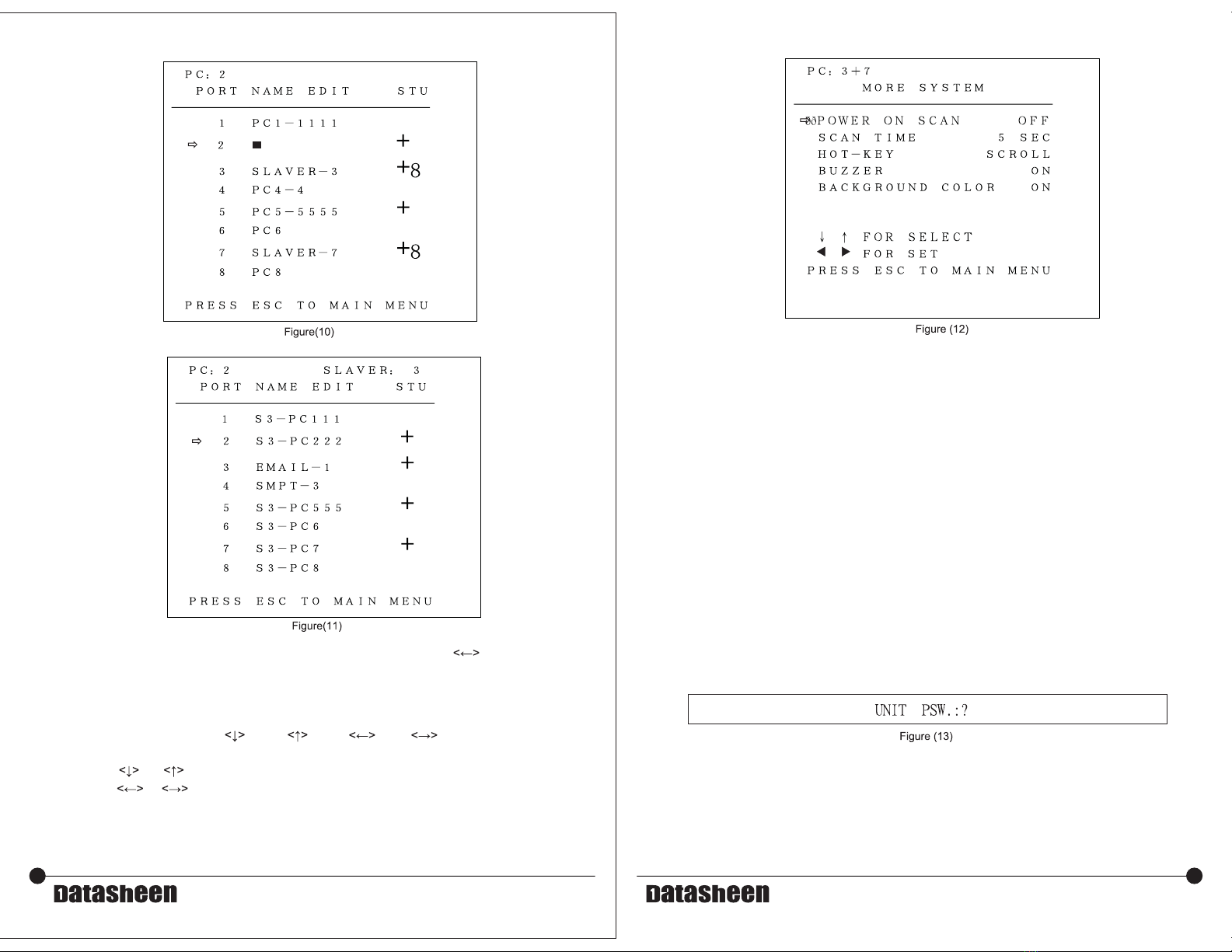

D. Under OSD display: right side (STU) field shows the selected PC status:
:selected PC is POWER ON;
8:selected PC is daisy-chained to 8 port model series which have
MASTER / SLAVE Configuration.
+16:selected PC is daisy-chained to 16 port model series which have
MASTER / SLAVE Configuration.
E. Line one shows PC: 3+7 which indicates that the selected PC is Port 7 of SLAVE
and this SLAVE is daisy-chained to MASTER port 3. (Figure(4))
☞
+
+
