Memor 1
Single Slot Dock Locking
Quick Start Guide
822002851 (Rev. A) November 2018
Out of the Box
The Memor 1 Single Slot Dock Locking package contains:
• 1 Memor 1 Single Slot Dock Locking
•1metalplate
•1unlockkey
• 4 cross pan head screws
• 1 round washer head screw
•1QuickStartGuide
• 1 Safety & Regulatory Addendum
General View
Front View
Bottom View
NOTE
Read this manual carefully before using the Memor 1 Single
Slot Dock Locking. The user is responsible for any damages
caused by incorrect use of the equipment or by inobservance of
the indication supplied in this manual.
CAUTION
Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
Unlocking Key Opening
Battery Charger LED
Connector for
Power Supply
Mounting Holes
Accessories
91ACC0045 Memor 1 Cradle Unlock Key (5 PCS)
91ACC0048 Memor 1 3-Slot Cradle Power Supply. Line Cord
required
Fast the Dock to a Surface
To securely fasten the Memor 1 Single Slot Dock Locking to tables, desks
and other surfaces, and to prevent the dock from moving when you
remove the device, use the metal plate included in the box.
1. Secure the metal plate to the desired surface with the 4 provided
cross pan head screws. We recommend to use a torx-10 screwdriver.
2. Insert the dock into the metal plate. Each protrusion on the metal
plate is aligned with a slot in the dock to prevent incorrect insertion.
3. Push the dock backward until it snaps into place.
4. Secure the dock with the provided round washer head screw. Use a
cross screwdriver.
See the Regulatory Addendum
included with your product for
additional regulatory, safety and
legal information.
©2018 Datalogic S.p.A. and/or its affiliates.
All rights reserved. Datalogic and the
Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including
the U.S. and the E.U.
www.datalogic.com

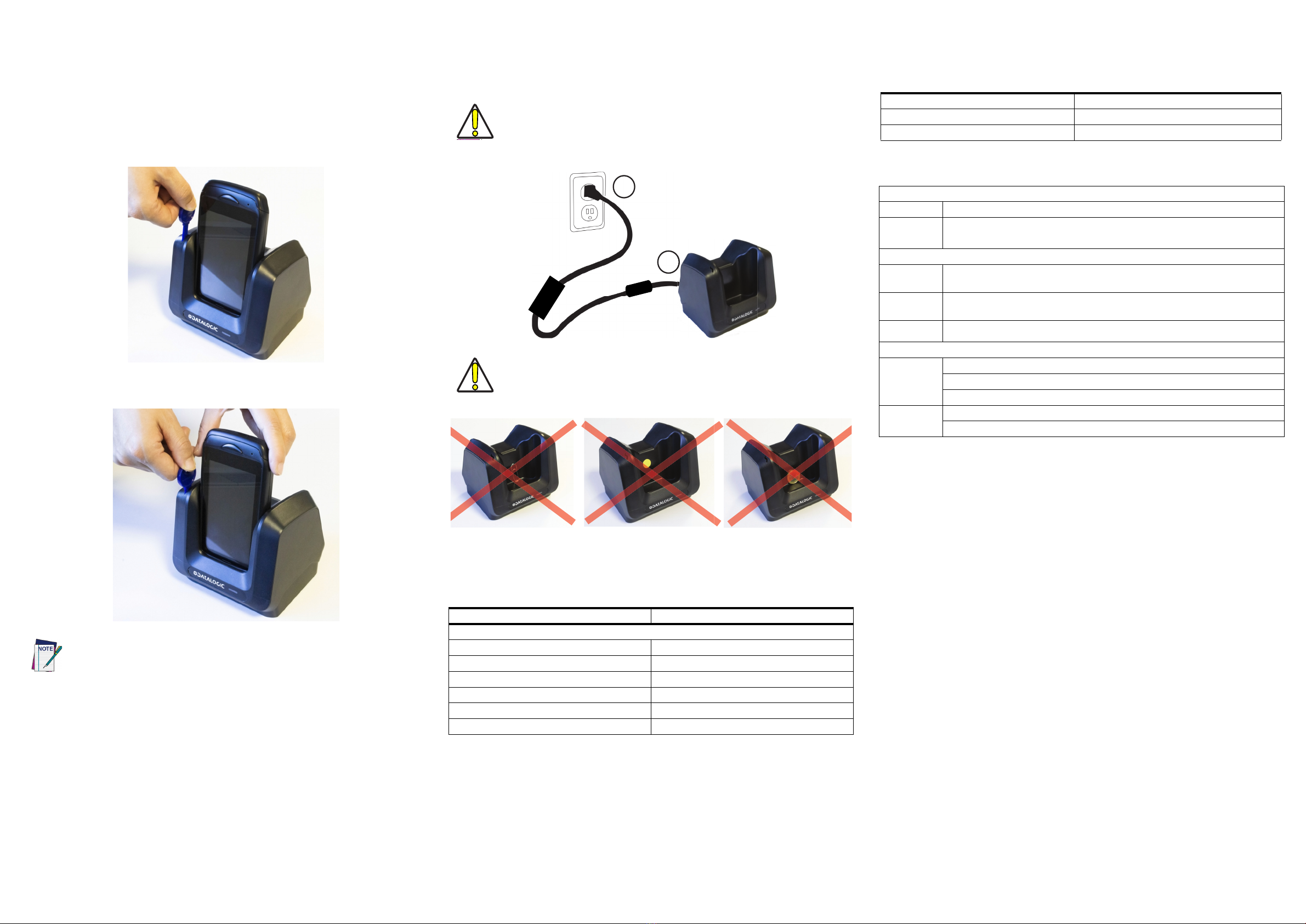

Remove the Memor 1 from the Single Slot Dock Lock-
ing
The Memor 1 Single Slot Dock Locking can be unlocked using the unlock key provided with the cradle
or by software sending an unlock command from the inserted device (see the Memor 1 user’s manual
or the SDK documentation).
To locally unlock the dock and remove the Memor 1:
1. Insert the unlock key into the opening and gently press it all the way down:
2. Remove the Memor 1 while keeping the unlock key pressed:
NOTE
The Memor 1 gets warm during charging. This is normal and does not mean a malfunction.
Powering the Dock
To prevent the risk of short-circuiting, first plug the power cord into the power connector on the back
of the dock, then connect the power cord to the power supply.
LED Indicators
CAUTION
Use only the Datalogic power supply 91ACC0048 to power the Memor 1 Single Slot Dock
Locking.
The Single Slot Dock Locking cannot be daisy-chained to a Memor 1 3-Slot Cradle.
CAUTION
Do not put any foreign object such as, but not limited to, coins, paper clips, stickers inside
the slot of the dock (see the picture below).
LED Status
Battery Charger LED
Solid green for 3 seconds Dock powering on.
Off Terminal not charging.
Solid red Terminal charging.
Solid green Terminal charging complete.
Blinking red (periodic - two pulses) Terminal charging failure.
Blinking red (periodic - single pulse) Dock failure.
11
2
Radio Technologies and Frequency Bands
The Memor 1 Single Slot Dock Locking incorporates the following radio technologies and supports the
corresponding frequencies, as specified below:
Technical Specifications
Radio Technology Frequency Bands
NFC (Near Field Communication) 13.56MHz
Wireless Charging (Transmitter) 130kHz
Electrical Features
Consumption 12V 5A
Indicators Battery Charger LED (bi-color)
Environmental Features
Operating
Temperature*
*The Memor 1 should be charged at an ambient temperature between 0 and 35º C to achieve the maximum
charging rate. Never charge the main device in a closed space where excessive heat can build up. Close to the
limits of the working temperature, some display and/or battery performance degradation may occur.
-10° to 45ºC
Storage
Temperature -20 to 70°C
Humidity**
** Multiple rapid humidity and/or temperature variations may cause condensing.
95% non condensing for temperatures < 40°C
Mechanical Features
Dimensions
(L x W x H)
Dock: 124x119.6x114.5mm/ 4.9x4.7x4.5in
Dock with Memor 1 Handheld: 124x119.6x175.7mm/ 4.9x4.7x6.9in
Dock with Memor 1 Pistol Grip: 124x148.8x175.7mm/ 4.9x5.9x6.9in
Weight Dock: 522g/ 18.4oz
Dock with Metal Plate: 634g/ 22.4oz
