Datalogic Magellan 1500i Manuel utilisateur

Magellan™ 1500i

Omnidirectional Imaging Scanner

Quick Reference Guide

Datalogic S.r.l.

Via S. Vitalino, 13

40012 Calderara di Reno — Italy

Tel. +39 051 3147011

Fax +39 051 3147205

mentation or the procedures described therein may be reproduced or transmitted in

any form or by any means without prior written permission of Datalogic S.p.A. and/

or its affiliates. Owners of Datalogic products are hereby granted a non-exclusive,

revocable license to reproduce and transmit this documentation for the purchaser's

own internal business purposes. Purchaser shall not remove or alter any propri-

etary notices, including copyright notices, contained in this documentation and shall

ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed ver-

sions by contacting your Datalogic representative. Electronic versions may either be

downloadable from the Datalogic website (www.datalogic.com) or provided on

appropriate media. If you visit our website and would like to make comments or

suggestions about this or other Datalogic publications, please let us know via the

"Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual

that is complete and accurate, however, Datalogic reserves the right to change any

specification at any time without prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in

many countries, including the U.S.A. and the E.U.

Magellan is a trademark of Datalogic S.p.A. or of Datalogic and/or its affiliates, reg-

istered in many countries, including the U.S. and the E.U.

Patents

See www.patents.datalogic.com for patent list.

See the Regulatory Addendum included with your product

for additional regulatory, safety and legal information.

Quick Reference Guide i

Table of Contents

Quick Reference....................................................................1

Features ................................................................................1

Installation ............................................................................3

Optional Stand/Riser....................................................3

Removing the Stand/Bottom Cover ....................4

Magnetic Base Mounting .............................................4

How to Scan ..........................................................................5

Handheld Scanning Mode ............................................5

Center Zone Qualification.............................................6

Scanner Button..............................................................6

Scanner Button Functions ....................................6

LED and Beeper Indicators ..................................................8

Programming ......................................................................10

Service Port Mode................................................10

Using Barcodes............................................................10

Interface Selection ......................................................11

Good Read Green Spot Duration................................12

Cell Phone Mode..........................................................13

Contents

ii Magellan™ 1500i

Cell Mode Frequency...................................................14

Troubleshooting..................................................................15

Error Codes...................................................................16

Cleaning ...............................................................................17

Manufacturer Approved Cleaning Materials ............18

Warranty..............................................................................19

Quick Reference Guide 1

Magellan™ 1500i

Quick Reference

This guide is provided to help get your scanner up and running

quickly and efficiently. For more details, including additional pro-

gramming information, reference the Product Reference Guide

(PRG), which is available from the Datalogic website.

Features

Figure 1. Scanner Features - Front View

Tilting Stand

Good Read Light Pipe/

Scan

Window

Beeper Grille

Illumination LEDs

Scanner Button

2 Magellan™ 1500i

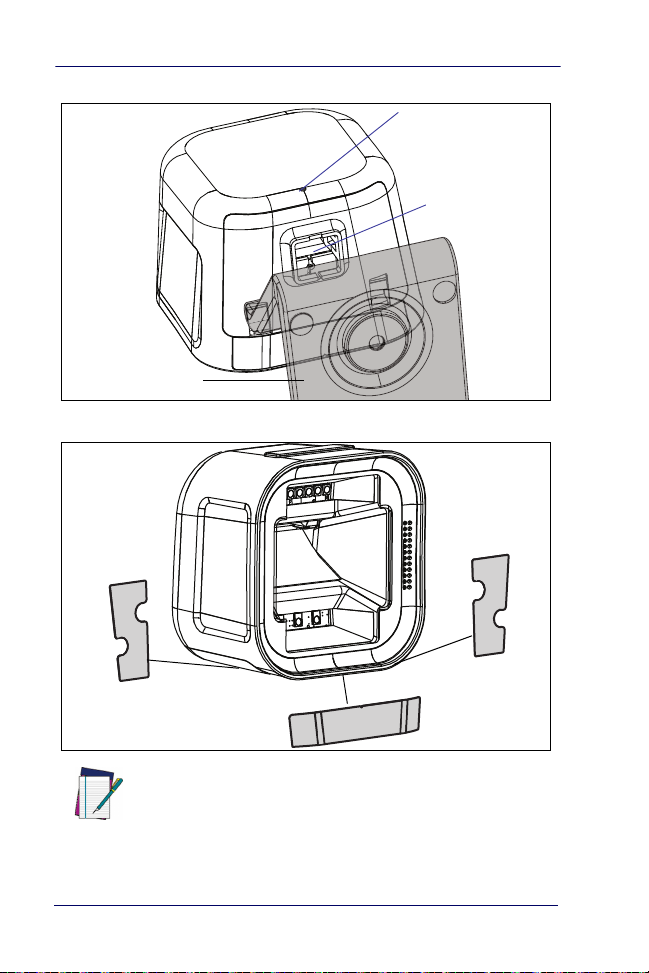

Figure 2. Scanner Features - Bottom View

Figure 3. Labeling

NOTE

Remove the stand/cover to view the Regulatory

Labeling, as described on page 4. Labels are

shown to illustrate their location only. Please view

the labels on your product for actual details.

Power/Interface

Power/interface Cable

Latch Release Hole

Stand

Regulatory

Label (under

Regulatory

Label (under

Serial Number bottom cover)

bottom cover)

Quick Reference Guide 3

Installation

Route the interface cable from the terminal or host. Plug the AC

adapter (if one is used) into a wall outlet and the interface (I/F)

cable, then route and attach the I/F cable to the scanner. Verify

operation by presenting known-good bar codes to the scanner.

The unit should beep1and/or flash its good read LED and send

the bar code data to the host or terminal. If not, refer to the Trou-

bleshooting section of this guide.

Scanner installation is complete.

The Magellan 1500i uses intelligent illumination technology to

optimize light levels for a variety of bar code scanner functions

including automatic reading of bar codes from printed surfaces,

mobile devices and image capture in variable contrast environ-

ments.

Optional Stand/Riser

An optional stand / riser is available for the scanner. The stand

and riser have anti-skid pads on the bottom and can rest on any

desired horizontal surface or countertop. The scanner (along with

the stand/riser) can be easily repositioned on the counter or

lifted for portable use.

1. Beeper and LED behavior is selectable and may have been disabled by a previous

user.

A/C Adapter

(if needed)

To Host/Terminal

Connect

Here I/F Cable

4 Magellan™ 1500i

Removing the Stand/Bottom Cover

1. Unplug the Power Interface Cable by inserting a paper clip or

similar object into the latch release hole as shown in

Figure 2 on page 2.

2. After removing the Interface Cable, pull the bottom of the

Stand forward (in the direction of the Front Window) to

detach it from the unit. It will snap free easily if oriented cor-

rectly.

Magnetic Base Mounting

The magnetic swivel base can be used to semi-permanently

attach a scanner to a flat surface (vertical or horizontal), using

the provided adhesive or screw. Both the stand and riser options

mount onto the magnetic swivel base and are held magnetically

in place. The scanner can easily be rotated to a desired orienta-

tion. The scanner (along with the riser or stand) can be detached

for portable use by lifting the entire unit as shown in Figure 4 on

page 5.

CAUTION

Do not attempt to remove the Stand without first

unplugging the Cable as described. Doing so may result

in damage to the scanner.

Front Window

Stand

Quick Reference Guide 5

How to Scan

Bar codes can be presented to the scanner while it is resting on

the counter or in the optional stand, or the scanner can be picked

up for targeted scanning.

Figure 4. Scanning Methods

Handheld Scanning Mode

To read a barcode using Handheld Scanning Mode:

1. Pick up the scanner- the aimer LED will illuminate automat-

ically.

2. With the aimer over the barcode to be read, press and

release the button.

Upon a successful read, the button will blink bright green and the

GreenSpot™ will illuminate, highlighting the decoded barcode.

Scan Button/

PRESENTATION MODE

Good Read

HANDHELD MODE

Indicator

6 Magellan™ 1500i

Center Zone Qualification

The configurable Center Zone can be set to limit the scan area to

allow Targeted Scanning of pick lists or other special items. Bar

codes will read in any orientation. The scanner will return to full

pattern Presentation Mode when set back down, after a configu-

rable time has elapsed.

Scanner Button

The Scanner Button performs multiple functions, depending on

how long it is pressed:

Scanner Button Functions

NOTE

The Scanner Button functions shown below are opera-

tional only when the Scanner is stationary. When in

Hand/Portable mode, the button acts as a trigger to

enable the reading of a barcode label.

PRESS

DURATION FUNCTION COMMENT

Momentary

(when scanner is

asleep)

Wakes scanner from

Sleep Mode

Alternatively, the scanner can

be awakened by moving an

object through the scan zone.

Momentary

(when scanner is

awake)

Increments volume

Press the button momentar-

ily to increase speaker vol-

ume. When the loudest

volume is reached, a repeated

press of the button cycles

volume back to the lowest

setting, then volume

increases on subsequent

press(es). Five volume levels

are available.
