Datalogic Gryphon M 00 Series Manuel utilisateur

Quick Reference Guide

www.scanning.datalogic.com

Gryphon™ Mx00

Datalogic Scanning, Inc.

959 Terry Street

Eugene, OR 97402

Telephone: (541) 683-5700

Fax: (541) 345-7140

Australia

Datalogic Scanning Pty Ltd

North Ryde, Australia

Telephone: [61] (2) 9870 3200

Fax: [61] (2) 9878 8688

France and Benelux

Datalogic Scanning Sarl

LES ULIS Cedex, France

Telephone: [33].01.64.86.71.00

Fax: [33].01.64 46.72.44

Germany

Datalogic Scanning GmbH

Darmstadt, Germany

Telephone: 49 (0) 61 51/93 58-0

Fax: 49 (0) 61 51/93 58 58

Italy

Datalogic Scanning SpA

Vimercate (MI), Italy

Telephone: [39] (0) 39/62903.1

Fax: [39] (0) 39/6859496

Japan

Datalogic Scanning KK

Shinagawa, Tokyo, Japan

Telephone: 81 (0)3 3491 6761

Fax: 81 (0)3 3491 6656

Latin America

Datalogic Scanning, Inc

Miami, Florida, USA

Telephone: (305) 591-3222

Fax: (305) 591-3007

Spain and Portugal

Datalogic Scanning Sarl

Sucursal en España

Madrid, Spain

Telephone: 34 91 746 28 60

Fax: 34 91 742 35 33

United Kingdom

Datalogic Scanning LTD

Watford, England

Telephone: 44 (0) 1923 809500

Fax: 44 (0) 1923 809 505

Datalogic Scanning, Inc.

959 Terry Street

Eugene, Oregon 97402

Telephone: (541) 683-5700

Fax: (541) 345-7140

documentation or the procedures described therein may be reproduced or

transmitted in any form or by any means without prior written permission of

Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic

Scanning”). Owners of Datalogic products are hereby granted a non-exclusive,

revocable license to reproduce and transmit this documentation for the

purchaser's own internal business purposes. Purchaser shall not remove or

alter any proprietary notices, including copyright notices, contained in this

documentation and shall ensure that all notices appear on any reproductions of

the documentation.

Should future revisions of this manual be published, you can acquire printed

versions by contacting your Datalogic representative. Electronic versions may

either be downloadable from the Datalogic website

(www.scanning.datalogic.com) or provided on appropriate media. If you visit our

website and would like to make comments or suggestions about this or other

Datalogic publications, please let us know via the "Contact Datalogic" page.

DISCLAIMER

Datalogic has taken reasonable measures to provide information in this manual

that is complete and accurate, however, Datalogic reserves the right to change

any specification at any time without prior notice. Datalogic is a registered

trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a

trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other

trademarks and trade names referred to herein are property of their respective

owners.

iii

CONTENTS

Updates and Language Availability.....................................................................iv

Using Gryphon™ M Series Readers................................................................... 1

Charging the Batteries ........................................................................................ 2

Gryphon™ M Configuration ................................................................................ 3

Using Multiple Readers with Same Cradle.......................................................... 5

Gryphon™ M Default Configuration .................................................................... 5

Technical Features.............................................................................................. 7

Warranty.............................................................................................................. 8

Services and Support.......................................................................................... 8

Patents ................................................................................................................ 8

Compliance ......................................................................................................... 8

Reading Diagrams ............................................................................................ 10

Numeric Table................................................................................................... 11

UPDATES AND LANGUAGE AVAILABILITY

UK/US

The latest drivers and documentation updates for this product are available on

Internet.

Log on to: www.scanning.datalogic.com

Su Internet sono disponibili le versioni aggiornate di driver e documentazione di

questo prodotto. Questo manuale è disponibile anche nella versione italiana.

Collegarsi a: www.scanning.datalogic.com

Les versions mises à jour de drivers et documentation de ce produit sont

disponibles sur Internet. Ce manuel est aussi disponible en version française.

Cliquez sur: www.scanning.datalogic.com

Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation

für dieses Produkt. Die deutschsprachige Version dieses Handbuches ist auch

verfügbar.

Adresse : www.scanning.datalogic.com

En Internet están disponibles las versiones actualizadas de los drivers y

documentación de este producto. También está disponible la versión en

español de este manual.

Dirección Internet: www.scanning.datalogic.com

GRYPHON™ MX00

USING GRYPHON™ M SERIES READERS

The Gryphon™ M series reader, paired with an OM-Gryphon™ cradle, builds a

Cordless Reading System for the collection, decoding and transmission of

barcoded data.

Gryphon™ M readers automatically scan barcodes at a distance. Simply aim

and pull the trigger. Code scanning is performed along the center of the light bar

emitted from the reading window. This bar must cover the entire code.

READING ANGLE

Successful scanning is obtained by tilting the reader with respect to the barcode

to avoid direct reflections, which impair the reading performance, see the figure

below.

Successful reading is obtained by an audible tone plus a good-read green spot.

OK Not Advised

To start using your Gryphon™ M reading system you must:

1. Connect an OM-Gryphon™ cradle to the Host. For installation and

connection information see the OM-Gryphon™ Quick Reference Guide.

2. Charge the Gryphon™ M battery using an OM-Gryphon™ / C-Gryphon™

charger as described in this Quick Reference Guide. A full charge takes

3.5 hours with NiMh battery models.

3. Configure the reader as described in this Quick Reference Guide.

4. Configure the OM-Gryphon™ cradle. See OM-Gryphon™ Configuration in

the “OM-Gryphon™ Quick Reference Guide”.

Good read spot

Good read LED

DATALOGIC

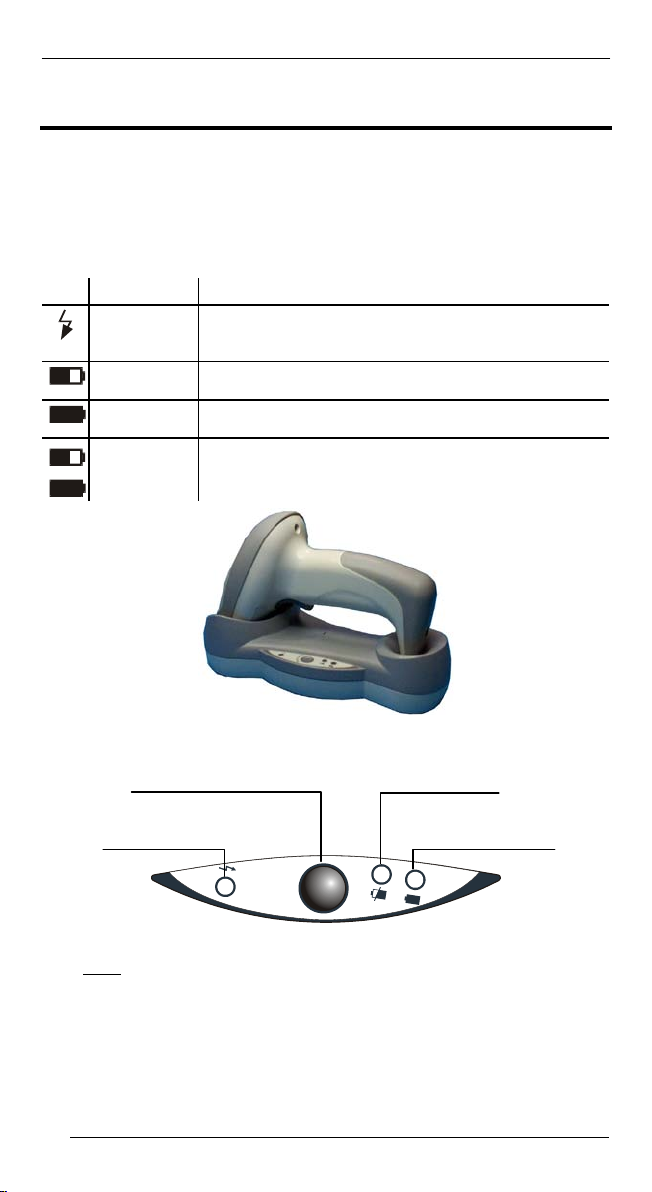

CHARGING THE BATTERIES

By placing the reader onto the OM-Gryphon™ cradle or C-Gryphon™ battery

charger it is possible to charge the Gryphon™ M batteries. Make sure the

charging LED goes on.

The LEDs positioned on the cradle signal the charge status, as described in the

following table:

LED STATUS

Power on /

Data

Yellow On = OM-Gryphon™ is powered.

Yellow Blinking = OM-Gryphon™ receives data and

commands from the Host or the reader.

Charging Red On = the battery charge is in progress.

Red Blinking = the battery reconditioning is in progress.

Charge

completed Green On = the battery is completely charged.

Charging +

Charge

completed

Red and Green Blinking together = the reader is not

correctly placed onto the reader.

After many recharging cycles NiMh and NiCd batteries may tend to lose their

operating autonomy. This condition can be overcome by positioning the

Gryphon™ M onto the OM-Gryphon™ / C- Gryphon™ charger and pressing the

“battery reconditioning” button.

Power on / Data

(yellow LED)

Reconditioning battery

button

Charging

(red LED)

Charge completed

(green LED)

GRYPHON™ MX00

When the above procedure is no longer effective, the batteries must be

changed. To change the batteries of your reader, unscrew the battery cover

screw, replace the old batteries with new ones, then insert the cover in the

handle and screw it back into place. (See the following figures).

WARNING

Do not incinerate, disassemble, short terminals or

expose to high temperature. Risk of fire, explosion. Use

specified charger only. Risk of explosion if the battery

is replaced by an incorrect type. Dispose of the

batteries as required by the relevant laws in force.

GRYPHON™ M CONFIGURATION

When the OM-Gryphon™ cradle is connected and powered, configure the

Gryphon™ M by reading the following codes in the given sequence and follow the

instructions.

Note: for the numeric code selection of step 3, use the table at the end of this

Quick Reference Guide.

Restore Gryphon™ M default

1. Ì$+$*oÎ

Enter configuration

2. Ì$+;Î

Set Radio Address

ÌRF8Î

four digits for the Gryphon™ M Address

(from 0000 to 1999).

All readers used in the same area must have different addresses.

DATALOGIC

Exit and Save configuration

4. Ì$-?Î

5. Read the Bind code to pair the Gryphon™ M to the OM-Gryphon™

cradle.

The reader is dedicated to the cradle. Any previously bound reader will

be excluded.

To connect several readers to the same cradle see the following section

"Using Multiple Readers with Same Cradle".

Bind

Ì$+RN0$-IÎ

The green LED on the Gryphon™ M will blink: the reader is ready to be

positioned onto the cradle.

6. Firmly position the reader onto the cradle within 10 seconds, a beep will

be emitted, signaling that the OM-Gryphon™ cradle has been paired to

the Gryphon™ M, and the green LED on the reader will go off.

YOUR READER IS NOW CONFIGURED TO READ CODES USING THE

DEFAULT VALUES.

7. Configure the OM-Gryphon™ cradle; refer to the “OM-Gryphon™ Quick

Reference Guide”.

Green LED

GRYPHON™ MX00

USING MULTIPLE READERS WITH SAME

CRADLE

If you want to use several readers associated with the same cradle, you must

first Bind the cradle with one of the readers (see previously described

configuration procedure).

Successive readers can be associated with the same cradle by following the

configuration procedure substituting the Bind command with Join.

5. Join

Ì$+RN1$-NÎ

The green LED on the Gryphon™ M will blink: the reader is ready to be

positioned onto the cradle. Complete step 6.

CAUTION

If the cradle is not Bound to a reader, its address assumes

a random value, which can cause conflicts and malfunctions

to other cradles within its range.

GRYPHON™ M DEFAULT CONFIGURATION

DATA FORMAT

code identifier disabled (enabled for POS terminals), field adjustment

disabled, code length tx not transmitted, character replacement disabled

POWER SAVE

scan rate 270 scans/s

READING PARAMETERS

operating mode hand-held, hardware trigger, trigger active level, no timeout,

Flash On = 1 sec, Flash Off = 0.6 sec, one read per cycle, safety time 0.5

sec, beeper intensity high, tone 2, beeper type monotone, beeper length

short, good read spot duration medium

DECODING PARAMETERS

ink spread enabled, overflow control enabled, interdigit control enabled,

Puzzle Solver™ disabled, decoding safety = one read

DATALOGIC

CODE SELECTION

Enabled codes

• Code PDF417 (only Gryphon™ M200)

• EAN 8/EAN 13 / UPC A/UPC E without ADD ON

check digit transmitted, no conversions

• Interleaved 2/5

check digit control and transmission, variable length code; 4-99

characters

• Standard Code 39

no check digit control, variable length code; 1-99 characters

• Code 128

variable length code; 1-99 characters

Disabled codes for M100 only:

EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes, MSI,

Plessey, Telepen, Delta IBM, Code 11, Code 16K, Code 49,

RSS Codes

Disabled codes for M200 only:

EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes,

RSS Codes

ADVANCED FORMATTING PARAMETERS

concatenation disabled, no advanced formats defined

RADIO PARAMETERS

radio protocol timeout = 2 seconds, power-off timeout = 4 hours, single store

disabled, beeper control for radio response = normal.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Datalogic Lecteur de codes-barres

Datalogic

Datalogic Magellan 1100i Manuel utilisateur

Datalogic

Datalogic Heron D110 Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel d'installation et d'exploitation

Datalogic

Datalogic QuickScan QBT2430 Manuel utilisateur

Datalogic

Datalogic DX8210 Manuel utilisateur

Datalogic

Datalogic Magellan 9300i Manuel utilisateur

Datalogic

Datalogic Touch 90 pro Manuel utilisateur

Datalogic

Datalogic PowerScan RF SR Manuel utilisateur

Datalogic

Datalogic Jota A6 Touch Manuel utilisateur

Datalogic

Datalogic Gryphon DX30 Manuel utilisateur

Datalogic

Datalogic Matrix-1021 HD Manuel utilisateur

Datalogic

Datalogic DLL5100 Series Manuel utilisateur

Datalogic

Datalogic QuickScan QM2430-BK-433K2 Manuel utilisateur

Datalogic

Datalogic QuickScan I QM21X1 Manuel d'installation et d'exploitation

Datalogic

Datalogic Gryphon-HC Series Manuel utilisateur

Datalogic

Datalogic Magellan 2200VS Manuel utilisateur

Datalogic

Datalogic Magellan 8500Xt Guide de référence

Datalogic

Datalogic Gryphon GD4200 Manuel d'installation et d'exploitation

Datalogic

Datalogic DS2400A Manuel utilisateur

Datalogic

Datalogic QuickScan i QD2100 Manuel utilisateur

Datalogic

Datalogic Gryphon I GM410X Manuel utilisateur

Datalogic

Datalogic QuickScan Lite QW2400 Manuel utilisateur

Datalogic

Datalogic QW2120 Manuel utilisateur

Datalogic

Datalogic PowerScan PD96 Series Manuel d'installation et d'exploitation

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur

Atid

Atid AT188N Plus Manuel utilisateur
