Datalogic DS4300 Manuel utilisateur

DS4300

INSTALLATION MANUAL

We DATALOGIC S.p.A.

Via Candini, 2

40012 - Lippo di Calderara

Bologna - Italy

declare under our sole responsibility that the product

DS4300-XXXX, Laser Scanner and all its models

to which this declaration relates is in conformity with the following standards or other normative

documents

EN 55022, August 1994:L

IMITS AND METHODS OF MEASUREMENTS OF RADIO DISTURBANCE

CHARACTERISTICS OF INFORMATION TECHNOLOGY EQUIPMENT (ITE)

EN 50082-2, March 1995:E

LECTROMAGNETIC COMPATIBILITY. GENERIC IMMUNITY STANDARD.

PART 2: INDUSTRIAL ENVIRONMENT

Following the provision of the Directive(s):

89/336 CEE AND SUCCESSIVE AMENDMENTS, 92/31 CEE; 93/68 CEE

Ruggero Cacioppo

Lippo di Calderara, 16.11.1998 Quality Assurance Supervisor

Product names mentioned herein are for identification purposes only and may be trademarks

and or registered trademarks of their respective companies.

Datalogic S.p.A. reserves the right to make modifications and improvements without prior

notification.

- 1999 Datalogic S.p.A.

821000262 (Rev. B)

iii

CONTENTS

GUIDE TO INSTALLATION...............................................................v

General View.....................................................................................vi

SAFETY PRECAUTIONS ................................................................viii

Laser Safety......................................................................................viii

Standard Regulations.......................................................................viii

Power Supply......................................................................................x

1 GENERAL FEATURES...................................................................1.1

1.1 Introduction......................................................................................1.1

1.2 Description.......................................................................................1.2

1.3 Available Models..............................................................................1.4

1.4 Accessories .....................................................................................1.4

2 INSTALLATION ..............................................................................2.1

2.1 Package Contents ...........................................................................2.1

2.2 Mechanical Installation ....................................................................2.2

2.3 Junction Box Installation..................................................................2.3

2.3.1 Junction Box Mounting ....................................................................2.3

2.3.2 Junction Box Electrical Connections................................................2.5

2.4 Electrical Connections for 25-pin Models ........................................2.8

2.4.1 Power Supply...................................................................................2.9

2.4.2 Main Serial Interface......................................................................2.10

RS232 ...........................................................................................2.10

RS485 Full-Duplex ........................................................................2.12

RS485 Half-Duplex........................................................................2.13

20 mA Current Loop (INT-24 Accessory Only).............................2.15

2.4.3 Auxiliary RS232 Interface..............................................................2.16

2.4.4 Inputs.............................................................................................2.16

2.4.5 Outputs..........................................................................................2.19

2.5 Positioning.....................................................................................2.20

2.6 Typical Layouts..............................................................................2.21

2.6.1 Point-to-Point.................................................................................2.21

2.6.2 Pass Through ................................................................................2.22

2.6.3 RS232 Master/Slave......................................................................2.23

2.6.4 RS485 Master/Slave......................................................................2.24

2.6.5 Multiplexer .....................................................................................2.25

3 READING FEATURES....................................................................3.1

3.1 Advanced Code Reconstruction......................................................3.1

3.1.1 Tilt Angle for Advanced Code Reconstruction.................................3.2

3.2 Decoding Capacity in Linear Mode..................................................3.3

3.2.1 Step Ladder Mode...........................................................................3.3

3.2.2 Picket Fence Mode..........................................................................3.4

3.3 Performance....................................................................................3.5

3.4 Reading Diagrams...........................................................................3.6

4 MAINTENANCE ..............................................................................4.1

4.1 Cleaning...........................................................................................4.1

5 TECHNICAL FEATURES................................................................5.1

GUIDE TO INSTALLATION

The following can be used as a checklist to verify all of the steps necessary

for complete installation of the DS4300 scanner.

1) Read all information in the section "Safety Precautions" at the beginning

of this manual.

2) Correctly position and mount the scanner for barcode reading according

to the information in paragraphs 2.2, 2.5 and 3.4.

3) Provide correct system cabling according to the signals necessary for

your application (see the applicable sub-paragraphs under 2.3 or 2.4).

4) Install the Configuration Disk.

Upon successful completion of the installation, the readme.hlp file is

opened, giving details about how to get started configuring your scanner.

See also the Guide to Rapid Configuration link.

Specific parameter details are available in the Help On Line.

NOTE

Fine tuning of the scanner position for barcode

reading can be accomplished using the Test Mode

as described in WinHost.

The installation is now complete.

DS4300

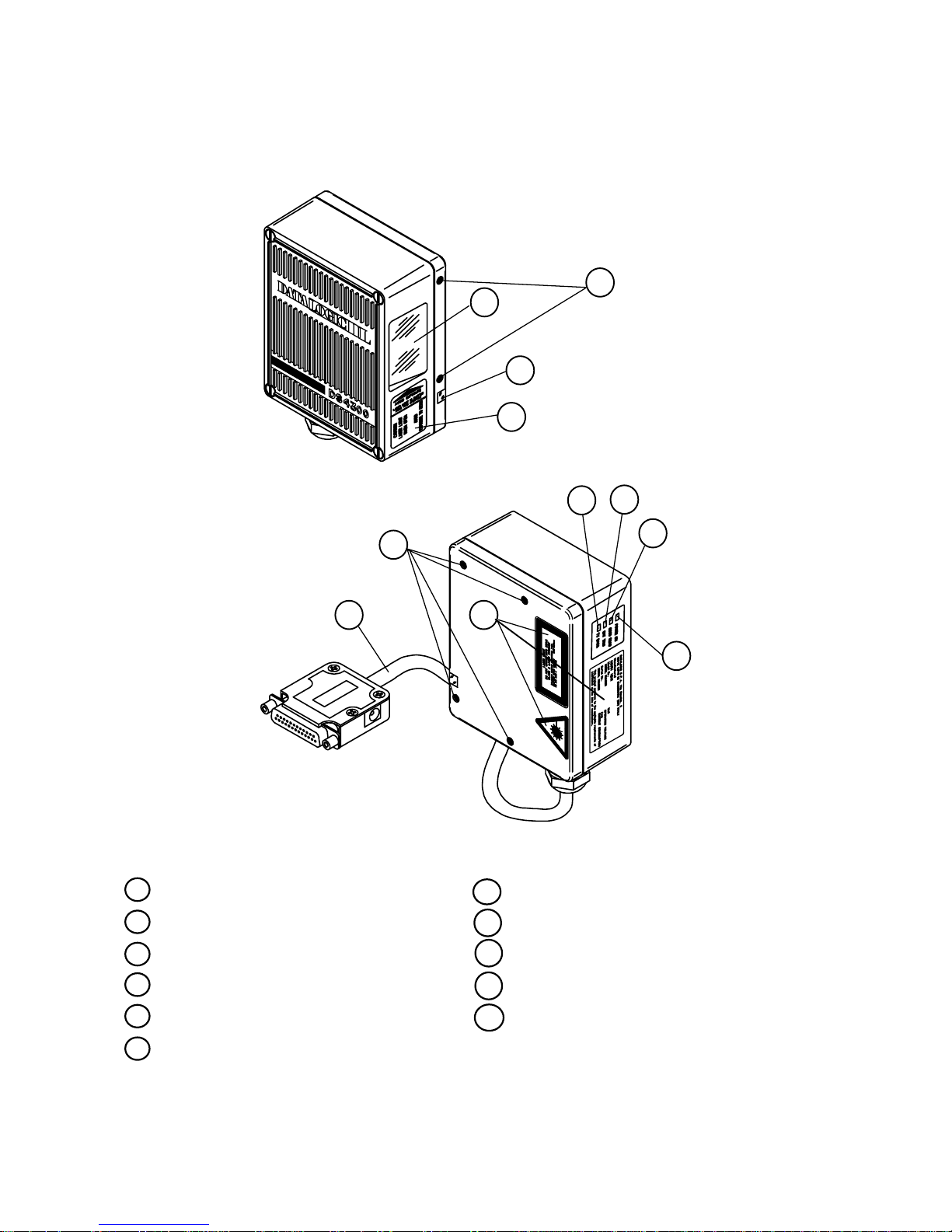

General View

Figure A

Cable with 25-pin connector

Mounting holes

Good Read LED

External Trigger LED

Ready LED

310

6 Data TX LED

Laser beam output window

7Warning Label

Warning and Classification labels

Accessory mounting holes

9Laser active LED

vii

DS4300

General View

Figure B

Cable with junction box

Mounting holes

Good Read LED

External Trigger LED

Ready LED

310

6 Data TX LED

Laser beam output window

7Warning Label

Warning and Classification labels

Accessory mounting holes

9Laser active LED

viii

SAFETY PRECAUTIONS

LASER SAFETY

The following information is provided to comply with the rules imposed by

international authorities and refers to the correct use of the DS4300 scanner.

Standard Regulations

This scanner utilizes a low-power laser diode. Although staring directly at the

laser beam momentarily causes no known biological damage, avoid staring

at the beam as one would with any very strong light source, such as the sun.

Avoid that the laser beam hits the eye of an observer, even through reflective

surfaces such as mirrors, etc.

This product conforms to the applicable requirements of both IEC 825-1 and

CDRH 21 CFR 1040 at the date of manufacture. The scanner is classified as

a Class 2 laser product according to IEC 825-1 regulations and as a Class II

laser product according to CDRH regulations.

There is a safety device which allows the laser to be switched on only if the

motor is rotating above the threshold for its correct scanning speed.

The laser beam can be switched off through a software command (see also

“Beam Shutter” in the WinHost Help On Line).

WARNING

Use of controls or adjustments or performance of

procedures other than those specified herein may

result in exposure to hazardous visible laser light.

The laser light is visible to the human eye and is emitted from the window on

the front of the scanner (Figure A/B, 10 ).

Warning labels indicating exposure to laser light and the device classification

are applied onto the body of the scanner (Figure A/B, 8and 7).

DATALOGIC S.p.A. Via Candini, 2

40012 LIPPO DI CALDERARA (BO) ITALY

Model No. Serial No.

Volt Amp.

Manufactured

This product conforms to the applicable requirements of

21CFR1040 at the date of manufacture.

LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAXIMUM OUTPUT RADIATION 1 mW

EMITTED WAVE LENGTH 630~680 nm

TO IEC 825-1 (1993)

Warning and device class labels

For installation, use and maintenance it is not necessary to open the

scanner.

The laser diode used in this device is classified as a class 3B laser product

according to IEC 825-1 regulations and as a Class IIIb laser product

according to CDRH regulations. As it is not possible to apply a classification

label on the laser diode used in this device, the following label is reproduced

here:

LASER LIGHT

AVOID EXPOSURE TO BEAM

CLASS 3B LASER PRODUCT

MAX. OUTPUT RADIATION 7 mW

EMITTED WAVE LENGTH 630~680 nm

TO IEC 825-1 (1993)

Laser diode class label

Any violation of the optic parts in particular can cause radiation up to the

maximum level of the laser diode (30 mW at 630 to 680 nm).
