DataCard CD800 Manuel utilisateur

CD800™ Card Printer

Quick Install Guide

2 CD800 Card Printer

CD800 Card Printer Quick Install Guide

1. Select a Location for the Printer

• Install the printer in a location that is clean and well

ventilated, free of vibration or shock.

• For venting and clearance, choose an area that’s large

enough for your printer conguration based on its

options. Refer to the site requirements in the printer’s

Installation and Administrator’s Guide.

• Do not install the printer in direct sunlight.

• Install the system in a secure location.

• Install the system in a location that has access to an

AC outlet and a network port (if you are using a network

connection).

• If you also are installing a CLM laminator with the printer,

refer to the CD Series Printers CLM Laminator Quick

Install and Upgrade Guide, shipped in the laminator

carton.

Refer to the printer’s Installation and Administrator’s Guide,

found on the Owner’s Library CD, for detailed installation

instructions.

The latest rmware and user documentation for your CD800

printer is available for download at www.datacard.com.

3 CD800 Card Printer

CD800 Card Printer Quick Install Guide

2. Set Up the Printer

a. Unlock the printer, if necessary, and open the printer

cover.

b. If your printer has the optional multi-hopper, remove the

packing material inserted behind the hopper.

4 CD800 Card Printer

CD800 Card Printer Quick Install Guide

3. Load Supplies

Supplies are ordered separately.

a. Remove the print ribbon cartridge.

b. Load the print ribbon onto the cartridge.

5 CD800 Card Printer

CD800 Card Printer Quick Install Guide

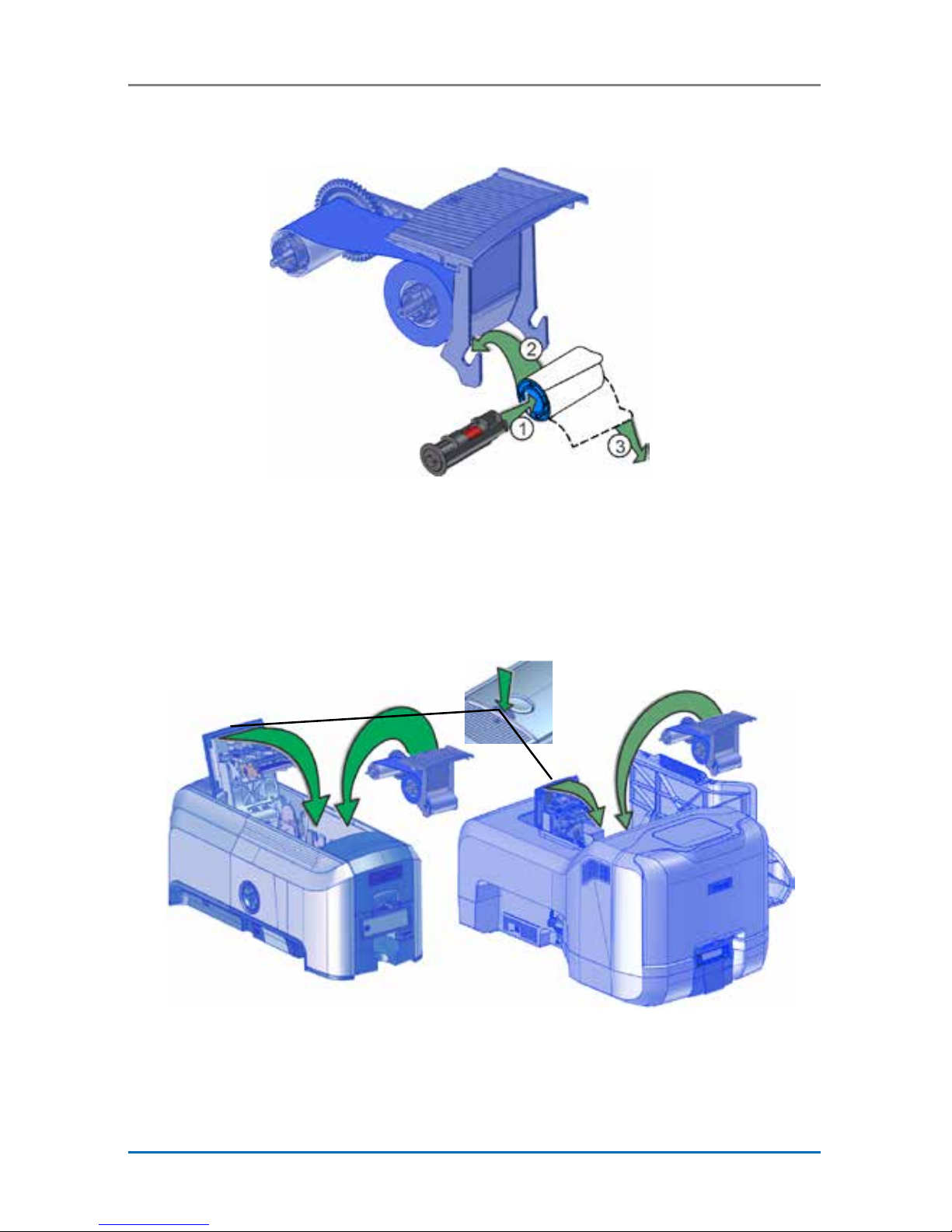

c. Load the cleaning sleeve onto the ribbon cartridge.

d. Install the print ribbon cartridge in the printer.

e. Close the printer cover. Press down on the cover ridges

to make sure that the cover latches properly on both

sides.

6 CD800 Card Printer

CD800 Card Printer Quick Install Guide

f. Load cards in the hopper.

Multi-Hopper

g. Close the printer doors and lock the printer, if necessary.

Single Hopper

7 CD800 Card Printer

CD800 Card Printer Quick Install Guide

4. Plug In and Power On the Printer

a. Connect the printer power cord to the printer and to the

power supply.

b. Plug the power supply cord into the power outlet.

c. Press the power button on the front panel to power on

the printer. Wait until the system has powered up and

Ready displays on the LCD panel.

8 CD800 Card Printer

CD800 Card Printer Quick Install Guide

5. Retrieve the Network IPv4 Address

a. Use the front panel to nd the printer IP address. You

also can display the subnet mask, and gateway address,

if necessary.

b. Write them down:

IP address _____________________

Subnet mask ___________________

Gateway address ________________

9 CD800 Card Printer

CD800 Card Printer Quick Install Guide

c. You will need to enter the printer IP address, when you

are prompted, during installation of the Card Printer

Driver.

If your site plans to use IPv6 addressing, refer to the

printer’s Installation and Administrator’s Guide for

information about enabling IPv6.

10 CD800 Card Printer

CD800 Card Printer Quick Install Guide

6. Install the Card Printer Driver (Optional)

If you plan to use the XPS Card Printer Driver, refer to

your printer’s Driver Guide for installation instructions

using either a USB or a network connection.

7. Print a Test Card (Optional)

Use the printer’s LCD panel to print a test card:
