DAPAudio PRA-82 Manuel utilisateur

PRA-82 2 x 85W V2

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: D3512

MANUAL

ENGLISH

Ordercode: D3512

PRA-82 2 x 85W

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................3

Return Procedure..........................................................................................................................................................4

Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5

Overview ........................................................................................................................................................................5

Backside .........................................................................................................................................................................6

Installation...........................................................................................................................................................................7

Set Up and Operation .......................................................................................................................................................7

Names and Functions.......................................................................................................................................................8

Maintenance......................................................................................................................................................................8

Replacing the Fuse.......................................................................................................................................................8

Troubleshooting .................................................................................................................................................................9

Product Specification .......................................................................................................................................................9

Dimensions........................................................................................................................................................................10

Ordercode: D3512

PRA-82 2 x 85W

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

DAP Audio 2-way active speaker system PRA-82 2 x 85W

IEC power cable (1,5 m)

Speaker cable (3,5 m)

User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this system has to:

be qualified

follow the instructions of this manual

Before you initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the system.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the system are not subject to

warranty.

This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the system.

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Ordercode: D3512

PRA-82 2 x 85W

Do not open the device and do not modify the device.

Do not set the input signal level higher than required to drive the equipment to full output.

Only use system indoors, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Make sure you do not use the wrong kind of cables or defective cables.

Extreme frequency boosts in connection with a high input signal level may lead to overdriving your

equipment. Should this occur, it is necessary to reduce the input signal level.

If system is dropped or struck, disconnect the power supply immediately. Have a qualified engineer

inspect for safety before operating.

If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your system. Leave the

system switched off until it has reached room temperature.

If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Dap Audio dealer for service.

Repairs, servicing and electric connection must be carried out by a qualified technician.

Keep this manual for future reference.

Clean only with dry cloth.

Take care of your speaker wires, they should be free of damage. Damaged speaker wires might

result in poor sound quality and can damage amplifiers.

This device should only be serviced by qualified personnel. If not warranty might be void.

Use cable of the right gauge, certainly for long runs.

Use cables with clear color indication and maintain polarity throughout the whole system.

Avoid loud feedback from microphones, this can damage your speaker.

Please check the unit’s condition after unpacking. If the outside of the carton box has been

damaged, inform your shipper immediately.

Operating Determinations

If this system is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious injuries and damage of property !

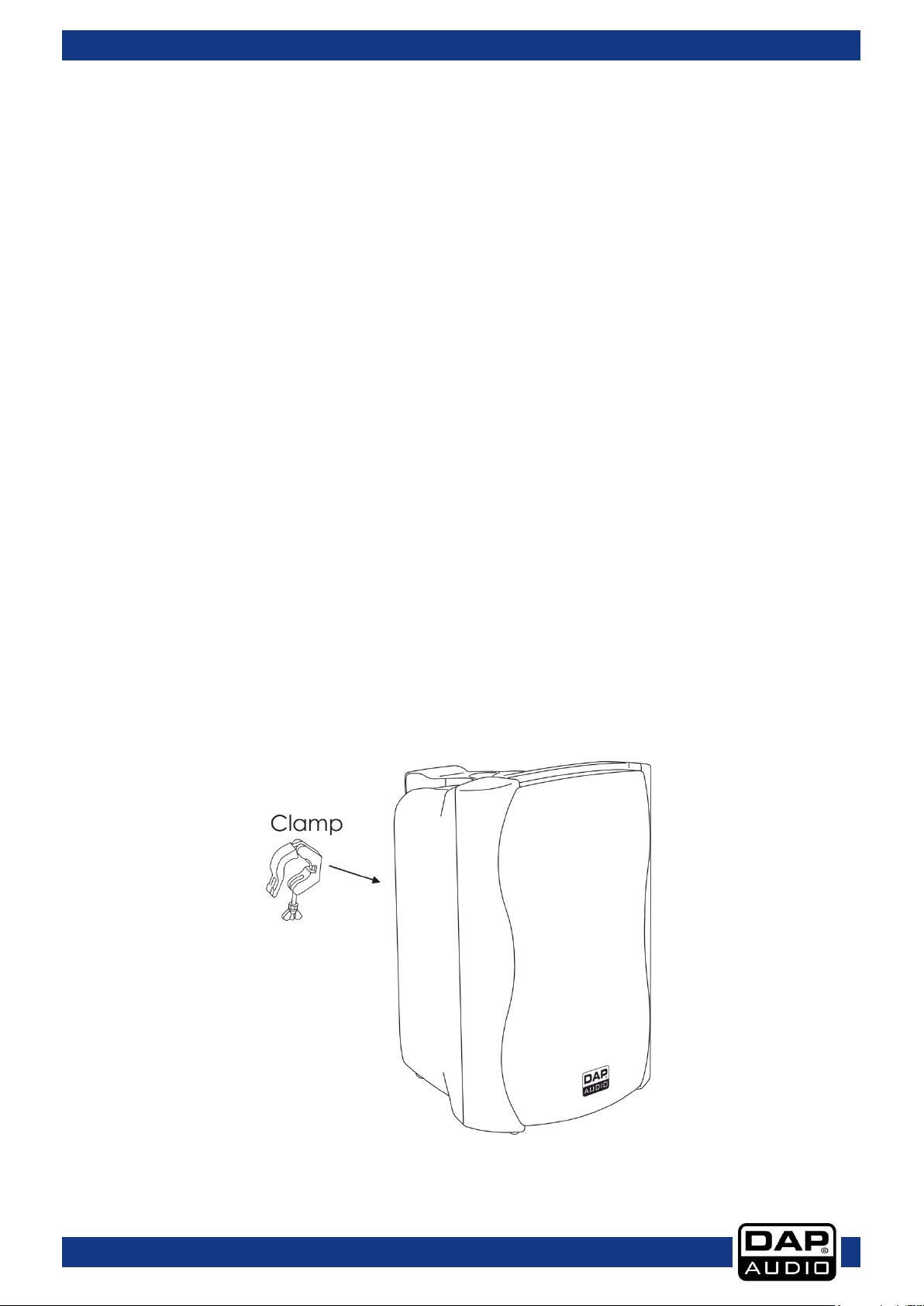

The PRA-82 can be mounted to any kind of truss with a clamp or placed on a flat stage floor.

Ordercode: D3512

PRA-82 2 x 85W

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: D3512

PRA-82 2 x 85W

Description of the device

Features

Input voltage: 230V AC, 50 Hz

Power consumption: 2 x 85W RMS

Impedance: 8 Ω

Woofer: 8”

Textile dome tweeter: 25,2 mm

Frequency range (-10 dB): 35 Hz - 20 kHz

Controls: Gain, Bass, Treble

Connections: RCA line connector IN, IEC power IN, speaker cable connector IN

Color: White

IP rating: IP20

Fuse: F1AL/250V

Dimensions: 250 x 270 x 350 mm (LxWxH)

Weight: 14,8 kg

Overview

Fig. 01

Ordercode: D3512

PRA-82 2 x 85W

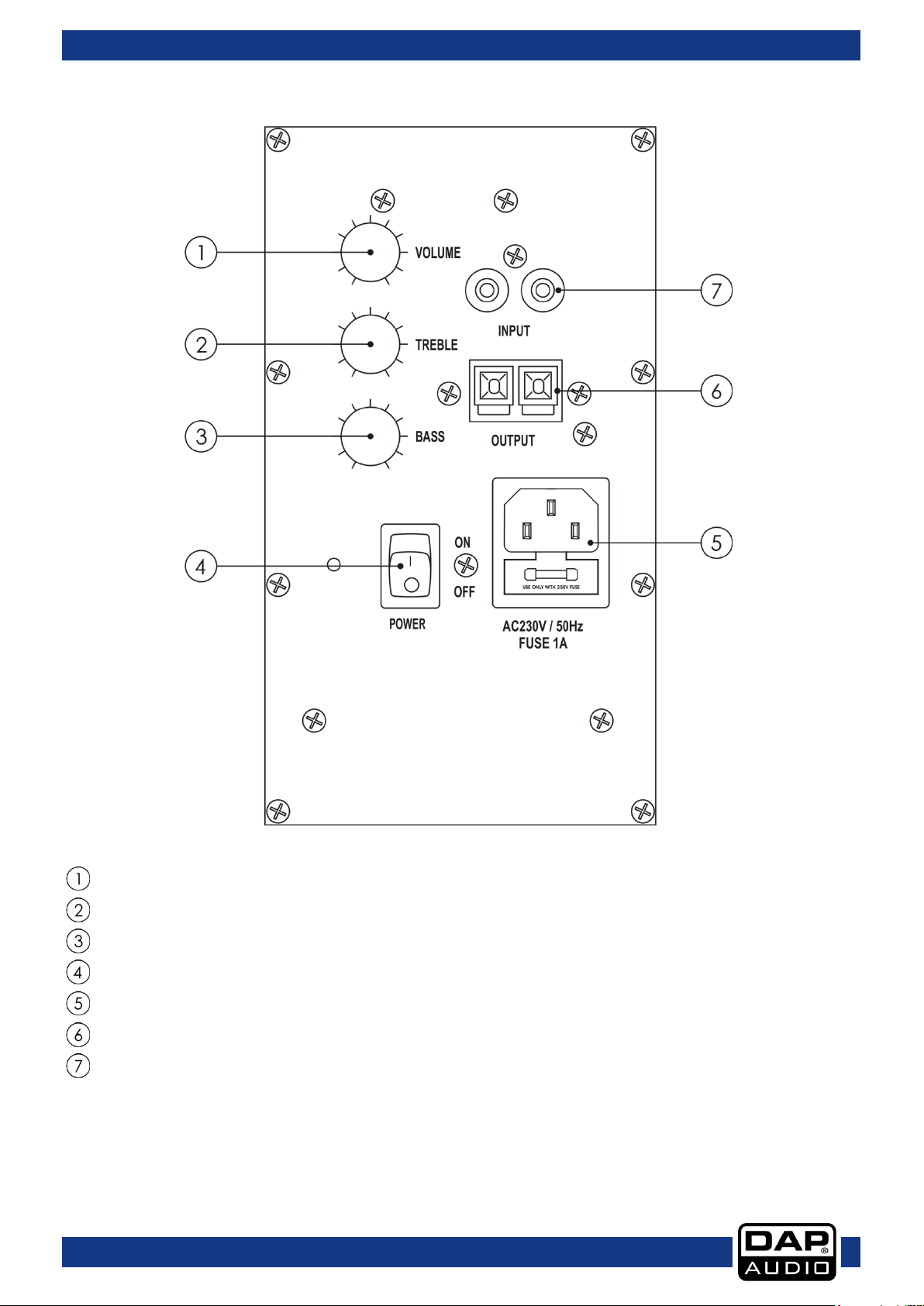

Backside

Fig. 02

Volume control

Treble control

Bass control

Power switch ON/OFF

IEC power connector 230V AC + Fuse F1AL/250V

Speaker cable connector OUT

RCA line connectors IN

Ordercode: D3512

PRA-82 2 x 85W

Installation

Remove all packing materials from the PRA-82 2 x 85W. Check that all foam and plastic padding is

removed. Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Fig. 03

01) Connect the active speaker to the passive speaker, by means of the included speaker cable.

02) Connect your mixer to the RCA line input connector (07),by means of an RCA cable.

03) Connect power supply to the mixer, then connect power supply to the speakers using the included

IEC to Schuko power cable.

Ordercode: D3512

PRA-82 2 x 85W

Names and Functions

01) Volume control

Turn the control to adjust output’s volume.

02) Treble control

Turn the control to adjust output’s treble.

03) Bass control

Turn the control to adjust output’s bass.

04) Power switch ON/OFF

Press the button to switch the device ON/OFF.

05) IEC power connector 230V AC + Fuse F1AL/250V

This connector is meant for the connection of the supplied power cable. Connect one end of the

power cable to the connector, the other end to the mains, then turn on the power switch to operate

the unit.

06) Speaker cable connector OUT

Connect the active PRA-82 speaker to the passive PRA-82 speaker, by means of the included

speaker cable.

07) RCA line connectors IN

Connect input signal (for example, from a mixer) to the speaker, by means of an RCA cable.

Maintenance

The DAP Audio PRA-82 requires almost no maintenance. However, you should keep the unit clean.

Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in

liquid. Do not use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp

cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.

Replacing the Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.

01) Unplug the unit from electric power source.

02) Insert a screwdriver into the slot in the fuse cover. Gently pry up the fuse cover. The fuse will come

out.

03) Remove the used fuse. If brown or unclear, it is burned out.

04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Ordercode: D3512

PRA-82 2 x 85W

Troubleshooting

No Sound

Always check if all the cables and cords are connected. Always turn off power to the area before

checking the wires, to prevent electric shock.

If everything works properly and there is still no sound, revisit the manufacturer’s instructions to make sure

they were followed during installation. If everything was installed correctly and there is still no sound, you

may want to consider bringing in a professional to take a look at your speaker.

If the speakers do not operate properly, refer servicing to a technician.

Suspect three potential problem areas as: the power supply, the speakers, the fuse.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The speakers. Return the PRA-82 to your DAP Audio dealer.

03) The fuse. Replace the fuse. See page 8 for replacing the fuse.

04) If all of the above appears to be O.K., plug the unit in again.

05) If you are unable to determine the cause of the problem, do not open the PRA-82, as this may

damage the unit and the warranty will become void.

06) Return the device to your DAP Audio dealer.

Sound Warping

If the sound coming out of your speaker is loud enough, but seems to be warped or distorted, your treble

or bass levels may need to be adjusted.

If there are not many pieces of furniture in the room and the floor has no carpet or rug, then you will most

likely have to set your treble to minus. With very little in the room to absorb the sound, too much treble

can make the sound bounce off of fixtures in the room, making it tinny sounding.

With the bass, if the speaker is too close to a wall and is not aimed properly, then you will need to set the

bass to minus, to stop the low tones from bouncing off of the walls or large pieces of furniture.

Product Specification

Input voltage:

230V AC, 50 Hz

Power consumption:

2 x 85W RMS

Impedance:

8 Ω

Woofer:

8”

Textile dome tweeter:

25,2 mm

Frequency range (-10 dB):

35 Hz –20 kHz

Controls:

Gain, Bass, Treble

Connections:

RCA line connector IN, IEC power IN, speaker cable connector IN

Color:

White

IP rating:

IP20

Fuse:

F1AL/250V

Dimensions:

250 x 270 x 350 mm (LxWxH)

Weight:

14,8 kg

Design and product specifications are subject to change without prior notice.

Website: www.Dap-audio.info

Email: service@highlite.nl

Table des matières

Autres manuels DAPAudio Intervenants

DAPAudio

DAPAudio LT-15HL Manuel utilisateur

DAPAudio

DAPAudio NRG-8A Manuel utilisateur

DAPAudio

DAPAudio D2608 Manuel utilisateur

DAPAudio

DAPAudio PS-115A Manuel utilisateur

DAPAudio

DAPAudio GS-630 Manuel utilisateur

DAPAudio

DAPAudio PSU-510M Manuel utilisateur

DAPAudio

DAPAudio WMS4-B Manuel utilisateur

DAPAudio

DAPAudio Xi-28 MKII Manuel utilisateur

DAPAudio

DAPAudio Soundmate Active 3 MK-II Manuel utilisateur

DAPAudio

DAPAudio WS-6W Manuel utilisateur

DAPAudio

DAPAudio Pure-12A Manuel utilisateur

DAPAudio

DAPAudio Pure-15 Manuel utilisateur

DAPAudio

DAPAudio MHS-50S Manuel utilisateur

DAPAudio

DAPAudio Pure-10A Manuel utilisateur

DAPAudio

DAPAudio NRG-12 Manuel utilisateur

DAPAudio

DAPAudio D3505 Manuel utilisateur

DAPAudio

DAPAudio D3511 Manuel utilisateur

DAPAudio

DAPAudio RX-10A Manuel utilisateur

DAPAudio

DAPAudio D3505 Manuel utilisateur

DAPAudio

DAPAudio CS-620 Manuel utilisateur

DAPAudio

DAPAudio Odin T-8 Line Array Satellite V1 Manuel utilisateur

DAPAudio

DAPAudio MPXA-80 Manuel utilisateur

DAPAudio

DAPAudio X-15A Manuel utilisateur

DAPAudio

DAPAudio NRG-12S Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
