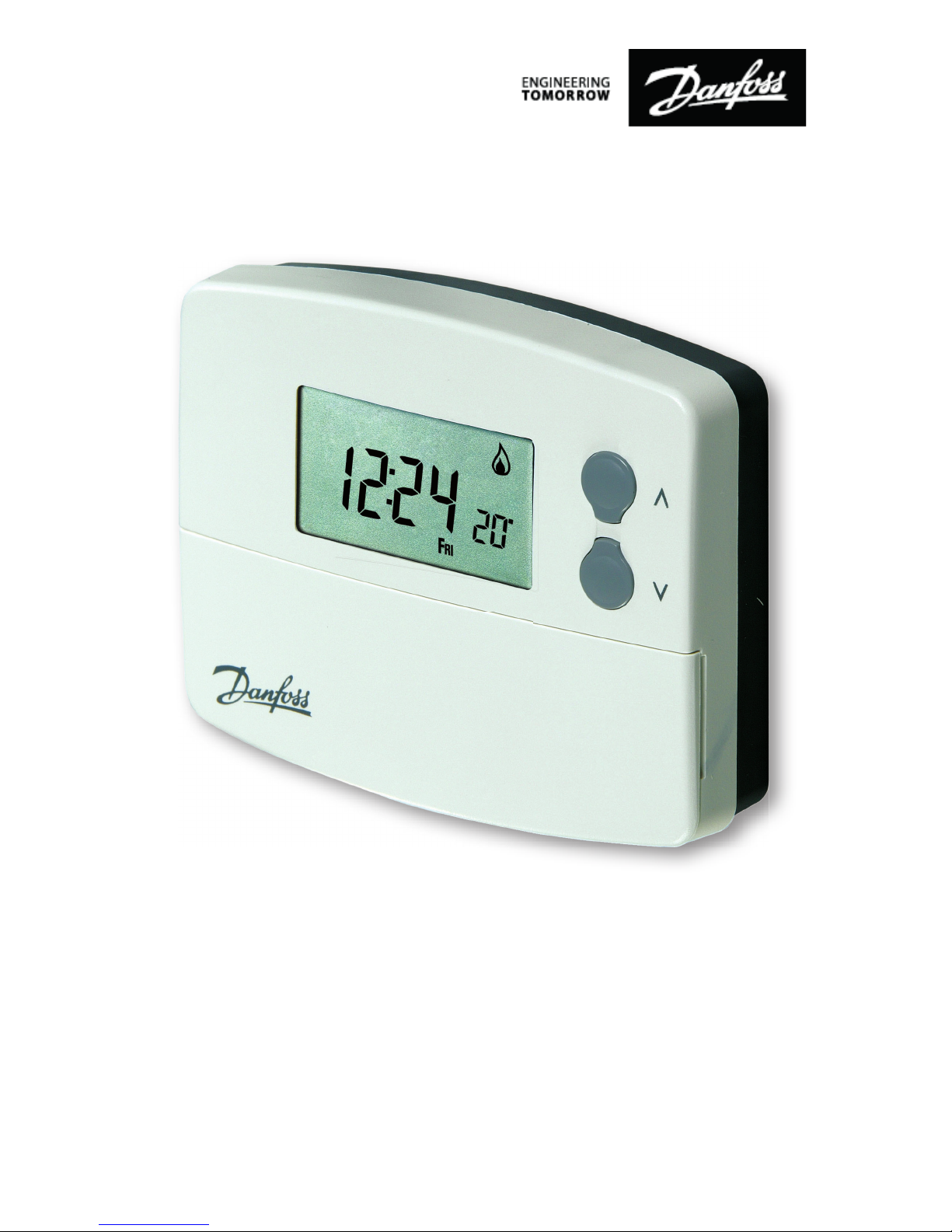

Electronic Programmable Room Thermostat

Danfoss Heating Installation Guide

TP5001

For a large print version of these instructions

please email customerservice.uk@danfoss.com

Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other

printed material. Danfoss reserves the right to alter its products without notice. This also

applies to products already on order provided that such alterations can be made without

subsequential changes being necessary in specifications already agreed.

All trademarks in this material are property of the respective companies. Danfoss and all

Hereby, Danfoss A/S declares that the radio equipment type TP5001-RF + RX Receiver is in

compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address,

http://heating.danfoss.co.uk/xdoccat/14_CATC-J_MNU17497125_SIT313.html

Danfoss Heating 3

Installation Guide

TP5001 Range

Electronic Programmable Room Thermostat

Index

1.0 Installation Guide .....................................................................................4

2.0 System Overview...................................................................................4-5

3.0 Installation ...................................................................................................6

3.1 Wiring - TP5001...................................................................................7

3.2 Battery Installation............................................................................7

3.3 Receiver Wiring (RF models)..........................................................8

3.4 Commissioning (RF versions only)...............................................9

4.0 Advanced Installer Programming Options...................................9

4.1 Entering Advanced Installer Programming Options.......... 10

TP5001

Thermostat features TP5001 (A) TP5001-RF TP5001M (A)

Power supply 2 x AA/MN1500/LR

alkaline cells

230V, ±15%,

50Hz

Memory back-up Retained for life of product

Temperature Range

Sensing

5-30°C

Factory set calendar clock Automatic summer/winter time change

Switching action of

output relay

3(1)A,

10-230V N/A 3(1)A, 10-230V,

Type 1B

Transmission frequency

(RF models) N/A 433.92MHz N/A

Transmission range

(RF models) N/A 30m max. N/A

Remote sensor inputs

(A models only)

Can be set by installer for remote temperature

sensor, limit sensor, window contact or telephone

activated switch contacts

Dimensions (mm) 110 wide, 88 high, 28 deep

Design standard EN60730-2-9 (EN300220 for RF)

Rated impulse voltage 2.5kV

Ball hardness test 75°C

Control pollution

situation Degree 2

Temperature accuracy ±1°C

Time accuracy ±1 min. per month

1.0 Installation Guide

2.0 System Overview

Please Note:

This product should only be installed by a qualied electrician or

competent heating installer and should be in accordance with the

current edition of the IEEE wiring regulations.

Danfoss Heating 5

Important note RF products: Ensure that there are no large metal

objects, such as boiler cases or other large appliances, in line of

sight between the transmitter and receiver as these will prevent

communication between thermostat and receiver.

ERP Class

The products represented within this document are classied according to,

and allow completion of, the Energy Related Product (ErP) Directive System

Package che and the ErP system data label. ErP Labelling obligation is ap-

plicable from 26th September 2015.

ERP Class Product Function and ErP Description

Additional

eciency

gain

V Modulating Room Thermostat, for use with

modulating heaters

An electronic room thermostat that varies the

ow temperature of the water leaving the heater

dependent upon measured room temperature

deviation from room thermostat set point. Control

is achieved by modulating the output of the

heater.

ErP

Product

Class

TP5001

3.0 Installation

• First, remove the wallplate from the back of the unit.

• From the top left hand corner of the wallplate, there must be

clearances of at least 15mm to the right, 15mm to the left,

30mm above and 100mm below in order to mount the plug-in

module.

• Thermostat and Remote Room Sensor:

Fix at a height of approximately 1.5m from the oor, away from

draughts or heat sources such as radiators, open res or direct

sunlight.

• Prior to mounting the unit the 2 DIL switches on the rear of the

unit have to be moved to the required position. The factory

presets are shown below.

Keyboard disabled

Reset disabled Reset enabled

Keyboard enabled

OFF ON

Sw. No.

MIN 3

30m MAX

Danfoss Heating 7

!Some existing thermostats will have a Neutral and/or Earth wire connected. These

are not required by the TP5001 (battery models) and must NOT be connected to

any TP5001 terminals. Instead they should be made electrically safe and coiled in

the recess at the back of the TP5001.

3.1 Wiring - TP5001

Models with remote sensor inputs

TP5001A and TP5001MA incorporate an input which can be used to

connect one of the following:

1) remote room temperature sensor (sold as accessory).

2) limit sensor, for example, oor temperature sensor (sold as

accessory).

3) window contacts, card reader contacts or teleswitch contacts.

See Installer Advanced Programming Options for set-up

instructions.

3.2 Battery Installation

When installing the batteries in the TP5001 and TP5001 RF please

ensure that the correct polarity is observed as per the markings on

the inside of the battery compartment.

Important: After installing the batteries press and release the RESET

button to start the unit. The display may appear blank until this is

done. Once the button is released the display will appear. All date,

time, programming and override settings are maintained for the life

of the product.

123

Output Connections,

all hard wired models

NDE

S1 S2

Remote Sensor

(A version only)

M 230V Models

TP5001

IMPORTANT - To ensure that the factory programmes are set

and the micro-computer is operating correctly it is essential

that you press and hold the RESET button before you begin any

commissioning or programming.

Models with remote sensor inputs

Terminal block for remote control/sensing

is located on the circuit board above the

battery compartment.

RX1 RX2 & RX3

1234

ELECTRONICS

COM ZONE

1 ON

ZONE

1 OFF

ELECTRONICS

BC123456

NLZONE

1 ON

ZONE

1 OFF

ZONE

2 ON

ZONE

3 ON

COM

TERMINAL 6

RX3 ONLY

3.3 RX Receiver Wiring (RF models only)

1) For mains voltage operated systems link terminal 2 to mains live supply.

2) Power supply to unit must not be switched by timeswitch.

S1/D

S2/E

S1/D

S2/E

Window or

teleswitch

contact

(NO or NC)

Teleswitch

contact (NC)

Window

contact (NC)

S1/D

S2/E

Congured for

remote room

sensor or limit

sensor

Congured for

window contact or

other contact such

as teleswitch

Congured for

window contact

and other contact

such as teleswitch

Remote

control

connections

Danfoss Heating 9

3.4 Commissioning (RF models only)

If the thermostat and the receiver have been supplied together in

a combined pack, the units have been paired in the factory and no

commissioning is required (RX1 only).

To tune the RX receiver to the frequency of the thermostat signal, follow steps

1-5 below.

Step 1 TP5001-RF

Reset the unit by pressing the recessed reset

button.

Step 2 Press and hold V and + buttons for

3 seconds (TP5001-RF now transmits unique

signal continuously for 3 minutes).

Step 3 RX1

Press and hold buttons PROG and CH1 for 3 seconds until green light

ashes once.

Step 4 RX2 (if applicable)

Stat 1 - perform steps 1-3 and 5.

Stat 2 - perform steps 1-2 and then press

PROG and CH2 on RX2.

RX3 (if applicable)

Stat 1 - perform steps 1-3 and 5.

Stat 2 - perform steps 1-2 and then press PROG and CH2 on RX3 then

step 5.

Stat 3 - perform steps 1-2 and then press PROG and CH3 on RX3.

Step 5 TP5001-RF

Press V or Λto select temperature - the unit will revert back to operating

mode.

4.0 Installer Advanced Programming Options

TP5001 incorporates a number of advanced features which can be set by the

user. These are accessed via a User Advanced Programming Mode, please

refer to User Advanced Programming in the user instructions for details.

TP5001 incorporates an additional number of advanced features which can be

set by the installer to improve the operating eciency of the system and where

required, to change the user functionality of the product. These are accessed

via an Installer Advanced Programming Mode. These settings are optional and

need only be made if there is a demand for the enhanced functions.

TP5001

Option 31 - Set lower limit of temperature range

This allows the lower limit of the thermostat setting

range to be electronically limited. Press +until Option

31 is displayed, use Vand Λto select required setting.

Setting 5 - 40°C (Factory setting is 5°C)

Option 32 - Enable O at lower limit

This enables an OFF function to be selected if a set

point below the lower limit is selected. Press +until

Option 32 is displayed, use Vand Λto select required

setting.

Setting 0 Disabled

Setting 1 Enabled (factory setting)

Option 30 - Set upper limit of temperature range

This allows the upper limit of the thermostat

setting range to be electronically limited. Press +

until Option 30 is displayed, use Vand Λto select

required setting.

Setting 40 - 5°C (Factory setting is 30°C)

4.1 Entering Installer Advanced Programming

mode

To access the Installer Advanced Programming Mode follow the

steps below:

a) Press and hold Vand PROG for 3 seconds to enter User Advanced

Programming, the display will change to gure opposite.

b) Press and hold V, Λand PROG for 5 seconds to enter Installer

Advanced Programming, the display will

change to gure opposite.

c) Use +and -keys to scroll backwards and

forwards between options then Vand Λkeys

to change the option settings. The ashing

digit on the right hand of the display indicates

the number of the selected option. The large

characters display the option value selected.

d) To return to RUN, press and hold PROG until colon blinks.

Autres manuels pour TP5001 series

Table des matières

Langues :

Autres manuels Danfoss Thermostat

Danfoss

Danfoss RET2000B-RF Manuel utilisateur

Danfoss

Danfoss ECL Comfort 310 Manuel utilisateur

Danfoss

Danfoss Icon Wireless Dial Manuel utilisateur

Danfoss

Danfoss RTW-RA Manuel utilisateur

Danfoss

Danfoss TP5E Manuel utilisateur

Danfoss

Danfoss ECtemp Smart Manuel utilisateur

Danfoss

Danfoss RET B + RF Mode d'emploi

Danfoss

Danfoss TP9000 Si Manuel utilisateur

Danfoss

Danfoss TP5000 si range Manuel utilisateur

Danfoss

Danfoss ECL Comfort 310, A367 Manuel utilisateur

Danfoss

Danfoss ECL Comfort 310 Manuel utilisateur

Danfoss

Danfoss HC8000 Series Manuel utilisateur

Danfoss

Danfoss DEVIreg 531 Manuel utilisateur

Danfoss

Danfoss RET2001RF Manuel utilisateur

Danfoss

Danfoss TS715 Si Instructions de montage

Danfoss

Danfoss TP7001 series Manuel utilisateur

Danfoss

Danfoss Basic Plus2 Manuel utilisateur

Danfoss

Danfoss ECL Comfort 110 Manuel utilisateur

Danfoss

Danfoss 088U0210 Manuel utilisateur

Danfoss

Danfoss ECL Comfort 310, P318 Manuel utilisateur

Danfoss

Danfoss CET2000B-RF + RX1-S + CS2 Manuel utilisateur

Danfoss

Danfoss RET2001 Manuel utilisateur

Danfoss

Danfoss TP7000M Manuel utilisateur

Danfoss

Danfoss RT1 Instructions de montage

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
