Danfoss VLT MCD 200 Manuel utilisateur

Installation Guide

Modbus TCP Module

VLT® Compact Starter MCD 200 and VLT® Soft Starter MCD 500

1.1

1.2

2.1

2.2

2.3

2.4

3.1

4.1

4.2

4.2.1

4.2.2

4.2.3

4.3

4.4

5.1

5.2

5.3

5.3.1

5.3.2

5.3.2.1

5.3.2.2

5.3.3

5.3.4

5.3.4.1

5.3.4.2

5.4

5.4.1

6.1

Contents

Safety 5

Disclaimer 5

Warnings 5

Introduction 6

Product Design 6

Compatibility 6

Product Versions 6

Network Connection 6

Installation 8

Installing the Communication Module 8

Connection 10

Soft Starter Connection 10

Network Connection 10

Ethernet Ports 10

Cables 10

EMC Precautions 11

Network Establishment 11

Addressing 11

Device Configuration 12

Before Configuring the Device 12

Configuration Methods 12

On-board Web Server 12

Connect to the Device 12

Manage Users and Passwords 13

Adding a User 14

Deleting a User 14

Configuring the IP Address 15

Configure IoT Settings 15

Configuring MQTT Settings 16

Configuring OPC UA Settings 17

Scanning the Network 17

Identifying the Device with Ethernet Device Configuration Tool 18

Operation 19

Requirements for Successful Operation 19

Contents

Modbus TCP Module

Installation Guide

6.2

6.3

6.4

6.5

6.6

7.1

7.2

7.3

7.3.1

7.4

7.4.1

7.4.2

7.5

7.5.1

7.6

8.1

8.2

8.3

8.4

9.1

9.2

9.3

9.4

9.5

9.6

9.7

Device Classification 19

Configuration Requirements for PLC 19

Enabling Network Control 19

Ensuring Safe and Successful Control 19

Feedback LEDs 19

Modbus Registers 21

Important Information 21

Compatibility 21

Parameter Management 21

Writing Parameters to the Soft Starter 21

Standard Mode 22

Command and Configuration Registers (Read/Write) 22

Status Reporting Registers (Read Only) 22

Legacy Mode 24

Registers 25

Trip Codes 27

Network Design 29

Star Topology 29

Line Topology 29

Ring Topology 30

Combined Topologies 30

Specifications 32

Enclosure 32

Mounting 32

Connections 32

Settings 32

Network 32

Power 32

Certification 32

Contents

Modbus TCP Module

Installation Guide

1 Safety

1.1 Disclaimer

The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is

subject to change at any time and without prior notice. Responsibility or liability is never accepted for direct, indirect, or consequen-

tial damage resulting from the use or application of this equipment.

1.2 Warnings

WARNING

SHOCK HAZARD

Attaching or removing accessories while the soft starter is connected to mains voltage may cause personal injury.

Before attaching or removing accessories, isolate the soft starter from mains voltage.

WARNING

RISK OF PERSONAL INJURY AND EQUIPMENT DAMAGE

Inserting foreign objects or touching the inside of the soft starter while the expansion port cover is open may endanger person-

nel and can damage the soft starter.

Do not insert foreign objects in the soft starter with the port cover open.

Do not touch the inside of the soft starter with the port cover open.

Safety

Modbus TCP Module

Installation Guide

•

2 Introduction

2.1 Product Design

The Modbus TCP Module allows the soft starter to connect to an Ethernet network and be controlled or monitored using an Ether-

net communication model.

Familiarity with Ethernet protocols and networks is required to operate the device successfully. For difficulties arising from using

this device with 3rd-party products, including PLCs, scanners, and commissioning tools, contact the relevant supplier.

2.2 Compatibility

The Modbus TCP Module is compatible with the following Danfoss soft starters:

MCD 200: 24 V AC/V DC and 110/240 V AC control voltage.

MCD 500: All models.

NOTICE

The Modbus TCP Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.

2.3 Product Versions

The Modbus TCP Module is available in 2 different versions. The part number is printed on the label on the side of the module.

175G9904 MCD Modbus TCP Module

Monitor and control the soft starter over a Modbus TCP connection.

175G9914 MCD Modbus TCP Module

Monitor and control the soft starter over a Modbus TCP connection.

Monitor and control the soft starter over a TCP connection using VLT® Motion Control Tool MCT 10, refer to the VLT® Motion

Control Tool MCT 10 Operating Guide.

The register addresses for status reporting differ for 175G9904 and 175G9914.

This installation guide is suitable for use with 175G9914. For the manual for 175G9904, contact the local supplier.

2.4 Network Connection

Table 1: Supported Protocols

Protocols

Modbus TCP

Industrial Ethernet via Modbus TCP

TCP

Transmission control protocol to connect to port 4000 of a PC

MQTT

Message queue telemetry transport

OPC UA

Open platform communications unified architecture

Introduction

Modbus TCP Module

Installation Guide

4/T2

READY RUN TRIP LOCAL

Exit

Reset

Store

2/T1 6/T3

1/L1 3/L2

5/L3

VLT

Soft Starter

e77ha805.10

Illustration 1: Overview of Network Connections

Soft starter

Network switch

IoT connection (MQTT/OPC UA)

Industrial Ethernet connection to programmable

logic controller

TCP connection to VLT® Motion Control Tool MCT

10. Refer to the VLT® Motion Control Tool MCT 10

Operating Guide for connection details.

Introduction

Modbus TCP Module

Installation Guide

3 Installation

3.1 Installing the Communication Module

CAUTION

EQUIPMENT DAMAGE

If mains and control voltage are applied when installing or removing options/accessories, it may damage the equipment.

Remove mains and control voltage from the soft starter before installing or removing options/accessories.

Procedure

Remove control power and mains supply from the soft starter.

Fully pull the top and bottom retaining clips on the module.

e77ha833.10

Installation

Modbus TCP Module

Installation Guide

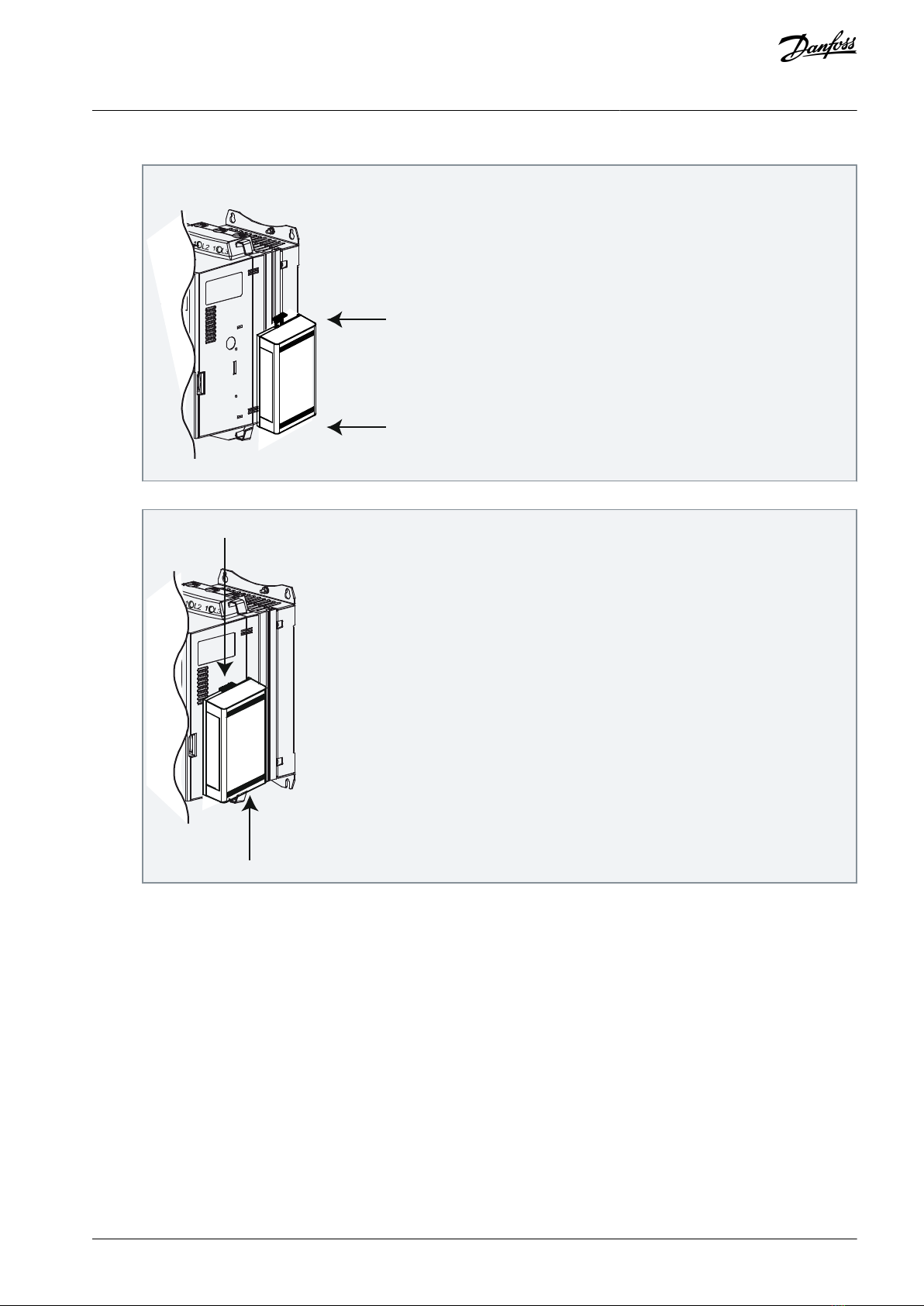

Line up the module with the comms port slot.

e77ha834.10

Push in the top and bottom retaining clips to secure the module to the soft starter.

e77ha835.10

Connect Ethernet Port 1 or Port 2 on the Modbus TCP Module to the network.

Apply control power to the soft starter.

Installation

Modbus TCP Module

Installation Guide

4 Connection

4.1 Soft Starter Connection

The Modbus TCP Module is powered from the soft starter.

NOTICE

The Modbus TCP Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.

e77ha620.10

Illustration 2: Connecting MCD 200

Soft starter

A1, N2: Stop input

Modbus TCP Module

RJ45 Ethernet ports

e77ha621.10

Illustration 3: Connecting MCD 500

Soft starter (remote mode)

17, 18: Stop input

25, 18: Reset input

Modbus TCP Module

RJ45 Ethernet ports

4.2 Network Connection

4.2.1 Ethernet Ports

The device has 2 Ethernet ports. If only 1 connection is required, either port can be used.

4.2.2 Cables

When connecting to the device, make sure that the cables are of 1 of the following categories:

Connection

Modbus TCP Module

Installation Guide
