Danfoss Link CC Manuel utilisateur

Danfoss Link™ CC Central Controller

Installation Guide

www.danfoss.com

Installation Guide Danfoss Link™CC

Danfoss Heating Solutions VISGL90N 12/2014

Installation Guide Danfoss Link™CC

Installation Guide.................................................. 5

Installationsanleitung ............................................39

Guide d’installation ...............................................73

Installationsvejledning...........................................107

Installatiehandleiding............................................141

Installationsguide ...............................................175

Guía de instalación.............................................. 209

Danfoss Heating Solutions VISGL90N 12/2014

Installation Guide Danfoss Link™CC

412/2014 VISGL90N Danfoss Heating Solutions

Installation Guide Danfoss Link™CC

Danfoss Heating Solutions VISGL90N 12/2014

Content

1. Quick guide for installation ........................................ 7

2. Introduction ...................................................... 8

3. Guidelines for installation ......................................... 9

3.1. Correct installation plan............................................10

3.2. Incorrect installation plan ..........................................11

3.3. How and when to use repeater units ...............................12

3.4. Where to place repeater units ......................................13

4. Installation....................................................... 15

4.1. Adding devices to the system ......................................16

4.2. Connecting power,setting country, language and date/time........16

4.3. Starting up the installation menu ..................................17

4.4. Mounting Mains powered devices..................................17

4.5. Adding service devices.............................................18

4.6. Mounting battery operated devices ................................19

4.7. Creating rooms ....................................................19

4.8. Adding room devices ..............................................20

4.9. Performing a network test .........................................21

4.10. Finalizing installation ..............................................22

Installation Guide Danfoss Link™CC

612/2014 VISGL90N Danfoss Heating Solutions

5. Modifying an existing installation.................................23

5.1. Adding devices to an existing room ................................23

5.2. Changing parameters for Heat Regulations.........................24

5.3. Removing a room or service device from the network ..............26

5.4. Factory reset of Danfoss Link™ CC ..................................28

6. Wi-Fi and App connection.........................................29

6.1. Connect to Wi-Fi ...................................................29

6.2. Connect to App....................................................30

6.3. Edit connected devices ............................................31

7. Upgrading software version ......................................32

8. Warnings.........................................................33

8.1. Alert icons .........................................................34

9. Technical specications and approvals ............................35

10.Disposal instructions .............................................38

Installation Guide Danfoss Link™CC

Danfoss Heating Solutions VISGL90N 12/2014

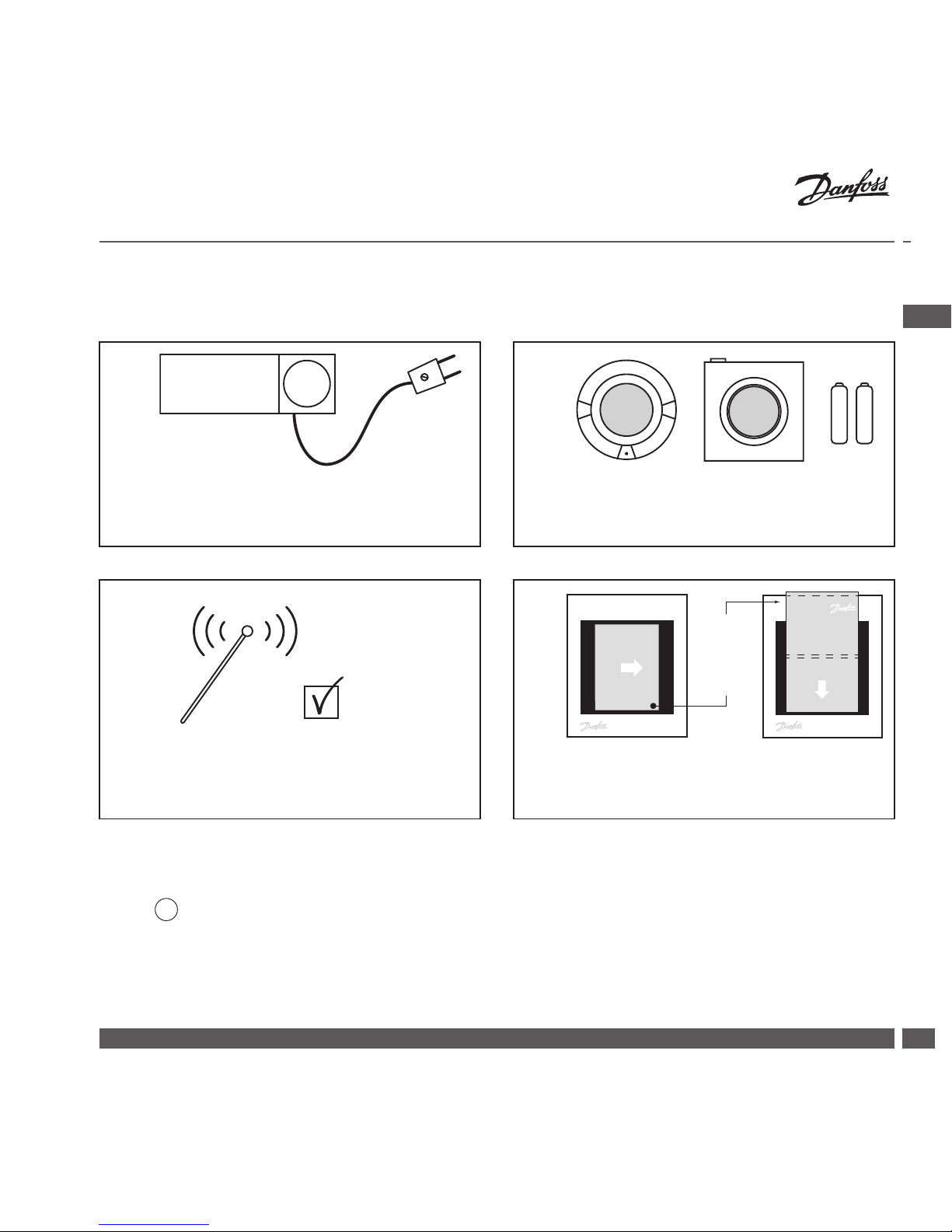

1. Quick guide for installation

1. 2.

Install all mains powered devices

rst, and add to network.

Create rooms and add battery opera-

ted devices one by one.

“O

K”

www.link.danfoss.com

Information

Manual

Updates

www.link.danfoss.com

Welcome

Wilkommen

Velkommen

Välkommen

Powitanie

Bienvenue

Welkom

Bienvenido

Vitán

Teretulnud

Gaidīts

Tervetuloa

Information

Manual

Updates

Unfold

and

place

Perform the network test with the

Danfoss Link™ CC in its nal position.

Place the hanger onto the Danfoss

Link™ CC.

Tips!

• The

key can be used at any point during installation.

• Always look for the latest software version at www.link.danfoss.com before instal-

lation. See chapter 7: Upgrading software version.

Installation Guide Danfoss Link™CC

812/2014 VISGL90N Danfoss Heating Solutions

2. Introduction

Danfoss Link™ is a programmable, wireless control

system for heating systems in residential buildings (up

to approximately 300 m2).

The central controlling unit is the Danfoss Link™ CC

equipped with a colour touch screen, from which the

entire installation can be controlled.

This installation guide contains all information about

the Danfoss Link™ CC and how to get started. It guides

through recommendations and considerations that

must be taken into account when handling a wireless

system - and it describes conguration of the system,

to ensure a smooth and reliable system set-up.

Individual instructions, supplied with the service and room devices, contain

information about connecting the respective device to the network. The in-

struction will also state if the device is considered a service or a room device.

Installation Guide Danfoss Link™CC

Danfoss Heating Solutions VISGL90N 12/2014

3. Guidelines for installation

The signal strength is sucient for most applications, however, wireless signals

are weakened on the way from the Danfoss Link™ CC to the room devices and

each building has dierent obstacles.

Ensure the best performance by keeping the following in mind for planning and

installation:

• Max. 30 m between devices in free space.

• Receiving devices should be placed on opposite or next wall as the transmitter,

if possible.

• All metallic parts in the building construction can weaken wireless signals.

• Reinforced concrete walls and oors weaken the signal strength signicantly,

but almost all types of construction materials reduce the signal to some

degree.

• Corners, which is a result of the design of the building, can weaken the wireless

signals, due to either a longer distance or missing reecting opportunities.

Note!

To get a good overview of the devices in each rooms, and their placement, Danfoss

recommends that an installation plan is made before beginning the actual installation.

Installation Guide Danfoss Link™CC

10 12/2014 VISGL90N Danfoss Heating Solutions

3.1. Correct installation plan

No metal objects between the Danfoss Link™ CC and other wireless Danfoss

units.

The Danfoss Link™ CC is installed as central as possible on the oor plan

(max. 30 m between devices in free space).

Wireless signal through walls on shortest possible diagonal distance.

Danfoss

Link™ RS

(room device)

Metal

object

living connect®

(room device)

living connect®

(room device)

Danfoss Link™ CC

Danfoss

Link™ HC

(service device)
