Danelec DM100-2014 Manuel utilisateur

Operator’s Manual

For the DM100-2014 VDR

Document Number DBS11011

Version Number 1.2

Date June 2014

P/N (hard copy) 9302721-12

Operator's Manual for the DM100-2014 VDR

Revision record

Version

Date

Description

1.0

April 2014

Original issue of document

1.1

May 2014

Minor revision

1.2

June 2014

Minor revision

DBS11011-12 Page 2/27

Operator's Manual for the DM100-2014 VDR

Contents

REVISION RECORD ...........................................................................................................2

1SCOPE AND PURPOSE ..........................................................................................5

1.1 References................................................................................................................5

1.2 Terms and Abbreviations ..........................................................................................5

2SYSTEM OVERVIEW ...............................................................................................6

2.1.1 Data Acquisition Unit (DAU)...............................................................................6

2.1.2 VDR Bridge Control Panel (BCP).......................................................................6

2.1.3 Bridge Microphone Units (BMU) ........................................................................6

2.1.4 Fixed capsule.....................................................................................................7

2.1.5 Float-free capsule ..............................................................................................7

2.1.6 Remote Video Interface (RVI)............................................................................7

2.1.7 Sensor Interface Unit (SIU)................................................................................7

2.2 Maximum number of supported interfaces ................................................................8

3OPERATION.............................................................................................................9

3.1 Bridge Control Panel.................................................................................................9

3.1.1 Alarm display .....................................................................................................9

3.1.2 Self-test – Operational Performance Test..........................................................9

3.1.3 Setting the display brilliance level to default ......................................................9

4OPERATION OF THE DM100 DAU .......................................................................10

4.1 Data Processing Unit (DPU)....................................................................................11

4.1.1 Power LEDs.....................................................................................................11

4.1.2 AC breaker.......................................................................................................11

4.1.3 AC inlet ............................................................................................................11

4.1.4 Battery switch...................................................................................................12

4.1.5 VDR status LED...............................................................................................12

4.1.6 Main CPU LED.................................................................................................12

4.1.7 LEDs in the Ethernet connectors .....................................................................12

5OPERATION OF THE NON-MODULAR COMPACT SIU ......................................13

5.1 LEDs on the Uni-rack ..............................................................................................13

5.1.1 AC LED............................................................................................................13

5.1.2 AC breaker.......................................................................................................13

5.1.3 Ethernet link and activity indicators..................................................................14

5.1.4 UR address......................................................................................................14

6OPERATION OF THE MODULAR SIU ..................................................................15

6.1 LEDs on Module Rack ............................................................................................15

6.1.1 AC LED............................................................................................................15

6.1.2 Link indications ................................................................................................15

DBS11011-12 Page 3/27

Operator's Manual for the DM100-2014 VDR

6.1.3 AC breaker.......................................................................................................15

6.1.4 LEDs in the Ethernet connector .......................................................................16

6.1.5 Allocation of system labels for digital interfaces...............................................16

6.1.6 MR address......................................................................................................16

7OPERATION OF STANDARD RVI 02-004 AND RVI 02-004D (POE) ...................17

7.1 Operation of RVI with AC power supply..................................................................18

7.1.1 RVI address .....................................................................................................18

7.1.2 Ethernet ports ..................................................................................................18

7.1.3 ST LED ............................................................................................................18

8ERROR CODES .....................................................................................................19

8.1 Error codes .............................................................................................................19

9SERVICE AND MAINTENANCE ............................................................................27

9.1 Verification of the VDR functionality following service on any sensor .....................27

9.2 List of most common spare parts ............................................................................27

DBS11011-12 Page 4/27

Operator's Manual for the DM100-2014 VDR

1 Scope and purpose

Operator's Manual for the DM100-2014 VDR. The DM100-2014 complies with IEC 61996-1 Ed.2

which applies to VDRs installed from 1st of July 2014.

1.1 References

DBS10704 Installation Manual for DM100/DM400 VDR compact Sensor Interface Unit

DBS10956 Installation Manual for DM100-2014 VDR

DBS11010 Inspectors and Authorities Manual for DM100-2014 VDR

DBS10919 Installation Manual for Remote Video Interface with PoE RVI 02-004, RVI 02-004D

9200327 Installation Manual for DM400, DM500 VDR Sensor Interface Unit

9200331 Installation Manual for Remote Video Interface for DM200, DM300, DM400, DM500

1.2 Terms and Abbreviations

BCP Bridge Control Panel

BMU Bridge Microphone Unit

DAU Data Acquisition Unit

DPU Data Processing Unit (located inside the DAU)

OPT Operational Performance Test (self-test according to IEC 61996-1 Ed.2)

SIU Sensor Interface Unit

RVI Remote Video Interface

NAS Network attached storage (option used for external extended backup)

DBS11011-12 Page 5/27

Operator's Manual for the DM100-2014 VDR

2 System overview

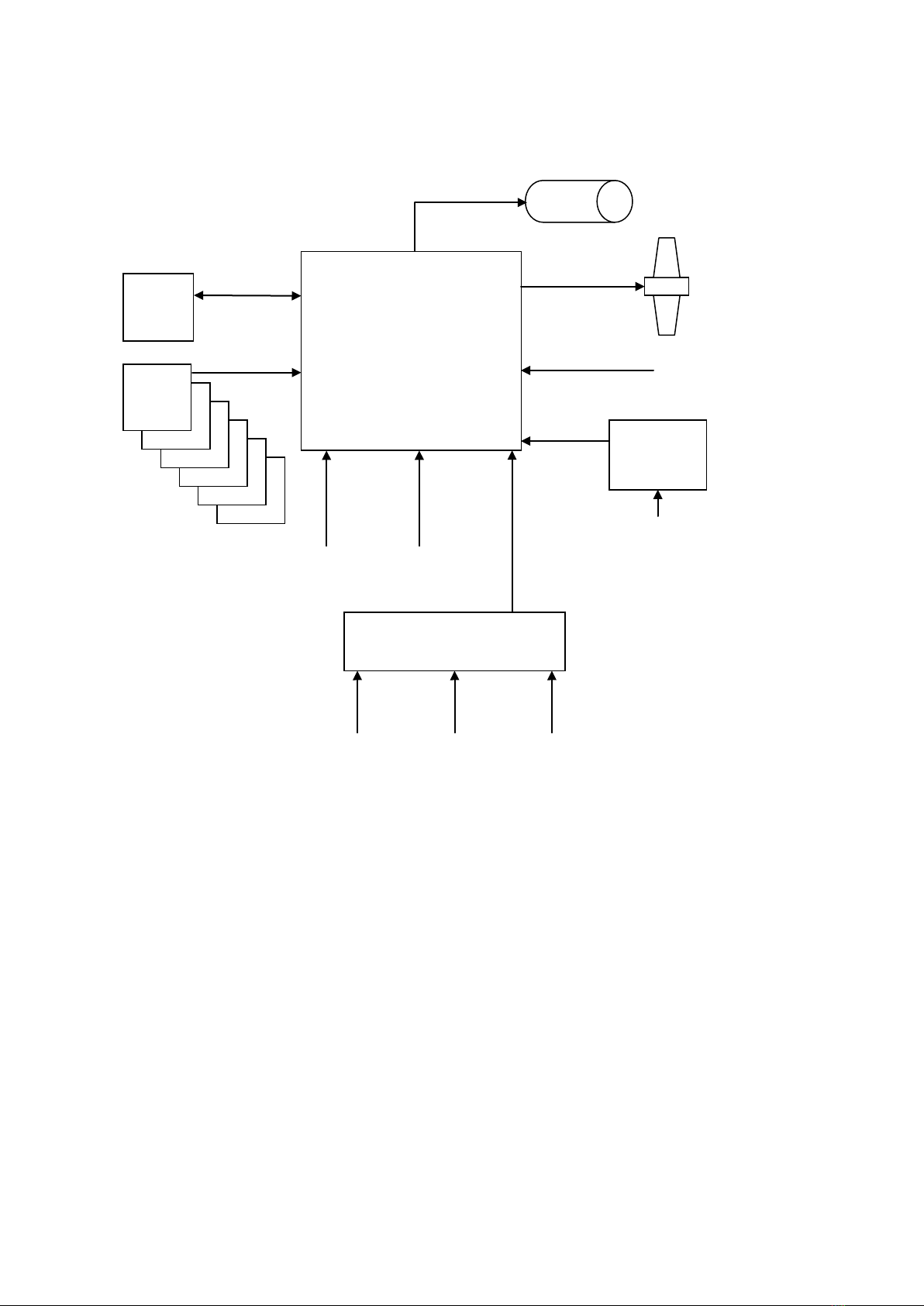

VDR System overview (typical configuration)

2.1.1 Data Acquisition Unit (DAU)

The Data Acquisition Unit contains the Data Processor Unit (DPU). The DAU must be installed

indoors in the proximity of the bridge.

2.1.2 VDR Bridge Control Panel (BCP)

The BCP must be installed on the bridge either in a console or mounted on a bulkhead. The BCP is

the interface for the VDR Operational Performance Test which must be carried out regularly. VDR

system errors will also be shown here as a caution (steady yellow light).

2.1.3 Bridge Microphone Units (BMU)

A number of BMUs must be installed on the bridge (console, ceiling or bulkhead mounted).

Watertight outdoor BMUs for the bridge wings are available.

BMU

DAU

Fixed

Capsule

BMU

SIU

Digital inputs (64)

BCP

Ethernet

STP CAT5

VHF

6 x BMU

Serial inputs (8)

Video inputs (2)

Analog or DVI from

e.g. RADAR

Optional

Remote

Video I/F

Ethernet PoE

STP CAT5

Serial inputs (12)

e.g. GPS

Analog inputs (8)

Ethernet PoE

STP CAT5

Ethernet PoE

STP CAT5

Ethernet PoE

STP CAT5

Ethernet STP

CAT5/CAT6

Images from

RADAR and ECDIS

Float-free

capsule

DBS11011-12 Page 6/27

Operator's Manual for the DM100-2014 VDR

2.1.4 Fixed capsule

The fixed data capsule (“the orange box”) must be installed on an “external deck close to the

vessels center line” - typically on the external deck above the bridge.

2.1.5 Float-free capsule

The float-free capsule is an additional data capsule which is required according to IEC 61996-1

ed2.0. It must be installed in the same way as an EPIRP.

2.1.6 Remote Video Interface (RVI)

The RVI is optional equipment. An RVI may be used to capture video from, for example, a

RADAR which is unable to send images to the VDR using Ethernet; i.e. typically older equipment.

The RVI must be installed indoors, normally close to the RADARs. It must be connected to the

DAU with a cable which may be up to 100m in length.

2.1.7 Sensor Interface Unit (SIU)

The SIU is optional equipment. An SIU is needed if, for example, door status cannot be provided

using a serial or Ethernet interface on the VDR.

A standard non-modular compact SIU has 8 serial interfaces, 8 analog interfaces and 64 digital

interfaces. A modular SIU also exists which can be configured to have other combinations of

interfaces. The SIU must be installed indoors. It must be connected to the DAU with an Ethernet

cable up to 100m long.

DBS11011-12 Page 7/27

Operator's Manual for the DM100-2014 VDR

2.2 Maximum number of supported interfaces

If needed, additional equipment may be used to make larger or non-standard configurations. The

maximum number of supported interfaces for a VDR is listed below:

Type of input

Maximum configuration

Ethernet interfaces*

7 on DAU

Serial inputs

40 (12 on DAU + 3 modules)

Analog inputs

32 (2 modules)

Digital inputs

128 (8 modules)

Audio inputs

14 (10 on DAU + 4 on RAI )

Video inputs**

4 (2 RVIs)

* For configuration of the VDR, acquiring network data and acquiring image data.

** The VDR records up to 8 image tracks. Four of these tracks may be used for recording images acquired by a Remote

Video Interface (optional equipment).

DBS11011-12 Page 8/27

Operator's Manual for the DM100-2014 VDR

3 Operation

3.1 Bridge Control Panel

The BCP is the primary user interface for an installed operational VDR. It serves two purposes:

•Alarm (caution) display

•Interface for initiating VDR self-test (Operational Performance Test)

3.1.1 Alarm display

The VDR will generate an alarm message (caution) if a system error is detected. An alarm message

will be displayed on the BCP and the yellow caution indicator will be illuminated. No audible alarm

will be generated and alarms should not be acknowledged. Alarm messages will be cleared and the

caution indicator turned off when the cause of error is resolved.

3.1.2 Self-test – Operational Performance Test

An Operational Performance Test (OPT) of the VDR must be carried out regularly, and always after

service and maintenance which may affect the operation of the VDR. An OPT is best done while

the vessel is en route and all navigation equipment is switched on. A service agent must be

contacted if the OPT report shows problems which cannot be fixed by the master on the vessel.

Click on “F2” and follow the instructions in order to carry out an OPT.

3.1.3 Setting the display brilliance level to default

Pressing the DIM bottom for 5-7 seconds will restore the display brilliance level.

DBS11011-12 Page 9/27

Operator's Manual for the DM100-2014 VDR

4 Operation of the DM100 DAU

The door to the DAU must be locked after the VDR has been installed and is operating normally.

This section of the manual is only relevant during installation and service.

VDR status

LED

AC inlet

Program

memory

I/F to

IAS

I/F for

BCP

Service

console

Ethernet

ports

VGA

interface

Audio

interfaces

DPU

AC breaker

Power status

LEDs

Battery

switch

Interfaces

for serial data

Termination

resistors for

SI00 - SI03

Main CPU

status LED

Service mode

switch

I/F for

capsule

I/F for

RDI

I/F for

RVI

I/F for

SIU

I/F for

float-free

DBS11011-12 Page 10/27
