Dancover 5.4m Series Manuel utilisateur

5.4m serie

Garage tent

Manual

23-12-2013

Safety Advice

Attention

In some countries approval is needed to set up a marquee/tent larger than 75 m2. It

is your responsibility to comply with local rules and regulations and to ensure that

the marquee/tent is assembled correctly.

In case of bad weather conditions, it is your responsibility to ensure the

marquee/tent is safely secured and that the marquee/tent does not cause damage

to others.

close to the tent.

The marquee/tent must be safely secured. We recommend you secure your

marquee/tent with straps and pegs as soon as it is assembled.

Make sure to check if the marquee/tent is covered by your home contents insurance.

Marquees/tents must be evacuated under extreme weather conditions.

In the event of snow always remove snow from the roof of the marquee/tent

regularly to prevent snow from building on the roof as heavy snow can cause the

marquee/tent to collapse.

In the event of rain there is a risk of rain puddles building up on top of the roof of the

marquee/tent. Heavy rain puddles can cause the roof to collapse. It is your responsi-

bility to ensure rain puddles do not build up. As a precaution, make sure theroof of

the marquee/tent is stretched out properly and adequately over the side frames of

the marquee/tent and remove rain water regularly.

Please always check our website for the latest safety advice and manuall.

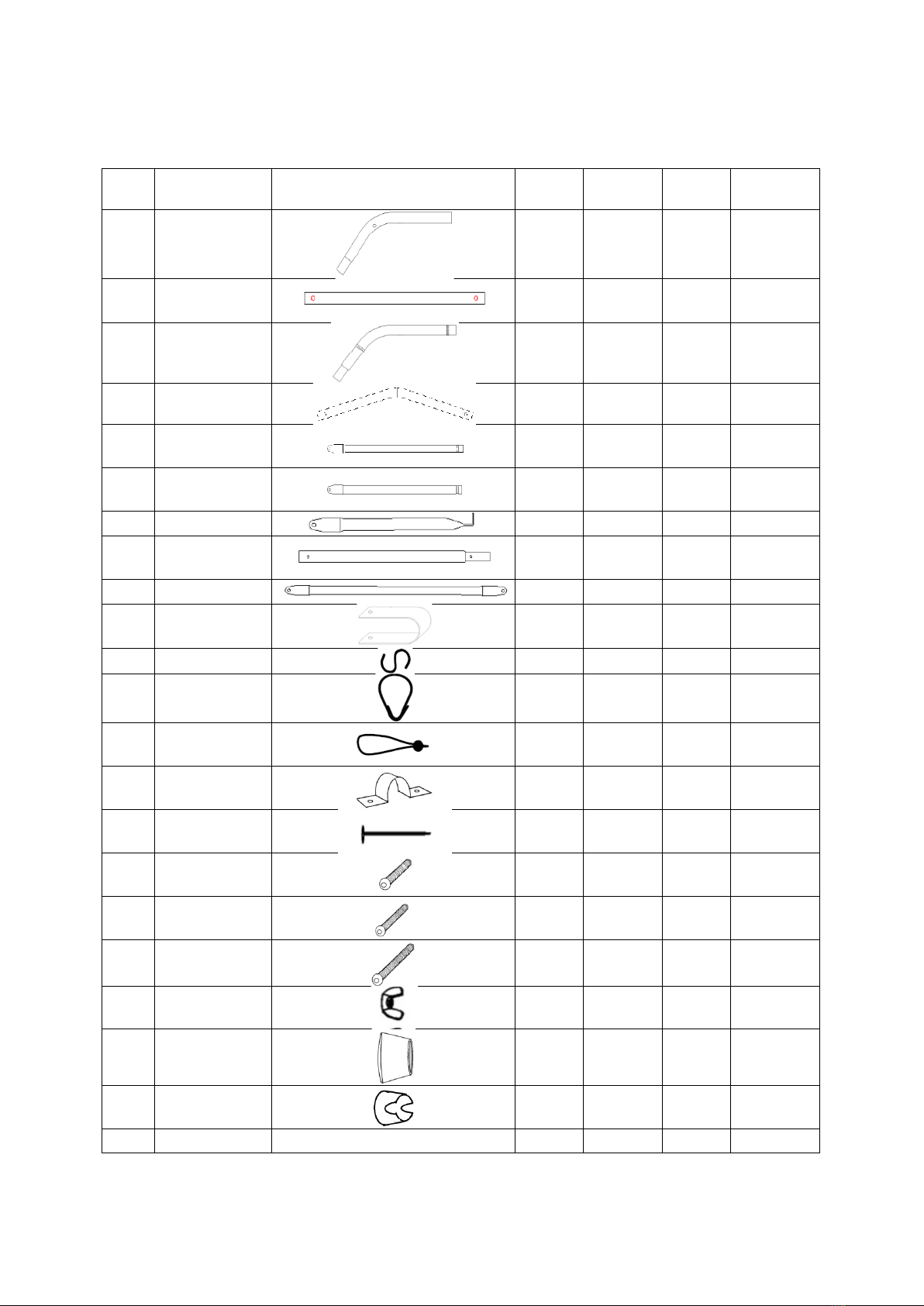

Part

no. Description 6m

7,5m

10,5m

Corner Arch

12 14 16

Female brace

60’’

7 7 7 7

Leg

12 14 16

Center Arch

5 6 7 8

Male Door

Rail

5 6 7 8

Female Door

Rail

5 6 7 8

T-Bar

5 6 7 8

Male brace

63’’

28 35 42

Diagonal 80’’

4 4 4 6

Pipes holder

12 14 16

S Hook

32 32 32 32

Big Door Rail

Hook

28 28 28 28

Elastic

Bungee

32 32 32 32

Floor Bracket

8 8 8 8

Nail

16 16 16

Carriage Bolts

1 ¾’’

6 7 8 9

Carriage Bolts

2 1/2’’

13 15 17

Carriage Bolts

4’’

27 33 38 43

Wing nuts

55 66 77 88

Big Plastic

Caps for legs

12 14 16

Small Plastic

Caps for cross pipe

14 14

Roof

1 1 1 1

PARTLIST FOR 5.4m series

23-12-2013

DEAR CUSTOMER

Please use gloves when assembling the metal frame portion of this unit.The metal components of this

product have been treated with a rust preventive coating that may feel oily to the touch. This coating is

not dangerous, but may dirty your hands during assembly. We recommend that you wipe metal parts

clean with a mixture of warm water and dish detergent prior to assembly. Should your hands become

dirty, simply was with soap and water.

ASSEMBLY INSTRUCTIONS

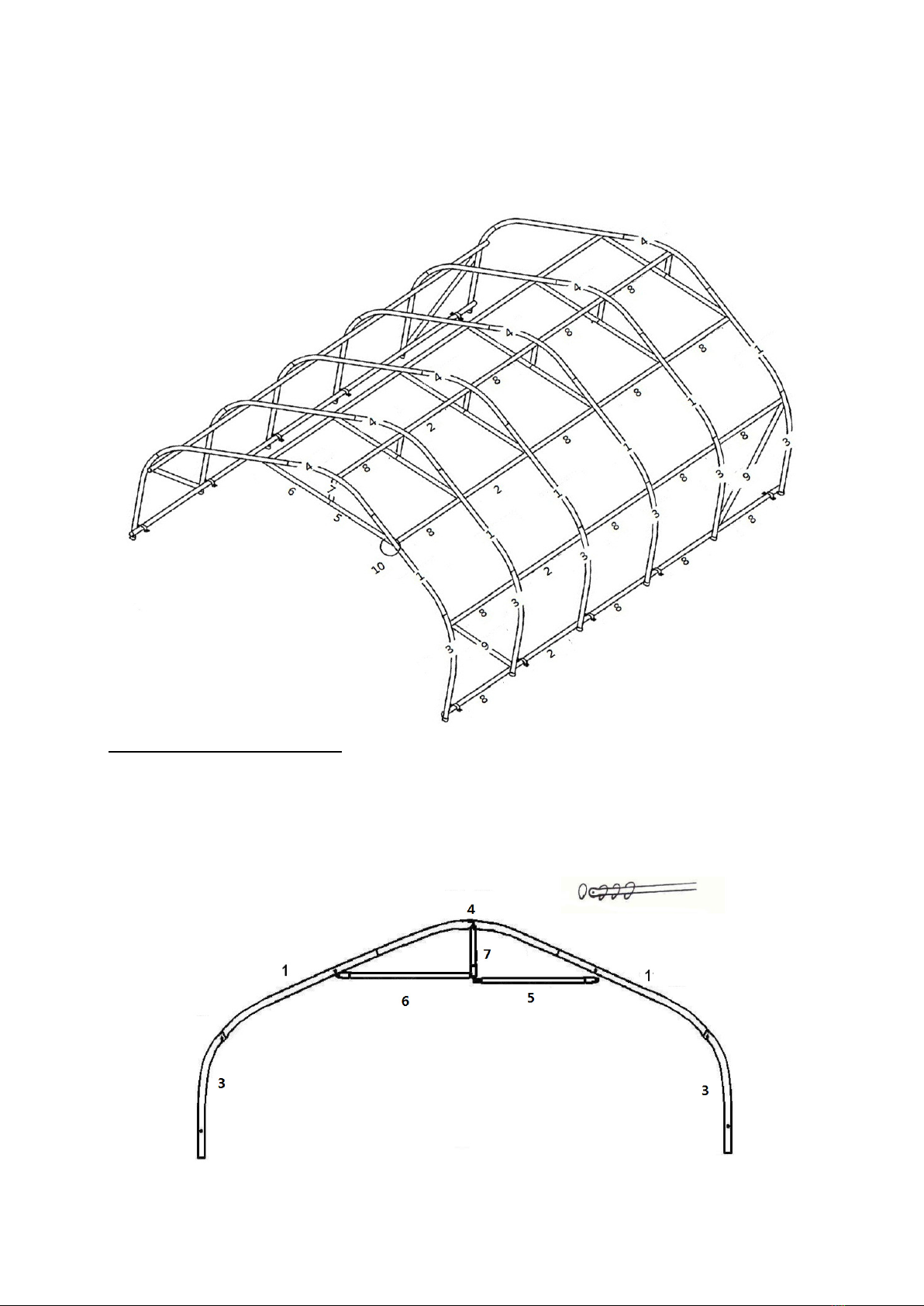

1. Take a Center Arch ( no.4 ) and on each end of it, assemble a Corner Arch ( no.1 ).

Secure the Male and Female Door ( no.5 ) and ( no.6 )to the arch ( no.1 ) with the pipes

holder ( no.10 ).

2. Slide the Rail Hooks over the Door Rails before tightening. Add the T-Bar(no.7 ) to the

Door Rails and the center arch.

3. On each end of (no.1), install the Leg (no.3). Repeat step 1 for all frames.

4. At this point stand up the front or back frame and add 7 male connecting pipes ( no.8 ).

Then stand up another frame and add 7 female connecting pipes ( no.2 ). For the remaining

frames use the male connecting pipes ( no.8 ).

5. Add the diagonals (no.9) to the rst and last legs (no.3 ).

Note : Make sure all screws are tight. Do not over-tighten.

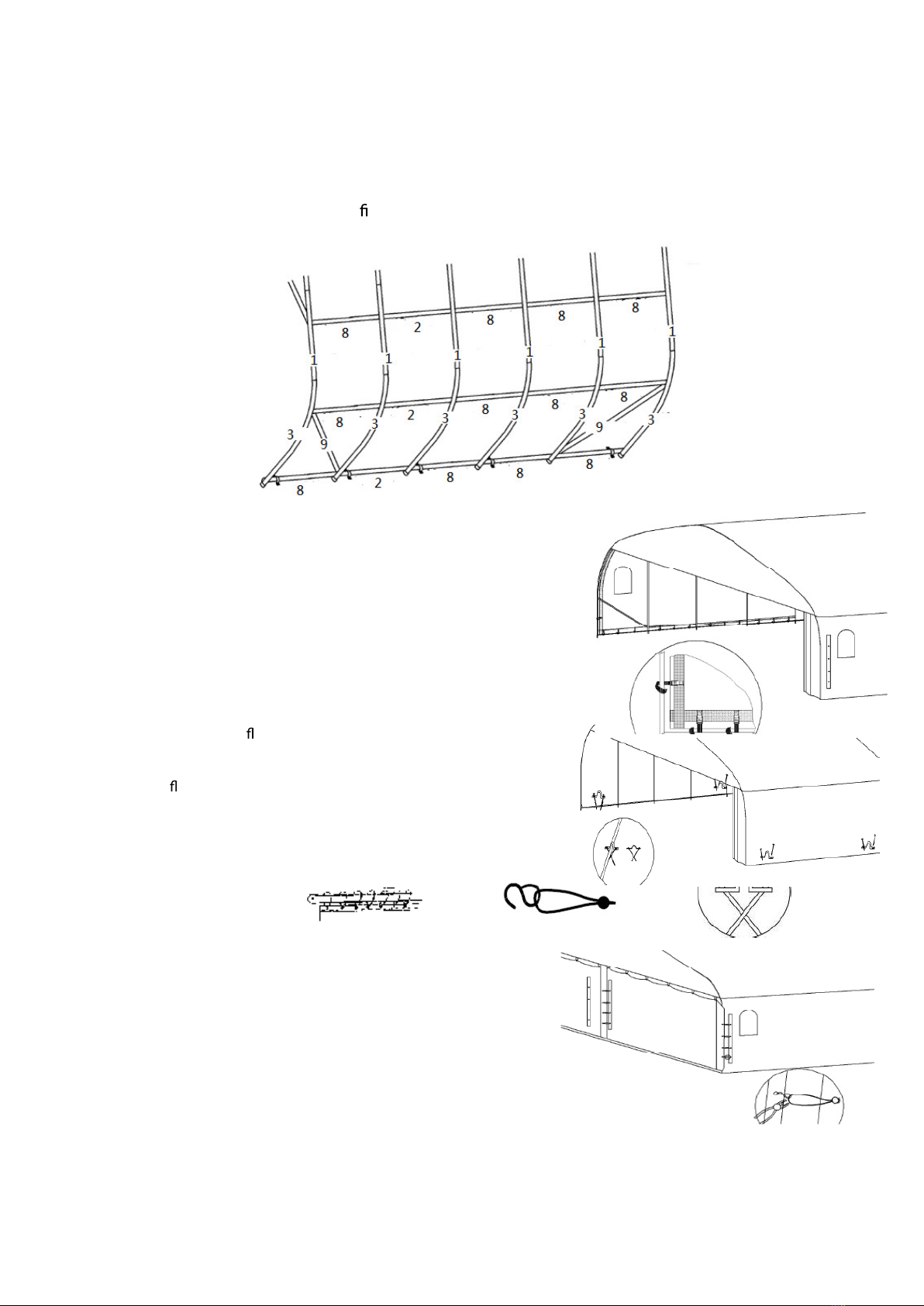

6. ROOF ASSEMBLY

Take the roof and place it over the structure. Make sure that

the windows are on the two sides of the shelter, at front or at

back as your choice. Make sure ties are inside.

Tie all the ties around the pipes. Take the straps and pass

them underneath the pipes, pull up and tighten through metal

buckle.

7. SHELTER REINFORCEMENT

Before you install the oor brackets, make sure the distance

between the legs is 18 feet wide.

Place the oor brackets (14) at each end of the shelter. Then

drive in nails (15) into ground, gravel or asphalt. Other

material surfaces require other types of anchoring (cement

blocks, sand bags, screws and bolts, etc). Permanent anchors

are not provided with this unit.

8. DOOR INSTALLATION

Install doors at each end. Use elastics (13) to attach the door

to the roof with hooks (11). Close the end of hook on to the

elastic so it won’t fall on out. Use the rail hooks to attach

door the door rails. When closing at the front, make sure all

elastics are attached on the inside and outside of the shelters.
