Dancing Wings Hobby Tiger Moth V2.0 Manuel utilisateur

Wingspan:1400mm

Length:1100mm

Flying Weight:2200-2800g

Suggested Motor:EP Φ42mm Thrust≥2.5Kg

GP 40 class or 6-10cc

Suggested ESC:60-80A

Suggested Servo≈17g*4

Suggested Battry:4S 4000-6000mAh

Hobby Knife

Heat Source（Soldering iron&Lighter）

Foam glue

CA glue

SPECIFICATION

SUGGESTED EQUIPMENT

ACCESSORIES

TOOLS NEEDED

Tiger Moth V2.0

Installation Instructions

A15

A14

A31

A22

A1EP/GP

A28

A32

A18

A36

A33 A10

A11

A17

A11

A12

A13

A24

A25

A26

A27

A26

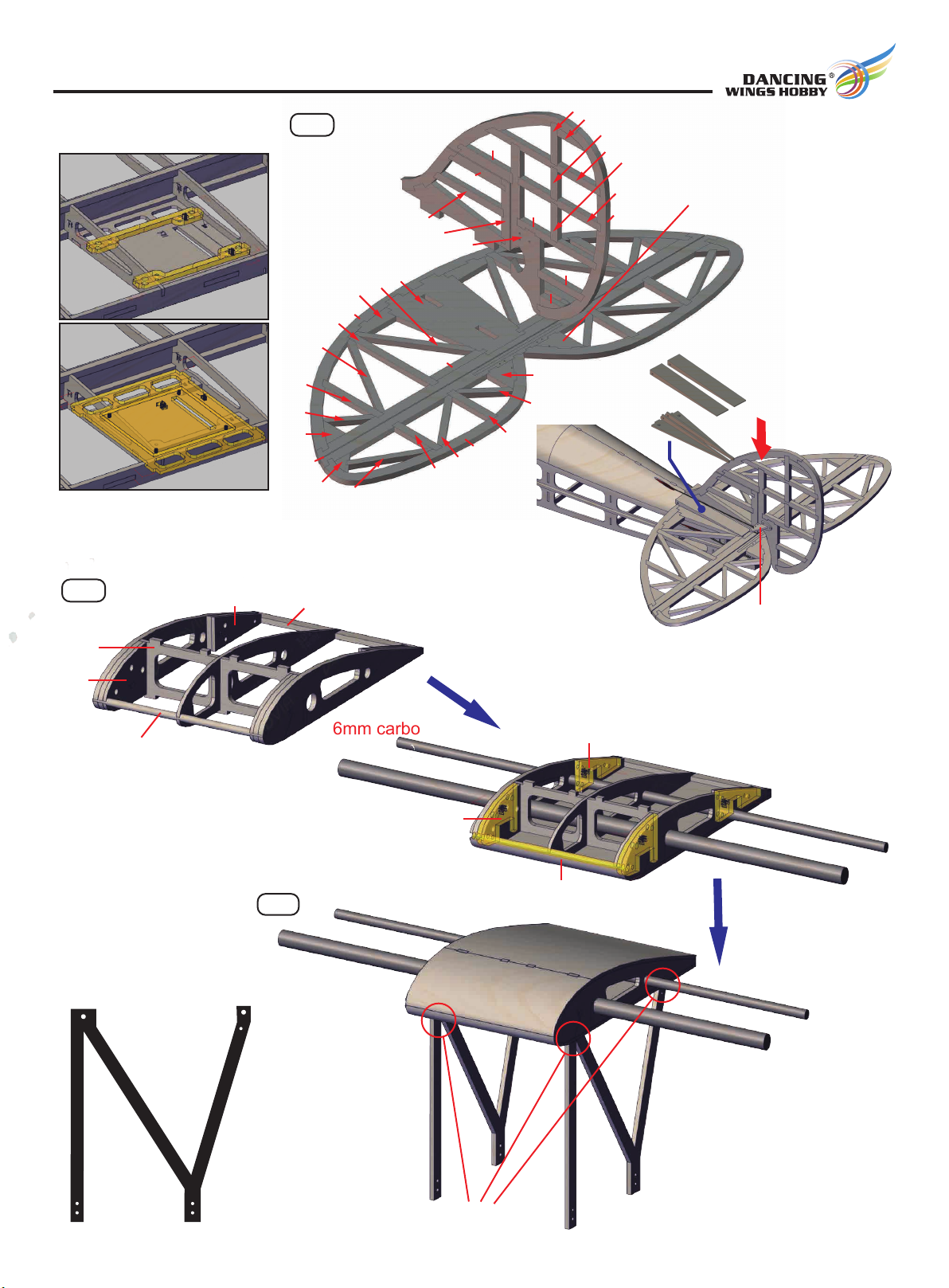

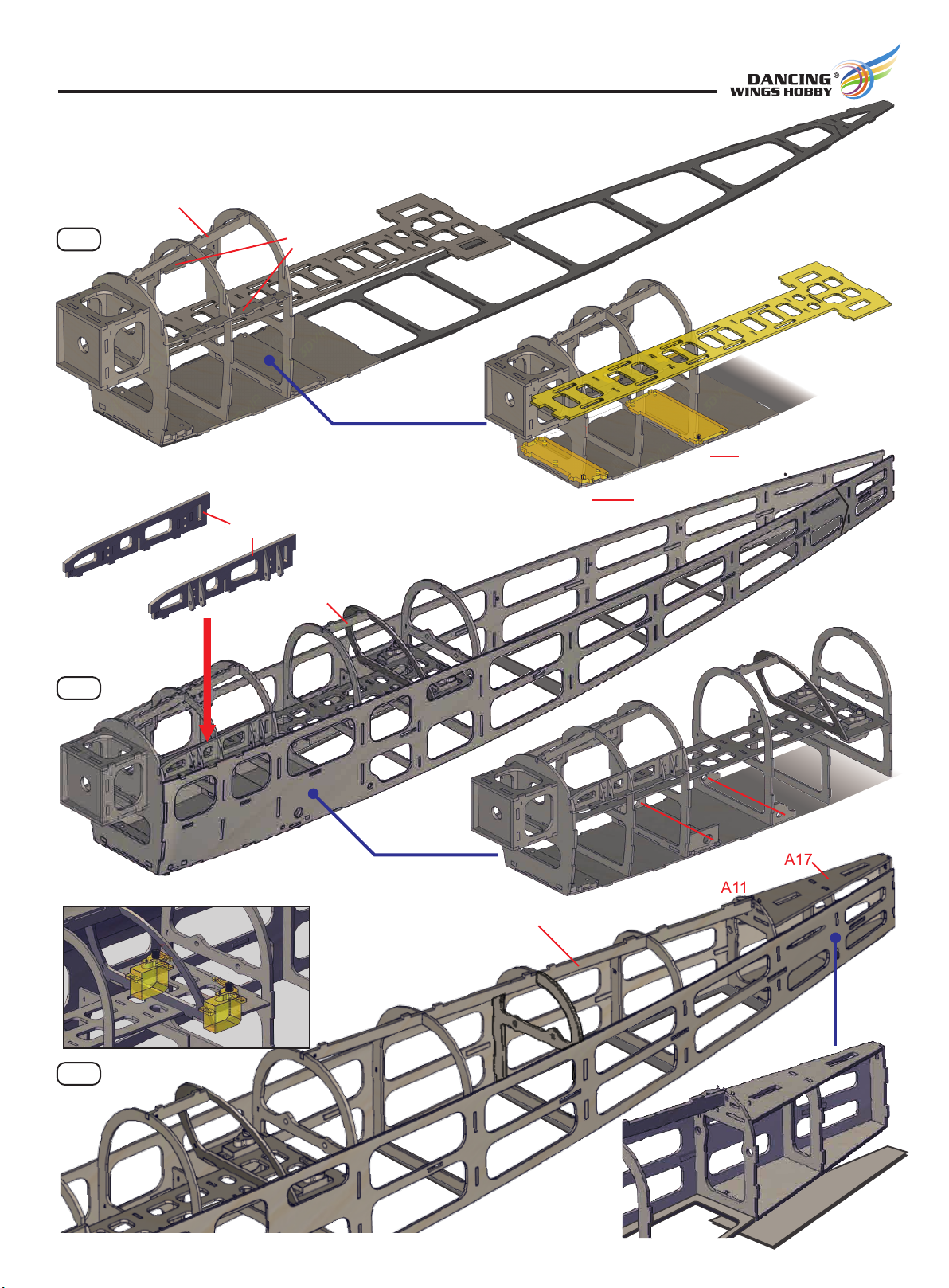

1.Fuselage assembly

1.1

1.2

1.3

A35

A19

P4X2

A14

Servo installation position

A38

Tiger Moth Installation Instructions

A21

A20

A23

4mm carbon pipe

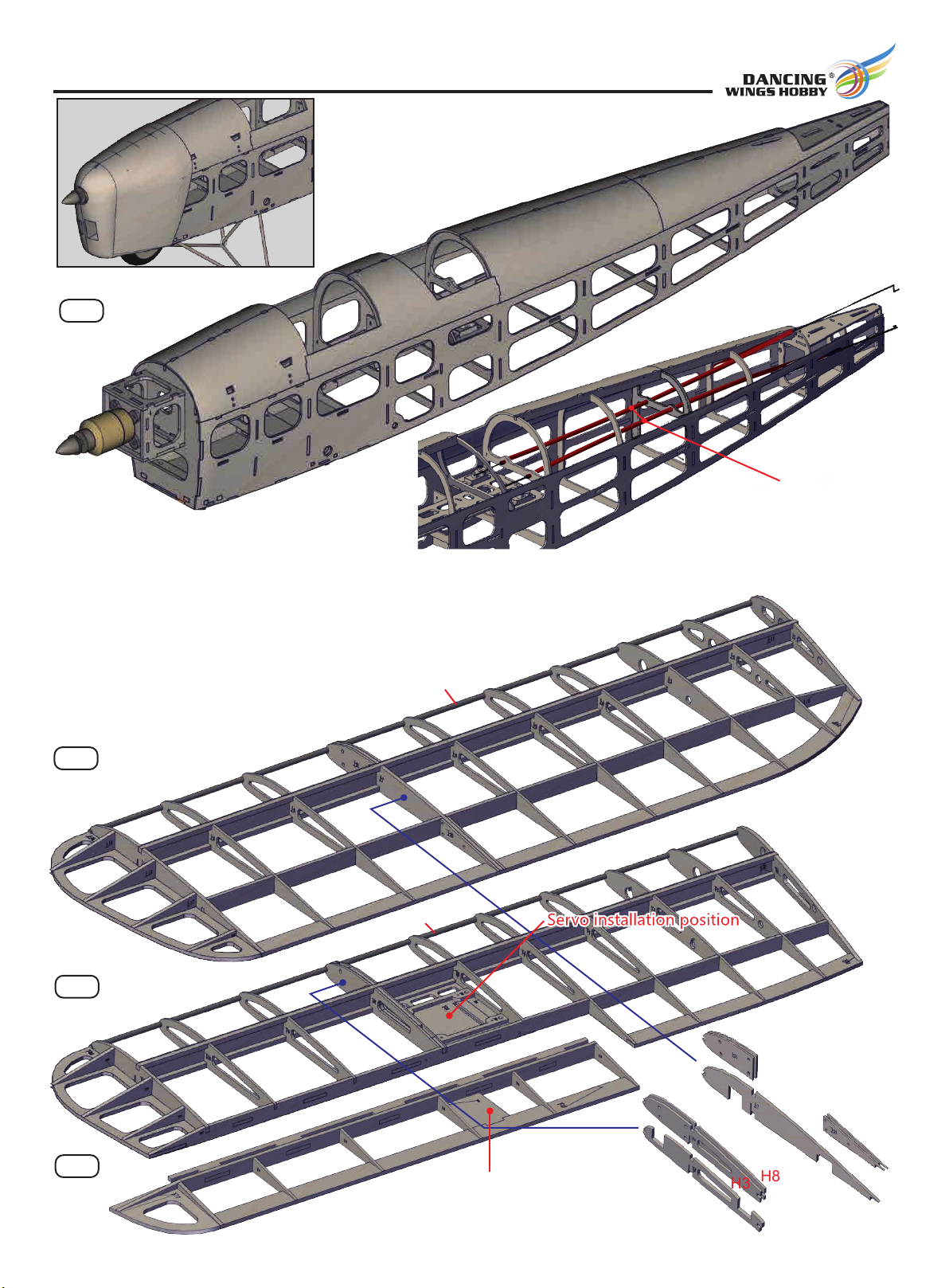

2.Wing assembly (same method for both left and right )

1.4

2.1 Upper wing

2.2 Low wing

4mm carbon pipe

Slightly moisturize the board for

easy winding while assemble the

balsa board on the fuselage.

Servo horn installation position G9 H8

2.3 Aileron

Pls assemble the wing as per the 1:1 plan,and

pay attention to keep the wing horizontal,pls

see the picture as shown below.

Push rod tube

Insert the connection

rod through A7 and A9.

Tiger Moth Installation Instructions

10mm carbon pipe

6mm carbon pipe

D14

D11

D13

D15

D10

D18

C12

C13

C14

C10

C11

C8 C6

D16

D12

D17

Servo horn

installation position

3.Parts assembly

2.4 Tail

H10

4mm carbon pipe

A30

A29

A34

Servo horn

installation position

3.1

3.2

T1 T1

Assemble the servo position

on the wing.

Glue the upper part of the bracket T1.

Tiger Moth Installation Instructions

Installation Method of Accessories Bag

1step

2step

3step

4step

5step

6step

Wheel pants

Wheel

pants

Clip

T2 T3 Clip

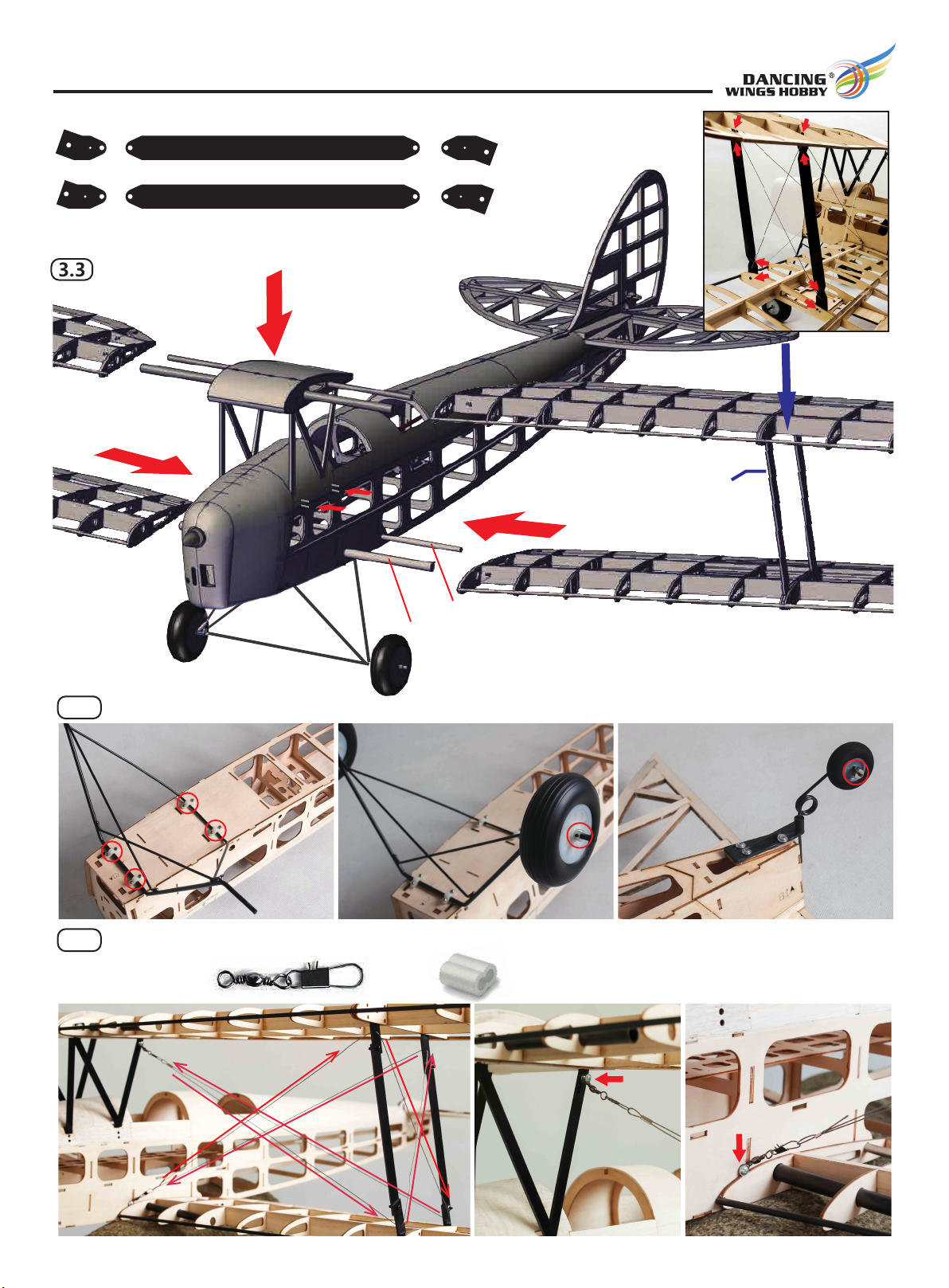

3.3

3.4

3.5

Assemble the Landing Gear

screws

10mm carbon pipe

6mm carbon pipe

T2 T3

screws Dismountable

Dismountable

Clip

screws

removable fastener

Pls assemble the T2 and T3 as per the 1:1 plan.

Tiger Moth Installation Instructions

4.Setting the center of gravity flight

Always check C og G before attempting your very first flight.

Always seek help from those experience flyers if you are on your first solo flight.

Display the instrument panel.

Tiger Moth Installation Instructions
