Dancing Wings Hobby T40 Manuel de programmation

Specification

Accessories Tools

Wingspan: 1550mm

Fuselage: 1150mm

GP Flying Weight: 2.3kg

EP Flying Weight: 1.9kg

Servo recommendation: 17g-37g x 4-5pcs

Prop: 12-13 inch

Electric powered: 2820-3520 600-1000kv

ESC: 60A

Battery: 4S 2800-4000mAh

Gas engine class: 6-10 cc

Nitro engine: 40-50 class

Always check C og G before attempting your very first flight.

Always seek help from those experience flyers if you are on your first solo flight.

T40 Trainer Assembling Manual

Assemble the Fuselage

1 2

4 5 6 7

２

T40 Trainer Assembling Manual

H6 filling

Install nuts on the back of C4.

Here is breaking design,

please glue them together

before assembly.

Here is breaking design,

please glue them together

before assembly.

Assemble the Fuselage

Assemble the Wing

The above photo

needs magnets.

1 2

３

T40 Trainer Assembling Manual

Stick X board on the breaking position

for reinforcement.

Here is breaking design,

please glue them together

before assembly.

Here is breaking design,

please glue them together

before assembly.

need to polish

F6 is the small part of the aileron, pls do not

glue onto the rib.Convenient for cutting out

it after finishing aileron building.

4 5

8 9

４

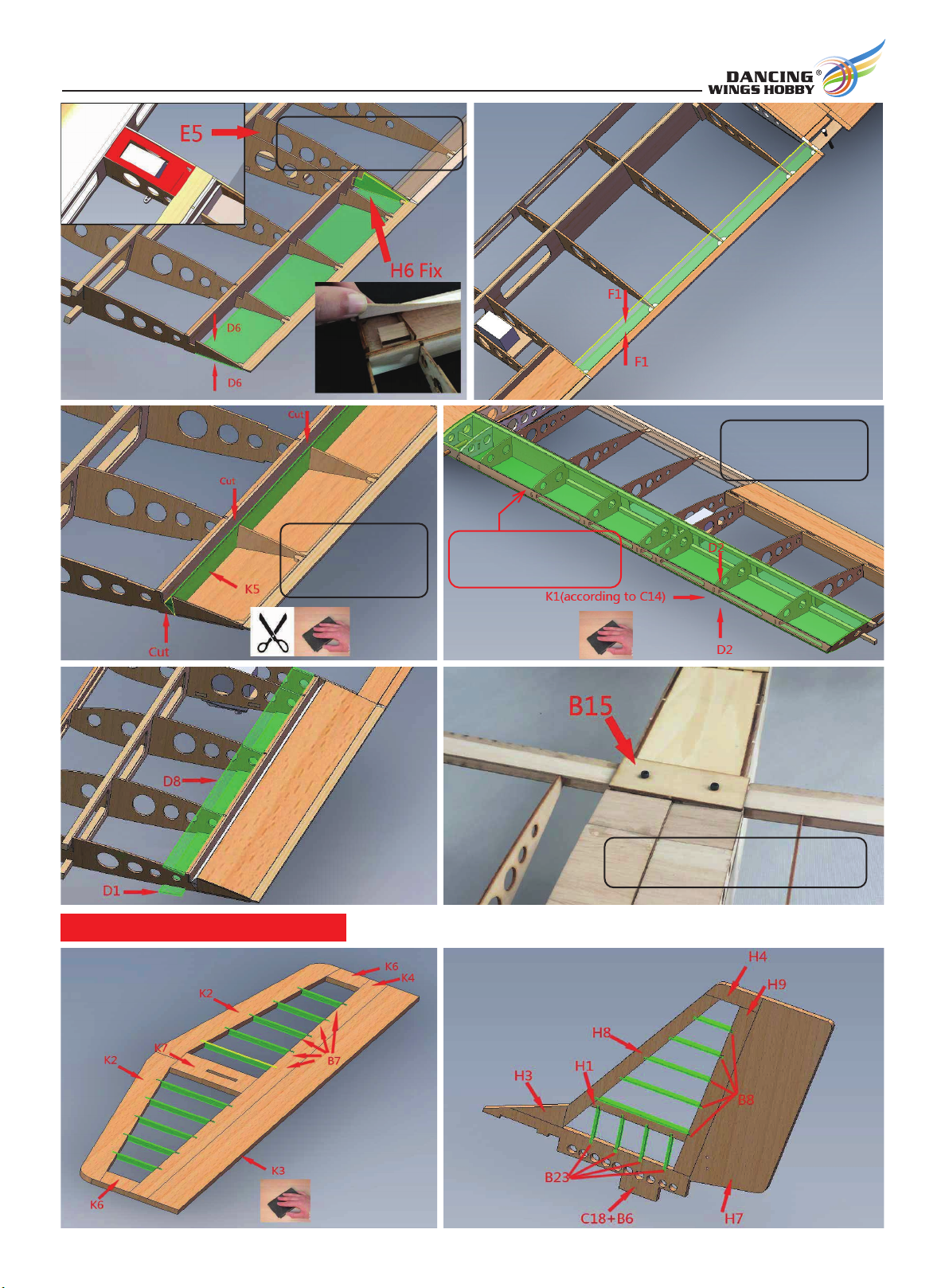

T40 Trainer Assembling Manual

Insert one hard pipe through the each

hollow-out holes marked in red above

photo,in order to maintain level of the

whole wing.

33cm

33cm47cm

47cm

Wing is anhedral design, note to install B18

bevel edges lean on inside during building. Bolts (Plug into each other)

B16+C1+C1

B18

Cut 6*6 paulownia wood

strip in two parts. One is

33cm, another one is

47cm. Interlace them at

the top and bottom

during building.

Assemble the Tail Wing

Cut into 4pcs small cubes

from H6 and fill in as above

photo shown.

Cut off, glue and

polish into triangle,

in order to connect

to the aileron.

Ensure the polishing

radian according to

the C14 shape.

Fix the B15 board by claw nuts when

assemble the wing.

10 11

12 13

14 15

1 2

５

T40 Trainer Assembling Manual

Here is breaking design,

please glue them together

before assembly.

Assemble the motor mount Assemble the landing gear

Position of center of gravity

６

EP Version GP Version

T40 Trainer Assembling Manual

1.5mm Plywood

2mm Plywood

3mm Plywood

1.5mm Balsawood

Sheet Part Numbers

A1 A2

A7 A7

A18 A18

A10

A11

A12

A13

A14

A15

A16 A17

A16 X

A19

A13 A18 A19

B11

B5 B5

B10 B12

B13

B14

B15

B16

B17

B18 B19 B20

B21

B23

B24

B22

C9 C10

C11 C12 C13

C14

C15

C16 C17

C18

C19

C20 C21

C1 C1

D3 D4

×4

T40 Trainer Assembling Manual

2mm Balsawood

2mm Paulownia

3mm Balsawood

5mm Balsawood

6mm Balsawood

6mm Paulownia

Sheet Part Numbers

×2

E1 E2

E4 E5

E8 E8

E3 E3

G4G5 G4-1

K2 K2

K7 H6 H6

K1 K1

K1K1

K1 K1

×2 ×2

T40 Trainer Assembling Manual
