Installation Guide
IND213
Lumination®LED Luminaire
LED Door Replacement
(Recessed Architectural Luminaire Series)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING / AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Turn power o before inspection, installation or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all NEC and local codes.
• Use only UL approved wire for input/output connections.
• Minimum size 18 AWG (0.75mm2).
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation avant d’inspecter, installer ou déplacer le luminaire.
• Assurez-vous de correctement mettre à la terre le boîtier d’alimentation
électrique.
RISQUES D’INCENDIE
• Respectez tous les codes NEC et codes locaux.
• N’utilisez que des ls approuvés par UL pour les entrées/sorties de
connexion. Taille minimum 18 AWG (0.75mm2).
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
Lumination®(Recessed Architectural Luminaire Series) Installation Guide
Rotate latches to unlock the front bezel.
2
Swing down panel and lift o front bezel with diuser.
3
Turn o power.
1
NOTE: The following steps depict the 2x2 series luminaire. However, the procedure is the same for the 2x4 series.

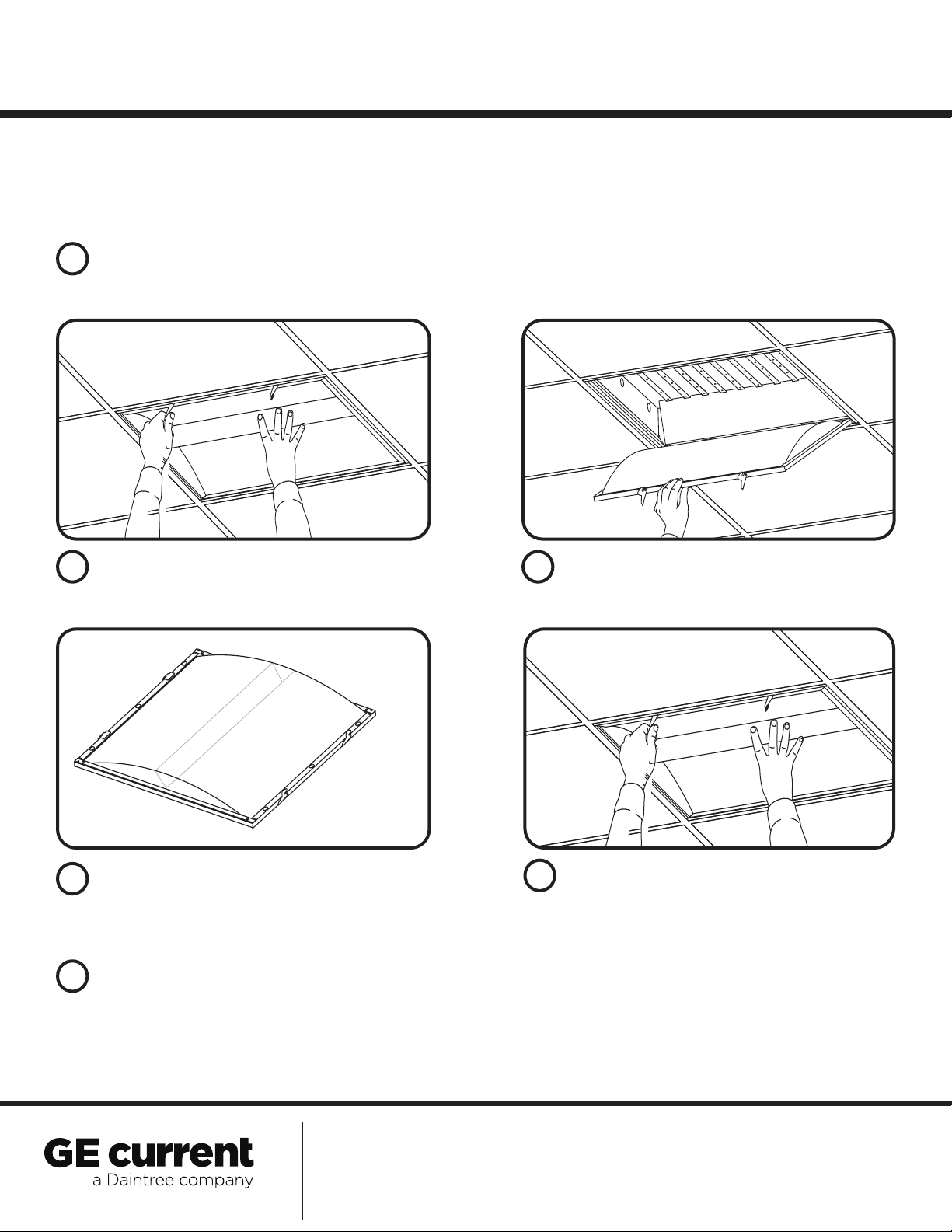

Door Replacement Steps
Remove replacement door from packaging and
inspect door before installing. Ensure diuser has
not loosened from door frame.
4
Hang panel on its hinges and swing up into place.
Rotate latches on front bezel to fasten it.
5
Restore power after panel is closed.
6
