MJHJ4P

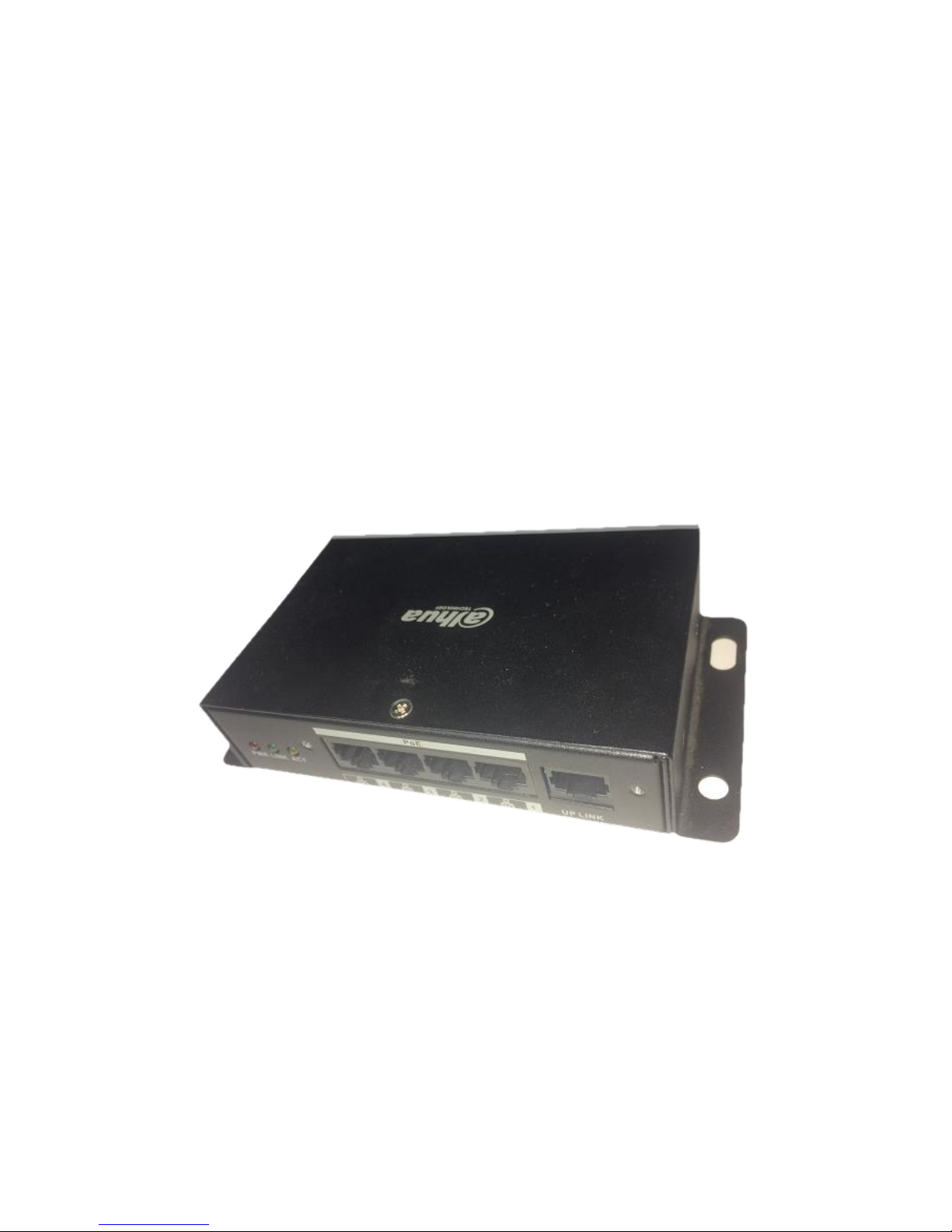

Mobile 4-Port PoE Network Switch Quick Start Guide

Important Safeguards and Warnings

Please read the following safeguards and warnings carefully before using the product in order to avoid

damages and losses.

Note

Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or electric

shock.

Do not install the device atposition exposed to sunlight or in high temperature. Temperature rise

in device may cause fire.

Do not expose the device to humid environment. Otherwise it may cause fire.

The device must be installed on solid and flat surface in order to guarantee safety under load

and earthquake. Otherwise, it may cause device to fall off or turnover.

Do not place the device on carpet or quilt.

Do not block air vent of the device or ventilation around the device. Otherwise, temperature in

device will rise and may cause fire.

Do not place any object on the device.

Do not disassemble the device without professional instruction.

Warning

Please use battery properly to avoid fire, explosion and other dangers.

Please replace used battery with battery of the same type.

Do not use power line other than the one specified. Please use it properly. Otherwise, it may

cause fire or electric shock.

Special Announcement

This manual is for reference only.

All the designs and software here are subject to change without prior written notice.

All trademarks and registered trademarks are the properties of their respective owners.

If there is any uncertainty or controversy, please refer to the final explanation of us.

Please visit our website for more information.

iii

Table of Contents

1Product Overview.........................................................................................................- 1 -

1.1 Specifications and parameters..............................................................................................- 1 -

1.2 Front Panel............................................................................................................................- 2 -

1.3 Rear Panel.............................................................................................................................- 2 -

1.4 Aviation Port ..........................................................................................................................- 3 -

1.5 Installation and Connection...................................................................................................- 4 -

2Quick Configuration....................................................................................................- 5 -

2.1 Software Setting...............................................................................................................- 5 -

2.1.1 Network Setting.........................................................................................................- 5 -

2.1.2 IPC Configuration......................................................................................................- 5 -

2.2 WEB Setting.....................................................................................................................- 8 -

2.2.1 Network Setting.........................................................................................................- 8 -

2.2.2 IPC Configuration......................................................................................................- 8 -

- 1 -

1 Product Overview

1.1 Specifications and parameters

Product name: 4-port PoE Network Switch

Product dimension: 159*100*30mm (Length*Width*Height)

Application environment: Mobile HD surveillance transmission and power supply

Working environment: Temperature: -30℃~65℃, humidity: 0~95% (no condensation)

Power supply: Aviation port power supply >60W

Port description: Aviation port power supply, five 10/100 Mbps self-adaption RJ 45 ports, 4 channels

with PoE power supply network port while 1 channel main network port supports port auto reverse (Auto

MDI/MDIX)

Network medium: category 5 and above unshielded twisted pair (≦100m)

Forward mode: Store & forward

Support protocol: IEEE 802.3, IEEE 802. 3u, IEEE802. 3x

Network delay: Max delay within 20 microseconds

Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure

standard

PoE total power consumption: 48W

PoE port: 1-4 port support IEEE 802.3af (15.4W) network power supply.

PoE power supply wire: 1/2﹢、3/6- wire pair

Weight: 1.5KG/piece

Heat dissipation: Fanless, natural heat dissipation

Working height: Altitude 3000m (10,000ft)

- 2 -

1.2 Front Panel

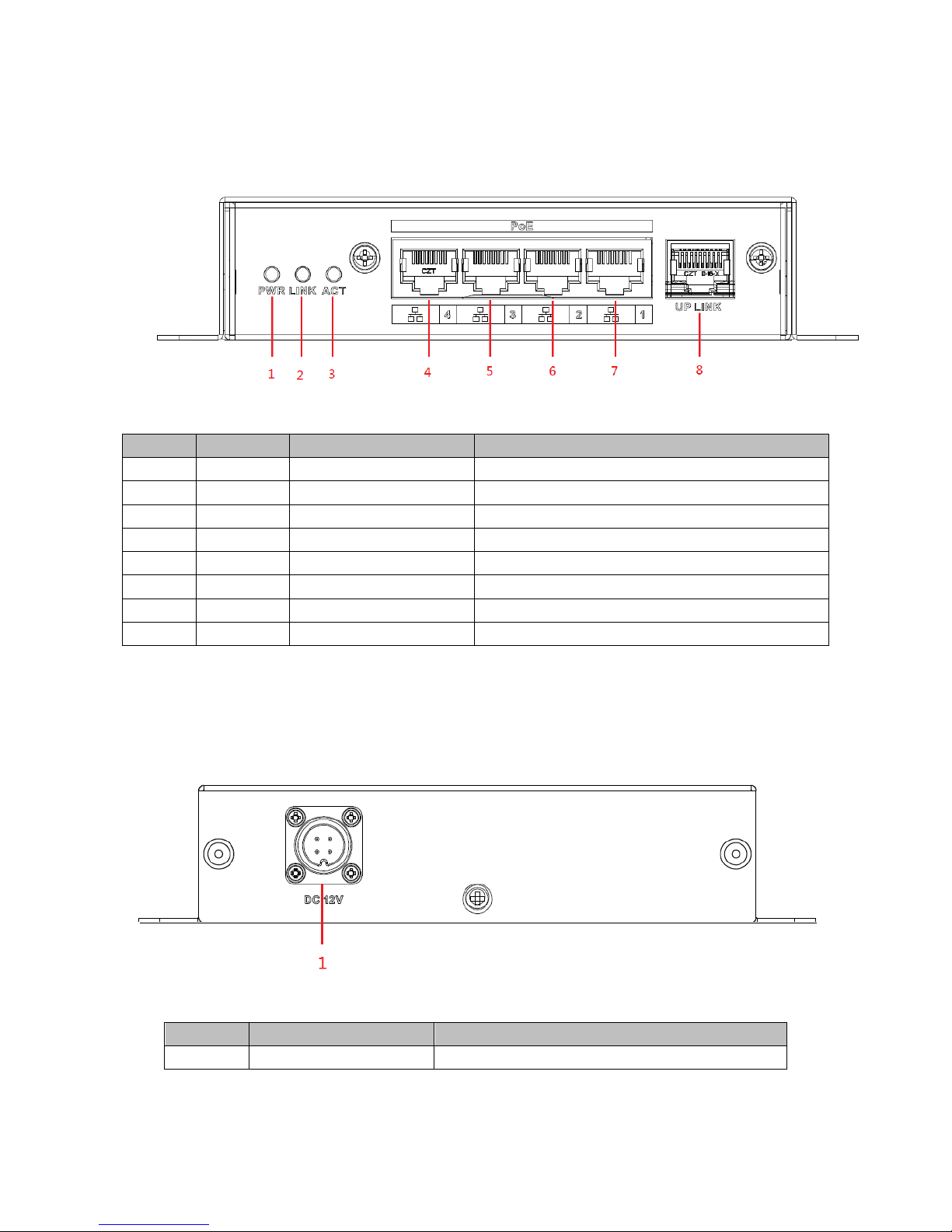

The front panel is shown in Figure 1-1.

Figure 1-1

Mark

Name

Note

PWR

Power indicator light

Normally on when power is enabled

LINK

Network indicator light

Normally on when network port connects to LINK

ACT

Network indicator light

ACT flashes when data transmitting

LAN 4

IPC port

LAN 3

IPC port

LAN 2

IPC port

LAN 1

IPC port

UPLINK

Main network port

Device mainframe connector

1.3 Rear Panel

The rear panel is shown in Figure 1-2.

Figure 1-2

Name

Note

Aviation port

Power supply port

- 3 -

1.4 Aviation Port

See Figure 1-3 for more details about the aviation port.

Figure 1-3

DC 12V pin definition

Terminal Number

Definition

DC12V+

GND

NULL

- 4 -

1.5 Installation and Connection

See Figure 1-4 for more details about the installation and connection.

Figure1-4

Note:

Network cable, camera and other accessories are not included in the accessories bag, users have to

prepare by themselves.

The network cable cover should be installed when accessing network cable, which is to prevent the

network cable from being loose during vibration.

- 5 -

2 Quick Configuration

2.1 Software Setting

IPC needs to configure IP address which should be the same as the IP address of NVR during use.

2.1.1 Network Setting

Step 1 Enter “Main Menu”> “System Setting”> “Network Setting”interface, as shown in Figure

2-1.

Figure 2-1

Step 2

Set corresponding IP address to the '' IPAddress'', ''Subnet Mask'' and ''Default gateway'', click ''Save''.

2.1.2 IPC Configuration

The IP address of IPC and the IP address of ''Network Setting'' should be kept in the same network

segment.

- 6 -

Step 1

Enter “MainMenu”> “RemoteDevice”or “MainMenu”> “IPC”configurationinterface,asshown

in Figure 2-2:

Figure 2-2

Step 2

Click ''Device Search'' and corresponding IPC can be searched. Attention: It will fail to search

corresponding IPC if the IP address of IPC and the IP address of NVR are not in the same network

segment.

Step 3

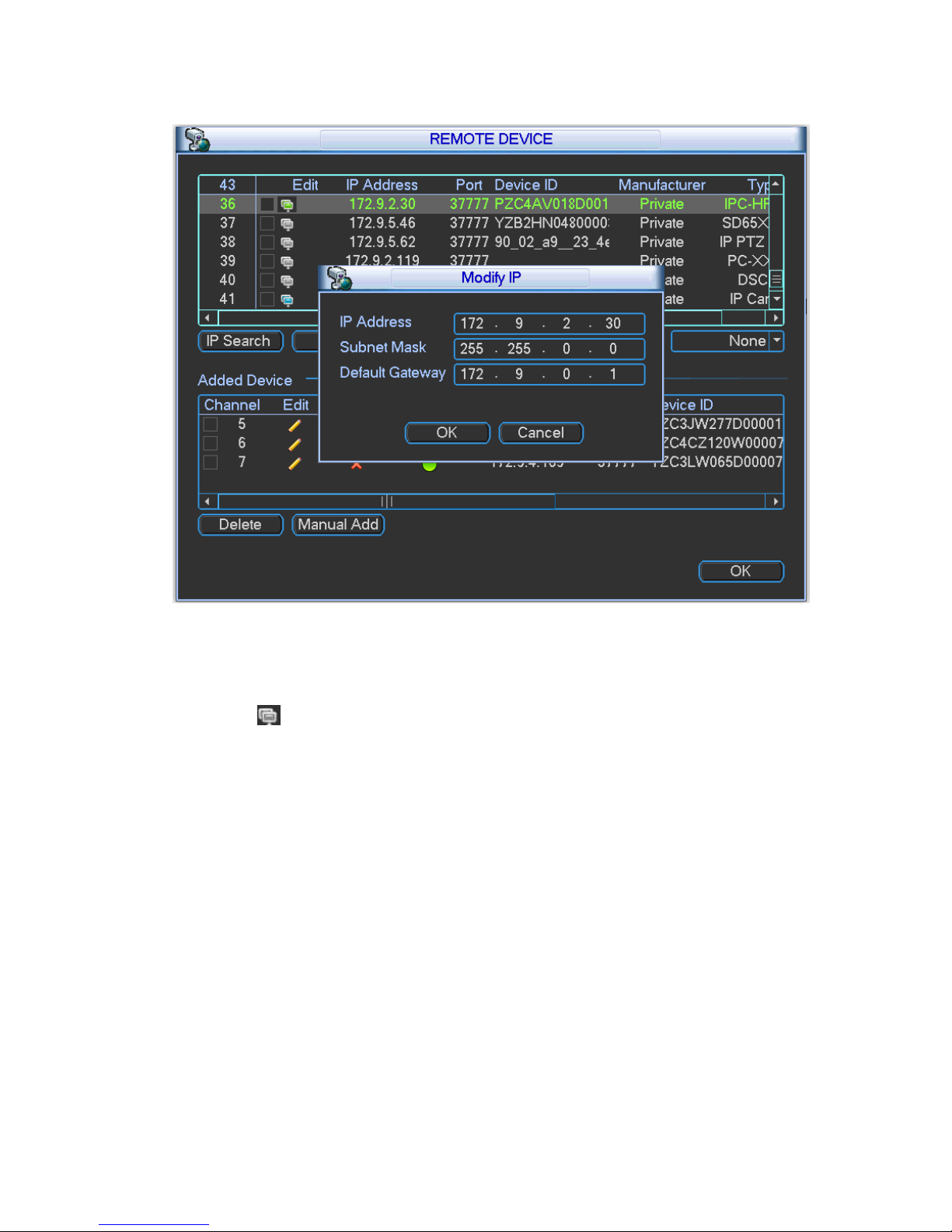

Click the icon under ''Edit'', enter ''Modify IP'' configuration interface, as shown in Figure 2-3:

- 7 -

Figure 2-3

Step 4

Click ''Confirm'' after configuring corresponding IP address, the IP address of IPC is successfully

saved. Attention: NVR products from some manufacturers may not support modifying device IP

online if the “ ”in front of “Onvif”displays gray. It needs to login the WEB interface of IPC to

modify IP address via PC under this circumstance, refer to IPC operation manual for more details.

Step 5

Click ''Add'' to add corresponding IPC into the NVR device channel, check if it is well connected via

the icon color of ''Connection Status''. It means successful connection for the system when the color

of the circle turns from red to green.

Note:

Differences may exist to the configuration interface for different NVR devices.

It will fail to search corresponding IPC if the IP address of IPC and the IP address of NVR are not in

the same network segment.
