Dahua K Series Manuel utilisateur

Dahua K Series Cube Network Camera Quick Start Guide

V 1.0.2

Zhejiang Dahua Vision Technology CO., LTD

1Packing List

Device ×1 QSG ×1

Power Adapter ×1 Screw Package ×1

Installation Position Map ×1

2Product Appearance

Figure 2-1 Figure 2-2

Figure 2-3

Please refer to the following sheet for more details about each port.

Name

Network port (Wireless connection mode is available as well)

Reset/WPS (Wi-Fi Protected Setup) button

Digital input/output （Refer to chapter 4 for connection mode）

Power port

Built-in speaker

Sheet 2-1

Note:

For reset, long press for 8 seconds and then the light off; For WPS (Wi-Fi Protected Setup), one quick

press.

Please refer to the following sheet for more details about status of indicator light.

Indicator light status

Device status

Red light normally on

Booting

Green light slow flashing

Booting completed, await wifi config, enter smart

config status;

Green light quick flashing

Wifi smart config in progress, including WPS (Wi-Fi

Protected Setup), management frame and etc.

Green light normally on

Wifi connection succeeded, operate normally.

Red and green lights flash

alternately

Device upgrade

Red light slow flashing

Network connection failure or disconnection after

network connection success.

Red light quick flashing

Device malfunction, fail to boot up; alarm or SD card

malfunction

Sheet 2-2

Micro SD card slot

Indicator light

Built-in MIC

IR LED

PIR （Sense IR ray, trigger alarm）

3Operate by Easy4ip APP

Step 1

Power on the device with power adapter.

Step2

Connect your smart phone to your WiFi network. Scan the “Easy4ip APP” QR on the packing box,

download and install the Easy4ip APP.

Step3

Open Easy4ip APP (downloaded from APP Store .take IOS as an example), tap “login”to login the

APP, see Figure 3-1.

Figure 3-1

Step4

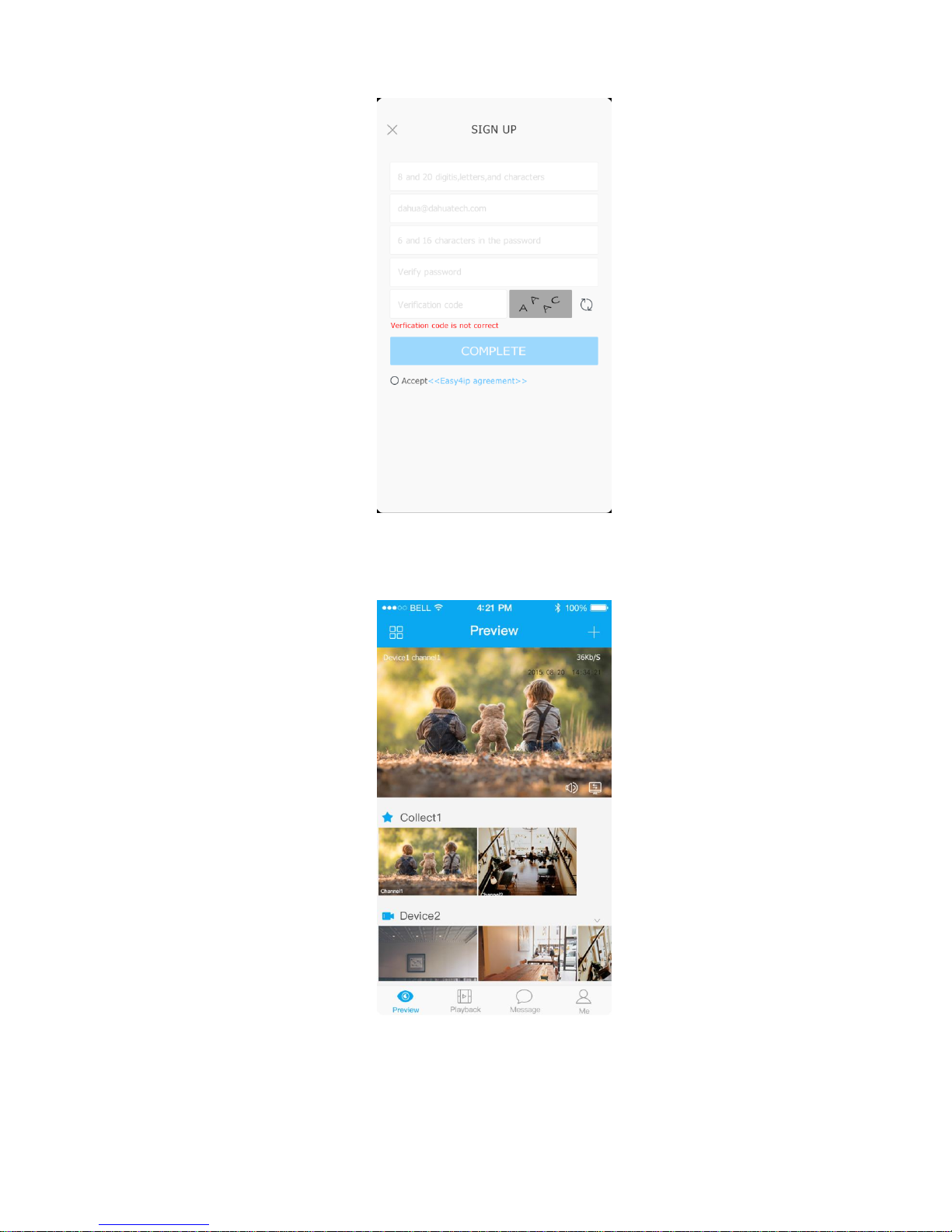

Tap “register”for first use.

Figure 3-2

Step5

Tap “+”to add devices.

Figure 3-3

Step6

Please select “Wired”when the network cable is connected, choose “Wireless”for wireless connection.

Here is an example of wireless connection.

Figure 3-4

Step7

Name the camera and scan the QR code on camera.

Figure 3-5

Figure 3-6

Step8

Input the Wi-Fi password.

Figure 3-7

Step 9

Wait for 60s to finish the Wi-Fi connection.

Figure 3-8

Note:

If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat step 6-9.

Figure 3-9

4External Alarm Input/Output Device

IPC supports external alarm device, it can externally connect to alarm input/output device via “Digital

input/output”.

4.1.1 Alarm Input Device (detector, sensor and so on)

Please refer to the following figure for alarm input information. See Figure 4-1.

Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of

the alarm input port. When the input signal is connected to the 5V or is idle, the device collects the

logic “1”. When the input signal is grounded, the device collects the logic “0”.

Figure 4-1 Alarm input

4.1.2 Alarm Output Device (alarm device, beeper and so on)

Please refer to Figure 4-2 and 4-3 for alarm output information.

Figure 4-2

Figure 4-3
