Dahua A Series HD Wi-Fi Network Camera Quick Start Guide

V 1.0.1

Dahua Technology CO., LTD

1

1Packing List

Device ×1 QSG ×1

Power Adapter ×1Screw Package ×1

Quick Installation Board ×1 Installation Position Map×1

2

USB ×1

3

2Product Appearance

Figure 2-1 Figure 2-2

Figure 2-3

Please refer to the following sheet for more details about each port.

Sheet 2-1

SN

Name

1

Lens

2

MIC

3

Reset/WPS button

4

Micro SD card slot

5

Network port

6

Power port

7

Indicator light

8

Loudspeaker

4

Note:

For reset, long press for 8 seconds and then the light off; For WPS, one quick press.

Please refer to the following sheet for more details about status of indicator light.

Device status

Indicate light status

Red light spinning

Booting, device malfunction, fail to boot

up

Green light spinning

Booting completed, await wifi config,

enter smart config status;

Green light breathing

Wifi smart config in progress, including

WPS, management frame and etc.

Blue light normally on

Wifi connection succeeded, operate

normally.

Blue light flashing

Device upgrade

Yellow light breathing

Network connection failure or

disconnection after network connection

success.

Red light breathing

Alarm or SD card malfunction

Sheet 2-2

5

3Operate by Easy4ip APP

Step 1

Power on the device with power adapter.

Step 2

Connect your smart phone to your WiFi network. Scan the “Easy4ip APP” QR on the packing box,

download and install the Easy4ip APP.

Step 3

Open Easy4ipAPP (take IOS as an example), tap login to login the APP (Please register for first use).

Step 4

Tap “+”to add devices.

Figure 3-1

Step 5

Choose “Wireless”.

6

Figure 3-2

Step 6

Name the camera and scan the QR code on camera.

7

Figure 3-3

Step 7

Input the Wi-Fi password.

Figure 3-4

8

Step 8

Waiting for 60s to finish the Wi-Fi connection.

Figure 3-5

Note: If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat

step 5-8;

9

4Operate by DMSS APP

Step 1

Power on the camera.

Step 2

Connect iphone to a WiFi signal.

Step 3

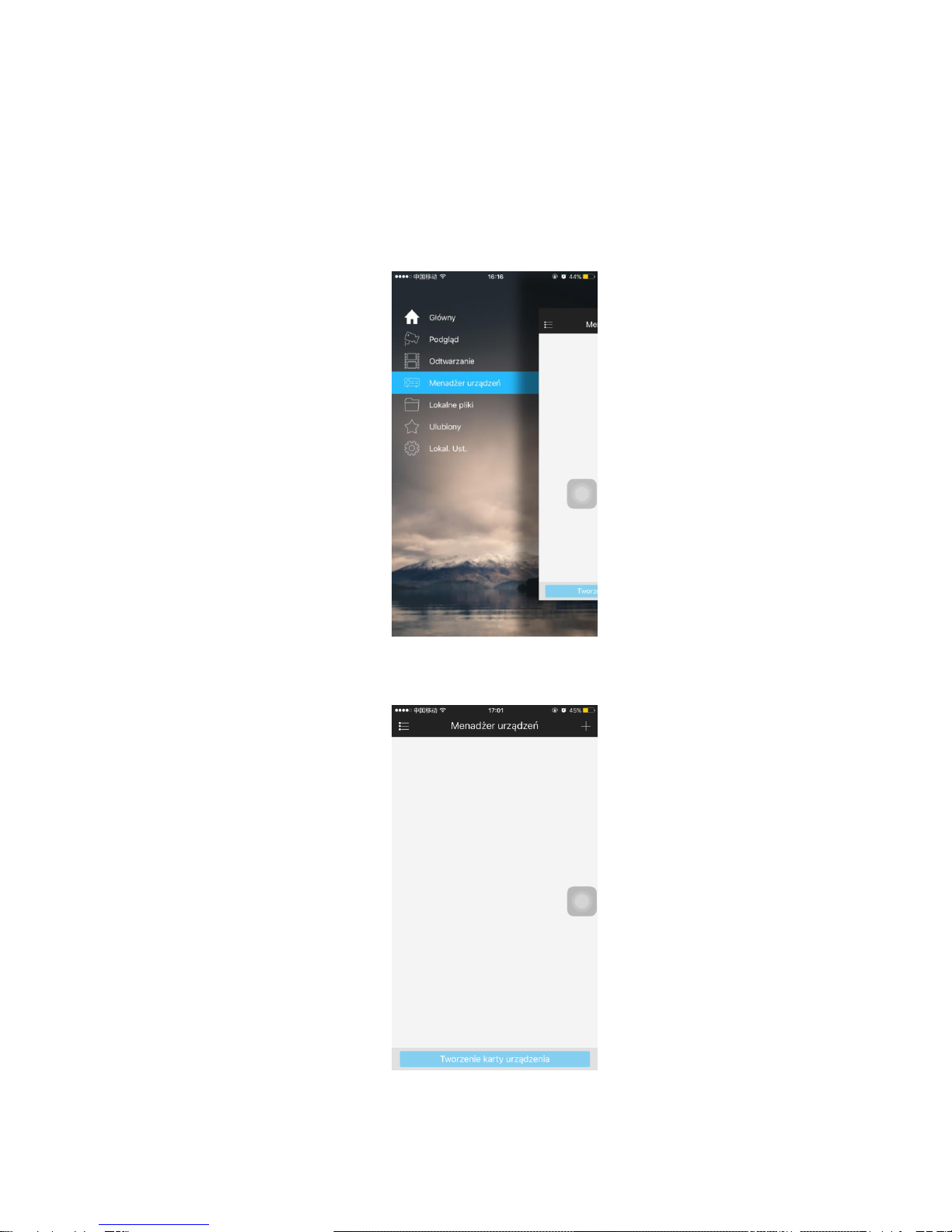

Open DMSS (downloaded from APP Store), choose Device Manager.

Figure 4-1

Step 4

Click “+”, then choose “WiFi configuration”.

Figure 4-2

Step5

Input a device name and scan the QR code on camera, then “next”.
