Daewoo RC-230 Manuel utilisateur
Service Manual
VACCUM CLEANER
AUG. 2002
DAEWOO ELECTRONICS CO., LTD
http : //svc.dwe.co.kr
MODEL : RC-230
S/M No. : RC-230UEF0
✔
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
CONTENTS
1. SPECIFICATIONS……………………………………………… 2 Pages
2. EXTERNAL VIEWS……………………………………………… 3 Pages
2-1. ASSEMBLY…………………………………………………… 3 Pages
2-2. MODEL RC-230……………………………………………………………… 4 Pages
3. DIAGRAM……………………………………………………………
…
5 Pages
3-1. WIRING DIAGRAM…………………………………………………
…
5 Pages
3-2. CIRCUIT DIAGRAM…………………………………………………
…
6 Pages
4. TROUBLE SHOOTING GUIDE……………………………………
…
7 Pages
5. DISASSEMBLING AND TREATMENT……………………………
…
9 Pages
5-1. CLEANER ASSEMBLY……………………………………………… 9 Pages
5-2. MOTOR ASSEMBLY………………………………………………… 10 Pages
5-3. CORDREEL ASSEMBLY……………………………………………
…
11 Pages
5-4. COVER DUST ASSEMBLY…………………………………………
…
13 Pages
5-5. COVER BODY ASSEMBLY…………………………………………
…
14 Pages
6. EXPLODED VIEW AND PARTS LIST……………………………
…
15 Pages
6-1. CLEANER ASSEMBLY……………………………………………… 15 Pages
6-2. BODY ASSEMBLY…………………………………………………
…
17 Pages
6-3. COVER ASSEMBLY………………………………………………… 19 Pages
6-4. MOTOR ASSEMBLY………………………………………………… 21 Pages
6-5. CORD REEL ASSEMBLY……………………………………………
…
23 Pages
6-6. HOSE ASSEMBLY…………………………………………………
…
25 Pages
6-7. BRUSH ASSEMBLY…………………………………………………
…
27 Pages
6-8. PIPE ASSEMBLY……………………………………………………
…
29 Pages
1
1. SPECIFICATIONS
Model RC-230
Rated Voltage AC 230V
Frequency 50Hz
Input Watt MAX 1000W
Weight(Body) 3.5Kg
Dimension(LXHXD) 320X224X220mm
Cord Length 5.4m
Power Control Micom Type(Handle)
Dust Meter Mechanical
Hose Current 1.5m
Extension Pipe Multi-Aluminium 2 Lyer
Nozzle Dusting Brush
Crevice Tool
2
2. EXTERNAL VIEWS
2-1. ASSEMBLY
No. PART NAME
A BODY
A1 POWER CORD
A2 DUST METER
A3 CORD REWIND BUTTON
B MULTI-HOSE(SLIDE SWING)
B1 HOSE HANDLE
B2 POWER CONTROLLER
B3 COVER BUTTON
C EXTENSION PIPE(ALMIIUM TELESCOPIC)
C1 COVER BUTTON
C2 PIPE CONTROL BUTTON(COVER UP/DOWN)
D H - NOZZLE(TILTING)
E E - CLEANING TOOLS(CREVICE TOOL)
F E' - CLEANING TOOLS(DUSTING BRUSH)
3
2-2. MODEL RC-230
A
B
C2
D
FE
A3
A1
A2
B1
B2
B3
C1
C
4
3. DIAGRAM
3-1. WIRING DIAGRAM
5
3-2. CIRCUIT DIAGRAM
6
4. TROUBLE SHOOTING GUIDE
TROUBLE CAUSE COUNTERMEASURE
SUCTION POWER FILTER BAG(PAPER OR CLOTH) CHANGE IT WITH NEW ONE
IS WEAK IS FULL WITH DUST OR REMOVE THE DUST
CLOGGING OR TEAR IN HOSE REMOVE OBSCTACLE
OR REPLACE THE HOSE
DEFECTIVE MOTOR REPLACE THE MOTOR
(SEE 5-2)
CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER
NOT WORK (AT BLADE TIP OR ROOT OF PLUG) CORD (SEE 5-3)
DEFECTIVE SLIDE VOLUME
LOCATED IN COVER BODY REPLACE IT (SEE 5-5)
DEFECTIVE PCB ASSEMBLY REPLACE IT (SEE 5-5)
BREAKING OF CONNECTIONS REPAIR (SEE 5-3)
OR POOR CONTACTS IN
CORD REEL ASSEMBLY
DEFECTIVE MOTOR REPLACE IT (SEE 5-2)
BREAKING OF CONNECTIONS
IN COVER BODY ASSEMBLY REPAIR (SEE 5-5)
DEFECTIVE SWITCH REPLACE IT (SEE 5-5)
MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (SEE 5-5)
STOP EVEN IF
SWITCH
7
TROUBLE CAUSE COUNTERMEASURE
POWER CORD IS BROKEN REEL SPRING REPLACE IT (SEE 5-3)
NOT WOUND UP OF CORD REEL
POWER CORD BROKE AWAY REPAIR (SEE 5-3)
FROM THE BOBBIN
※CAUTION : BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE REEL
SPRING MAY SPRING OUT OF THE SPRING COVER.
POWER CORD DOES ABRASION OF THE ROLLER REPLACE THE ROLLER
NOT STOP AT AN BRAKE OF CORD REEL BRAKE (SEE 5-3)
ARBITRARY
POSITION LEVER SPRING BROKE AWAY REPAIR (SEE 5-3)
FROM THE CORD REEL BRACKET
8
5. DISASSEMBLING AND TREATMENT
5-1. CLEANER ASSEMBLY
1) TAKE THE COVER TOP OUT OF THE COVER BODY BY USING AN AWL.
2) SEPARATE THE COVER DUST ASSEMBLY FROM THE COVER BODY.
3) UNSCREW THE 2 SCREWS(2) THEN LIFT THE COVER BODY UP FROM
THE BODY ASSEMBLY.
4) SEPARATE THE TWO BUTTONS FROM THE COVER BODY.
12
34
9
Autres manuels pour RC-230
1
Table des matières
Autres manuels Daewoo Aspirateur
Daewoo
Daewoo RC-7004F Manuel utilisateur
Daewoo
Daewoo RCC11CY Manuel utilisateur
Daewoo
Daewoo RC-371BC Manuel utilisateur
Daewoo
Daewoo RC-2200FR Manuel utilisateur
Daewoo
Daewoo RC-4085BLBA Manuel utilisateur
Daewoo
Daewoo RCC-231 Manuel utilisateur
Daewoo
Daewoo RC-380BM Manuel utilisateur
Daewoo
Daewoo Tornado Lyte Manuel utilisateur
Daewoo
Daewoo Cyclone Digi-Flex Manuel utilisateur
Daewoo
Daewoo Cyclone Freedom Pro Manuel utilisateur
Daewoo
Daewoo RCC-153 Manuel utilisateur
Daewoo
Daewoo RCC-230/3A Manuel utilisateur
Daewoo
Daewoo RC-230R Manuel utilisateur
Daewoo
Daewoo DAVC 90-20L Manuel utilisateur
Daewoo
Daewoo DAVC150 Manuel utilisateur
Daewoo
Daewoo HURRICANE CAT 3 Manuel utilisateur
Daewoo

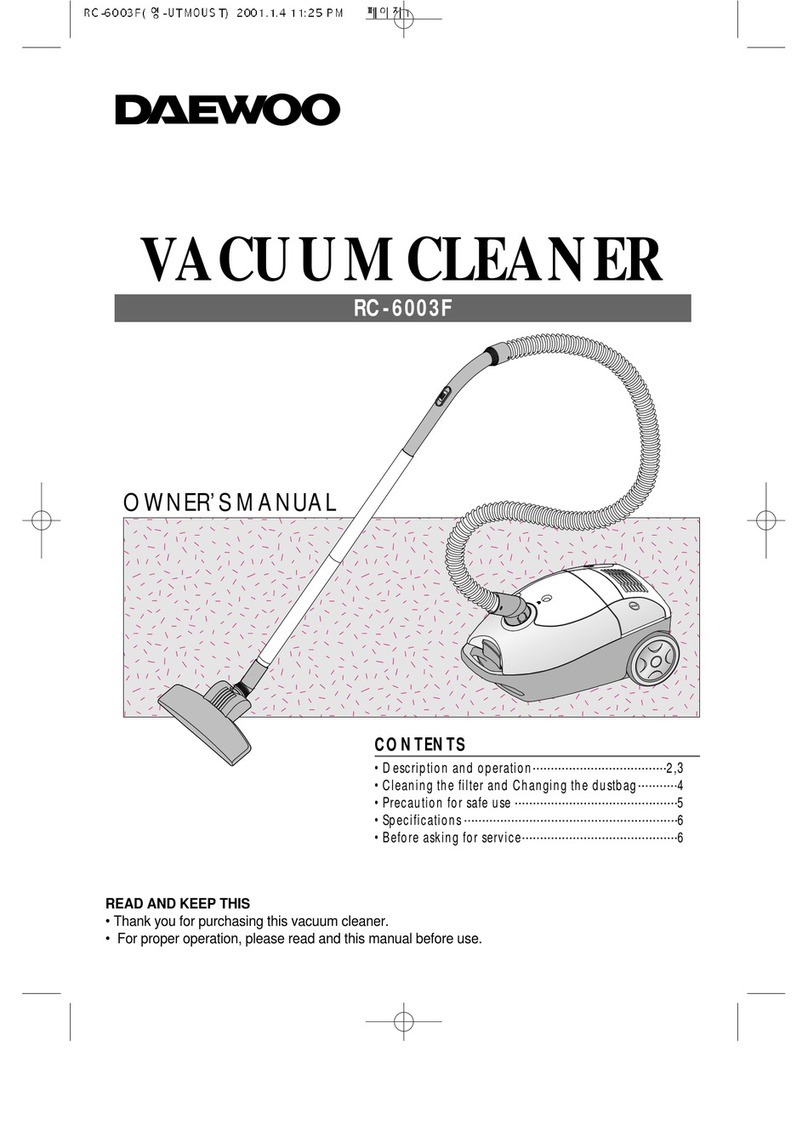

Daewoo RC-6003F Manuel utilisateur
