Daewoo 15U7LT Manuel utilisateur

INSTRUCTION MANUAL

COLOR TELEVISION

15U7LT

B15U7LT

F15U7LT

K15U7LT

DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT

The meaning of the symbol on the product, its accessory or packaging indicates that this prod-

uct shall not be treated as household waste. Please, dispose of this equipment at your applica-

ble collection point for the recycling of electrical & electronic equipments waste.In the Europe-

an Union and Other European countries which there are separate collection systems for used

electrical and electronic product. By ensuring the correct disposal of this product, you will help

prevent potentially hazardous to the environment and to human health, which could other-

wise be caused by unsuitable waste handling of this product.The recycling of materials will help

conserve natural resources. Please do not therefore dispose of your old electrical and electron-

ic equipment with your household waste.For more detailed information about recycling of this

product, please contact your local city ofﬁce, your household waste disposal service or the shop

where you purchased the product.

CONTENTS

REMOTE CONTROL & TV CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

START UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CONNECTING EXTERNAL EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . 5

DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

MENUS DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

TELETEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REMOTE CONTROL & TV CONNECTIONS

LOCAL CONTROL

FRONT

B1 MAIN POWER BUTTON

B2 PROGRAMME DOWN/UP BUTTONS

B3 VOLUME DOWN/UP BUTTONS

B4 TV/AV BUTTON

B5 STAND-BY INDICATOR

B6 REMOTE SENSOR

B7 VIDEO INPUT

B8 AUDIO INPUT

B9 HEADPHONE

REAR

C1 SCART 1 socket

C2 AERIAL jack

REMOTE CONTROL UNIT

TV MODE

A1 POWER

A2 NUMBER 0-9

A3 NORMAL

A4 AV

A5 PR(CUROSR) UP

A6 VOLUME UP(CURSOR RIGHT)

A7 MENU

A8 PR(CURSOR) DOWN

A9 VOLUME DOWN (CURSOR LEFT)

A10 MUTE

A11 RECALL

A12 SLEEP

A13 not used

A14 MOVE (Edit mode only)

A15 SKIP (Edit mode only)

A16 TV/TEXT

A17 DELETE(Edit mode only)

A18 not used

A11

A13

A16

A12

A17

A14

A18

A15

A10

TELETEXT MODE

A1 POWER

A2 NUMBER 0-9

A3 INDEX

A4 MIX

A5 PAGE UP

A6 SUBPAGE

A7 MENU

A8 PAGE DOWN

A9 HOLD

A10 MUTE

A11 REVEAL

A12 SIZE

A13 CANCEL

A14 GREEN KEY

A15 RED KEY

A16 TV/TEXT

A17 YELLOW KEY

A18 CYAN KEY

IMPORTANT SAFEGUARDS

WATER AND MOISTURE

The apparatus shall not be exposed to dripping or splashing water and no object ﬁlled with liquids, such as vases, should be

placed on the apparatus.

HEAT

Never place the set near heat sources.

Never put a naked ﬂame, such as a candle, on the top of TV set.

VENTILATION

Do not cover the ventilation openings in the cabinet and never place the set in a conﬁned space such as in a bookcase or

built-in cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around the unit.

OBJECT ENTRY

Do not insert foreign objects, such as needles and coins, in the ventilation openings.

LIGHTNING STRIKE

You should disconnect the set from the mains and the aerial system during thunderstorms.

CLEANING

Unplug the set from the mains while cleaning.

AFTER MOVING THE SET

If the set is moved or turned, the MAIN POWER button must be switched off for at least 15 minutes in order to take out colour

patches on the screen.

INSTALLATION

Batteries

Open remote control battery

compartment (at the rear) and insert

two 1.5V type AAA batteries.Warning:

be careful to respect battery polarities.

Insert the main plug into a

230V 50Hz AC power socket.

Connect aerial to aerial jack (C2).

SWITCHING ON AND OFF

Power on the TV set using front panel MAIN POWER

button (B1).

Select your preferred language from the LANGUAGE

menu (see section START UP on page 5).

Press the remote control MENU button (A7) to enter

the main menu.

Select Install menu to tune and memorise TV pro-

grams.

LANGUAGE

BG CZ D DK E

F FIN GB GR H

I N NL P PL

RO RUS S

START UP

LANGUAGE MENU

The very ﬁrst time that you turn on the TV, the LANGUAGE menu will appear on the screen. Its purpose is to enable you to select

the language that will be used for all the OSD (On Screen Display) menus. The user must enter a choice of language before pro-

ceeding further.

The language entered at this stage can still be modiﬁed at any later time, by entering the LANGUAGE menu (accessed from the

FEATURES menu: see later section under MENU DESCRIPTION).

The descriptions used in the menu are those of the country code (e.g. GB = English, NL = Holland etc).

Selection is made by use of the remote control CURSOR UP (A5) / CURSOR DOWN (A8) keys and CURSOR RIGHT (A6) / LEFT (A9) keys.

Once you are satisﬁed with your selection, push the OK button (A3) to conﬁrm your choice.The choice will brieﬂy highlight in red,

after which the menu will disappear.

Note :

The languages shown are subject to modiﬁcation without prior notice.

AUTOMATIC TUNING

Automatic Tuning System

If you have a satellite decoder: If your decoder is connected to the TV set by the aerial jack (C2), you must power on the demodu-

lator and tune Sky News before starting ATSS .

ATSS = Automatic Tuning and Sorting System.To start the ATSS function:

- Select„ATSS”function.

- Adjust to the required country.

- Press and hold the OK button (A3) to start the automatic tuning.

The ATSS function has started when the phrase„Please Wait !”appears (in red characters ) in the help instructions box, below the

Install menu.

When the ATSS function is ﬁnished, the stored programs are displayed on screen using Edit menu presentation (to Exit tuning be-

fore automatic tuning is ﬁnished, press the remote control MENU button (A7) ).

CONNECTING EXTERNAL EQUIPMENT

The rear Scart1 (C1) socket, the front AV socket (B7) (B8), are dedicated

sockets to connect audio-video equipment.

REAR

REAR SCART 1 SOCKET (AV1)

This socket (C1) has video / audio inputs and outputs. You can con-

nect automatic AV switching equipment such as pay-TV decoders, vid-

eo games, DVD players and most VCR’s. In most cases, when connecting

powered equipment to this socket, the TV set switches automatically to

AV mode. If not, then use the TV/AV buttons (A4) or (B4) to select AV1.

VCR / DVD / Video Game / Pay-TV decoder Important:

If your video equipment does not have SCART socket(s),

or if you wish to use only the aerial (RF) connection (not

recommended), then you should make use of PR 00 on

the TV set for best performance.

FRONT TV/AV SELECTION

Allows to switch between TV and external modes.

By repeatedly pressing the remote control TV / AV (A4) or the TV front panel TV / AV (B4) button,

the on-screen display is changed as shown:

AV1 󱽔SVHS1 󱽔AV2 󱽔TV

Remark:

If the signal source from the rear SCART1 socket (AV1) is RGB (e.g. normally from a DVD

player) then AV1 RGB will be displayed.

FRONT AV SOCKET (AV2)

The front AV socket (B7) - (B8)

has audio and video inputs.To

switch from TV to these inputs,

use the TV / AV buttons (A4) or

(B4) and select AV2.

HEADPHONE SOCKET

To hear TV sound with headphones,

insert a 3.5mm headphone plug

into the headphone socket (B9). The

speaker’s sound will be automatical-

ly cut off.

DAILY USE

SWITCHING ON TV SET

1) If stand-by indicator (B5) is red, then

the TV set is in stand-by mode.

You can switch on using the re-

mote control POWER button (A1), the

NUMBER 0….9 buttons (A2), or PRO-

GRAM UP (A5) / DOWN (A8) buttons.

The front panel PROGRAM UP/DOWN

buttons (B2) can also be used.

Once on, the stand-by indicator start

blinking and after turns to darker red.

2) If stand-by indicator (B5) is not lit,

then the TV set is powered off.

You must press the TV set front panel

MAIN POWER button (B1).

If a picture does not appear, then the

stand-by indicator will be lighted red.

In this case, use the remote control as

indicated in 1).

3) If stand-by indicator (B5) is ﬂashing

red, then the TV set is in child-lock

mode. It is necessary to use the re-

mote control POWER button (A1),

NUMBER 0….9 buttons (A2), or PRO-

GRAM UP (A5) / DOWN (A8) buttons.

The front panel PROGRAM UP/DOWN

buttons (B2) will not function.

Once on, the stand-by indicator start

blinking and after turns to darker red.

SWITCHING OFF TV SET

1) Pressing the remote control POW-

ER button (A1), you can switch off to

stand-by mode (low power consump-

tion mode) which also allows quick

restart by remote control

(see above: SWITCHING ON TV SET).

2) Pressing the TV set front panel MAIN

POWER button (B1), you can com-

pletely power off the TV set.

In this case, you must use the same

front panel POWER button (B1) to

switch on again

(see above: SWITCHING ON TV SET).

Remark:

If a broadcast signal is not present after 30 minutes, the TV set will be automatically turned to stand-by mode.

01 BBC1

FAVOURITE

01 BBC1

NORMAL I

01 BBC1

NORMAL II

01 BBC1

18:30

Remaining time (minutes)

before TV set switches off

PROGRAM SELECTION (FROM 0 TO 99)

Direct selection

Use the remote control NUMBER 0…9 buttons (A2).

For two digits program numbers, enter the second digit

within 2 seconds.

Up / Down selection

Use the remote control PROGRAM UP (A5) / DOWN (A8) but-

tons or the TV set front panel PROGRAM UP / DOWN buttons

(B2).

SOUND CONTROL

Volume adjustment

Use the remote control VOLUME UP (A6) / DOWN (A9) buttons or the TV set front panel VOLUME UP / DOWN buttons (B3).

Mute

Mute the sound by pressing the remote control SOUND MUTE button (A10).

Then, logo is displayed.The previous sound setting is returned after pressing

the same button a second time.

If a sound related function is used (e.g.VOLUME) then the MUTE will also be cancelled.

PICTURE CONTROL

You can select three pictures settings, by using the remote control NORMAL button (A3) :

- Normal I (standard hard picture)

- Normal II (standard soft picture)

- Favourite

For other adjustments: BRIGHTNESS, CONTRAST, COLOUR, SHARPNESS, NOISE REDUCTION, use the

PICTURE menu.

If an NTSC signal is received, then the TINT adjustment will also be available.

SLEEP FUNCTION

The set will turn off (to stand-by mode) after a period of time that you can select. By repeated use of the remote control SLEEP

button (A12), you can enter one of the following settings :

OFF 󱽔20 min 󱽔40 min 󱽔60 min 󱽔80 min 󱽔100 min 󱽔120 min 󱽔OFF

The SLEEP time remaining (before TV turn-off) can be seen again at any time by one

touch on the remote control SLEEP button (A12).

A second touch (while the status display is active) will modify the SLEEP time remaining.


INSTALL

FEATURES

MENUS LANGUAGE SELECTION, CHILD LOCK, CLOCK SETTING,WAKE UP,NOISE REDUCTION

These functions are available in the Features menu (see description page 11).

CHILD LOCK

This function only allows the TV to be turned on using the re-

mote control. Once the user has set this CHILD LOCK to ON or

OFF, it will remain in this condition until the user changes it

again.

WAKE UP

It is necessary to have set the clock (either manually or auto-

matically) in order to be able to use this function. If the clock

is not set (--:-- is shown) then the WAKE TIME and WAKE PROG.

will not be selectable.

The default setting for WAKE TIME is in the„OFF”position. Af-

ter each use (the TV turns on according to the previous setting)

the WAKE TIME will be returned to the„OFF”position, conserv-

ing always the last time setting entered ready for re-use.

CLOCK SETTING

The TV will automatically attempt to set the clock when pow-

ered on (with the MAIN POWER button). It takes as reference

information embedded in the teletext signal of the channel

deﬁned by CLOCK PROG.Therefore, automatic clock setting is

only possible if teletext is available on this channel.

If no time is captured automatically (the clock will show - - : - -),

then the TV will try again to set the clock whenever turning on

from standby mode.

Alternatively, the user can enter the time manually using the

CLOCK function. However, if this is done the clock will not be

periodically updated as would happen if the time is set auto-

matically.We recommend that the user choose (if available) a

CLOCK PROG which allows the time to be updated automati-

cally.

LANGUAGE

This can be changed at any time by the user in the LANGUAGE

menu (accessed via the FEATURES menu).

MENUS DESCRIPTION

MAIN MENU

All menus are removed within 60 seconds if you don’t press any button.

Press the remote control MENU button (A7) to display the main menu.

Then, you have the choice between several sub-menus:

If you want to Exit the main menu, press the MENU button (A7) a second time.

- To select one of the sub-menus, use the remote control CURSOR UP (A5),

DOWN (A8) buttons.

- To enter the selected sub-menu, press the remote control OK button (A3).

Remark:

In AV mode the INSTALL menu is not available, and will not be selectable.

HOW TO USE THE SUB-MENUS

The sub-menus referred to here are: PICTURE, INSTALL, FEATURES.

- Adjust the function using :

- Select the desired Po-

sition by using the re-

mote control CURSOR

UP (A5) or DOWN (A8)

buttons.

- The remote control

CURSOR LEFT (A9) or

RIGHT (A6) buttons if

you want to modify

the function value.

- The remote control

NUMBER 0...9 buttons

(A2) to enter directly

new data.

- Store (if needed) by

pressing the remote

control OK button (A3).

- Then Exit to main

menu by pressing the

MENU button (A7).


FAVOURITE

BRIGHTNESS

CONTRAST

COLOUR

SHARPNESS

TINT

NOISE RED. ON

INSTALL

ATSS GB

EDIT

SYSTEM GB

CHANNEL C46

FREQUENCY 671,25

NAME ABCDEFG

PROGRAM 09

STORE TO 09

Automatic tuning system

Program list edition

TV system modiﬁcation

Channel number

Channel Frequency

Channel name

Program number

Program storage number

Country

TV system

Channel number

Channel Frequency

Channel name

Program number

Program storage number

EDIT

PR NAME CH SKIP

03 BBC1 C23

02 BBC2 C33

00 - - - - S41

99 - - - - S41

98 - - - - S41

97 - - - - S41

Skip code

: Program skipped

Nothing : Program not skipped

Program number

Station name

Channel number

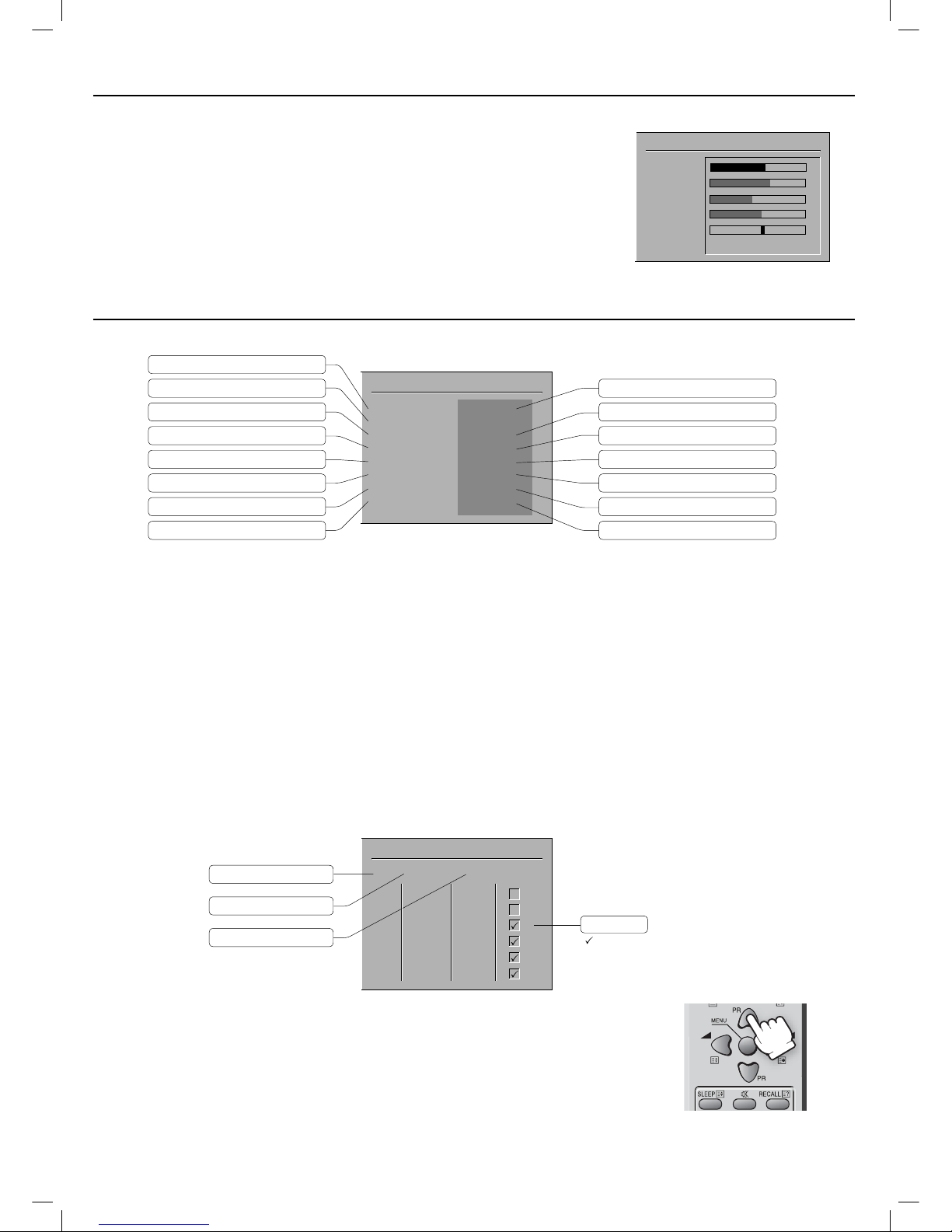

PICTURE MENU

(For operating instructions, see page 8, HOW TO USE THE SUB-MENUS)

- Select and adjust the level of each function : BRIGHTNESS, CONTRAST, COLOUR,

SHARPNESS,TINT (if available).

- The above modiﬁed values are automatically stored in FAVOURITE mode.

- NOISE REDUCTION feature can be activated or not.

- The OK (A3) or NORMAL button will select the picture presets FAVOURITE, NORMAL I,

NORMAL II.The currently selected preset is displayed in the menu header.

- The FAVOURITE preset contains the settings that you last entered.

If the NTSC standard is detected (eg from VHS player connected to AV1), then TINT will

available. Otherwise TINT will be displayed, but not selectable.

INSTALL MENU

(For operating instructions, see page 8, HOW TO USE THE SUB-MENUS)

Automatic Tuning System

If you have a satellite decoder: If your decoder is connected to the TV set by the aerial jack (C2), you must power on the demod-

ulator and tune Sky News before starting ATSS.

ATSS = Automatic Tuning and Sorting System.To start the ATSS function:

- Select„ATSS” function.

- Adjust to the required country.

- Press and hold the OK button (A3) to start the automatic tuning.

The ATSS function has started when the phrase„Please Wait!”appears (in red characters) in the help instructions box, below the

Install menu.

When the ATSS function is ﬁnished, the stored programs are displayed on screen using Edit menu presentation (to Exit tuning

before automatic tuning ﬁnished, press the remote control MENU button (A7))

Program List Edition

This allows you to easily manipulate the existing program order allocation, by using Edit menu functions described below.

To enter the EDIT menu: From Install menu, select„Edit”, and press the OK button (A3): the EDIT

menu appears.

The current program being displayed is highlighted in blue (on the central line). In the above case,

the current program is PR00.The 3 previous, and 3 following programs, are always displayed. Any

program from 00 to 99 can be selected, by using the remote control CURSOR UP (A5) / DOWN (A8)

buttons.

The memorised programs can be modiﬁed as follows:

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daewoo TV

Daewoo

Daewoo DTH-29U3 Manuel utilisateur

Daewoo

Daewoo DSC-3270E Manuel utilisateur

Daewoo

Daewoo DTH-211F Manuel utilisateur

Daewoo

Daewoo DTA - 14C4TFF Manuel utilisateur

Daewoo

Daewoo DTF-2950-100D Manuel utilisateur

Daewoo

Daewoo DTD-14D3 ME Manuel utilisateur

Daewoo

Daewoo DTQ 27U5SC Manuel utilisateur

Daewoo

Daewoo DTC-14 Manuel utilisateur

Daewoo

Daewoo DTQ-14V1FCN Manuel utilisateur

Daewoo

Daewoo DTQ-14V1FC Manuel utilisateur

Daewoo

Daewoo DTQ 29G1FC Manuel utilisateur

Daewoo

Daewoo PF2720 Manuel utilisateur

Daewoo

Daewoo DTQ-14D4SSFM Manuel utilisateur

Daewoo

Daewoo Super Vision 14A5 Manuel utilisateur

Daewoo

Daewoo DTW - 28W2F Manuel utilisateur

Daewoo

Daewoo DTT-3250MT Manuel utilisateur

Daewoo

Daewoo DTQ-29S3FC Manuel utilisateur

Daewoo

Daewoo DTQ - FSPN Manuel utilisateur

Daewoo

Daewoo DTL-29U8ZLP Manuel utilisateur

Daewoo

Daewoo DTQ-29M2FS Manuel utilisateur

Daewoo

Daewoo DTH-14V1FS Manuel utilisateur

Daewoo

Daewoo DTR Series Manuel utilisateur

Daewoo

Daewoo CHASSIS : SC-150 Model : DSC-3220E Manuel utilisateur

Daewoo

Daewoo DTE-29 Series Guide de l'utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
