Daewoo FR-2701 Manuel utilisateur
REFRIGERATOR
INSTRUCTION MANUAL
■Thank you for selecting this refrigerator.
■Before using the refrigerator, please read this manual carefully.
MODEL NO .: FR-2701
FR-2701(¿ )00.11.135:58PM˘`2
FEATURE CHART
1
1ICE TRAY
2F SHELF (MOVABLE)
3FREEZER TEMPERATURE CONTROL
KNOB
4ICE BOX
5CHILLED CASE
6LAMP COVER
7REFRIGERATOR TEMPERATURE
CONTROL SWITCH
8R SHELF (MOVABLE)
9VEGETABLE CASE COVER
0VEGETABLE CASE
qFREEZER POCKET
wFREEZER POCKET
eUTILITY POCKET
rEGG CASE
tBOTTLE POCKET (LARGE)
yBOTTLE POCKET (SMALL)
1
2
3
4
5
6
7
8
9
0
q
w
r
e
t
y
FR-2701(¿ )00.11.135:58PM˘`1
2
Here are the features of your new refrigerator.
Take a moment to know all the features designed for the convenience of the user.
■Ice Tray
Fill 3/4 of the ice tray with water, as the volume expands when the water is frozen. Place the tray in the
freezer compartment. To release ice cubes, twist the ice tray slightly. Ice cubes will be easier to remove
if it is held for a short while under running water.
■Movable refrigerator and freezer shelves
Storage shelves should be adjusted depending on the height of the food stored. To do this, pull the
shelves slightly forward.
■Defrost-drain Vessel
Since dust accumulated on the drain case decreases the evaporation efficiency, you should clean the
drain case at regular intervals.
FR-2701(¿ )00.11.135:58PM˘`2
CAUTION: 1. Check your voltage before inserting the power supply cord into the socket.
2. Contact the earthing conductor to this unit with an attachment earthing screw.
3. Do not spill liquid on this unit.
4. Do not use flammable spray, such as painting, near this unit.
5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.
6. Take precautions against leakage of any gas equipment near this unit.
7. Keep children from hanging on the door of this unit.
8. Do not reinsert the power supply cord within 5 minutes after releasing it from the
socket. If not, there may be problems with the compressor.
3
¡¡ÆÆLamp Cover
To remove the lamp cover
1. Push up the bottom end of the lamp cover gently, then
pull out.
2. Reverse procedure to join together.
¡¡ÆÆVegetable case
May be used for fruit and vegetable storage. Both the
vegetable case and its cover shelf are removable for
easy cleaning. Simply slide forward to remove.
¡¡ÆÆUtility Pocket (Top)
The Egg Case in this pocket can be turned upside down
for the use of small size goods.
¡¡ÆÆFor lock installed refrigerators only.
1
2
CAUTION
When you put or take out food from the refrigerator, be careful not to hit your head on the lock as
there is a protrusion on the door of your refrigerator.
!
FR-2701(¿ )00.11.135:58PM˘`3
4

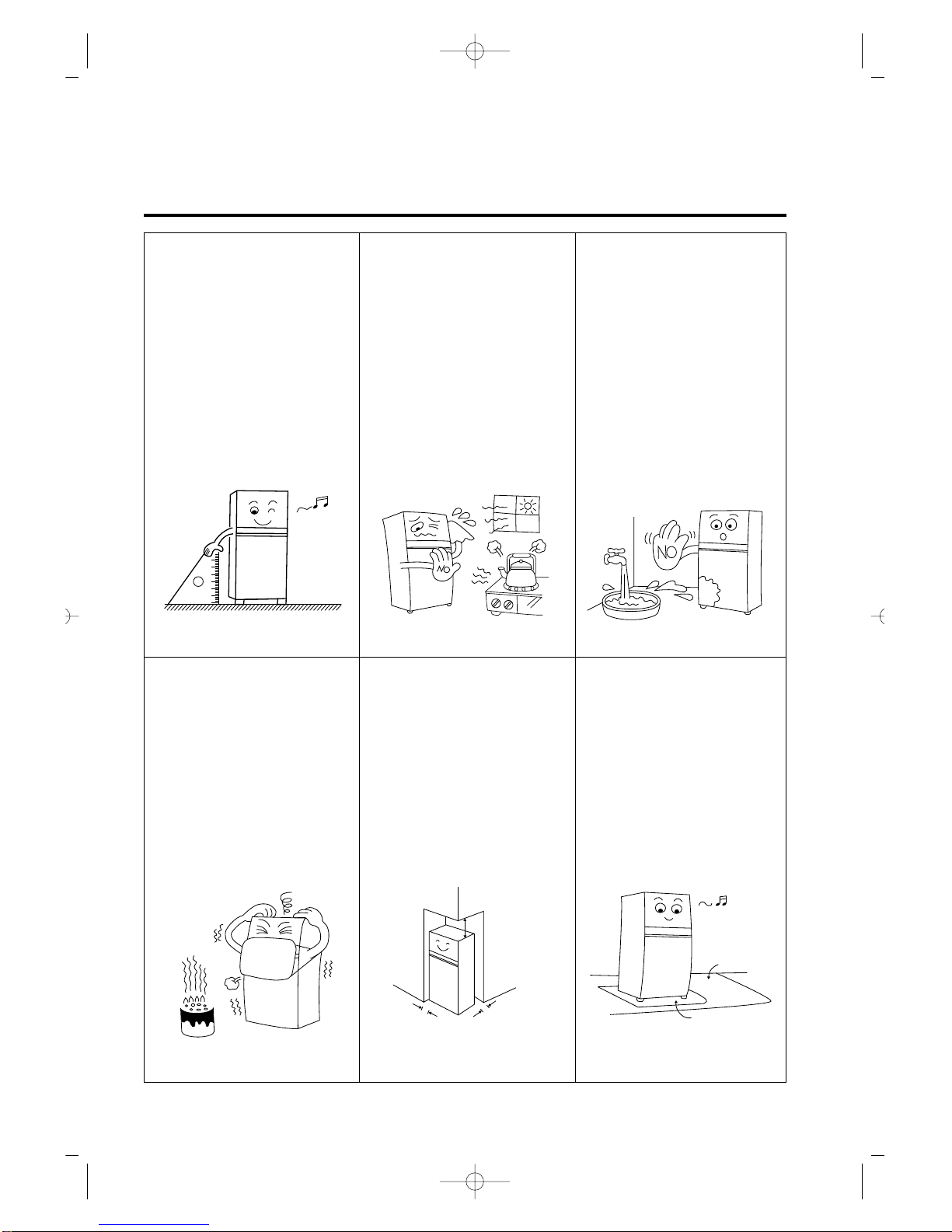

METHODS OF SAFE INSTALLATION
1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR
At least 6cm
At least 6cm
At least 30cm
Carpet
Wooden Board,
Rubber Mat
• Place the refrigerator on a
strong and level floor.
Unstable installation can
produce noise and vibration.
• Place your refrigerator
where there is no heat
source nearby.
High atmosphere
temperature will lower
cooling efficiency and
increase your electricity bill.
• Place the refrigerator in an
area where the humidity
level is low.
Splashing water on the refri-
gerator or installing the unit
in a humid area may cause
short circuit and rust.
• Avoid places that are
exposed to coal gas or
smoke, or discoloring may
occur on the refrigerator.
• For good ventilation, keep
enough space between the
sidewalls and your
refrigerator.
This helps to cool efficiently
and lowers the electricity bill.
• Putting the refrigerator on
the carpet may cause
temperature rise and result
in the discoloring of the
carpet due to the
compressor heat.
In such a case, place a hard
wooden board or a rubber
mat between the carpet and
the unit.
FR-2701(¿ )00.11.135:58PM˘`4
2. INSTALLATION STEPS
5
Check
Safe installation
place
Components to their
original places
Maintain ~
Level
Check
Plug in after
about hour
Put food after
2~3 hours
• Select a safe place to install
your refrigerator. • Level the refrigerator by
using the adjustable feet. • Install the parts in their own
place.
• Check if the doors are
completely closed. • Check the voltage.
Then wait about an hour
before plugging the power
cord into the outlet.
• Put food in the refrigerator
after running the refrigerator
for 2~3 hours.
FR-2701(¿ )00.11.135:58PM˘`5
Adheslve Tape
Adhesive
Tape
6
3. WHAT YOU NEED TO KNOW BEFORE MOVING OR
RELOCATING THE REFRIGERATOR!
• Fasten the doors with
adhesive tape to prevent from
opening while moving.
• Unplung the power cord. • Remove the grille with driver
and water from the defrost-
drain vessel located at the
rear of the refrigerator.
• Do not detach the defrost
drain vessel from the
compressor.
• Take food out of the
refrigerator.
• Fasten the interior
components with adhesive
tape.
• Have two people carry the
refrigerator to move safely.
The installation of the grille is
an option.
FR-2701(¿ )00.11.135:58PM˘`6
Water
Soft cloth
Components to their
original places
Soft cloth
7
4. CLEANING YOUR REFRIGERATOR
• Do not sprinkle water
directly on the refrigerator
itself.
• Put the parts back in their
original positions after
cleaning.
• Before you clean the
refrigerator, unplug the
power cord. To clean, use a
soft piece of cloth. Wash
with warm, soapy water,
rinse and dry.
• The refrigerator may smell
during the initial operation,
but the odour will fade away
when the refrigerator is
cooled sufficiently.
• Use a soft cloth for cleaning
the interior and exterior of
the refrigerator.
FR-2701(¿ )00.11.135:58PM˘`7
8
How to Install
Location
Install the refrigerator in a convenient location away from extreme heat and cold. Allow at least 6cm
clearance between the refrigerator and side wall so that the door may open for a fully usable interior and
the refrigerator may have good air circulation. The refrigerator is not designed for recessed installation.
■Select a strong and level floor.
■Keep 6cm of space between the refrigerator and the
walls.
Leveling
Level the refrigerator so that it rests solidly on the floor without rocking. There are two leveling feet at each
front corner. Turn to the left to raise a corner, to the right to lower it. Use shims under the rear corners, if
necessary.
■If you want the refrigerator door to close naturally, adjust the leveling feet so that the front of the
refrigerator is raised by 5mm.
■If you want the refrigerator to remain motionless when open, adjust the leveling feet so that all four
corners are leveled with each other.
the wall
6cm
NOTE: All packing materials used to ensure safety during transport should be removed. You must
remove the transport safty packing and wipe off any possible adhesive tape residues with a
petroleum-based cleaner or similar solvent.
FR-2701(¿ )00.11.135:58PM˘`8
9
How to operate
1. TEMPERATURE CONTROL
Temperature is controlled by thermostat automatically.
The Temperature Control inside the refrigerator controls the degree of cooling for each compartment.
Freezer Temperature Control
The control has four settings form MIN to
WINTER. The WINTER mode is available only if
atmosphere temperature is below 10°C.
The control has the four settings from MIN to
WINTER. The WINTER mode is available only if
atmosphere temperature is below 10°C.
Refrigerator Temperature Control
MIN MED
TEMP. CONTROL
MAX WINTER
MINMED
MAX
WINTER
TEMP. CONTROL
Starting your new refrigerator
1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with a damp cloth.
2. Set the temperature control knob at normal position.
3. Connect the power supply cord.
To control temperature
Many factors may influence the internal temperature of the refrigerator and freezer
compartments.
■The temperature and humidity of the surrounding environment.
■The opening frequency of the doors and the amount of warm food placed in the refrigerator.
■The combination of food and containers stored in the refrigerator.
For these reasons, you may want to adjust the control to suit the season and your needs.
FR-2701(¿ )00.11.135:58PM˘`9
