Daewoo FR-3502 Manuel utilisateur

ICE TRAY

F SHELF (MOVABLE)

FREEZER TEMPERATURE CONTROL

KNOB

ICE BOX

CHILLEDCASE DOOR

CHILLEDCASE

REFRIGERATOR TEMPERATURE

CONTROLSWITCH

RSHELF(MOVABLE)

LAMPCOVER

VEGETABLE CASE COVER

VEGETABLE CASE

FREEZER POCKET(SMALL)

FREEZER POCKET(MIDDLE)

EGG CASE

UTILITY POCKET(SMALL/SMALL)

UTILITYPOCKET(SMALL/MIDDLE)

BOTTLEPOCKET(LARGE/LARGE)

BOTTLEPOCKET(MIDDLE/LARGE)

FEATURE CHART

Here are the features of your new refrigerator.

Take a moment to know all the features designed for the convenience of the user.

Ice Tray

Fill3/4 of theice tray withwater, as the volume expands whenthe water isfrozen. Place the tray

in the freezer compartment.Toreleaseice cubes, twist the icetray slightly.Icecubes willbe

easier to remove if itis held for a short whileunderrunning water.

Movable refrigeratorand freezer shelves

Storage shelves should be adjusted depending onthe height of thefood stored. Todothis, pull

theshelves slightly forward.

Defrost-drain Vessel

Since dustaccumulated on thedrain casedecreases the evaporation efficiency, you should clean

thedrain caseatregular intervals.

Lamp cover

To remove the lampcover

1.Push up the bottom end of lamp cover gently, then

pullout.

2.Reverse procedure to join together.

Vegetable case

May be used for fruit and vegetable storage. Both the

vegetable case and its cover shelf are removable for

easy cleaning.Simply slideforward to remove.

Utility Pocket (Top)

The Egg Case in this pocket can be turned upside

down for the storage of small size goods.

For lock installed refrigerators only.

CAUTION: 1. Check your voltage before inserting the power supplycord intothe socket.

2. Contact theearthingconductor to this unit with an attachment earthing screw.

3. Do notspillliquid on thisunit.

4. Do not use flammable spray, such as painting, near this unit.

5.Do not place ignitable material,such as benzine, L.P. gas, alcohol etc.,intothis

unit.

6.Take precautions against leakageof any gasequipment near this unit.

7. Keep children from hangingon the door of this unit.

8. Do not reinsert the power supply cord within 5 minutes after releasing it from the

socket. If not, there may beproblems with the compressor.

CAUTION

Whenyou put or takeout food from the refrigerator, be careful not tohit your head on the lock

as there isa protrusion on thedoor of your refrigerator.

METHODS OF SAFE INSTALLATION

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

•Placethe refrigerator on a

strong and level floor.

Unstable installationcan

produce noise and

vibration.

•Place yourrefrigerator

where thereis no heat

sourcenearby.

High atmosphere

temperaturewill lower

coolingefficiencyand

increase yourelectricity bill.

•Place the refrigerator in an

area where thehumidity

level is low.

Splashing water on the

refrigerator or installing the

unitin ahumidarea may

cause short circuit and rust.

•Avoid places that are

exposedto coalgas or

smoke, ordiscoloring may

occuron therefrigerator.

•For good ventilation, keep

enoughspace between the

sidewalls and your.

Thishelpstocool efficiently

and lowers the electricity bill.

•Putting the refrigerator on

the carpet may cause

temperature rise and result

in thediscoloringofthe

carpet due tothe

compressorheat.

Insuch a case, place a hard

woodenboardor a rubber

matbetween the carpet and

the unit.

2. INSTALLATION STEPS

•Select a safe place to install

your refrigerator.•Level the refrigerator by

usingthe adjustable feet. •Install the parts in their own

place.

•Check if thedoors are

completelyclosed. •Checkthe voltage.

Then wait aboutanhour

before plugging the power

cord intothe outlet.

•Put food inthe refrigerator

afterrunning the refrigerator

for 2~3hours.

3. WHAT YOU NEED TO KNOW BEFORE MOVING OR

RELOCATING THE REFRIGERATOR!

•Unplungthe power cord. •Detach the grille and the

defrost-drain vessel from the

refrigerator with driver

and thenremovewater from

thedefrost-drain vessel

located atthe rear ofthe

refrigerator.

•Takefood out ofthe

refrigerator.

•Fasten the interior

componentswith adhesive

tape.

• Have twopeople carry the

refrigerator to move safely.

•Fasten the doors with

adhesive tape to prevent

from opening while moving.

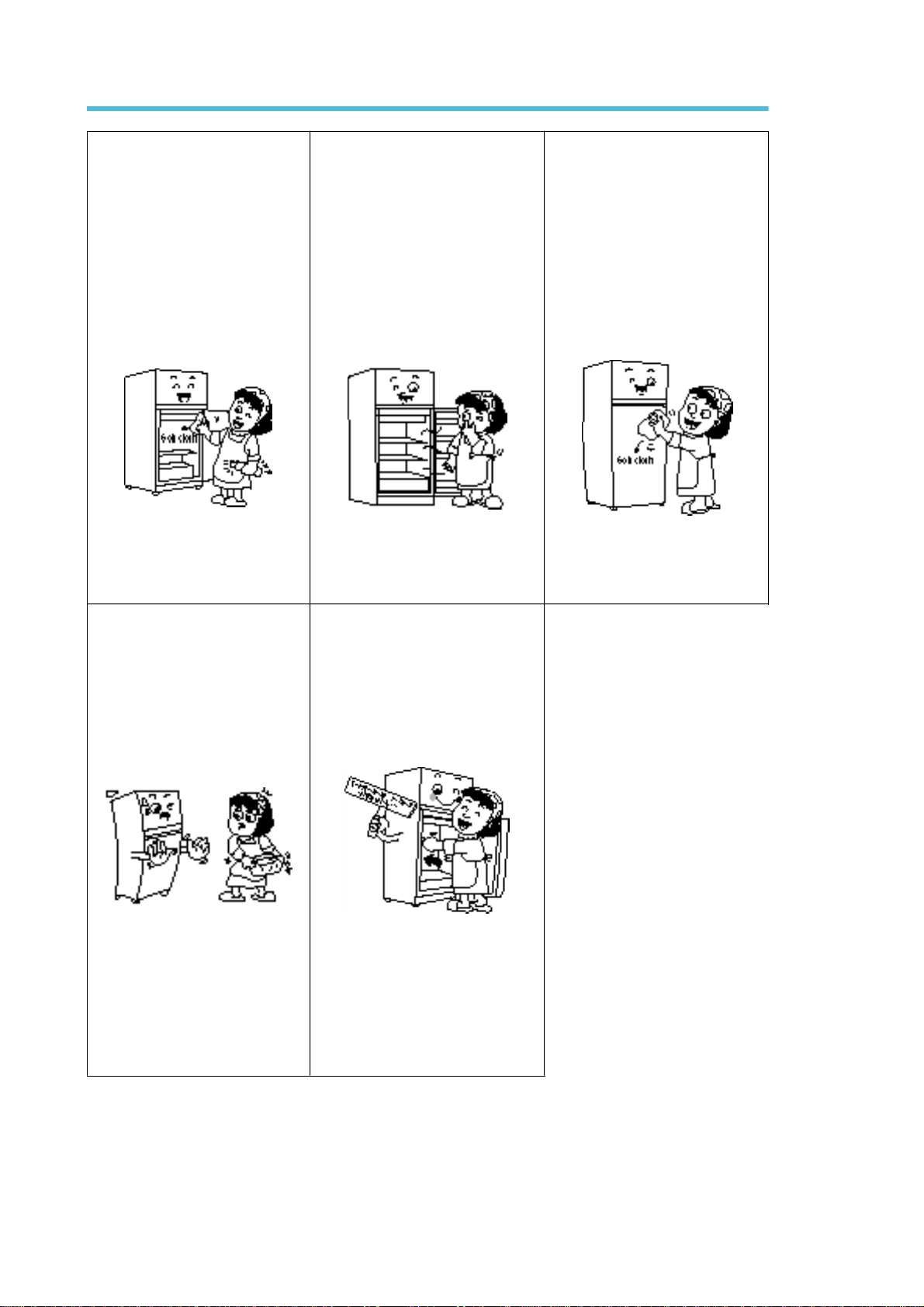

4. CLEANING YOUR REFRIGERATOR

•Before you clean the

refrigerator, unplug the

power cord.To clean, use a

soft pieceofcloth.Wash

withwarm, soapy water

rinseanddry.

•The refrigerator may smell

during the initialoperation,

but the odourwillfade away

whenthe refrigerator is

cooledsufficiently.

•Use a soft cloth for cleaning

the interior and exterior of

the refrigerator.

•Do not sprinkle water

directlyon therefrigerator

itself.

•Put the parts backin their

original positionsafter

cleaning.

Leveling

Location

How to Install

Install the refrigerator in a convenient location away from extreme heat and cold. Allow at least 6cm

clearance between the refrigerator and side wall so thatthe door may open for a fully usable interior

and the refrigerator may have good air circulation. The refrigerator is not designed for recessed

installation.

Select a strong and level floor.

Keep 6cmofspace between the refrigerator

andthe walls.

Level therefrigerator so that it rests solidly on the floor without rocking. There are two leveling feet at

each front corner. Turn to the left to raise a corner, to the right to lower it. Use shims under the rear

corners, if necessary.

If you want the refrigerator door to close naturally, adjust the leveling feet so that the front of the

refrigerator is raised by 5mm.

If you want the refrigerator to remain motionless when open, adjust the leveling feetso that all four

corners are leveled with each other.

NOTE: All packing materials used to ensure safety during transport should be removed. You

must remove the transportsafty packing and wipe off any possibleadhesive tape

residues with a petroleum-based cleaner or similarsolvent.

How to operate

1. TEMPERATURE CONTROL

1.Cleantherefrigeratorthoroughly.Wipethe outsidewithadrycloth,andthe insidewithadampcloth.

2.Set thetemperature controlknob atnormalposition.

3.Connectthe power supply cord.

Many factors may influence the internal temperature of the refrigerator and freezer

compartments.

The temperatureandhumidity ofthesurrounding environment.

The openingfrequency ofthedoors and theamount ofwarm foodplaced inthe refrigerator.

The combination of food and containers stored in the refrigerator.

Forthesereasons, you may want to adjust the control to suitthe season and your needs.

To control temperature

Temperature is controlled by thermostat automatically.

The Temperature Controlinside the refrigerator controlsthe degree of cooling for each

compartment.

Freezer Temperature Control

The controlhasfoursettings form MIN to

WINTER. The WINTER mode is available

only if atmospheretemperature isbelow10°C.

Starting your new refrigerator

Refrigerator Temperature Control

The control has the foursettings from MIN to

WINTER. The WINTERmode is available

onlyif atmosphere temperatureisbelow 10°C.

Turn thetemperature controlin the refrigerator and freezer compartments towardWINTER for

colder temperature andtoward MIN forwarmer temperature.

Allowapproximately 12 hours or overnight for the temperature to stabilize.

Thencheckto see if further adjustments are necessary.

Disconnect the power supply cord. Remove icing case and food. Leave doors ajar for ventilation and

dehumidification of bothcompartments.

2. DEFROSTING THE REFRIGERATOR

You will never have to defrost your refrigerator as it is designed to defrost itself completely and

automatically.

3. RADIANT HEAT

With the Refrigerating System in operation, it is likely that the cabinet will feel warm at the front

edgesandsides. Thisdoesnotindicatetrouble.

It is due to the hot-line used in this type of Refrigerating System which consists of piping hot gas

from the (motor-driven) compressor along the front edges, the sides of the cabinet and the center

partition to preventdewing. Thishas nothing to do with the storage temperatureinside.

(The thick line indicates the hot-line)

To turn off the refrigerator

CAUTION

To avoid the risk of electric shock or death, unplug the power cord before replacing a

burned out light bulb or cleaning the inner parts.

NOTE: During spells of hot, humid weather and in rainy season,

moisture may develop onthe cabinet, just aswater condenses

around a cold glass of water. It is not anabnormal condition;

wipe off themoisture with a dry cloth. This can also happen

whenthe refrigerator is not installed in anappropriate place.
