DAELIM E-FIVE Manuel utilisateur

OM45-0204-01E

OWNER'S MANUAL

󳥎󳥎HEAD OFFICE (FACTORY)

#58, SUNG SAN-DONG, CHANG WON, KYUNGNAM, KOREA

TEL : (82-55) 239-7000 FAX : (82-55) 239-7524

SPECIFICATION ································ 3

OPERATION INSTRUCTION ··················· 4

SAFETY PRECAUTIONS ······················ 4

PRIOR TO STARTING VEHICLE ················· 5

CORRECT ATTIRE···························· 5

OPERATION ································· 6

CARGO ····································· 6

MODIFICATION ······························ 7

ATTACHMENT ······························· 7

MUFFLER ··································· 7

PARTS LOCATION···························· 8

METER READING AND USAGE ···············10

METER ·····································10

WARNING AND INDICATOR LAMPS··············10

SWITCH OPERATION ·························11

MAIN SWITCH ·······························11

STARTER BUTTON ···························12

HEADLIGHT ·································12

WINKER SWITCH·····························13

HORN BUTTON ······························13

EQUIPMENT USAGE ··························14

HANDLE BAR LOCK···························14

MAIN STAND LOCK ···························14

SEAT LOCK ·································15

TRUNK ·····································15

DOCUMENT STORAGE AREA ··················16

BAG HOLDER································16

BRAKE LOCK LEVER··························17

CORRECT DRIVING OPERATION ·············18

STARTING THE ENGINE ·······················18

IF ENGINE CANNOT BE STARTED···············20

AFTER STARTING ENGINE·····················20

PROPER DRIVING METHODS ··················22

STOPPING ··································23

SELF INSPECTIONS BEFORE OPERATION ···25

INSPECTION OF CONCERNED AREA ············26

BRAKE INSPECTION ··························26

TIRE INSPECTION ····························27

FUEL CHECK ································28

ENGINE OIL CHECK ··························29

LIGHTS AND WINKER INSPECTION··············29

BACK MIRROR INSPECTION ···················30

FUEL LEAK INSPECTION ······················30

LICENSE PLATE INSPECTION ··················30

CONTENTS

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지1

MAINTENANCE ·······························30

MAINTENANCE SCHEDULE ····················31

MAINTENANCE PRECAUTIONS ·················33

REPLENISHING BRAKE FLUID ··················33

BRAKE PAD INSPECTION ······················34

BRAKE LEVER ADJUSTMENT ··················35

REAR BRAKE SHOE INSPECTION ···············35

REPLENISHING ENGINE OIL ···················36

TRANSMISSION OIL INSPECTION ···············37

TIRE PRESSURE INSPECTION··················37

WHEEL REMOVAL ····························38

SIDE STAND INSFECTION ·····················39

SPARK PLUG ································40

BATTERY INSPECTION ························41

FUSE REPLACEMENT ·························42

BULB REPLACEMENT ·························43

AIR CLEANER ELEMENT INSPECTION ···········45

CABLE RUBBER PART INSPECTION ·············46

NOTABLES FOR CAR WASHING ················46

STORAGE GUIDE ····························46

FRAME AND ENGINE NUMBER ···············47

SAFE DRIVING ·································48

PREPARATION BEFORE DRIVING ············48

DRIVING METHOD ····························49

DRIVING POSITION ···························49

PRECAUTION WHEN DRIVING ··················51

STARTING ··································52

TURNING METHOD ···························54

PRINCIPLE OF TURN··························54

EFFECT OF SPEED ···························54

3 POSITIONS OF TURNING·····················55

TURNING METHOD ···························56

PRECAUTION WHEN TURNING ·················57

BRAKING METHOD ···························58

BASIC PRINCIPLE OF BRAKE(FRICTION FORCE) ··58

RESTRAINT OF BRAKE EFFECT (INERTIA) ·······58

BRAKING METHOD ···························59

COMPARISION OF BRAKING DISTANCE··········59

IMPACT WHEN COLLISION·····················59

WIRING DIAGRAM······························60

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지2

LENGTH×WIDTH×HEIGHT(mm)

WHEEL BASE(mm)

GROUND CLEARANCE(mm)

SEAT HEIGHT(mm)

DRY WEIGHT(kgf)

PASSENGER

ENGINE TYPE

PISTON DISPLACEMENT(cc)

BORE AND STROKE(mm)

STARTING SYSTEM

TRANSMISSION TYPE

1,790×685×1,130

1,260

131

775

AIR COOLED

2 STROKE

49.5

39.0×41.4

START MOTOR / KICK

V - MATIC

IGNITION SYSTEM

BATTERY CAPACITY

FUEL CAPACITY(ℓ)

OIL CAPACITY(ℓ)

C.D.I

12V3AH(MF TYPE)

6.0

1.2

130 / 90 - 10 61J

TELESCOPIC

UNIT SWING OIL DAMPER

HYDRAULIC DISK

DRUM BRAKE

B8HSA

ITEM DATA ITEM DATA

FR.

RR.

FR.

RR.

FR.

RR.

SPARK PLUG

FUSE(A)

TIRE SIZE

SUSPENSION

BRAKE

SPECIFICATION

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지3

This manual describes matters pertaining to correct operation,

safe operation and simple maintenance of the vehicle you

purchased.

To ensure more comfortable and safer operation, make sure to

read this manual carefully prior to operation.

●The photographs and drawings shown in this manual may

differ from those of actual vehicles due to changes in vehicle

specifications and modifications made.

●This vehicle is designed for 2 riders including the operator.

CAUTION

●Do not use polluted gasoline.

Using polluted gasoline will cause rust inside the fuel

tank, and will close the supply of fuel to the carburetor,

leading to an improper engine starting or may cause

serious damage to an engine.

●Do not use polluted or low-grade oil.

Always use genuine oil to protect and extend vehicle

performance and its life span.

●If any failure occurs due to the use of polluted gasoline

or oil, such failure will be excluded from being eligible

for repairs under the warranty.

●Careful driving and the wearing of proper attire and safety

equipment are the most important factors in the safe

operation of the scooter. Please obey traffic regulations and

do not be hurried and careless.

●Many new vehicle owners operate their newly purchased

vehicles with great care and attention to safety factors.

However, after becoming accustomed to the operations are

often discarded, which can lead to accidents. Please don't let

this happen to you and always approach the operation of your

vehicle with the safety considerations needed.

When operating the vehicle, always keep in mind and obey

the notes of precaution printed on the“Safety Precaution

Label”attached to the vehicle.

OPERATION INSTRUCTION

SAFETY PRECAUTIONS

●Always wear helmet.

●Always put on gloves.

●Observe posted speed limits.

●Park vehicle away from people(especially children) as

the muffler can get very hot.

●For safety, do not illegally modify the vehicle.

●Regularly conduct specified maintenance inspections.

Brakes, Tires, Oil, Lights, Horn, Instruments

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지4

●Read user's manual carefully.

●Conduct maintenance checks prior to operation.

●Always maintain vehicle in clean status and carry out

specified maintenance checks.

●Make sure to stop engine and stay away from fire when

fueling.

●Exhaust gas contains harmful substance such as carbon

monoxide. Start engine in well-ventilated places.

●Always make sure to wear helmet for safety. Wear gloves

and safety goggles.

●Do not wear uniforms which might hinder operation. It is

dangerous if the uniform is caught by brake lever.

●Many automobile / motorcycle accidents happen because the

automobile driver does not “see” the motorcyclist.

Make yourself conspicuous to help avoid the accident that

wasn’t your fault :

- Wear bright or reflective clothing.

- Don’t ride in another motorist’s “blind spot”.

Correct shirts or jackets

with tight-fitting sleeves

should be worn.

A helmet should always be

worn and the helmet chin

strap should be securely

fastened.

Shoes should fit properly, and shoes having

little or no heel should be worn.

PRIOR TO STARTING VEHICLE

CORRECT ATTIRE

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지5

●When carrying cargo, you must keep in mind that operating

the vehicle, especially when turning, will be different.

●Make sure not to overload the vehicle with goods as this can

make the vehicle unstable during operation.

REAR CARRIER MAXIMUM LOAD : 3kg

TRUNK MAXIMUM LOAD : 10kg

●Operators should naturally fix bodies to keep smooth driving.

●Please check whether or not you are unnaturally strained and

strung up.

●Driving pose has a great influence on safe operation.

Please always maintain the center of your body in the middle

of seat.

Especially do not sit at the rear seat because it may lessen the

weight of front wheel and cause trembling steering wheel.

●Passengers should accurately fix bodies using both hands and

put both feet on floor panel.

●When wanting to turn, slightly lean to body toward the

direction of the turn. It is unsafe if the body is not moved in

union with the vehicle.

●Curvy roads and poor, unpaved roads constantly change in

surface quality. Driving on these roads can be unsafe if

certain safety precautions are not followed.

●In order to safely drive through these driving conditions,

anticipate coming road conditions, slow down to at least half

the normal speed, and relax your shoulders and wrists while

securely holding the handles.

●Driving with one or both hands not holding the handles or

the front wheel lifted can cause severe injury or death of the

driver resulted from the turnover of the vehicle.

OPERATION CARGO

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지6

CAUTION

●Only load cargo in or on designated areas as placing or

fastening cargo to other areas can cause damage to the

vehicle.

●Do not place articles between the frame body cover and

engine as this can burn the goods.

●Do not place cloth-like materials in the area of the oil

tank cap. If the hole in oil tank cap is blocked, oil will

not flow freely into the engine which can cause

severely engine damage.

●Do not attach large or heavy items (such as a sleeping

bag or tent) to the handle bars, fork, or fender. Unstable

handling or slow steering response may result.

CAUTION

●Do not park in the place where many pedestrians are

passing through. Pedestrians or children can be burned

by contacting with the muffler.

●Fellow passenger care must pay enough attention not to

be burn by contacting with the muffler.

●If haystack or vinyl is stuck to the muffler, fire can be

occurred.

●Modification of vehicle structure or function deteriorates

manipulability or causes exhaust noise to become louder

shortening the vehicle life. These modifications are not only

prohibited by law but also are the acts harmful to other

people. Modifications are not covered by warranty.

●Except designated attachment by DAELIM MOTOR CO.,

LTD., don’t attach any extra lighting device, because it may

cause an early discharging of battery.

●Carefully inspect the accessory to make sure it does not

obscure any lights, reduce ground clearance and banking

angle, or limit suspension travel, steering travel or control

operation.

●Do not add electrical equipment that will exceed the

motorcycle’s electrical system capacity. A blown fuse could

cause a dangerous loss of lights or engine power.

●This motorcycle was not designed to pull a sidecar or trailer.

Handling may be seriously impaired if so equipped.

MODIFICATION

ATTACHMENT

●Pay particular attention to fellow passenger so that he/she

can prevent getting burnt by the hot muffler during travel.

MUFFLER

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지7

PARTS LOCATION

FUEL TANK LID

(BENEATH THE SEAT)

BATTERY

TRUNK

TIRE

MUFFLER

SEAT

FUSE

BACK MIRROR

FRONT BRAKE LEVER

HANDLE LEVER PROTECTOR

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지8

PARTS LOCATION

REAR BRAKE LEVER

HEADLIGHT

FRONT CUSHION

BRAKE DISK

OIL TANK LID

(BENEATH THE SEAT)

SPEEDOMETER

BAG HOLDER

SIDE STANDBRAKE CALIPER MAIN STAND

AIR CLEANER

ELEMENT

REAR CUSHION

KICK START PEDAL

**E-5 OWNERS(1~47) 02.11.5 4:2 PM 페이지9

Table des matières

Autres manuels DAELIM Scooter

DAELIM

DAELIM CORDI - Manuel utilisateur

DAELIM

DAELIM BESDI 125 - SERVICE Manuel utilisateur

DAELIM

DAELIM S2 250 - Manuel utilisateur

DAELIM

DAELIM B-BONE Manuel utilisateur

DAELIM

DAELIM S2 250 - Manuel utilisateur

DAELIM

DAELIM S1 - CATALOG Manuel utilisateur

DAELIM

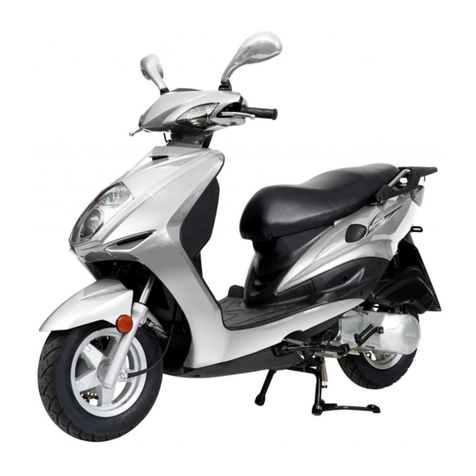

DAELIM DELFINO Manuel utilisateur

DAELIM

DAELIM BESBI SC125 - Manuel utilisateur

DAELIM

DAELIM B-BONE Manuel utilisateur

DAELIM

DAELIM A-FOUR - Manuel utilisateur

DAELIM

DAELIM LIBERTY Manuel utilisateur

DAELIM

DAELIM Q2 Manuel utilisateur

DAELIM

DAELIM BESBI - Manuel utilisateur

DAELIM

DAELIM BONITA - CATALOG Manuel utilisateur

DAELIM

DAELIM S4 50cc Manuel utilisateur

DAELIM

DAELIM CITI ACE 110 - Manuel utilisateur

DAELIM

DAELIM S2-250 Manuel utilisateur

DAELIM

DAELIM DELFINO Manuel utilisateur

DAELIM

DAELIM HISTORY 125 - SERVICE Manuel utilisateur

DAELIM

DAELIM S-FIVE - Manuel utilisateur

DAELIM

DAELIM NS125III - SERVICE Manuel utilisateur

DAELIM

DAELIM S-FIVE - Manuel utilisateur

DAELIM

DAELIM NS 125 DLX Manuel utilisateur

DAELIM

DAELIM HISTORY Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
