PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 7.11

30”, 36”, 42”, 48”, 54” Wide

Hoods

EH, EHR & MH Wall Mount

Range Hoods

1/3

OVERALL DIMENSIONS

Model A B C

EH/EHR3012 29 7/8” (75.9 cm)

26 7/8”

(68.3 cm)

12 3/8”

(31.4 cm)

EH/EHR3612 35 7/8” (91.1 cm)

EH/EHR4212 41 7/8” (106.4 cm)

EH/EHR4812 47 7/8” (121.6 cm)

MH3012 29 7/8” (75.9 cm)

25 1/2”

(64.8 cm)

MH3612 35 7/8” (91.1 cm)

MH4812 47 7/8” (121.6 cm)

EH/EHR3018 29 7/8” (75.9 cm)

26 7/8”

(68.3 cm)

18”

(45.7 cm)

EH/EHR3618 35 7/8” (91.1 cm)

EH/EHR4218 41 7/8” (106.4 cm)

EH/EHR4818 47 7/8” (121.6 cm)

EH/EHR5418 53 7/8 (136.8 cm)

MH3018 29 7/8” (75.9 cm)

25” 1/2

(64.8 cm)

MH3618 35 7/8” (91.1 cm)

MH4818 47 7/8” (121.6 cm)

11 7/8”

(30.2 cm)

OVERALL DIMNENSIONS

NOTES:

1. The exhaust duct(s) and electrical wiring can be

connected from either the top or the back of the hood.

2. All tolerances: +1/16”, -0, (+1.6mm, -0), unless

otherwise state

Revised

06/19/08

DIMENSIONS OF OPTIONAL AHT10 TRANSITION

32”

(81.3 cm)

13 ¾”

(34.9 cm)

¾”

(1.9 cm)

9”

(22.9 cm)

2” (5.1 cm)

MINIMUM CABINET WIDTH

Models E

EH3012, EH3018, MH3012, MH3018 30” (76.2 cm)

EH3612, EH3618, MH3612, MH3618 36” (91.5 cm)

EH4212, EH4218 42” (106.7 cm)

EH4812, EH4818, MH4812, MH4818 48” (121.9 cm)

EH5418 54” (137.2 cm)

25” Min.

(63.5 cm)

Electrical

Access

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 7.12

30”, 36”, 42”, 48”, 54” Wide

Hoods

2/3

WEIGHT SPECIFICATIONS

Models Weight

EH3012, MH3012 48 lbs. (22 kg)

EH3018, MH3018,

EH3612, MH3612 53 lbs. (24 kg)

EH3618, MH3618 57 lbs. (26 kg)

EH4212 55 lbs. (25 kg)

EH4218 60 lbs. (27 kg)

EH4812, MH4812 70 lbs. (32 kg)

EH4818, MH4818 77 lbs. (35 kg)

EH5418 84 lbs. (38 kg)

All Models

Fan Speeds 4

Filters Mesh type, dishwasher safe

Exhaust(s) 8-inch

Total Connect

Load

120 Vac, 60 Hz, 9 Amp MAX (10.0 Amp

MAX surge)

Lights 120 Vac, 75 W halogen

Circuit

Requirement

120 Vac, 15 Amp dedicated, grounded

circuit

Model Specific

MODEL NUMBER

EH48, EHR48,

MH48, EH54 EH42, EHR42

EH30, EHR30,

MH30, EH36,

EHR36, MH36

Lights 3 2 2

Filters 3 3 2

Exhaust

Outputs 211

Fan*

Rating 1200 CFM 600 CFM 600 CFM

* Does not apply to EHR Series

GENERAL SPECIFICATIONS

Revised

04/28/08

EH, EHR & MH Wall Mount

Range Hoods

WEIGHT SPECIFICATIONS

Model Weight

EHR3012 39 lbs. (18 kg)

EHR3018, EHR3612 44 lbs. (20 kg)

EHR3618 48 lbs. (22 kg)

EHR4212 46 lbs. (21 kg)

EHR4218 51 lbs. (23 kg)

EHR4812 52 lbs. (24 kg)

EHR4818 59 lbs. (27 kg)

EHR5418 66.4 lbs. (30 kg)

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 7.13

EH, EHR & MH Wall Mount

Range Hoods

30”, 36”, 42”, 48”, 54” Wide

Hoods

3/3

Revised

06/19/08

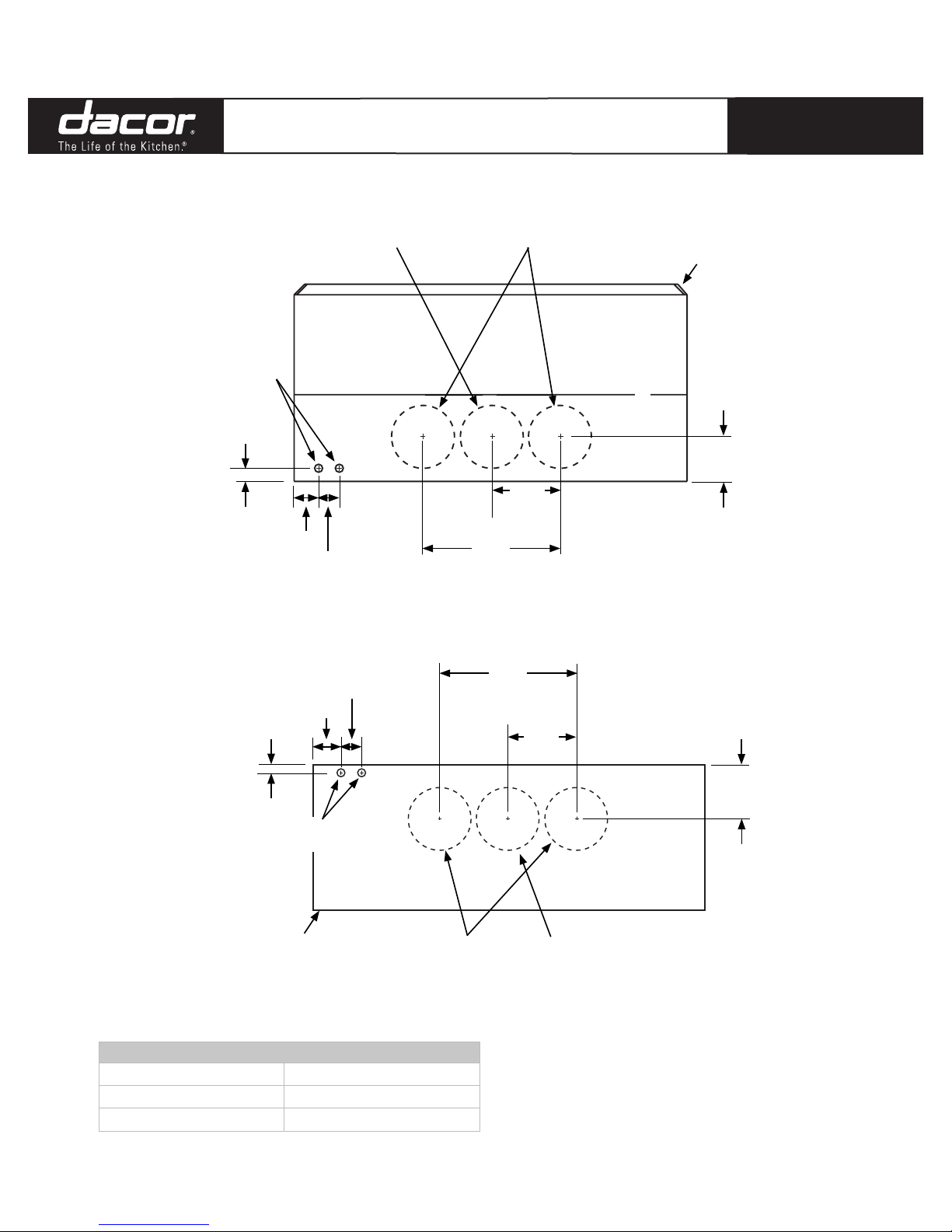

Back Dimensions

3” (7.6 cm)

¾” (1.9 cm)

Electrical access holes

7/8” Dia. (5.1 cm)

Bottom of

hood

Dual exhaust models*

Standard 8” duct connection

Single exhaust models**

Standard 8” duct connection

9 7/8”

(25.1 cm)

19 ¾”

(50.2 cm)

4” (10.2 cm)

D***

NOTE: The exhaust duct(s) and electrical wiring can be connected from either the top or the back of the hood.

All tolerances: +1/16”, -0, (+1.6mm, -0)

unless otherwise stated

Models EH48, EHR48, MH48,

EH54, EHR54

All other models

Front of

hood

Dual exhaust models*

Standard 8” duct connection

Electrical access holes

7/8” Dia. (5.1 cm)

1 ½” (3.8 cm)

6 1/8”

(15.6 cm)

Single exhaust models**

Standard 8” duct connection

3” (7.6 cm)

4” (10.2 cm)

9 7/8”

(25.1 cm)

19 ¾”

(50.2 cm)

Top Dimensions

***Rear Exhaust Placement

Nominal Hood Height D

12” 4 1/2” (11.4 cm)

18” 6 1/8” (15.6 cm)
