Dacor Millennia MRES30S Manuel technique

PLANNING

GUIDE

www.Dacor.com Phone: (800) 793-0093

Specications subject to change without notice.

Install all appliances according to accompanying installation instructions. 5.12

30 Inch Wide

Millennia®Electric Range

MRES30

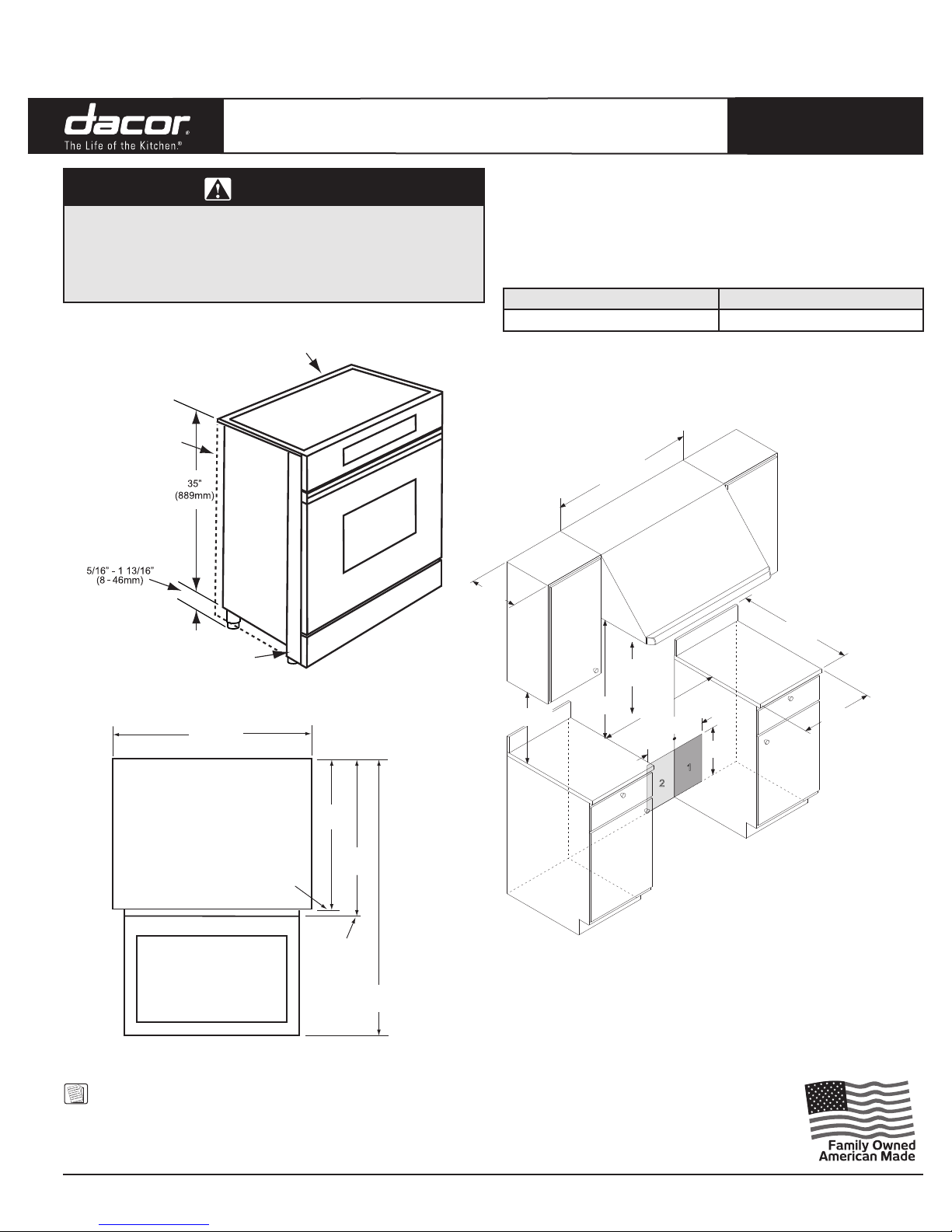

PRODUCT DIMENSIONS - ISO VIEW

Optional full

size side panel

Removable (factory installed)

3” (76mm) side panels

60” (1524mm) long

240 Vac 4 wire

conduit location

Door opened

Range top

23 1/2"

(597mm)

25 5/16"

(643mm)

Rear of control

Panel/oven door

Max. depth

to oven door

handle with

door closed

30"

(762mm)

45 1/4"

(1149mm)

PRODUCT DIMENSIONS - TOP VIEW

All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated

The optional full size side panels are for installation where the side of the

range will not be covered by the cabinet. For the right side panel, order

Dacor part number ARSR30S. Order part number ARSL30S for the left

side.

The above specifications are for reference only. See the product data label

for exact specifications.

For self-rimming cutout dimensions, see the following page.

Document # PG05-005 Revised 05/14/10 Page 1/2

Dedicated Circuit Required Total Connected Load

240 Vac, 60 Hz., 4-wire*, 50 Amp. 12.5 kW (48.2 Amp.)

ELECTRICAL REQUIREMENTS

NOTES:

Electrical is located in the right rear corner of the unit.1.

Range is supplied with a 60” (1524 cm) long 240V 4-wire conduit.2.

WARNING

Observe all governing codes and ordinances during planning•

and installation. Contact your local building department for

further information.

This appliance must be installed in accordance with the•

accompanying installation instructions.

36" (914mm) Recommended

30" (762mm) Min.

25"

(635mm)

30 1/16"

(764mm)

10"

(254mm)

14"

(356mm)

Hood

30" (762mm)

Min. 10" (254mm) Min.

to combustible side

walls above the range

(both sides)

13"

(330mm)

Max.

10"

(254mm)

Top of

finished

counter

Vertical

combustible

surface

18" (457mm)

Min.

FREESTANDING CUTOUT DIMENSIONS

PLANNING

GUIDE

www.Dacor.com Phone: (800) 793-0093

Specications subject to change without notice.

Install all appliances according to accompanying installation instructions. 5.13

MRES30

1/4" (6mm)

Min. flat ledge

28 11/16" (729mm) 11/16"

(17mm)

29 5/8" (752mm)

Rear wall

25"

(635mm)

Adjust for backsplash

thickness

13/16" to 4 1/4"

(21 - 108mm)

Backsplash

Vertical

non-combustible

surface rear wall

27 13/16"

(706mm)

29 1/4" (743mm)13/32" (10mm)

30 1/16" (764mm)

Countertop overhangs cabinet

10" (254mm) Min.

to combustible side

walls above the range

(both sides)

27 7/8" (708mm)

Adjust for backsplash

over 3/4" thick

from 13/16" to 3 13/16"

(21 - 97mm)

Backsplash

thicker than

3/4" (19mm)

1/4" (6mm)

Min. flat ledge

Vertical

non-combustible

surface rear wall

2 13/16"

(71mm)

TOP VIEW - SLIDE-IN, SELF-RIMMING INSTALLATION USING 3” SIDE PANELS

(PART NUMBERS ARSR30 AND ARSL30) WITH BACKGUARD REMOVED

TOP VIEW - DOWNDRAFT ERV30 WITH SLIDE-IN, SELF-RIMMING INSTALLATION USING 3” SIDE PANELS

(NUMBERS ARSR30 AND ARSL30), WITH BACKGUARD REMOVED

All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated

Document # PG05-005 Revised 05/14/10 Page 2/2

30 Inch Wide

Millennia®Electric Range
