Dacor PCOR30 Manuel technique

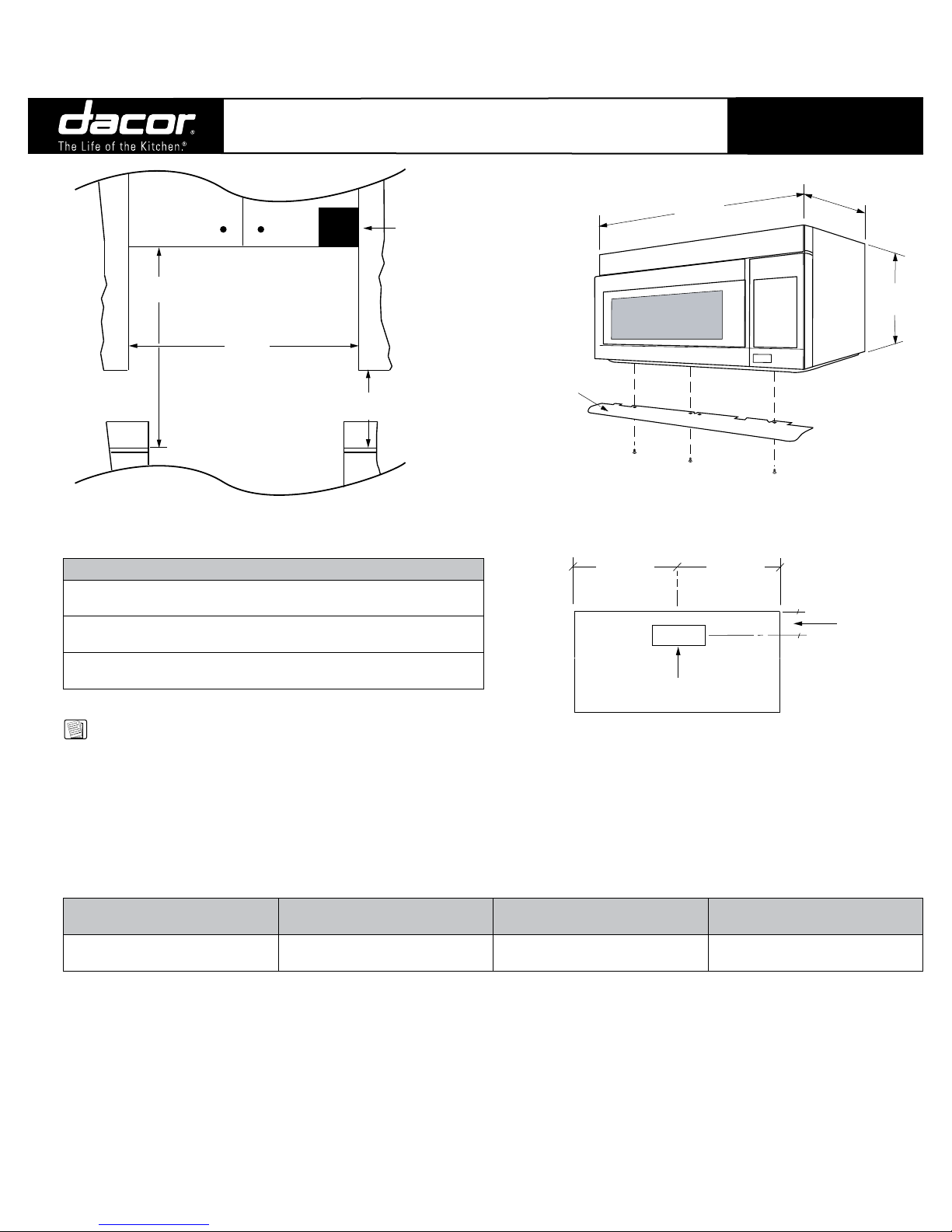

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 12.4

Over the Range

Convection Microwave Oven

PCOR30

Recommended

Utility Location

18” (457mm) Min.

Both Sides

"A"

30”

(762mm)

UPPER CABINET DIMENSIONS

(Upper Cabinets 13” (330mm) Maximum Depth)

“A” - From Top of PCOR30 to Finished Countertop

34” (864mm) Minimum with deector for a maximum

cooktop surface BTU rating of 44,000 BTU’s.

36” (914mm) Minimum without deector for a maximum

cooktop surface BTU rating of 44,000 BTU’s.

36” (914mm) Minimum with deector for a maximum

cooktop surface BTU rating of 60,000 BTU’s.

Model No. Dedicated Circuit Required Total Connected Load

Approximate

Shipping Weight

PCOR30 120VAC, 60Hz, 15A

(Breaker) 1.56kW (13A) 84 lbs.

NOTES:

1. 30” electric cooktops or ranges can be installed at

34” (864mm) with deflector or 36” (914mm) without

deflector for a maximum cooktop surface rating of

10,000 watts.

2. Microwave is supplied with a 48” (1219mm) power

cord, with a three prong grounded plug.

Deflector

29 15/16"

(761mm)

16 1/4"

(413mm)

15 1/4"

(387mm)

OVERALL DIMENSIONS

c

L

c

L

Equal Equal

3 1/4" x 10"

(89mm x 254mm)

Direct Connection

4"

(102mm)

MICROWAVE TOP VIEW

EXHAUST LOCATION

1/1092105
