Dacor DMT2420 Manuel technique

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. CI.24

Microwave/Warming Drawer/

Classic Wall Oven

COMBINATION INSTALLATIONS

9 1/8"

(232mm)

27 1/2"

(699mm)

16 3/4"

(425mm)

1 1/2"

(38mm)

Min.

1 1/2"

(38mm)

Min.

“C”

“B”

“A”

120V

Microwave

Receptacle

240V

Wall Oven

Junction Box

7/8“ (22mm) Min.

1" (25mm)

Min.

58 1/4"

(1480mm)

Overall

Stacked

Height

120V Warming

Oven Receptacle

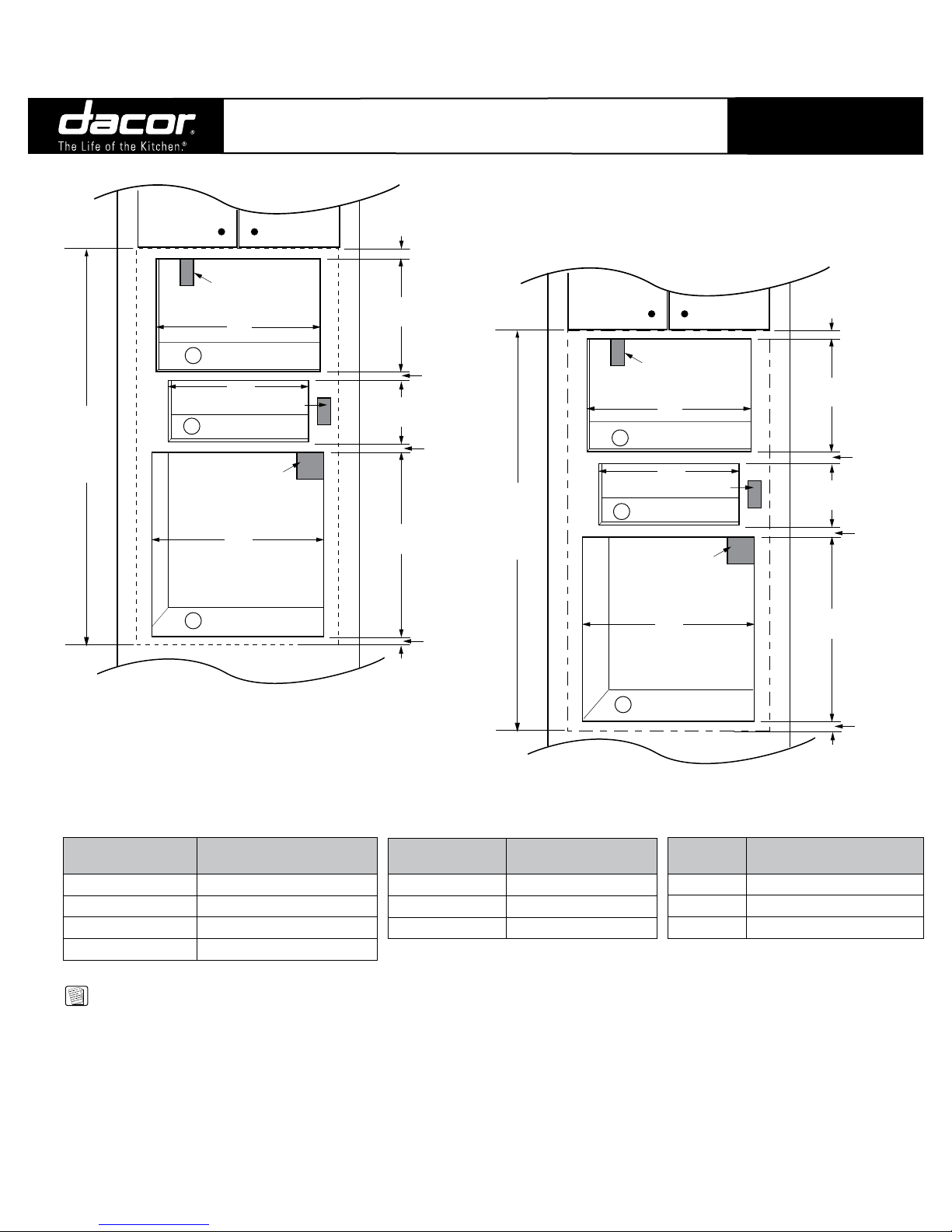

CUTOUT DIMENSIONS

DMT2420 ShOWN

9 1/8"

(232mm)

27 1/2"

(699mm)

19 1/8"

(486mm)

1 3/8"

(35mm)

Min.

1 5/8"

(41mm)

Min.

“C”

“B”

“A”

120V

Microwave

Receptacle

240V

Wall Oven

Junction Box

3/4“ (19mm) Min.

1" (25mm)

Min.

60 7/8"

(1546mm)

Overall

Stacked

Height

120V Warming

Oven Receptacle

CUTOUT DIMENSIONS

DCM24 ShOWN

Wall Oven

Models “C” Cutout Width

Single 27” 25 1/2” (648mm)

Single 30” 28 1/2” (724mm)

Single 36” 34 1/2” (876mm)

Microwave

Model No. “A” Cutout Width

DMT2420 w/Trim Kit 24 3/8” (619mm)

DCM24 w/ACTK27 25 1/4” (641mm)

DCM24 w/ACTK30 28 1/4” (718mm)

DCM24 w/ACTK36 25” (635mm)

Warming

Oven Models “B” Cutout Width

27” 25 1/2” (648mm)

30” 28 1/2” (724mm)

36” 34 3/8” (873mm)

1/1

Revised

09/04/08

All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated

NOTE:

1. 3/4” (19mm) support platform (flush with cutout).

2. See individual appliance Planning Guide pages to

determine overlays.

3. Spacing between appliances and drawers/doors

shown is minimum required to allow for ventilation

and prevent scraping. Additional space may need

to be added for appearance.
