DMT2420 Microwave Oven

Page Description

2 Door Assembly

3 Control Panel Assembly

4 Chassis and Electrical Assembly

5 Chassis and Electrical Parts

Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601

Revised 05-04-2012

Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601

Page 2

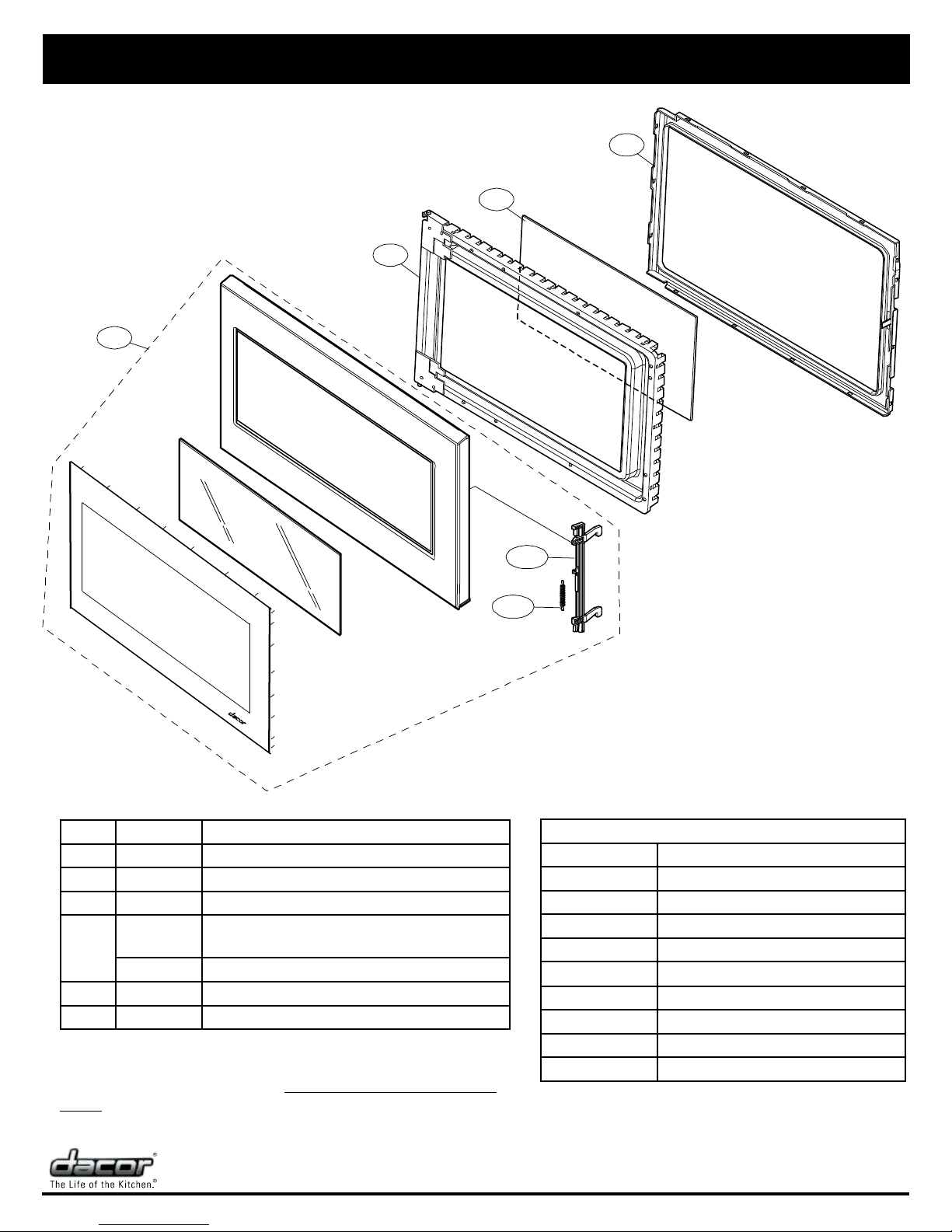

DMT2420 Microwave Door Assembly

Item Part # Description

5-1 See table* DOOR ASSEMBLY*

5-2 86785 LATCH HEAD

5-3 86786 LATCH SPRING

5-4 86783 DOOR PANEL, ALL MODELS EXCEPT

WHITE

66855 DOOR PANEL, WHITE

5-5 86788 SEALER FILM

5-6 86784 CHOKE COVER

* IMPORTANT: There are two different black styles and other

various color schemes. Be careful to match model number to the

correct part number in the table, otherwise the new part will not

match.

5-1

5-3

5-2

5-6

5-4

5-5

Door Style Table

Model Door Door Assembly Part #

DMT2420AG 86782AG

DMT2420B* 86782*

DMT2420BK* 86782BK*

DMT2420BU 86782BU

DMT2420GN 86782GN

DMT2420R 86782R

DMT2420S 86782

DMT2420SG 86782SG

DMT2420TS 86782TS

Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601

Page 3

3 -3 -1

3 -4

3 -3

3 -3 - 2

3 -3 - 3

3-2

3-5

3-1

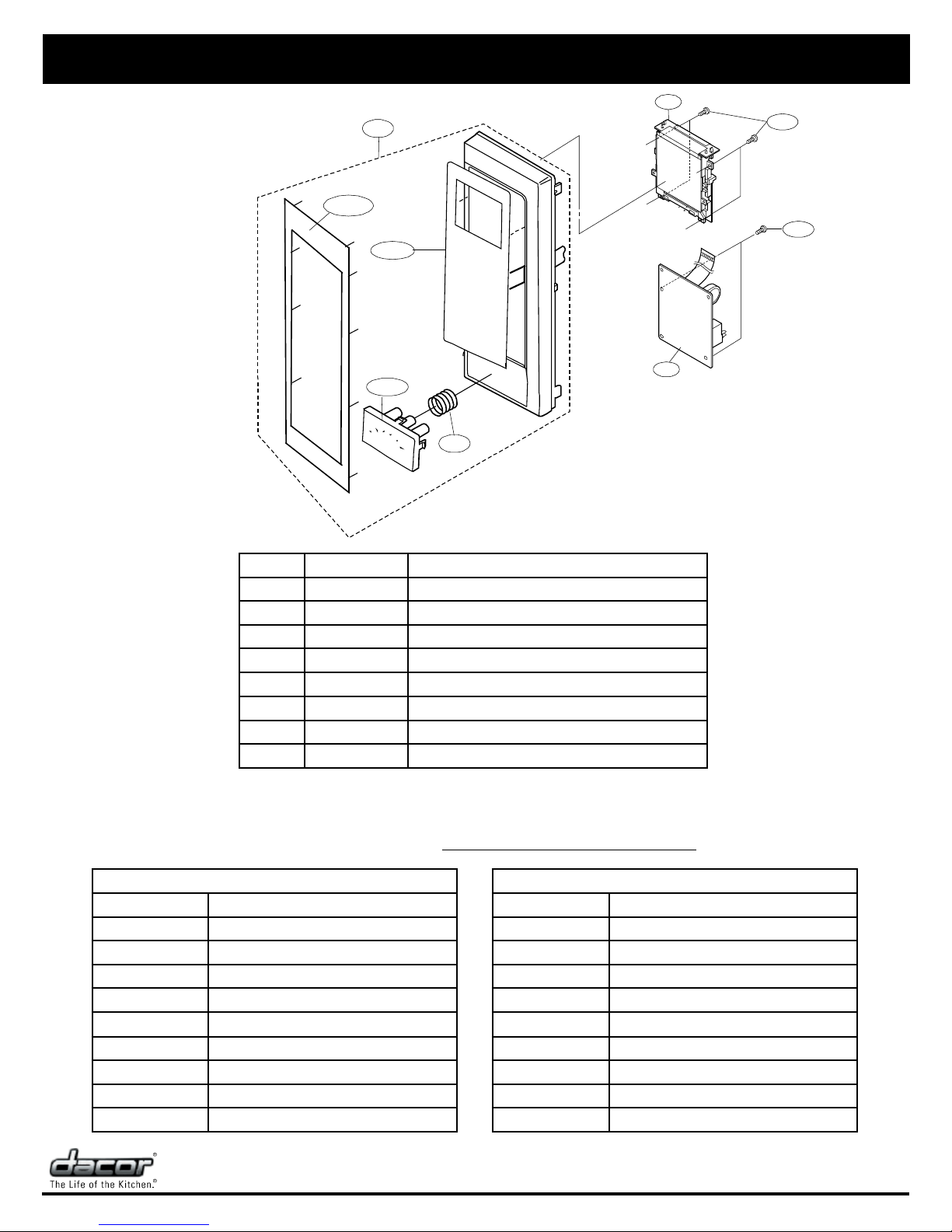

DMT2420 Microwave Control Panel Assembly

Item Part # Description

3-1 66852* POWER UNIT (N/A)*

3-2 101871 LSI/POWER SUPPLY UNIT ASSY

3-3 See table 1** CONTROL PANEL FRAME ASSEMBLY**

3-3-1 66859 KEY UNIT

3-3-2 See table 2** DOOR OPEN BUTTON**

3-3-3 66863 DECORATION PLATE

3-4 86779 OPEN BUTTON SPRING

3-5 86780 SCREW, 3 MM X 10 MM

* Replaced with PN 101871 (3-2), order PN 101871.

** IMPORTANT: There are two different black styles and other vari-

ous color schemes. Be careful to match model number to the cor-

rect part number in the table, otherwise the new part will not match.

Table 2 - Control Panel Style Table

Model Control Panel Assembly Part #

DMT2420AG 66858AG

DMT2420B* 66858B*

DMT2420BK* 66858BK*

DMT2420BU 66858BU

DMT2420GN 66858GN

DMT2420R 66858R

DMT2420S 66858S

DMT2420SG 66858SG

DMT2420TS 66858TS

Table 2 - Door Open Button Style Table

Model Door Open Button Part #

DMT2420AG 66337AG

DMT2420B* 66864*

DMT2420BK* 66337BK*

DMT2420BU 66337BU

DMT2420GN 66337GN

DMT2420R 66864

DMT2420S 66864

DMT2420SG 66337SG

DMT2420TS 66337TS

Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601

Page 4

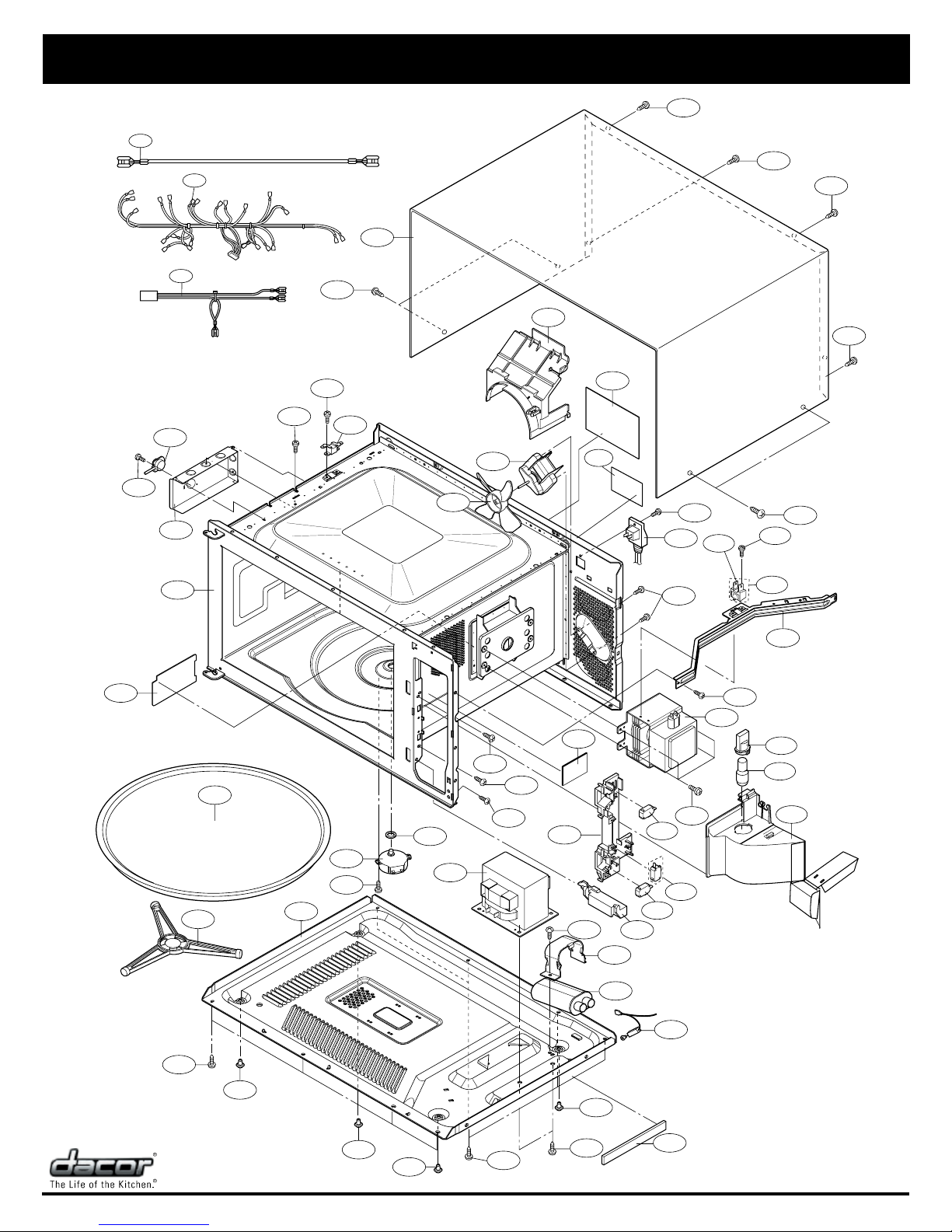

DMT2420 Chassis and Electrical Assembly

2-3

4-7

6-6

1-5

4-6

4-8

4-11

7-6

7-2

1-14

4-9

6-4

6-3 2-1

7-6

1-11

4-10

7-2

4-3

1-12

1-9

7-3

7-6

7-8

4-2

7-5

1-10

7-1

4-4

7-1

4-1

1-1

1-2

2-2

7-5

7-5 4-12

7-5

6-5

1-13

7-4

7-7

7-4

7-9

7-7

6-9

7-5

7-6

1-8

1-6

1-3

1-4

4-5

1-7

1-6

Actual wire harnesses may be different from illustration.

6-8

6-2

6-1

Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601

Page 5

DMT2420 Chassis and Electrical Parts

Item Part # Description

1-1 66874 HI VOLTAGE CAPACITOR

1-2 66857 HI VOLTAGE RECTIFIER ASSEMBLY

1-3 86797 OVEN LAMP SOCKET

1-4 86800 OVEN LAMP

1-5 86805 FAN MOTOR

1-6 66890 MONITOR SWITCH

1-7 66236 INTERLOCK SWITCH

1-8 66872 C/T FUSE

1-9 86795 CAVITY TEMPERATURE FUSE

1-10 66354 MAGNETRON

1-11 66245 TURN TABLE MOTOR

1-12 76123 POWER TRANSFORMER

1-13 66854 POWER SUPPLY CORD

1-14 66856 AH SENSOR

2-1 66861 BASE PLATE

2-2 66862 FOOT

2-3

86813R OUTER CASE CABINET (WHITE UNITS)

86813 OUTER CASE CABINET (ALL OTHER

COLORS)

4-1 86817 H.V CAPACITOR BAND

4-2 66865 CHASSIS SUPPORT

4-3 66871 LATCH HOOK

4-4 86824 SWITCH LEVER

4-5 66870 MAGNETRON DUCT

4-6 66867 FAN BLADE

4-7 66868 FAN DUCT

4-8 ------- OVEN CAVITY (NOT REPLACEABLE)

4-9 1060741WAVEGUIDE COVER

4-10 86843 TURN TABLE MOTOR PACKING

4-11 66869 SENSOR DUCT

4-12 86836 CUSHION

1Use part number 66345 for units with the following part

numbers:

Model Serial Number

DMT2420B 7041987 and above

DMT2420R 7041955 and above

DMT2420S 7041301 and above

DMT2420BC NA

DMT2420RC 7041953 and above

DMT2420SC 7041300 and above

Item Part # Description

6-1 86792 STOP SWITCH HARNESS

6-2 66860 MAIN WIRE HARNESS

6-3 66184 TURNTABLE SUPPORT

6-4 66344 TURNTABLE TRAY

6-5 66876 MONITOR CAUTION LABEL

6-6 ------- DHHS/SCREW CAUTION LABEL

6-7 66877 OPERATION MANUAL

6-8 86799 HIGH VOLTAGE WIRE A

6-9 ------- UL SCREW CAUTION LABEL

7-1 86819 SPECIAL SCREW

7-2 86820 SPECIAL SCREW

7-3 86902 SCREW: 4 MM X 12 MM

7-4 66866 SPECIAL SCREW (TORX TAMPER

PROOF)

7-5 66888 SCREW: 4 MM X 12 MM

7-6 86847 SCREW: 3 MM X 8 MM

7-7 66889 SPECIAL SCREW

7-8 86901 SCREW: 4 MM X 8 MM

7-9 86946B SCREW: 4 MM X 12 MM (BLACK)

86905 SCREW: 4 MM X 12 MM

---- 106061 NOISE FILTER BOARD (NOT SHOWN)
